ICT ICT200DB-12IRC

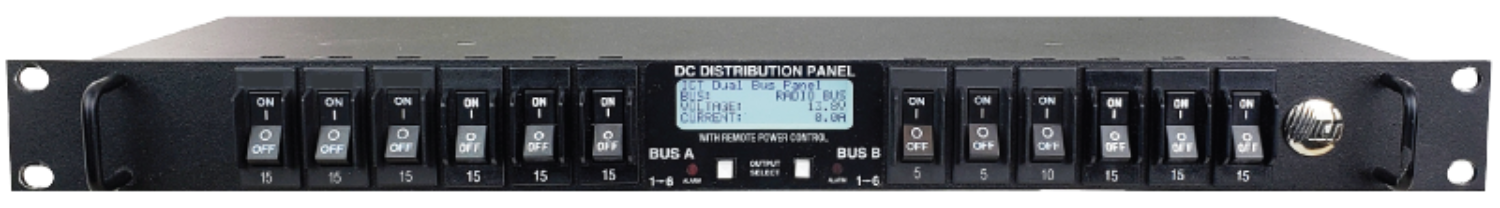

The Distribution Series 3 from ICT is a dual-bus DC distribution panel designed to be used in 12-, 24- or 48-volt DC applications. This dual-bus panel can support dual-voltage inputs and mixed polarities and is available with circuit breaker-protected outputs. Can also be operated as a single bus distribution panel. Models include a secure, easy-to-use web-browser interface, which provides remote power monitoring, power control, and alarm reporting over an Ethernet link, along with SNMP support for integration into your network management system.
Features
- Supports +12, +24, and +/-48 volts DC applications
- 200-amp peak system current / 180 amps continuous
- Dual-bus architecture (Bus A & Bus B)
- Configurable for dual bus or single bus operation
- Total of 12 breaker output positions rated up to 25 amps (12 & 24 V) and 20 amps (48 V) per output
- 6 outputs per bus
- Front-mounted breakers
- Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities
- Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3
- Reporting of total system current (Bus A & Bus B), individual load current, Bus A and Bus B system voltage, and fuse or breaker status
- Alarm reporting via text or email notification
- Remote individual output power toggling
- Automatic load shedding disconnects non-critical loads when on battery power (user defined)
- Network watchdog automatically reboots routers or switches when no response is received
- Five digital site monitoring input contacts
- Up to 30 days of data logging
- Heavy duty input stud connectors
- Form C alarm contacts
- 1RU 19-inch rackmount form factor
- Two-year warranty
Benefits
- Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
- Improve the quality of service and uptime of your network by quickly resolving power issues remotely
- Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
- No additional software required as monitoring and control is provided via an onboard web-based server
- Support mixed-voltage sites with dual-bus architecture
Electrical
| Power Specifications |
ICT200DB-12IRC |
| Application Voltage (pos or neg gnd) |
12, 24, 48VDC |
| System Current Rating (peak/cont) |
200A/160A |
| Bus current Rating (peak/cont) |
100A/80A |
| Number of Outputs per bus |
6 |
| Operating Voltage Range |
10-60VDC |
| Number of ATO Fused DC Outputs |
—- |
| ATO Max Fuse Rating (12, 24V) |
—- |
| ATO Max Fuse Rating (48V) |
—- |
| Number of Breaker Outputs |
12 |
| Max Breaker Outputs (12, 24V) |
30A |
| Max Breaker Outputs (48V) |
30A |
Mechanical
| Form Factor |
1RU – 19 inch rack mount with handles |
| Dimensions (L x W x H) |
9.29 x 19.0 x 1.72 Inches |
| Weight |
7.0 lbs / 3.2 kg |
| Connectors |
M8 DC Input stud connectors, 10-22AWG cage clamp output terminal blocks |
Environmental
| Operating Temperature Range |
-20°C to +60°C |
Communications
| Ethernet |
TCP/IP built-in web server and graphical user interface; 10/100 BASE-T; IEEE 802.3 compatible |
| Supported Protocols |
IPv4, HTTP, HTTPS, SMTP, DNS, TCP, UDP, ICMP, DHCP, ARP, SNMP v1/v2c/v3 |
| SNMP Ports |
UDP Port 161, SNMP Traps: UDP Port 162 |
| Firmware Upgrades |
Upgradable over Ethernet |
| Security |
Password protected, HTTPS, TLS 1.0 |
| 12 Channel Output Monitoring |
Current draw measured and reported for each output, definable under and over current alarms |
| Email and SMS Alerts |
Multiple email and text accounts with adjustable intervals |
| Data Logging |
Up to 30 days at one-minute sampling rate, CSV file download, major event logging |
| Network Watchdog |
Autonomously ping up to two I.P addresses and power-cycle output if no response, definable settings |
| Power Cycling and Rebooting |
Remote on/off control of every output individually |
| Auto Restore Mode |
Will return to previous output settings after a power loss |
| Power-up Delay Sequencing |
User selectable 0 to 60 seconds delay between outputs energizing |
| Auto Load Shedding |
Each output user definable, manual or auto restart |
| Remote Alarms |
Each output user definable, manual or auto restart |
