Description

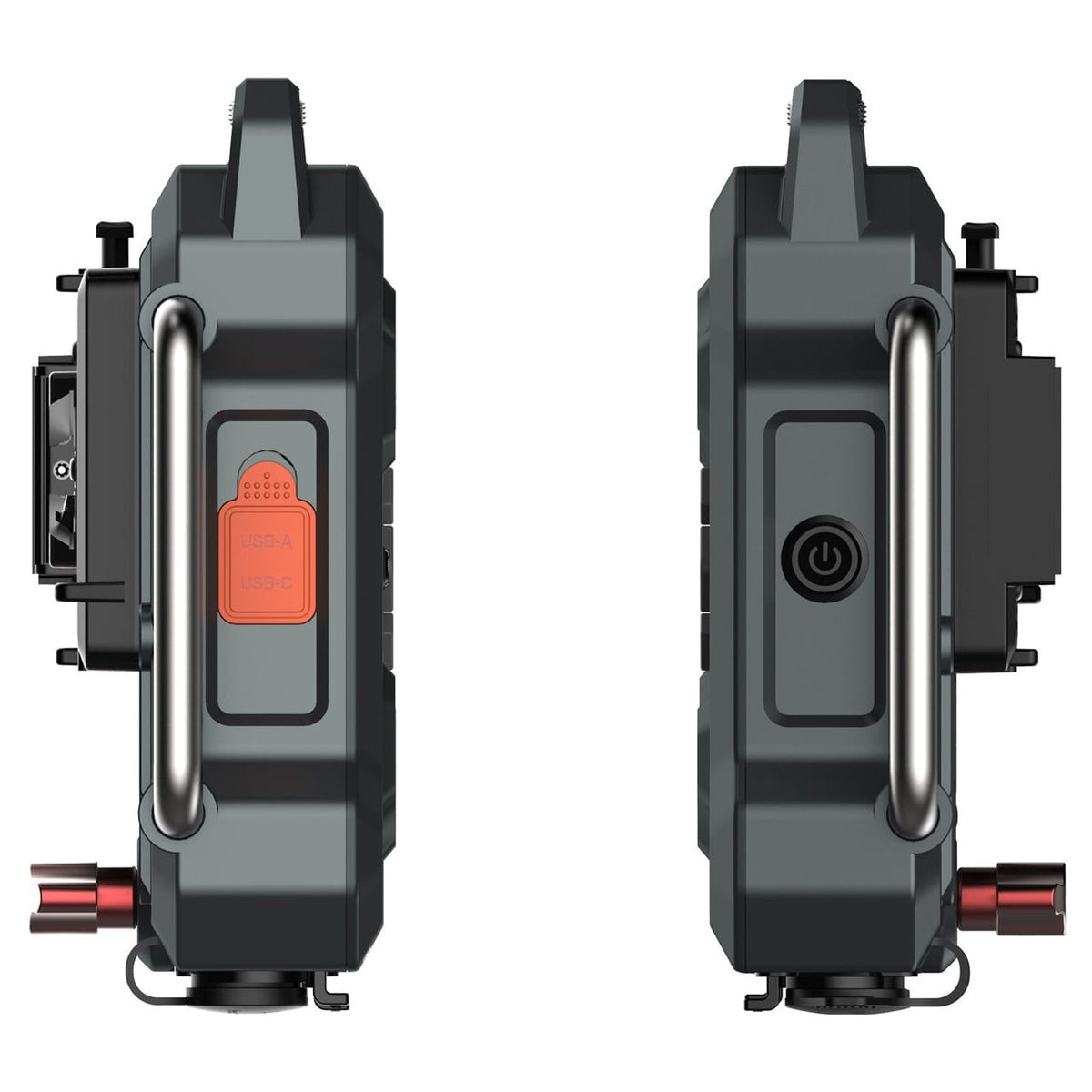

Hollyland Solidcom ANT01 Solidcom ANT01 Antenna
ANT01 Antenna is designed to deliver stable, wide-area coverage for Hollyland's Solidcom H1 wireless intercom system. Supporting productions of any size, the H1 system can operate up to 30 beltpacks without a central station-or scale to 80 beltpacks when paired with the Geo Central Station, all with no license fees required.
- Solidcom H1 Intercom System Antenna
- 1640 Foot Line-of-Sight Coverage Range
- Seamless Roaming Across Zones
- Supports up to 20 Beltpacks
- Smart App Control Capability
- Cloud Communication Support
- 3 ANT01 Units Support up to 30 Beltpacks
- Supports up to 80 Beltpacks when used with Geo Central Station
- 12 Groups Standard, 100 with Geo Central Station
- Comprehensive Interfaces, Dante Support
- IP54 Dust and Water Resistance
- PoE Power Support
Specifications
LOS Range: 500m
Operating Frequency
DECT: 1880 - 1930 MHz;
BT: 2402 - 2480 MHz
WIFI: 2.4G - 2.4835 Ghz
Transmit Power: 24 dBm
Bandwidth: 1.728 MHZ
Modulation Mode: GFSK
Receiver Sensitivity: -90 dBm
Antenna Gain: 4dB
Power Consumption: 15.5W
POE Output Power: ≤ 45W
POE Input Power: ≤ 60W
V/G Mount Battery Voltage Range: 9 - 30V
Dimensions: 302mm × 188.56mm × 64.6mm
Weight: 1987g
Ingress Protection (IP) Rating: IP54
Operating Temperature: -10 - 45℃
Storage Temperature: -20 - 60℃
