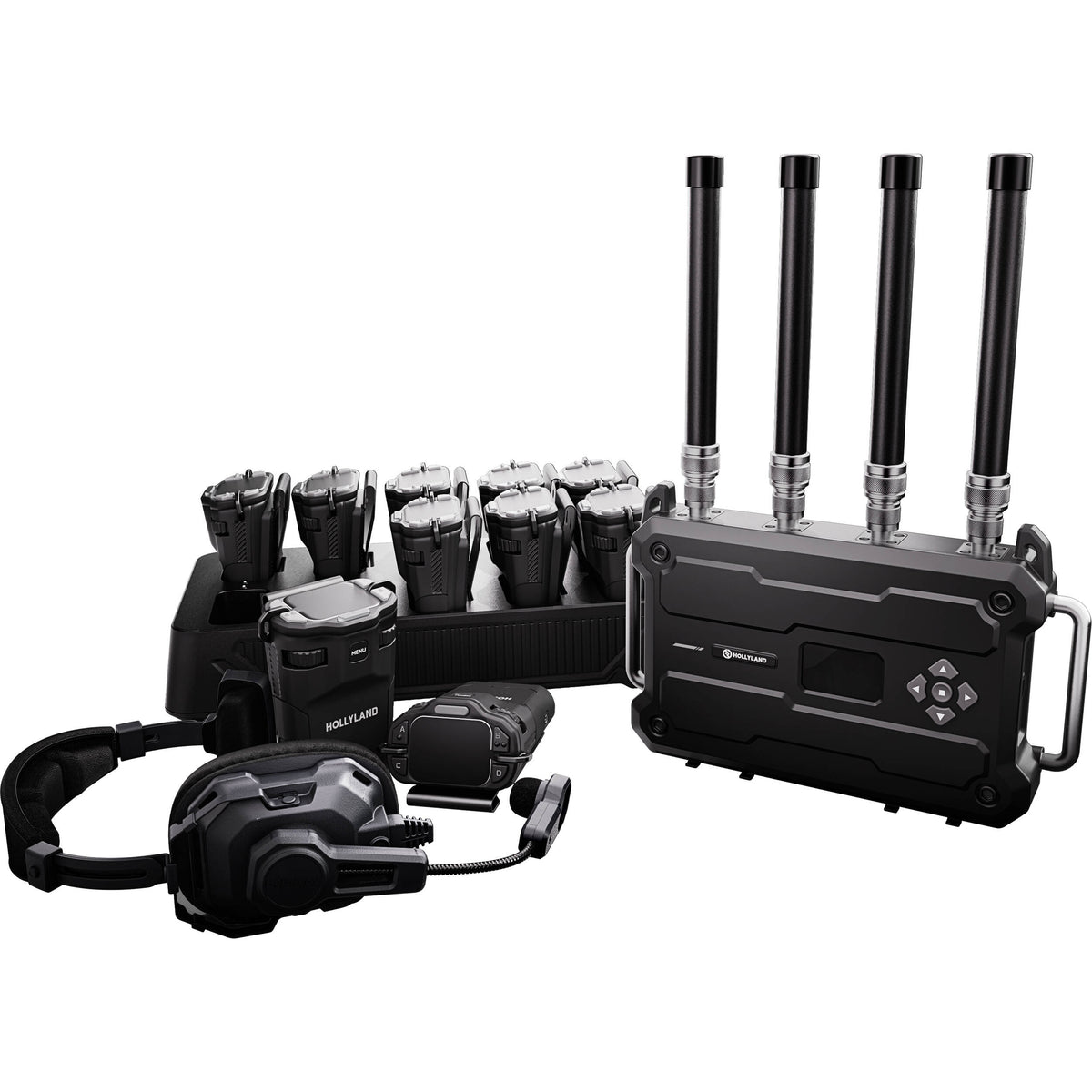

Hollyland HL-Solidcom H1 - 10S Solidcom H1-10S10-Person Noise Cancelling Headset Intercom
The Solidcom H1 Wireless Intercom System is a scalable, license-free communication solution designed for productions of any size. Operate up to 30 beltpacks and 12 groups without a central station, or scale up to 80 beltpacks and manage up to 100 groups with the Geo Central Station, covering over 4 million square meters by leveraging advanced roaming cascade technology. With cloud access, smart grouping, and seamless integration with Dante and existing wired intercom systems, Solidcom H1 ensures effortless team coordination. Enjoy true wireless audio, intuitive setup, and massive coverage — empowering production teams to communicate without limits.
Up to 80 Beltpacks. Flexible Configuration.
From small film sets to large broadcast productions, scale your system effortlessly with 1.9 GHz wireless communication.
* In some regions, available carrier frequency regulations may limit the maximum supported number of beltpacks to fewer than 80. For further information, please reach out to Technical Support.
No Central Station Needed.
Each Solidcom ANT01 unit operates independently, enabling full-duplex communication for up to 20 beltpack users — without the need for a Geo Central Station. Link up to 3 Solidcom ANT01 units for a streamlined setup supporting as many as 30 beltpacks.
Powerful On Its Own.
A single Solidcom ANT01 unit covers up to 500 meters (1640ft) in radius (in open-field conditions). With 3 Solidcom ANT01 units in IP cascading, the system supports up to 30 beltpacks. For larger deployments, expand through 2W/4W interfaces to connect additional Solidcom ANT01 systems or third-party intercoms — no upper limit.
Extreme Roaming Deployment.
Up to 8 Solidcom ANT01 units can be roaming-cascaded with the Geo Central Station to deliver wireless coverage over 4 million square meters — equivalent to 560 standard soccer fields.
Tailor Your Talk.
Multi-Function Buttons.
With 4 fully customizable buttons, the Solidcom BPK01 adapts to any workflow. Each button can be assigned as a talk key or call alert, and supports up to 4 stacked actions (totally 16 audio channels) — like talking to multiple channels, sending multiple call signals, or combining both in one press. Powerful control, simplified.
Tailor Your Talk.
Multi-Function Buttons.
With 4 fully customizable buttons, the Solidcom BPK01 adapts to any workflow. Each button can be assigned as a talk key or call alert, and supports up to 4 stacked actions (totally 16 audio channels) — like talking to multiple channels, sending multiple call signals, or combining both in one press. Powerful control, simplified.
Back Panel
Equipped with standard 2W/4W interfaces, Geo Central Station connects directly to third-party intercom systems — effortless setup, flawless integration.
Front Panel
Equipped with 8 Call Toggle Switches,
allowing for quick and seamless switching between call states.
Geo Central Station
Total Power Consumption: 44W
PoE Output Power: 120W; 60W/Port
DC Input Voltage: 46V – 54V
AC Input Voltage: 85V – 264V
Dimensions: 482.6mm x 88.1mm x 385mm
Operation Temperature: -10 ℃ – 45 ℃
Storage Temperature: -20 ℃ – 60 ℃
LEMO Audio
Input Frequency Response: 150 Hz – 7 kHz
Maximum Input SPL: 115dB SPL
Noise Cancellation Depth: 20dB
Signal-to-noise Ratio (SNR): 67dB
Output SPL Level: 113dB SPL Max
Solidcom ANT01
Receiver Sensitivity: -90 dBm
V/G Mount Battery Voltage Range: 11V – 30V
Dimensions: 302mm x 188.56mm x 64.6mm
Operation Temperature: -10 ℃ – 45 ℃
Storage Temperature: -20 ℃ – 60 ℃
