HK Audio Linear 5 112 F Passive Two-Way 1000 Watt 12 Inch Speaker
12″/1″ full-range mid/high unit with the strongest bass range in its class and asymmetrical horn ( 60º – 90º x 55º ) for optimised sound distribution. The switchable EQ means it can be used in stand-alone applications or in a stereo pair, as well as a system mid/high unit in conjunction with a LINEAR SUB subwoofer.
Features:
- For Music, Speech, and Background
- 500W RMS, 1000W Program
- 12" Woofer, 1" High-Frequency Driver
- 135 dB Max SPL
- Asymmetrical Horn: 60-90° x 55° Rotatable
- 79 Hz to 18 kHz Frequency Response

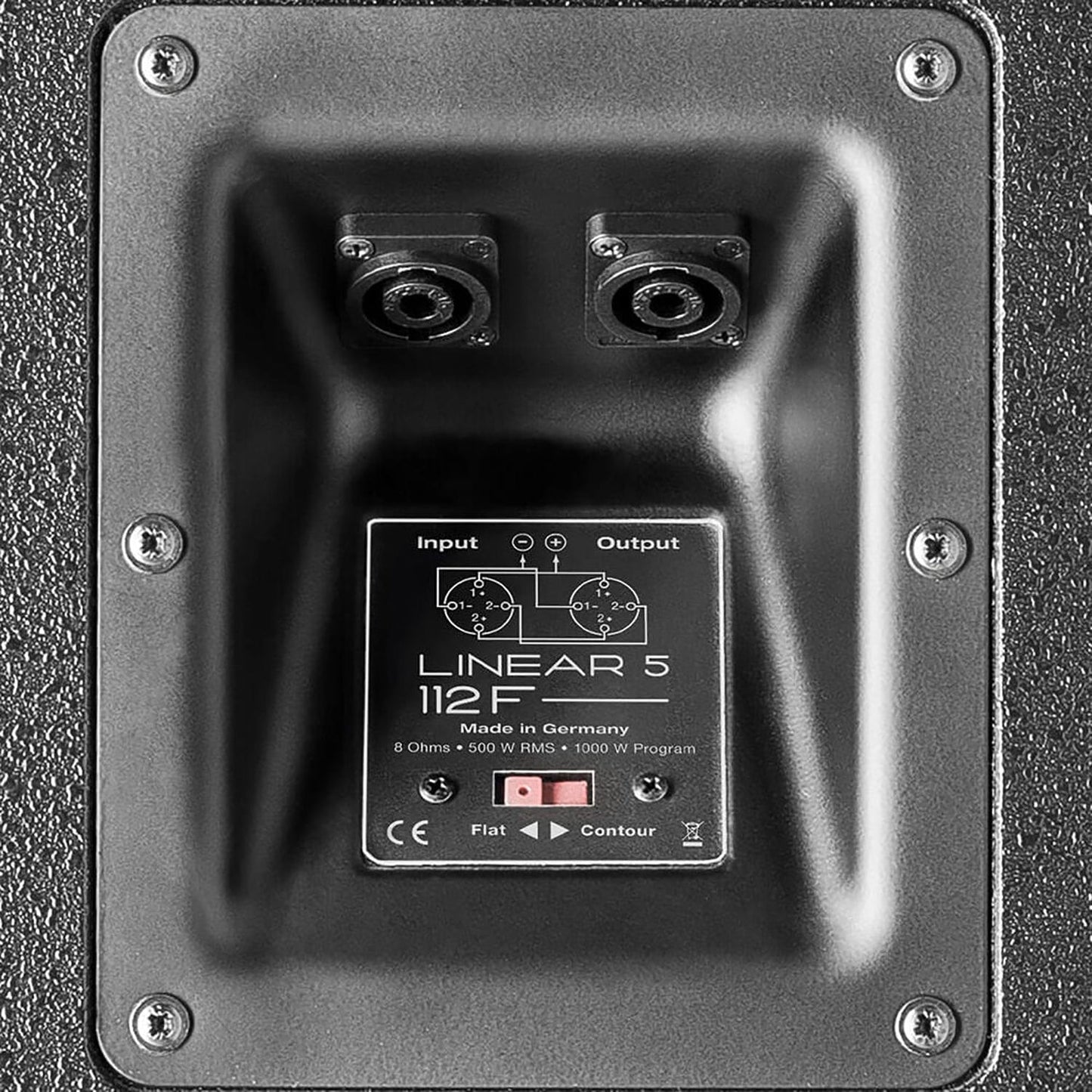

- Neutrik NL4 speakON Input and Output
- Hybrid Birch/MDF with Metal Grille
- DuoTilt Pole Cup: 3/7°
Specifications:
- Power-handling nominal (RMS): 500 W
- Power-handling, program: 1000 W
- Frequency response +/-3 dB: 79 Hz – 18 kHz
- Frequency response -10 dB: 60 Hz – 19 kHz
- Sensitivity 1 W @ 1 m: 103 dB half space
- Max. SPL @ 10% THD: 129 dB half space (79 Hz – 12 kHz average)
- Max. SPL Peak @ 10% THD: 135 dB half space
- Electrical impedance: 8 ohms
- Protective circuits: PTC circuit
- Low-/mid speaker: 1x 12", 2.5" voice coil
- HF Driver: 1", 1.75" voice coil
- Directivity: 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
- Crossover frequency: 1.7 kHz, 12 dB/Oct.
- Connections: 2x Speakon NL4
- Pole mount: DuoTilt 3°/7°
- Rigging points: 3x M8 (AP-8)
- Carrying handles: 2x MultiGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8"
- Weight: 23.9 kg / 52.7 lbs
- Power-handling nominal (RMS): 500 W
- Power-handling, program: 1000 W
- Frequency response +/-3 dB: 79 Hz – 18 kHz
- Frequency response -10 dB: 60 Hz – 19 kHz
- Sensitivity 1 W @ 1 m: 103 dB half space
- Max. SPL @ 10% THD: 129 dB half space (79 Hz – 12 kHz average)
- Max. SPL Peak @ 10% THD: 135 dB half space
- Electrical impedance: 8 ohms
- Protective circuits: PTC circuit
- Low-/mid speaker: 1x 12", 2.5" voice coil
- HF Driver: 1", 1.75" voice coil
- Directivity: 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
- Crossover frequency: 1.7 kHz, 12 dB/Oct.
- Connections: 2x Speakon NL4
- Pole mount: DuoTilt 3°/7°
- Rigging points: 3x M8 (AP-8)
- Carrying handles: 2x MultiGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8"
- Weight: 23.9 kg / 52.7 lbs
