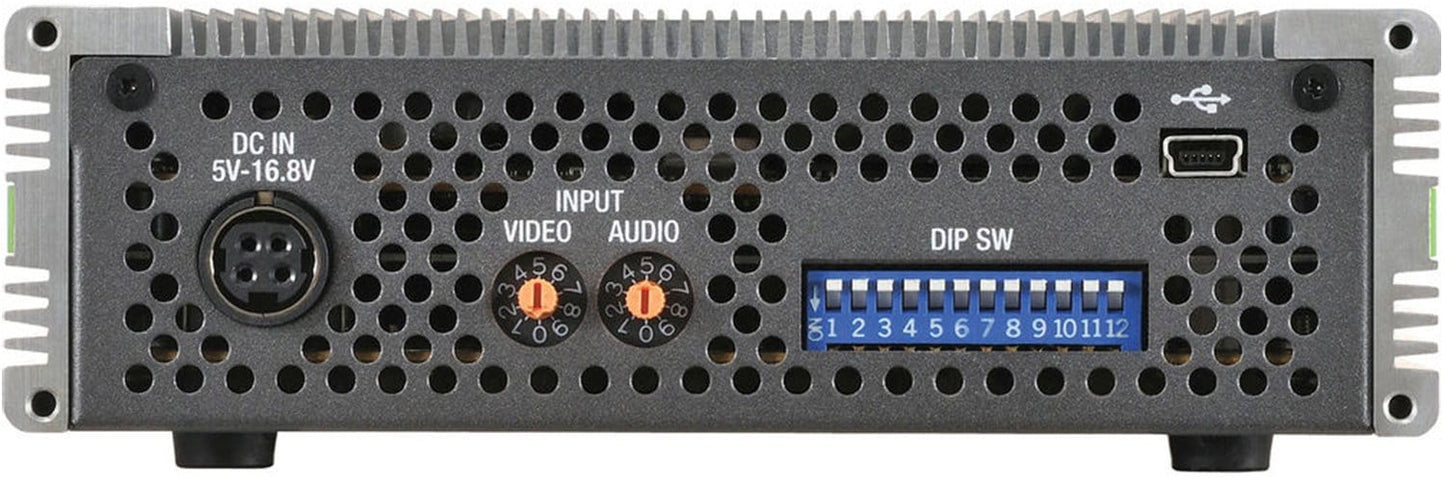

Grass Valley ADVCG1C SDI Video Converter

Grass Valley ADVCG1C SDI Video Converter

The Grass Valley ADVC G1 Any In to SDI Multi-Functional Converter / Upconverter with Frame Sync is a 1/3 RU box that performs a great many functions for its compact size. The outputs are dual 3G/HD/SD-SDI, so the ADVC G1 could serve as an economical, simple solution for keeping your facility's legacy gear and media accessible and useful within your modern infrastructure. The ADVC G1 converts and/or upconverts sources to HD/SD-SDI (with 1.5 and 3 Gb/s support) via its HDMI, DVI, component, composite, and S-Video inputs. The box also functions as an audio embedder, capturing sources via its AES/EBU and analog audio inputs and embedding them for output via SDI. With its video reference input, the ADVC G1 is able to serve as a frame synchronizer for audio inputs, eliminating the need for a separate frame synch.

Features:

• Converts any supported input connection to SDI, incorporating 3G technology
• Feature-rich at an affordable price, with an advanced upconverter and an integrated frame synchronizer
• Multi-purpose converter inputs DVI (PC resolution support) and includes audio inputs for audio embedding
• Conversion from analog to SDI
• Conversion from DVI or HDMI to 3G/HD/SD-SDI
• High-quality upconversion from analog SD to HD or 3G
• Frame synchronization (house sync) of analog signals

Specifications

• Video Inputs:
  • 1x HDMI
  • 1x DVI-I: DVI and analog RGB
  • 3x BNC: RGB, analog component, composite, and S-Video
• Audio Inputs:
  • 2x analog audio
  • 1x AES/EBU (stereo) 8x channels embedded via HDMI
• Reference Video Input:
  • 1x BNC: frame synchronizer
• Video Outputs:
  • 2x BNC: 3G/HD/SD-SDI
• Input Formats:
  • 1080i60/59.94/50
  • 1080p60/59.94/50/30/29.97/25/24/23.98
  • 1080psf/24/23.98
  • 720p60/59.94/50
  • 480i/p60/59.94
  • 576i/p50
  • PC resolutions (640 x 480, 800 x 600, 1024 x 768, 1366 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1200)
• Output Formats
  • 1080i60/59.94/50
  • 1080p60/59.94/50/30/29.97/25/24/23.98
  • 1080psf/24/23.98
  • 720p60/59.94/50/30/29.97/25/24/23.98
  • 480i59.94
  • 576i50
• Input Signal Compatibility: YPbPr (SD), EBU-N10 (SD), Betacam (SD), YC (SD), YPbPr (HD), HDMI
• Output Signal: SMPTE 259M (SD-SDI), SMPTE 292M (HD-SDI), SMPTE 424M (3G-SDI)
• Power: 12V DC, 3A (includes AC adapter)
• Operating Temperature: 32-104 °F (0-40 °C)
• Humidity: 8%~80% (no condensation)
• Dimensions: 1.7 x 5.6 x 3.9" (42.5 x 142.5 x 98.5mm)
