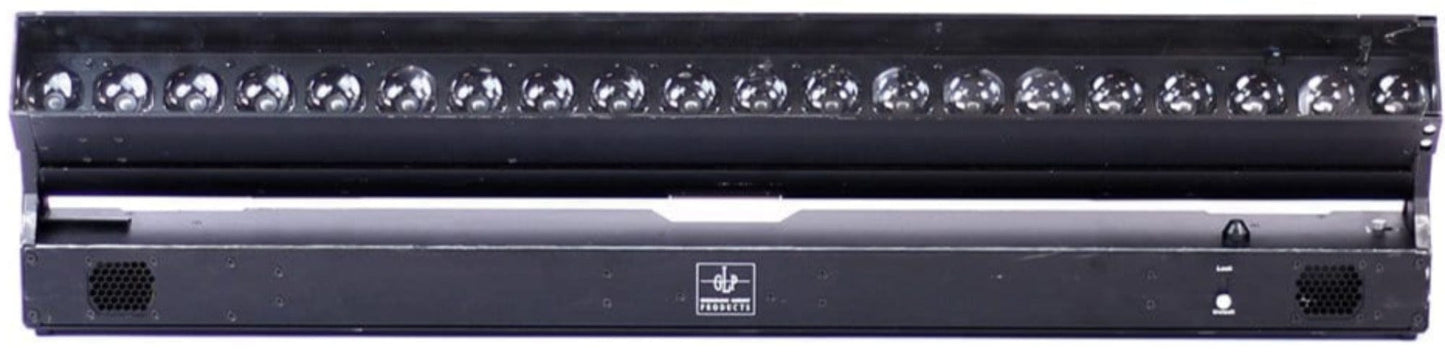

GLP impression X4 Bar 20 RGBW LED Bar Moving Light
This set contains 4 units of the following:
*GLP impression X4 Bar 20 RGBW LED Bar Moving Light
The GLP impression X4 Bar 20 is a high performance batten fixture. That Offer flexibility to today’s lighting designer across multiple applications. The GLP impression X4 Bar batten uses high output RGBW LED’s. That are packed tightly to give a full batten of light with 20 LED’s used in the 40″ long X4 Bar 20.
Specifications:
- Available Light Sources
- impression X4 Bar 20 available with:
- 10 Osram high powered RGBW LED’s
- 10 Osram high powered RGBY LED’s
- 10 Osram high powered variable white LED’s
- Average service life: 50.000 hours
- Optical System
- Motorized zoom system with 7° to 50° light distribution angle
- High efficient collimator cluster for maximum light output
- 30° x 3° horizontal spread filter included
- Movement
- 16 bit resolution motorized tilt
- Position feedback
- 210° tilt in 1.5 sec
- High precision 3 phase stepping motor control
- Shutter / Dimmer
- Continuous dimmer 0-100%
- Variable speed strobe between 1-10 flashes per second
- Random strobe effect
- Pulse effects
- Control
- DMX-512 protocol
- Full pixel mapping control
- Internal color presets
- Variable CTO control from 2,500K – 10,000K
- Very quiet, temperature controlled ventilation system
- Convection cooling option
- Back lit graphic LCD menu
- Battery operation of menu
- Over temperature protection
- Color calibration feature
- Power Supply
- Power consumption:
- impression X4 Bar 20:450VA (Watt)
- Power input: auto sensing 100-240 V AC, 50-60Hz
- Fuse protection: micro fuse 5 mm x 20 mm, T 5A
- Connectors
- DMX: XLR5 pin
- Mains: Neutrik Powercon (in and thru)
- Operating Conditions
- Maximum ambient temperature: 113°F (45°C)
- Mounting Options
- Omega bracket attachments mount directly to rear of fixture
- Optional omega bracket to end hang fixture
- Attachment points for safety wire
- Built in rubber feet for floor mounting
- Housing Colors
- Standard color is black
- For other colors please contact sales department
- Dimensions
- (L x W x H): head vertical
- impression X4 Bar 20: 39.4″ x 9.4″ x 3.9″ (100 cm x 24 cm x 10 cm)
- Weight
- impression X4 Bar 20: 32 lbs (14.5 kg)
- impression X4 Bar 20 available with:
- 10 Osram high powered RGBW LED’s
- 10 Osram high powered RGBY LED’s
- 10 Osram high powered variable white LED’s
- Average service life: 50.000 hours
- Motorized zoom system with 7° to 50° light distribution angle
- High efficient collimator cluster for maximum light output
- 30° x 3° horizontal spread filter included
- 16 bit resolution motorized tilt
- Position feedback
- 210° tilt in 1.5 sec
- High precision 3 phase stepping motor control
- Continuous dimmer 0-100%
- Variable speed strobe between 1-10 flashes per second
- Random strobe effect
- Pulse effects
- DMX-512 protocol
- Full pixel mapping control
- Internal color presets
- Variable CTO control from 2,500K – 10,000K
- Very quiet, temperature controlled ventilation system
- Convection cooling option
- Back lit graphic LCD menu
- Battery operation of menu
- Over temperature protection
- Color calibration feature
- Power consumption:
- impression X4 Bar 20:450VA (Watt)
- Power input: auto sensing 100-240 V AC, 50-60Hz
- Fuse protection: micro fuse 5 mm x 20 mm, T 5A
- DMX: XLR5 pin
- Mains: Neutrik Powercon (in and thru)
- Maximum ambient temperature: 113°F (45°C)
- Omega bracket attachments mount directly to rear of fixture
- Optional omega bracket to end hang fixture
- Attachment points for safety wire
- Built in rubber feet for floor mounting
- Standard color is black
- For other colors please contact sales department
- (L x W x H): head vertical
- impression X4 Bar 20: 39.4″ x 9.4″ x 3.9″ (100 cm x 24 cm x 10 cm)
- impression X4 Bar 20: 32 lbs (14.5 kg)
