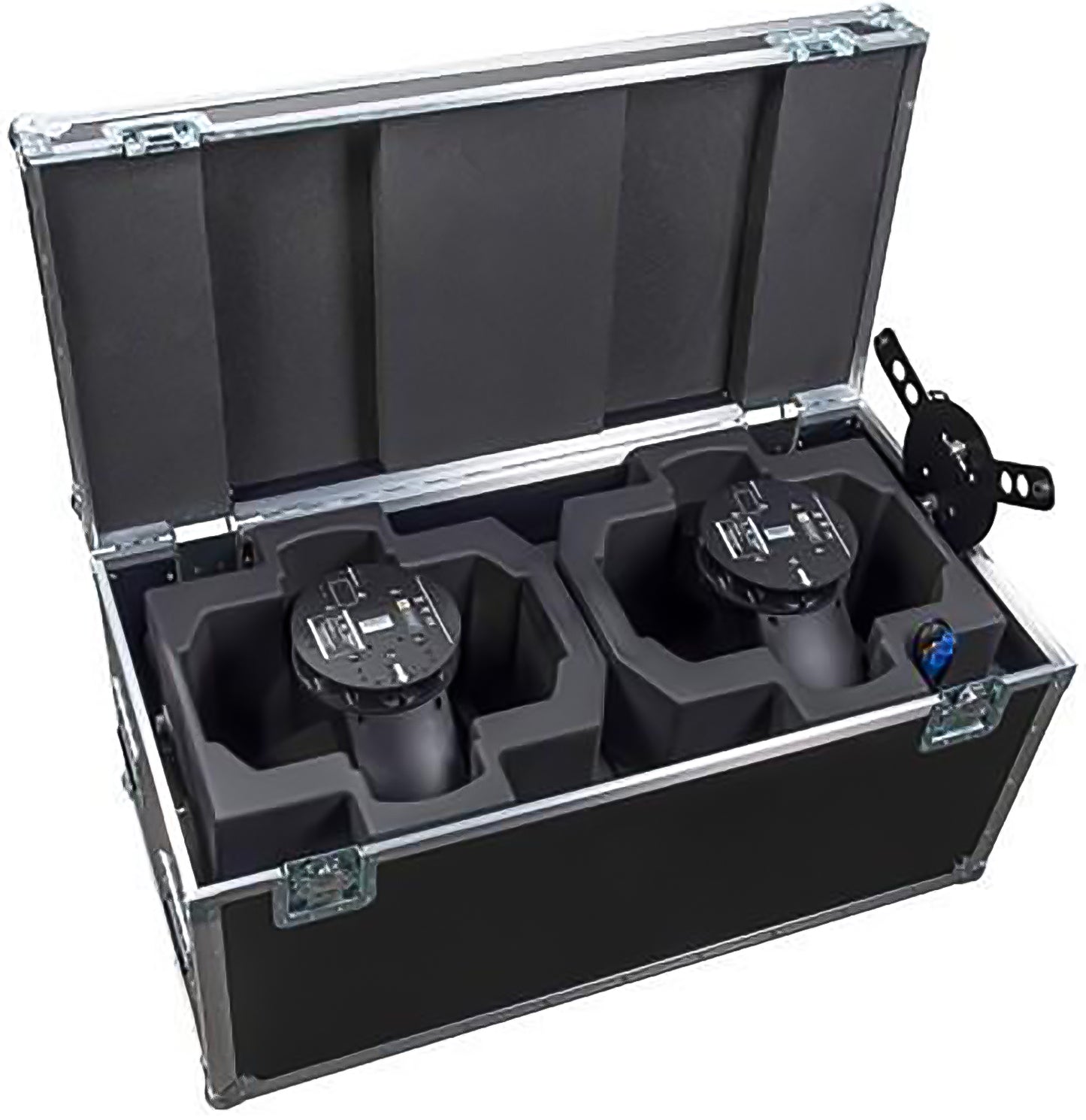

GLP impression E350 Tourpack 2 with Stackable Case
The impression E350 is the brother of the impression S350 LED Moving Head. With its 30% brighter LED engine and very narrow iris, the fixture fits for a variety of applications. With a color temperature of 7.500K, it is able to create sharp midair effects and bright gobo projections.
The optic offers a 1:5 zoom (8° - 42°) and has a very even field with a remarkable light output of up to 12.200 lm.
The color mixing is done using CMY filters, which are specially calculated for the LED spectrum and provide a color mixture from pastel shades to deep saturated colors. If required, GLP's new CTC function provides continuous color temperature adjustment from 2.500 K to 8.000 K.
The impression E350 also houses an 8x prism, a 2x frost, a tiltable animation wheel, two gobo wheels, a super tight 14-blade iris, and a 10-color color wheel. Of course, all functions can be used in combination with each other and make the GLP impression E350 the perfect tool for almost any application.
Like the impression S350, the E350 does without a classic base and, with a weight of just 24.5 kg, is one of the real lightweights. The universal power supply, the integrated battery are as self-evident as the optional lumen radio CRMX adapter for wireless DMX.
Features:
- LED Light Source:
- 350 Watt White Light LED Engine
- 12,200 Lumen Output
- White point 7,500 Kelvin
- Perfectly Bright:
- Highly Efficient Output of 12,200 Lumen
- Crispy Mid-Air Beam Effects
- Iris
- Dynamic Effects:
- Advanced CMY Color mixing, CW, CTC
- 2 x Gobo wheel, 1 x Animation wheel, 1 x Prism
- Linear soft to heavy Frost
- 8 to 42 degrees Zoom
Specifications:
- LED Light Source:
- LED Type: White-Light (350 W)
- Lifetime (Hours): 20,000 h
- Color temperature: 7,500 K
- CRI (Ra): 75+
- TLCI: 45+
- CQS: 70+
- TM-30-15: Rg 90+ / Rf 70+
- Luminous Flux: 12,200
- PWM: 2,200 Hz; 3,000 Hz; 4,800 Hz; 9,600 Hz; 25 kHz
- Optical System:
- Min. Zoom: 8°
- Max. Zoom: 42°
- Zoom Ratio: 1:5
- Focus: motorized 2m – infinite
- Focus tracking: off, near, medium, far
- Effects:
- Dimmer / Shutter:
- 0 – 100% electronic
- Two dimming curves
- Shutter: electronic, max. 10 Hz
- Iris: 100% – 4%
- Effect Wheel: rotating and indexable, 90° tiltable
- Frost: 2-way (soft & medium)
- Prism: 8-way, slow to very fast rotation
- Gobo Wheel 1: 7 Gobos, rotatable and indexable, interchangeable
- Gobo Wheel 2: 10 Gobos, fixed
- Color mixing: CMY color mixing
- CTC (Color Temperature Control): variable CTC, mechanical 2,500 – 8,000 K
- Color Wheel: 4 CTC filters, 6 colors + open
- Internal Effects: LED Macro Effects
- Pan: 565°
- Tilt: 256°
- Movement Resolution: 16 Bit
- Position Feedback: yes
- Control:
- Control Modes: Normal
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- Display: illuminated graphic LCD, intuitive touch wheel control, self charging buffer battery
- Wireless: Lumenradio CRMX DMX/RDM (optional), bidirectional communication
- Cooling: overheating protection
- Transceiver: RS-485
- Receiver: Opto-isolated RS-485
- Software Update: DMX link
- Stand-Alone: DMX-Snapshot via DMX
- Connectors:
- Signal connection:
- XLR 5-Pin
- XLR 3-Pin
- etherCON In/Out
- Power input: Neutrik powerCON TRUE1 In
- Operating Conditions:
- Mains voltage: 100 – 240 VAC / 50 – 60 Hz
- Power (Watt @ 230V): 550 Watt
- Fuse: 20mm T 5A
- Maximum ambient temperature: 45°C / 115°F
- Operating Position: any
- Protection Rating (IP): IP 20
- EEC: E
- EEI: 0.927
- Ec (kWh/1,000h): 459
- Power factor:
- > 0.986 / 220 V AC
- > 0.999 / 110 V AC
- Mounting Options:
- Standing: Removable baseplate with brackets for ratchet belt
- Hanging (vertically): Omega-Bracket, 4 Camlock and two M10 threads
- Housing Colors: Standard colors: black
- Shipping:
- Single fixture: cardboard
- Tourpack: 2-way, Flight Case, Omega-Brackets
- Dimensions & Weight:
- Height (head vertical): 642 mm / 25.3 in
- Width (across yoke): 471 mm / 18.5 in
- Length: 474 mm / 18.8 in
- Weight: 24.5 kg / 56 lbs
