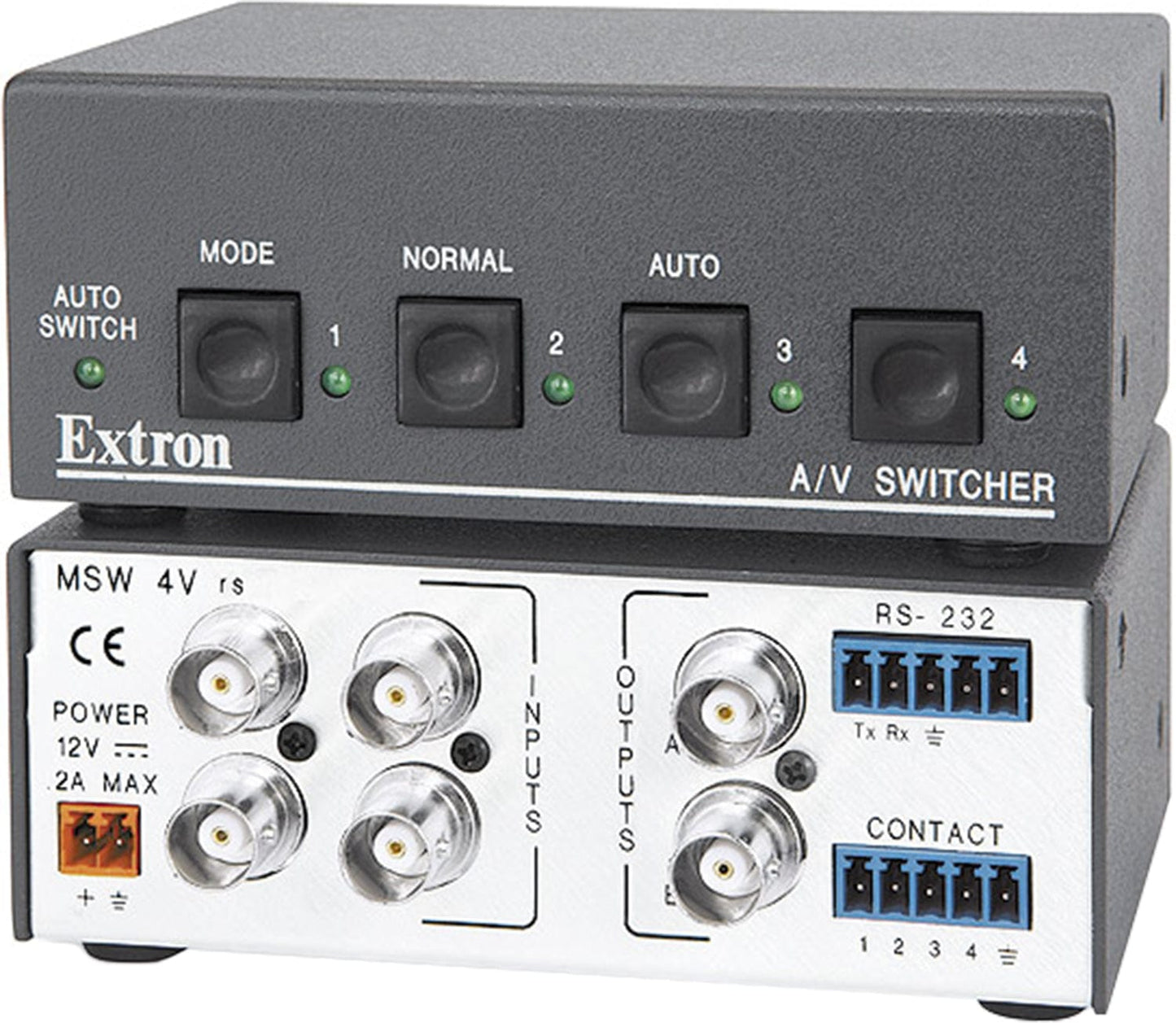

Extron MSW 4V rs 4-Channel Video Input Selector
The Extron MSW 4V rs is a four input composite video switcher with two parallel outputs on BNC connectors. Dual outputs provide for viewing on two separate displays or the ability to record and view video simultaneously. To ensure glitch-free transitions, the MSW 4V rs switches during the vertical interval of whichever signal is present on input one. Multiple control options are available, including auto-input switching, RS-232, contact closure, and front panel input selection buttons with LED indicators. The MSW 4V rs is housed in a 1U, quarter rack width metal enclosure and includes an external, universal power supply.
Features:
- Inputs: Four female BNC connectors for composite video
- Outputs: Two parallel outputs for simultaneous monitor and projector viewing
- 300 MHz (-3 dB) video bandwidth
- Compatible with NTSC, PAL, and SECAM video
- Vertical interval switching ensures glitch-free transitions
- Auto-input switching — Automatically switches to the highest-numbered input with an active video signal.
- RS-232 control
- Contact closure remote control
- 1U, quarter rack width metal enclosure
- External Extron Everlast™ power supply included, replacement part #70-1175-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
Specifications:
- External power supply: 100 VAC to 240 VAC, 50-60 Hz, external, to 12 VDC, regulated
- Power input requirements:
- MSW 4V rs, MSW 4SV rs 12 VDC, 0.2 A
- MSW 4V SDI rs 12 VDC, 0.4 A
- Cooling: Convection, no vents
- Temperature/humidity:
- Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
- Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
- Mounting:
- Rack mount : Yes, with optional 1U rack shelf
- Furniture mount: Yes, with optional mini under-desk mounting kit
- Enclosure type: Metal
- Enclosure dimensions:
- 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
- (4.3 cm H x 10.9 cm W x 6.5 cm D)
- (Depth excludes connectors.)
- Product weight: 0.6 lbs (0.3 kg)
- Shipping weight: 3 lbs (2 kg)
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Regulatory compliance:
- Safety: CE, c-UL, CUL
- EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI
