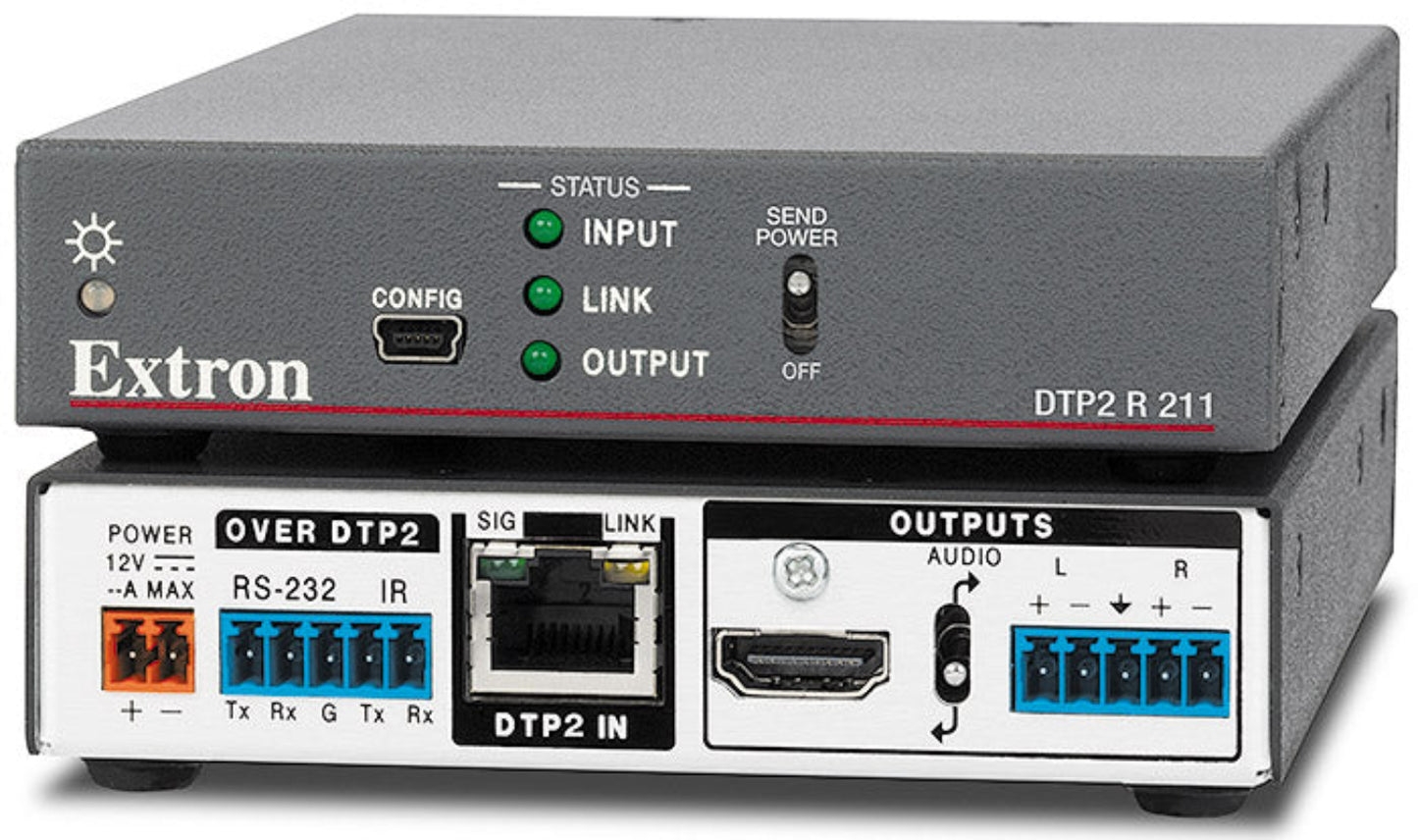

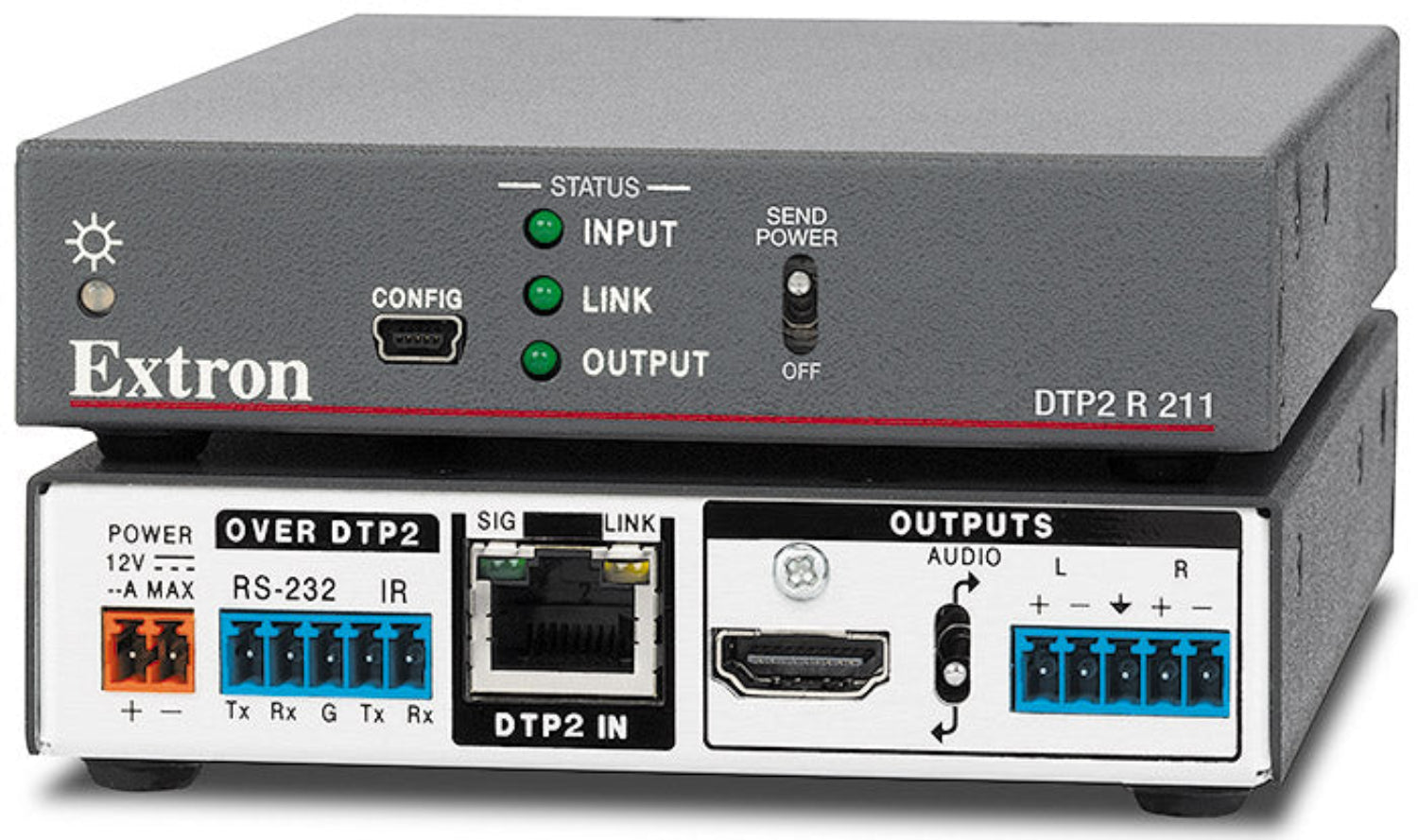

Extron DTP2 R 211 4K/60 HDMI DTP2 Receiver with Audio De-Embedding

The Extron DTP2 R 211 is a long distance, digital twisted pair receiver that works with Extron DTP^®-enabled products to send HDMI, audio, as well as bidirectional RS‑232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable. It supports video signals at resolutions up to 4K/60 at 4:4:4 chroma sampling, and complies with HDCP 2.3. In addition, this DTP2 receiver features a stereo output that is selectable between de-embedded or pass-through analog audio. The compact enclosure size and remote power capability make the DTP2 R 211 ideal for discreet placement behind displays, in equipment racks, or wherever needed to meet application requirements.

The HDCP 2.3-compliant DTP2 R 211 enables the reliable, long distance transmission of HDMI signals, supporting HDR, Deep Color up to 12‑bit, and embedded HD lossless audio formats. In addition, DDC communication of EDID is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices.

The DTP2 R 211 accepts stereo analog audio from a DTP-enabled matrix switcher, switcher, or signal processor. The stereo output on the DTP2 R 211 is selectable for de-embedded or pass-through analog audio. Digital HDMI audio is made available as a balanced or unbalanced analog stereo signal on a captive screw connector. The audio signal is sent over the same shielded twisted pair cable as the video and control signals, eliminating the need for a separate cable run.

The DTP2 R 211 provides other convenient, integrator-friendly features designed to help simplify installation. It supports simultaneous transmission of bidirectional RS‑232 and IR signals from a control system for AV device control. The DTP2 R 211 can be remotely powered over the shielded twisted pair cable by a DTP2-enabled product. In addition, it can be configured to provide power to a connected DTP2 transmitter, allowing both devices to share one power supply.

The DTP2 R 211 can be integrated with an Extron DTP CrossPoint^® presentation matrix switcher, or other DTP-enabled products to support displays and other output devices at remote locations. The receiver is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low profile design allows for discreet placement in lecterns and behind flat-panel displays.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Features

• Receives HDMI plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable — The DTP2 R 211 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
• Input: One DTP2 twisted pair input on RJ-45
• Outputs: One HDMI, stereo audio on captive screw
• Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 chroma sampling requires connection to a matching DTP2 product.
• Stereo audio de-embedding — The captive screw stereo output is selectable for de‑embedded or pass-through analog audio.
• Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Remote power capability with DTP2 products — For simplified installation, the receiver can be remotely powered by a DTP2-enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP2 transmitter product.
• Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CATx shielded twisted pair cable — The DTP2 R 211 fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
• Accepts additional analog stereo audio signals — The DTP2 R 211 accepts stereo analog audio from a DTP‑enabled product.
• Bidirectional RS‑232 and IR pass-through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
• Supports multiple embedded audio formats — The DTP2 R 211 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Compatible with DTP transmitters and DTP-enabled products — Enables mixing and matching with desktop and wallplate transmitters, as well as other DTP-enabled products to meet application requirements. Support for remote power requires connection to a DTP2-enabled product. Not compatible with DTP3 outputs.
• Front panel USB configuration port — Provides convenient access for information and firmware updates.
• LED indicators for signal presence, power, and link status — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
• RJ‑45 signal and link LED indicators for DTP port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• 1” (2.5 cm) high, quarter rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• Optional, external Extron Everlast™ power supply available, part #70-1174-01 — Provides worldwide power compatibility with high demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

Specifications

Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 1.4, 2.0b; HDCP 1.4, 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information.
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range	2560x1600 @ 60 Hz or 1080p @ 60 Hz, 12-bit color 4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,  UHD (3840x2160) @ 60 Hz
Color bit depth	8, 10, or 12 bits — subject to the maximum data rate limit
Formats	RGB and YCbCr digital video
Standards	DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3, CEA-861-E
Video input — transmitter
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Horizontal frequency	24 kHz to 135 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 120 Hz for resolutions up to 18 Gbps
NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Interconnection between transmitter and receiver
Connectors	1 female RJ-45 per unit
Termination standard	TIA/EIA T568B
Signal transmission distance	Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (shielded twisted pair)
NOTE     Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance.
Video output
Number/signal type	1 single link HDMI (or DVI-D*)
Connectors	1 female HDMI type A
Horizontal frequency	24 kHz to 135 kHz for resolutions up to 18 Gbps
Vertical frequency	24 Hz to 120 Hz for resolutions up to 18 Gbps
Audio
Gain	Unbalanced output: 0 dBu; balanced output +6 dBu
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	0.03% @ 20 Hz to 20 kHz at maximum output
S/N	>90 dB, at maximum output (15 dBu), balanced (unweighted)
Stereo channel separation	>80 dB @ 1 kHz to 20 kHz
Audio input
Number/signal type	1 PC level stereo, unbalanced 1 Digital Embedded Audio on HDMI
NOTE     Analog audio can be configured for embedding onto the digital video signal at the Transmitter. Embedded digital audio can be (configured) de-embedded from the digital video signal at the Receiver end.
Connectors	(1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) (1) Female HDMI
Impedance	>10k ohms, DC coupled
Nominal level	-10 dBV (316 mVrms)
Maximum level	+7 dBV (unbalanced)
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output
Number/signal type	1 stereo (2 channel), balanced/unbalanced
Connectors	(1) 3.5 mm captive screw connector, 5 pole
Impedance	50 ohms unbalanced, 100 ohms balanced
Gain error	±0.1 dB channel to channel
Maximum level (600 ohm)	>+11 dBu, balanced
Communication — external device (pass-through, unidirectional or bidirectional)
Serial control port input/output	1 set of proprietary signals on a female RJ-45 jack
Serial control port output/input	RS-232 via a 3.5 mm, 3 pole captive screw connector
Baud rate and protocol	300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = Gnd
IR control port	(1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR control pin configuration	3 = Gnd, 4 = IR Tx, 5 = IR Rx
General
Power supply	External (included with Tx) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 Watts
Power consumption
Device	6.1 watts
Device and power supply	7.7 watts
Remote power budget	18 watts
NOTE     Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable.
NOTE     DTP2 devices can only send power to other DTP2 devices. DO NOT send power to DTP devices or they will be damaged.
Ambient temperature/humidity	Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
Cooling	Convection, vents
Thermal dissipation
Device	19.6 BTU/HR
Device and power supply	25.1 BTU/HR
Mounting
Rack mount	Yes, with optional 1U high rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 6.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 15.2 cm D) (Depth excludes connectors.)
Product weight	0.529 lb (0.240 kg)
Regulatory compliance	CE, C-Tick, FCC Class A, ICES, VCCI, KCC, c-UL, RoHS, UL UL rated for use in plenum airspaces: meets UL for heat and smoke release, excluding the power supply.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
