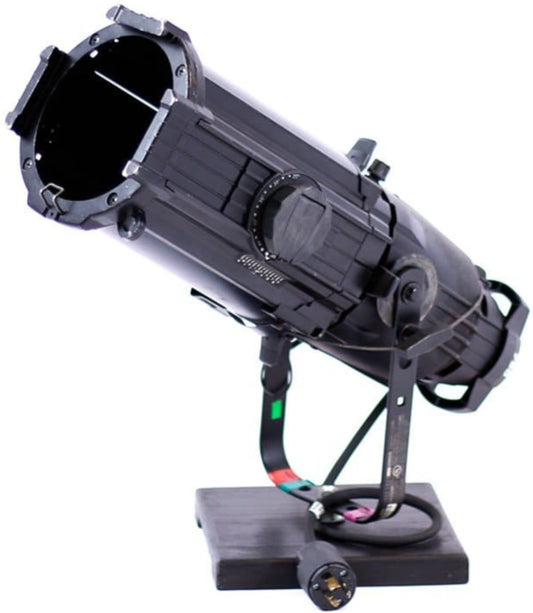

ETC Source Four Zoom 25-50 Zoom Ellipsoidal
There's only one Source Four - the ellipsoidal fixture that changed the lighting industry. Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler. Maximum brightness, maximum field-angle flexibility. With Source Four® Zoom you only need one fixture for a variety of field angles. Plus, Source Four Zoom makes it easy: ETC's patented one-handed zoom operation makes adjustments quick, simple and safe. Technicians can focus with one hand and hold the ladder with the other.
Specifications:
- PHYSICAL
- Die cast and extruded aluminium construction
- One-handed focus mechanism with positive lock(patents pending)
- Rotating shutter assembly ±25°
- 20 gauge stainless steel shutters in a tri-plane assembly
- Lens tube door provides easy access for lens cleaning
- Positive locking double-clutch yoke
- Scale markings for field angle and focus settings
- Integral die cast color frame holders with two accessoryslots, and a top mounted, color frame retainer
- Insulated rear handleHigh impact, thermally insulated knobs and shutter handles
- Steel yoke with two mounting positions
- Slot for glass or stainless steel patterns
- Slot with sliding cover for motorized pattern devices oroptional iris
- UL and cUL listed
- ELECTRICAL
- 115-240V, 50/60Hz
- High temperature 3-conductor 36” leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling™ technology
- LAMP
- 750W Maximum
- HPL–compact tungsten filament contained in a krypton/xenon filled quartz envelope
- Integral die cast aluminium heat sink lamp base
- OPTICAL
- The 25°–50° uses a plano–convex front lens with a bi–convex rear lens
- Faceted borosilicate reflector with multi-layer dichroic coating
- 95% of visible light reflected through the optical train
- 90% of infrared radiation (heat) passes through the reflector
- Reflector secured with anti-vibration shock mounts
- Low gate and beam temperature, shutters will not warp or distort
- Tool free lamp centering (X/Y) and peak/flat (Z) adjustment knobs
- Positive locking X, Y and Z adjustments, unaffected by relamping
- Lenses have anti-reflective coatings
- Lenses secured with anti-vibration shock mounts
- 15°-30° version is available
- Die cast and extruded aluminium construction
- One-handed focus mechanism with positive lock(patents pending)
- Rotating shutter assembly ±25°
- 20 gauge stainless steel shutters in a tri-plane assembly
- Lens tube door provides easy access for lens cleaning
- Positive locking double-clutch yoke
- Scale markings for field angle and focus settings
- Integral die cast color frame holders with two accessoryslots, and a top mounted, color frame retainer
- Insulated rear handleHigh impact, thermally insulated knobs and shutter handles
- Steel yoke with two mounting positions
- Slot for glass or stainless steel patterns
- Slot with sliding cover for motorized pattern devices oroptional iris
- UL and cUL listed
- 115-240V, 50/60Hz
- High temperature 3-conductor 36” leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling™ technology
- 750W Maximum
- HPL–compact tungsten filament contained in a krypton/xenon filled quartz envelope
- Integral die cast aluminium heat sink lamp base
- The 25°–50° uses a plano–convex front lens with a bi–convex rear lens
- Faceted borosilicate reflector with multi-layer dichroic coating
- 95% of visible light reflected through the optical train
- 90% of infrared radiation (heat) passes through the reflector
- Reflector secured with anti-vibration shock mounts
- Low gate and beam temperature, shutters will not warp or distort
- Tool free lamp centering (X/Y) and peak/flat (Z) adjustment knobs
- Positive locking X, Y and Z adjustments, unaffected by relamping
- Lenses have anti-reflective coatings
- Lenses secured with anti-vibration shock mounts
- 15°-30° version is available
