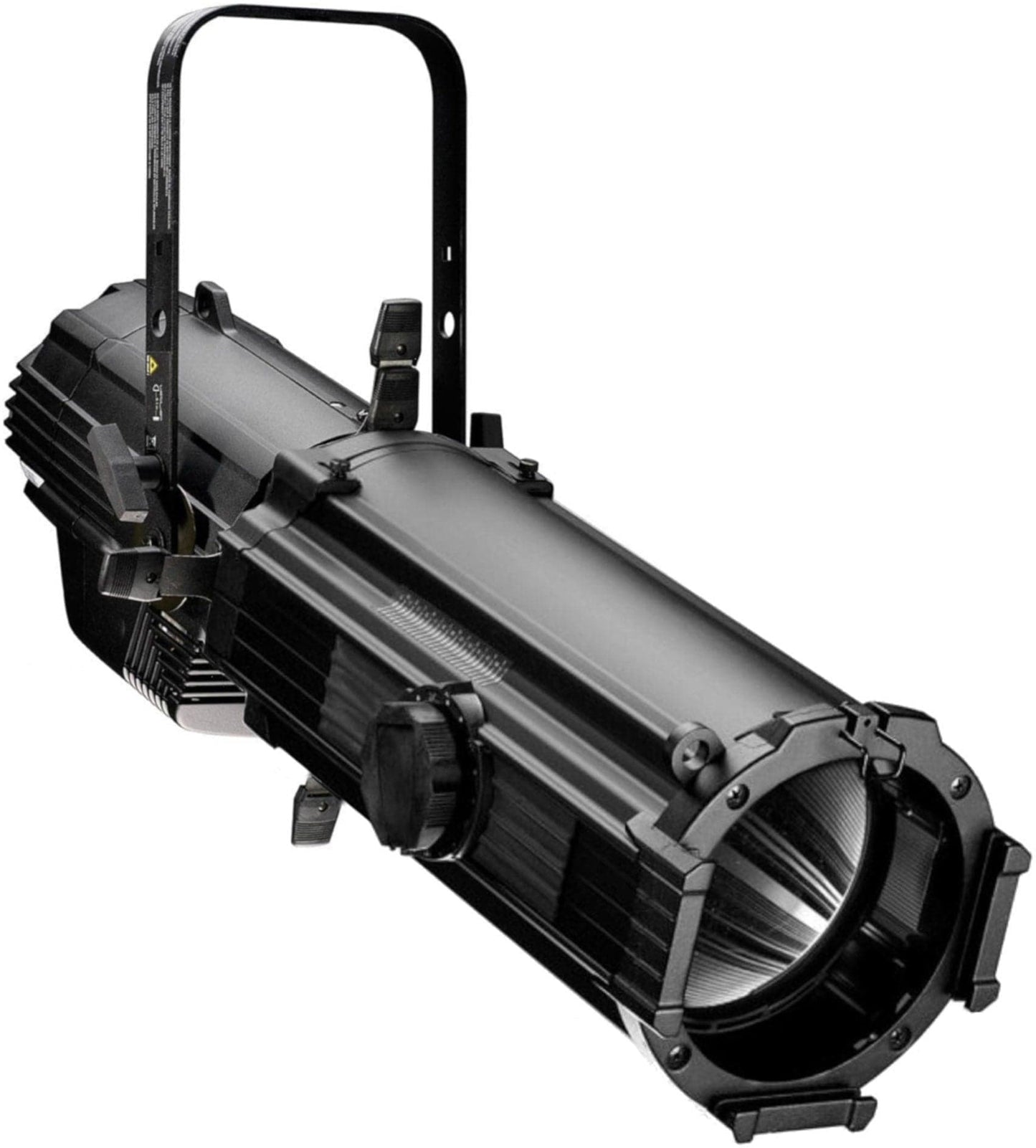

ETC Source Four LED Series 2 Lustr, Light Engine with 15-to-30-Degree Zoom Lens Tube - Black

ETC Source Four LED Series 2 Lustr, Light Engine with 15-to-30-Degree Zoom Lens Tube - Black

The Source Four LED Series 2 revolutionizes LED lighting. With optimized arrays and finely-tuned electronics, Series 2 offers a combination of light quality and output that cannot be matched. Source Four LED Series 2 Lustr luminaires are based on the x7 Color System, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color with a depth and feel beyond any RGB fixture. Series 2 light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light.

Features:

• Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
• Multiple control options, including Direct, RGB, HSIC, and console-free modes
• 15-bit virtual dimming engine for smooth fades and minimal color shift during dimming
• ETL Listed to UL1573; IP20 rated

Specifications:

• Source:
  • LED details: 60 Lumileds LUXEON® Rebel LED
  • Max lumens: 8,667
  • Lumens per watt: 51.9
  • L70 rating (hours to 70% output): 54,000 hours
• Color:
  • Colors used: Red, Amber, Lime, green, Cyan, Blue, Indigo
  • Color temperature range: 2,200–6,500 K
  • Calibrated array: Yes
  • Red shift: Yes (can be disabled)
• Optical:
  • Beam angle range: 15°-30°
  • Gate size: 80 mm
  • Aperture size: 6.25–14 in (depending on lens tube)
  • Pattern projection: Yes
  • Pattern size: A or B
  • Camera flicker control/Hz range: Yes (900–25,000 Hz)
  • Notes: Can be used with LED CYC and Fresnel adapters
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • FixtureLink: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Neutrik powerCON in and thru, requires power from a non-dimmable source
  • Inrush:
    • 50 A at 120 V (First half-cycle)
    • 107 A at 240 V (First half-cycle)
  • Fixtures per circuit:
    • 9 Lustr (15 A via power thru connector)
    • 10 Lustr (via R20 module or Echo Relay Panel)
  • Wattage typical: 167
  • Current draw:
    • 1.44 A at 120 V
    • 0.78 A at 240 V
• Thermal:
  • Ambient operating temp: 0°–40°C (32°–104°F)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • dB range: 22.5 dBA average at 1 m
  • BTUs/hour: 569
• Physical:
  • Materials: Die-cast, all metal housing
  • Color options: Black
  • Mounting options: Yoke, cyc floor stand (sold separately)
  • IP rating: IP20
  • Weight: Without barrel: 6.5 kg (14.3 lb)
