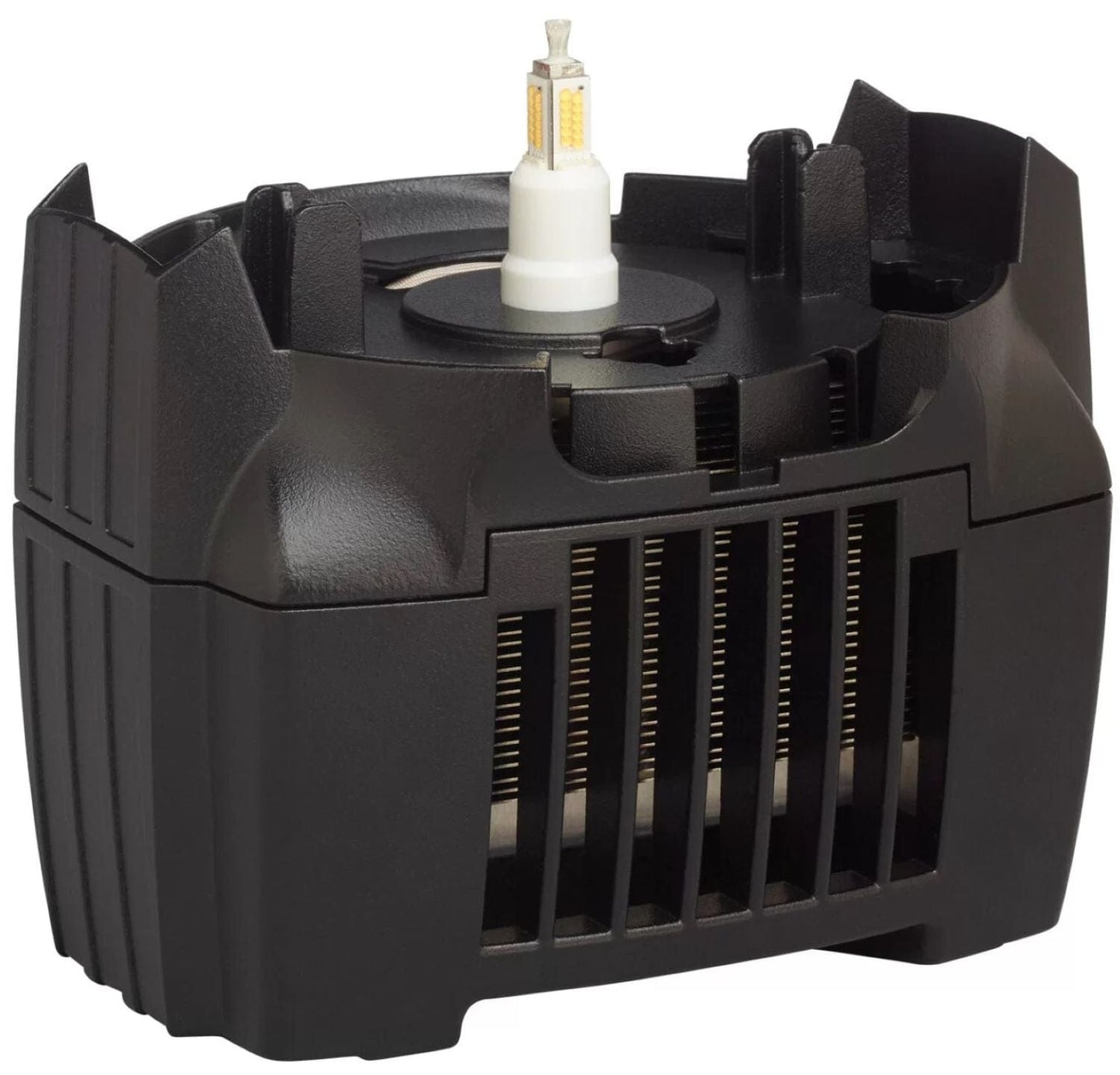

Source 4WRD II (Watt Reduction Device) LED is a replacement for a standard Source Four burner assembly that converts the HPL source to a white-light LED and provides a significant reduction in power consumption. The simple and quick upgrade is nondestructive and takes less than a minute. In most cases it can even be done without breaking the fixture’s focus. Source 4WRD II LED is theatrically dimmable via DMX or line dimmable, with a traditional LED curve, to allow flexibility for your installation. And, because it is an LED source, your fixtures will run cool and efficiently without lamp replacements.

APPLICATIONS

• Energy saving retrofits
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Theatres

PRODUCT SPECIFICATIONS

• Source
• LED details
S4WRD II LED
• Max lumens (3200 K / 3200 K Gallery / Daylight Gallery)
• 11,430 / 9,716 / 10,333
• Lumens per watt (3200 K / 3200 K Gallery / Daylight Gallery)
• 120 V: 76.2 / 64.8 / 68.9
• 230 V: 65.3 / 55.5 / 59.0
• L70 rating (hours to 70% output)
• >45,000 hours
• Color
• Colors used
• Warm or Cool White
• Color temperature range
• 3200 K 80 or 90+ CRI, 5900 K 90+ CRI
• Calibrated array
• N/A
• Red shift
• No
• Optical
• Field angle range
• Swappable lens tubes between 5–90 degrees
• Gate size
• 79 mm
• Aperture size
• Lens dependent
• Pattern projection
• Yes
• Pattern size
• A or B (see manual)
• Camera flicker control/Hz range
• No, not PWM dimmed
• Control
• Input method
• DMX Control or Line Dimmed
• Protocols
• DMX / RDM via RJ45
• Modes (Footprint)
• 1 Channel (Intensity) for DMX
• RDM configuration
• Yes
• UI type
• 7-segment address display, local level control via UI
• Local control
• Yes
• Onboard presets
• No
• Onboard sequences
• No
• Onboard effects
• No
• Fixture to fixture control
• No
• Electrical
• Voltage range
• 114–125 V, 60 Hz (120 V)
• 209–252 V, 50/60 Hz (230 V)
• Input method
• Hardwired, 1 m cord, bare end or various connector options (120 V)
• Hardwired, 1 m cord, bare end (230 V)
• Inrush
• 30 A (first half-cycle) at 120 V
• 12 A (first half-cycle) at 230 V
• Fixtures per circuit
• 120 V: 14 (20 A switched circuit, R20 module or similar)
• 230 V: 6 fixtures per non-dimmed circuit (ER15AFR module)
• Wattage (Typical/Standby)
• 150 W / 1.2 W (120 V)
• 175 W / 3.7 W (230 V)
• Current draw
• 1.26 A at 120 V
• 0.75 A at 230 V
• Notes
• - When using line dimming, see the S4WRD manual for dimmer setup.
• - When using line dimming, standby power is 0 W.C96
• Thermal
• Ambient operating temp
• 5°–50° C (41°–122° F)
• Fan (controllable)
• Yes (no)
• Droop compensation
• No
• dB range
• 28 dBa (average at 1 m)
• BTUs/hour
• 529 (120 V)
• 597 (230 V)
• Physical
• Materials
• Die-cast aluminum
• Color
• Black
• Mounting options
• Yoke
• IP rating
• IP-20, indoor only
• Weight
• 3.73 lb (1.69 kg) (Retrofit only)
• Included accessories
• Source 4WRD mounting post
• Warranty
• Fixture
• Five years
• LED array
• Ten years
• Regulatory and Compliance
• Approved regulatory standards
• UL 1573 (complete luminaire)
UL 1598C (retrofit kit)
• CSA C22.2 No. 166 (complete luminaire)
CSA TIL B79-A (retrofit kit)
• CE Compliant
