ETC Selador Desire D60 Studio Daylight LED Par with Edison Plug - Black

ETC Selador Desire D60 Studio Daylight LED Par with Edison Plug - Black

The SELD60DI-0-A package contains the following components:

*ETC Selador Desire D60 Studio Daylight LED Par - Black

The Selador Desire D60 Studio lighting fixture uses the newest technology in high-output white-light LEDs to create an ideal luminaire for video, film and other ‘white-light-only’ applications. Three different LED options give the user a choice for just the right white-light output for the job. The D60 Studio offers a rugged die-cast enclosure; quiet, fan-cooled operation; multiple lens options; and an advanced user interface. The user interface enables easy configuration and specific features for video and film applications. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ settings for location lighting.

D60 Studio Daylight – contains sixty 5600 K LEDs for high-intensity, non-variable cool-white output

PRODUCT SPECIFICATIONS

• Source
• LED details- 60 Lumileds LUXEON® Rebel 2.5 W LED
• Max lumens- Studio Daylight: 8,216
• Lumens per watt- Studio Daylight: 57.0
• L70 Rating Hours to 70% output- 50,000 hours
• Color
• Colors used- Studio Daylight: White
• Color temperature range- Studio Daylight: 3200 K
• Calibrated array- Studio Daylight: No
• Optical
• Beam angle range- 8-71°
• Gate size- N/A
• Aperture size- 9 in
• Pattern projection- No
• Pattern size- N/A
• Camera flicker control/Hz range- Yes: 900–25,000 Hz
• Notes- Secondary lenses available for multiple beam-spread options
• Control
• Input method- DMX512 via 5-pin XLR
• Protocols- DMX512/RDM
• RDM configuration- Yes
• UI type- LCD
• Local control- Yes
• Onboard presets- Yes
• Onboard sequences- Yes
• Onboard effects- No
• Fixture-to-fixture control- Yes
• Notes- 15-bit virtual dimming engine
• Electrical
• Voltage range- 100–240 VAC 50/60 Hz
• Input method- Neutrik powerCON® in and thru / Requires power from non-dimmable source
• Inrush-
• 15 A at 120 V (First half-cycle)
• 40 A at 240 V (First half-cycle)
• Fixtures per circuit (Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)-9 (15 A via power thru connector)
• Wattage typical- 161 W
• Current draw-
• 1.43 A / 120 V
• 0.58 A / 240 V
• Thermal
• Ambient operating temp- -20°–40° C (4°–104° F)
• Fan (controllable)- Yes (yes)
• Droop compensation- Yes
• dB range- 25 dBa average at 1 m
• BTUs/hour- 549
• Physical
• Materials- Die-cast, all metal housing
• Color options- Black
• Mounting options- Yoke
• IP rating- IP20
• Weight- 8.7 kg (19.1 lb)
• Included accessories- Very Narrow Round diffuser, power cable (see page 7), optional yoke/floor stand
• Warranty
• Fixture- 5 years
• LED array- 10 years
• Regulatory and Compliance
• Approved regulatory standards
• UL 1573
• CSA C22.2 No. 166
• CE Compliant
• EAC Compliant

ETC utilizes a nationally recognized third-party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ ETC-Fixture-Ratings-and-Warranties-Extended.aspx.

All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. In individual situations, LEDs will be used for different durations and levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.

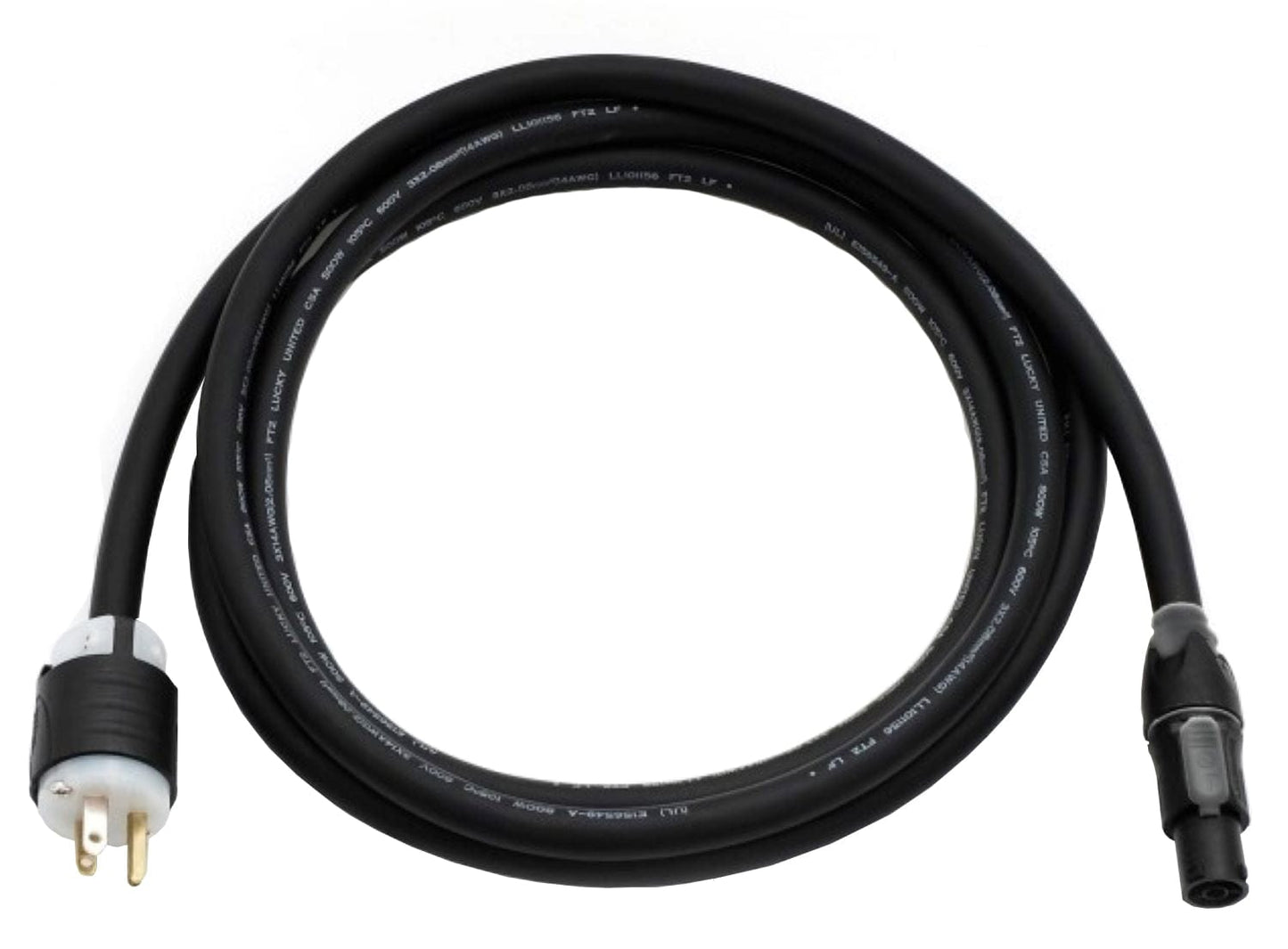

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
