ETC Desire D40 Studio Tungsten LED Par with Edison Plug - Black

ETC Desire D40 Studio Tungsten LED Par with Edison Plug - Black

ETC Desire D40 Studio Tungsten LED Par - Black

ETC Desire D40 Studio lighting fixtures use the newest technology in high-output white-light LEDs to create an ideal luminaire for video, film and other ‘white light only’ applications. Three different LED options give the user a choice for just the right white-light output for the job. The D40 Studio offers a rugged die-cast enclosure, noiseless fan-free operation, multiple lens options and an advanced user interface. The user interface enables easy configuration and specific features for video and film applications. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ mode for location lighting.

D40 Studio Tungsten – contains forty 3000 K LEDs for high-intensity, non-variable warm-white output.

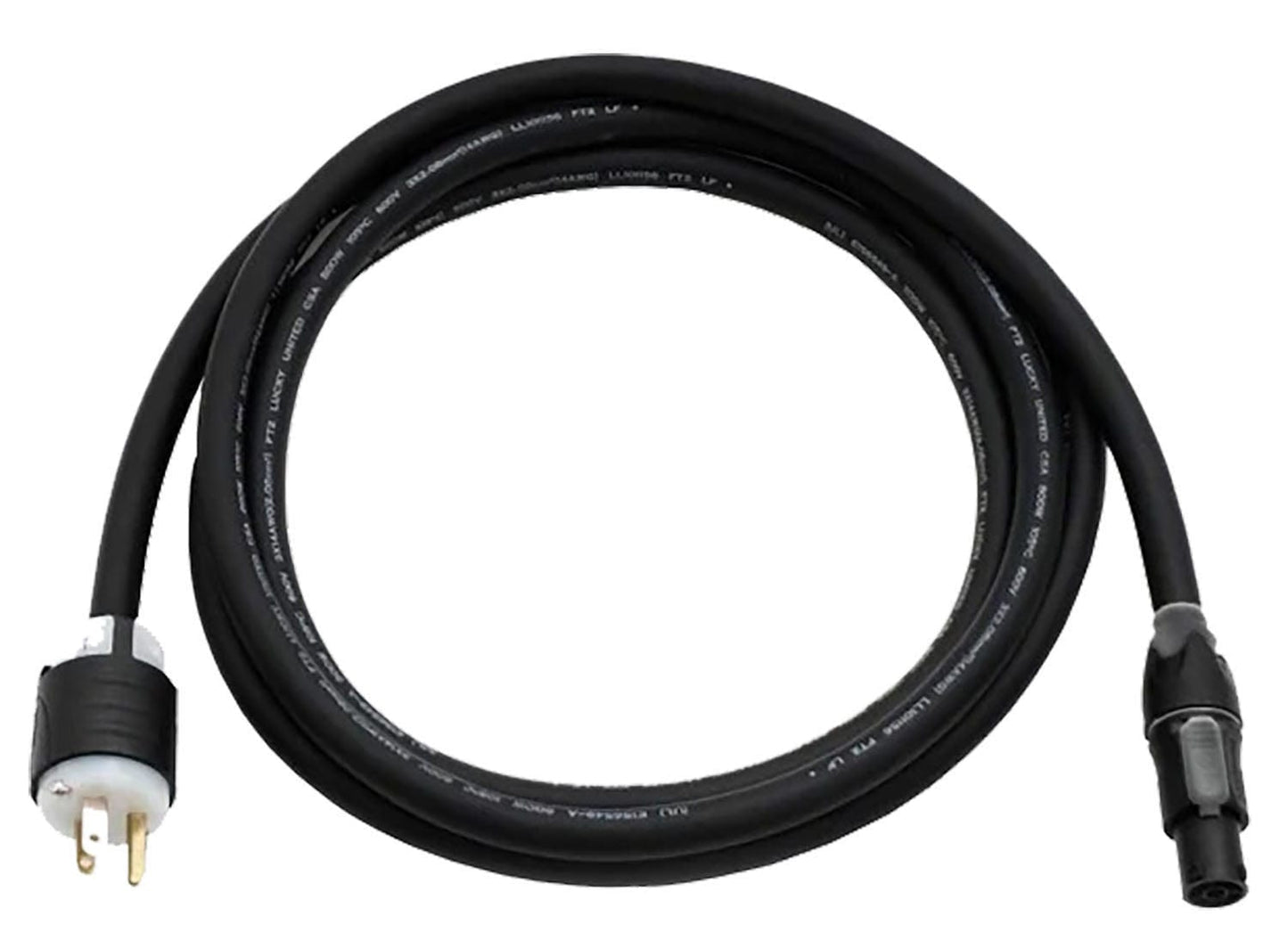

ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable, Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: 5023
  • Lumens per watt: 52.8
  • L70 rating (hours to 70% output): 50,000 hours
• Color:
  • Colors used: Studio Tungsten: White
  • Color temperature range: Studio Tungsten: 5600 K
  • Calibrated array: Studio Tungsten: No
  • Red shift: No
• Optical:
  • Beam angle: 11°
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: :
    • Neutrik powerCON in and thru
    • Requires power from non-dim source
  • Inrush (first half-cycle): :
    • 15 A at 120 V
    • 40 A at 240 V
  • Fixtures per circuit: 10 (15 A via power thru)* (*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)
  • Wattage (typical): 104
  • Current draw:
    • 0.88 A at 120 V
    • 0.42 A at 240 V
• Thermal:
  • Ambient operating temp: -20°–40°C (-4°–104°F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32
• Physical:
  • Materials: Die-cast, all metal housing
  • Color: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 6.4 kg (14 lb)
  • Included accessories: Hanging yoke, optional yoke/floor stand
  • Notes: Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards: :
    • UL 1573
    • CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
