ETC CSPAR-5 ColorSource Par with 5-Pin DMX/XLR and Edison Plug - Silver

ETC CSPAR-5 ColorSource Par with 5-Pin DMX/XLR and Edison Plug - Silver

The CSPAR-5-A package contains the following items:

*ETC CSPAR-5 ColorSource Par with 5-Pin DMX/XLR - Silver

An LED luminaire crafted by lighting experts, the ColorSource PAR uses a proportionate recipe of red, green, blue, a twist of lime and an extra dash of red to expand the ColorSource PAR's color range, giving richness only possible from ETC LED luminaires. It outputs bright, beautiful light, is easy to use – with or without a lighting desk – and lives up to ETC's high standards for quality. Available in original or Deep Blue array options. The ETC ColorSource PAR offers a quality of build and light that has never been seen in an affordable wash fixture. Using ETC’s unique RGB-L color system, the ColorSource PAR provides a rich, bright light unlike any other LED washlight in its class. And it was designed and manufactured by ETC.

Features:

• Three array options:
  • Original RGB-L (Red/Green/Blue/Lime)
  • Deep Blue RGI-L (Red/Green/Indigo/Lime)
  • Pearl (Warm and Cool White), see separate datasheet
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON® in and thru
• 5-pin XLR
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Z LED
  • Max lumens: 3,039
  • Lumens per watt: 28.1
  • L70 rating (hours to 70% output): 55,000 hours
• Color:
  • Colors: red, green, blue, lime
  • Color temperature range: Color mixing
  • Calibrated array: Yes
  • Red shift: No
• Optical:
  • Beam angle range: 15.3° (secondary lenses available for multiple beam-spread options)
  • Gate size: N/A
  • Aperture size: 7.5 in / 190 mm
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range:
    • 1,200 Hz (default)
    • 25,000 Hz (via RDM)
• Control:
  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512/RDM
  • Modes (footprint): 4 modes
  • RDM configuration: Yes
  • UI type: Seven-segment, three-button interface
  • Local control: Yes
  • Onboard presets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON power in and thru
  • Inrush:
    • 35 A at 120 V (First half-cycle)
    • 49 A at 240 V (First half-cycle)
  • Fixtures per circuit:
    • 9 (15 A power thru connector)
    • 10 (R20 module or similar)
  • Wattage typical:
    • 90 W at 120 V
    • 89 W at 240 V
  • Current draw:
    • 0.75 A at 120 V
    • 0.40 A at 240 V
• Thermal:
  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (No)
  • Droop compensation: Yes
  • dB range: 24.8 dBA average at 1 m
  • BTUs/hour (RGB-L / DB): 307 / 303
• Physical:
  • Materials: Die-cast, all metal housing
  • Color option: Silver
  • Mounting options: Yoke, floor stand yoke (available as an accessory)
  • IP rating: IP20
  • Weight: 3.77 kg (8.3 lb)
  • Included accessories: Hanging yoke, power cable
  • User interface: Seven-segment, three-button interface

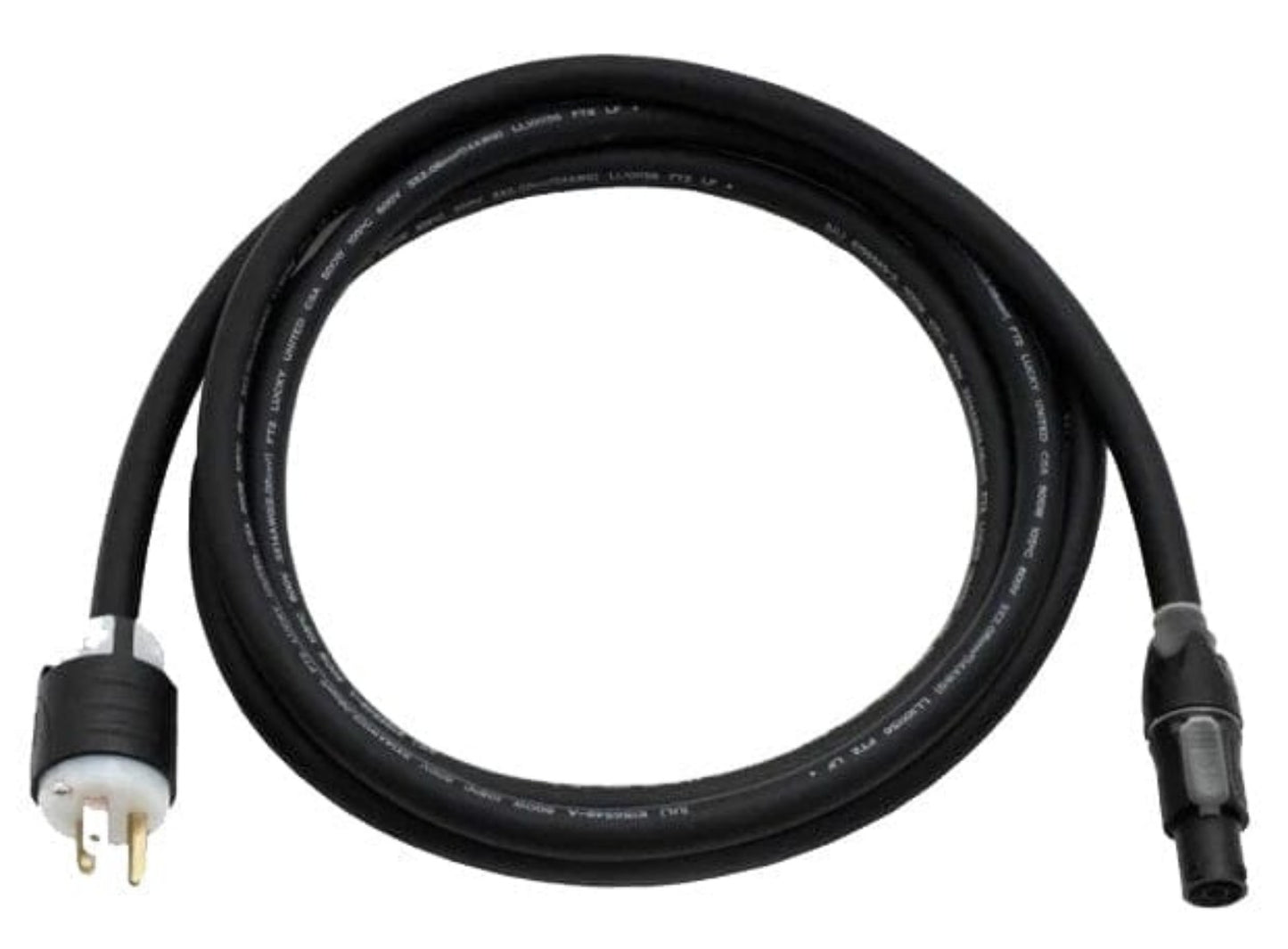

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black

6-Foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
