Description

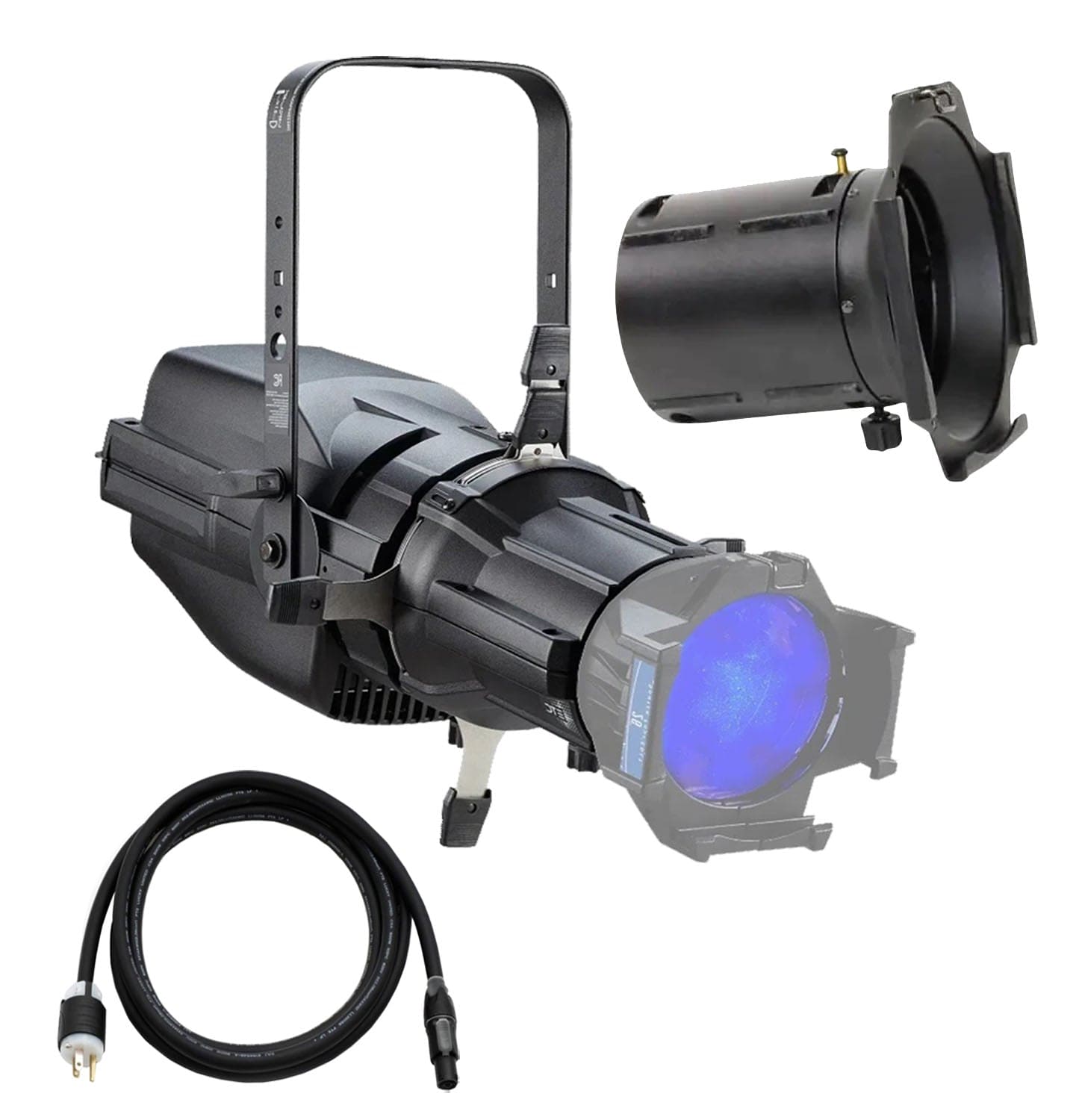

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 90-Degree Lens - Black

The VMVS490LT-TA package contains the following items:

*ETC CSSPOTVMVS ColorSource Spot V, Light Engine with EDLT Shutter Barrel, with Multiverse Capability - Black

An LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility

APPLICATIONS

  • Theatres and performance spaces
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

PRODUCT FEATURES

  • Five-color array (red, green, blue, indigo, and lime)
  • Simple user interface with seven-segment display
  • powerCON® TRUE1® TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing
  • Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light

PRODUCT SPECIFICATIONS

  • Source
    • LED details
      • 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
    • Max lumens
      • 9498
    • Lumens per watt
      • 48
    • L70 rating (hours to 70% output)*
      • 54,000 hours
  • Color
    • Colors used
      • Red, green, blue, indigo, lime
    • Color temperature range
      • Color mixing
    • Calibrated array
      • Yes
    • Red shift
      • No
  • Optical
    • Beam angle range
      • Swappable lens tubes, 5–90 degrees
    • Gate size
      • 80 mm
    • Aperture size
      • 6.25–14 in (depending on lens tube)
    • Pattern projection
      • Yes
    • Pattern size
      • A or B
    • Camera flicker control/Hz range
      • 5,000 Hz (default) and 25,000 Hz (via RDM)
    • Notes
      • Can be used with LED CYC and Fresnel adapters
  • Control
    • Input method
      • DMX512 via 5-pin XLR connector
    • Protocols
      • DMX512/RDM
    • Modes (footprint)
      • 4 modes, see page 4
    • RDM configuration
      • Yes
    • UI type
      • Seven-segment, three-button interface
    • Local control
      • Yes
    • Onboard presets
      • Yes (12)
    • Onboard sequences
      • Yes (5)
    • Onboard effects
      • No
    • FixtureLink
      • Yes
    • Notes
      • 15-bit virtual dimming engine
  • Wireless
    • Band
      • 2.400–2.480 GHz
    • Range
      • 100 m indoors, 500 m line of sight (subject to conditions)
    • Max receivers
      • DMX: No limit
      • RDM: Varies by transmitter used
      • Multiverse SHoW Baby®: 585
      • Multiverse Transmitter: 5,000
    • Broadcast power
      • 100 mW
  • Electrical
    • Voltage range
      • 100–240 VAC 50/60 Hz
    • Input method
      • powerCON TRUE1 TOP power in and thru
    • Inrush
      • 55 A at 120 V (First half-cycle)
      • 59 A at 240 V (First half-cycle)
    • Fixtures per circuit*
      • 8 fixtures (R20 module or similar)
      • *Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.
    • Wattage typical / standby
      • 199 W / 2 W at 100 V
      • 197 W / 2 W at 120 V
      • 194 W / 2 W at 240 V
    • Current draw typical / standby
      • 2 A / 0.07 A at 100 V
      • 1.65 A / 0.08 A at 120 V
      • 0.90 A / 0.10 A at 240 V
  • Thermal
    • Ambient operating temp
      • 0°–40° C (32°–104° F)
    • Fan (controllable)
      • Yes (yes)
    • Droop compensation
      • Yes
    • dB range
      • 24.4 dBA average at 1 m
    • BTUs/hour
      • 672
  • Physical
    • Materials
      • Die-cast, all metal housing
    • Color options
      • Black - White - Silver, or custom color
    • Mounting options
      • Yoke
    • IP rating
      • IP20
    • Weight
      • 7.7 kg (17 lb) (without lens)
    • Included accessories
      • Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
  • Warranty
    • Fixture
      • 5 years
    • LED array
      • 10 years
  • Regulatory and Compliance
    • Approved regulatory standards
      • cETLus Listed
      • Conforms to UL 1598 Listed
      • Conforms to UL 924 Listed
      • Certified to CSA C22.2 No. 250 Listed
      • Certified to CSA C22.2 No. 141 Listed
      • CE, UKCA, RCM, and CCC Compliant

*ETC 490LT 90-Degree Lens Tube - Black

This is a replacement or spare 90° lens tube assembly with lens installed for Source Four Ellipsoidal fixtures that comes in a black finish.

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
