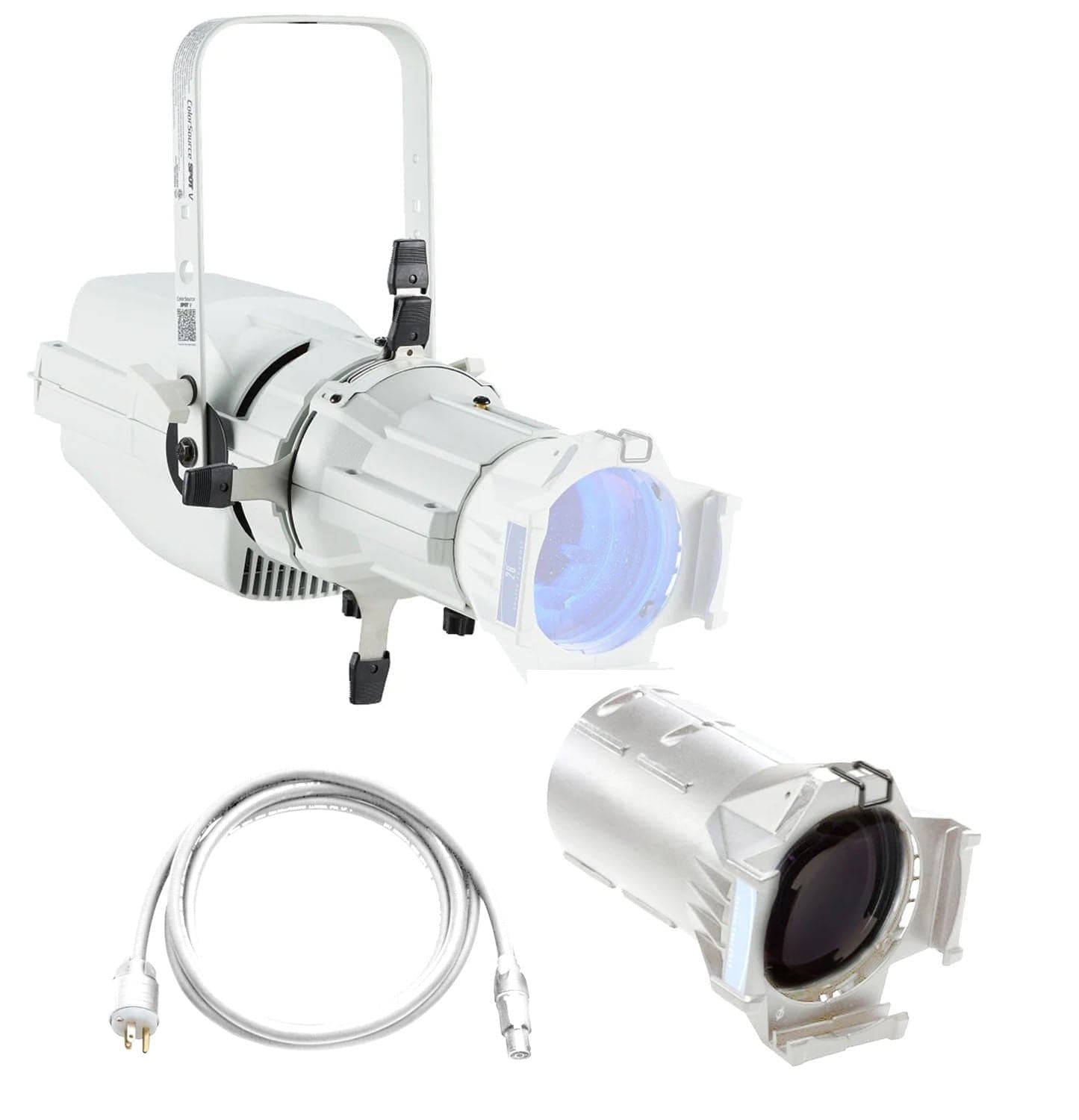

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree LED EDLT - White
The VMVS-1LED50LT-1-TA-1 package contains the following items:
*ETC CSSPOTVMVS-1 ColorSource Spot V, Light Engine with EDLT Shutter Barrel and Multiverse - White
ColorSource Spot is a spot fixture with Multiverse wireless DMX/RDM and NFC technology built in.
Features:
- Five-color array (red, green, blue, indigo, and lime)
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
- Combine with available adapters to transform your fixture
Specifications:
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC LED50LT-1 50-Degree Led-Specific EDLT Lens Tube - White
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC LED50LT-1 50-Degree Led-Specific EDLT Lens Tube - White
This is a 50° LED specific EDLT (Enhanced Definition Lens Tube) with lenses installed that's designed for the Source Four LED series of lights. This lens tube is built specifically to maximize the optics of the LED engine turning Source Fours into superior gobo projectors with remarkably crisp, high contrast imaging. This unit comes in a white finish.
*ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - White
6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
