ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree EDLT Lens - Black Alternatives

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree EDLT Lens - Black

More ETC products

Write a review Q&A SKU: VMVSLED50LT-TA Solotech ID#: 119780
1 of 1
Unfortunately the ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree EDLT Lens - Black is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

View full details
Unfortunately the ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree EDLT Lens - Black is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

Description

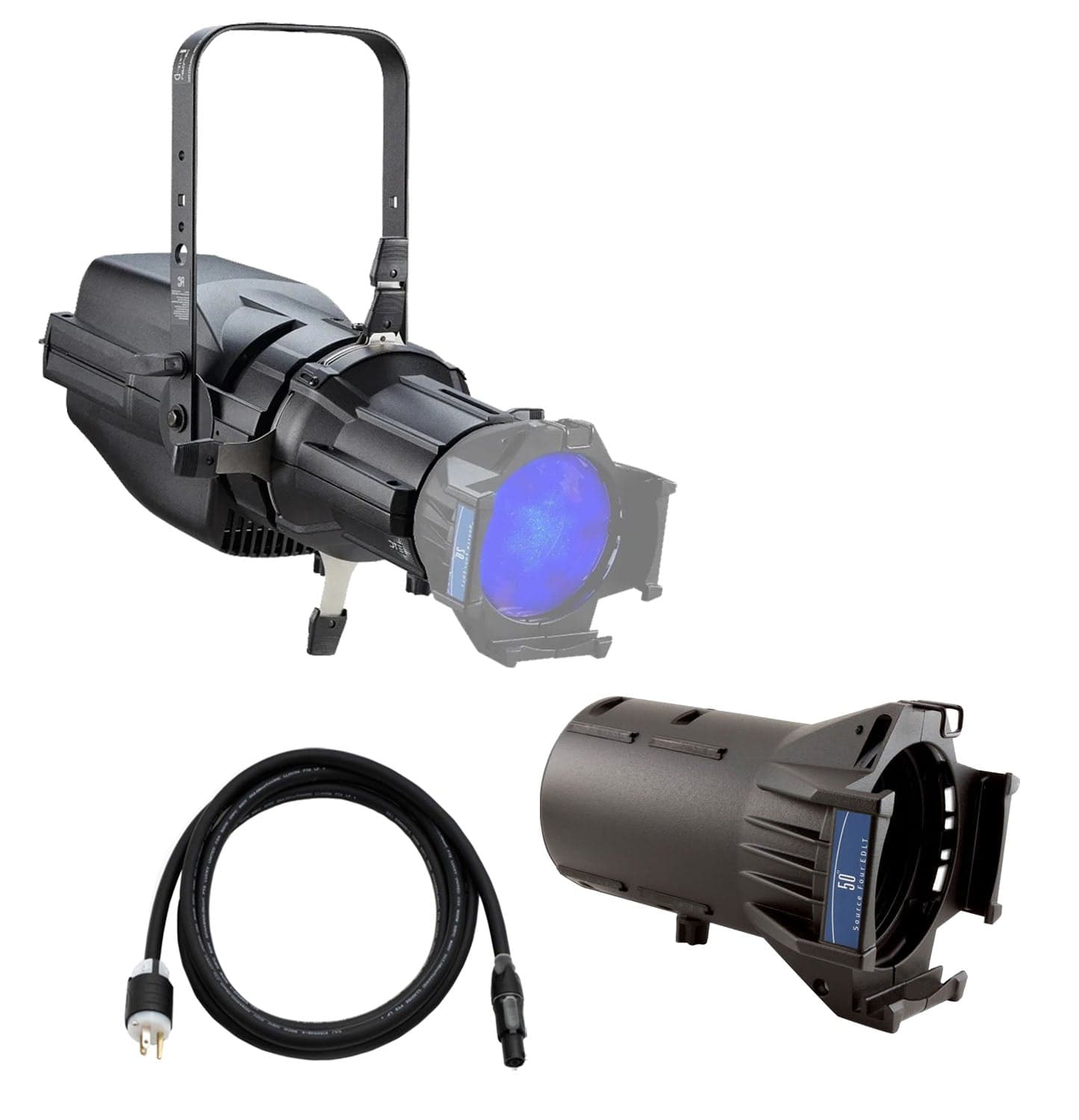

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 50-Degree EDLT Lens - Black

The VMVSLED50LT-TA package contains the following items:

*ETC CSSPOTVMVS ColorSource Spot V, Light Engine with EDLT Shutter Barrel, with Multiverse Capability - Black

An LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility

APPLICATIONS

  • Theatres and performance spaces
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

PRODUCT FEATURES

  • Five-color array (red, green, blue, indigo, and lime)
  • Simple user interface with seven-segment display
  • powerCON® TRUE1® TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing
  • Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light

PRODUCT SPECIFICATIONS

  • Source
    • LED details
      • 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
    • Max lumens
      • 9498
    • Lumens per watt
      • 48
    • L70 rating (hours to 70% output)*
      • 54,000 hours
  • Color
    • Colors used
      • Red, green, blue, indigo, lime
    • Color temperature range
      • Color mixing
    • Calibrated array
      • Yes
    • Red shift
      • No
  • Optical
    • Beam angle range
      • Swappable lens tubes, 5–90 degrees
    • Gate size
      • 80 mm
    • Aperture size
      • 6.25–14 in (depending on lens tube)
    • Pattern projection
      • Yes
    • Pattern size
      • A or B
    • Camera flicker control/Hz range
      • 5,000 Hz (default) and 25,000 Hz (via RDM)
    • Notes
      • Can be used with LED CYC and Fresnel adapters
  • Control
    • Input method
      • DMX512 via 5-pin XLR connector
    • Protocols
      • DMX512/RDM
    • Modes (footprint)
      • 4 modes, see page 4
    • RDM configuration
      • Yes
    • UI type
      • Seven-segment, three-button interface
    • Local control
      • Yes
    • Onboard presets
      • Yes (12)
    • Onboard sequences
      • Yes (5)
    • Onboard effects
      • No
    • FixtureLink
      • Yes
    • Notes
      • 15-bit virtual dimming engine
  • Wireless
    • Band
      • 2.400–2.480 GHz
    • Range
      • 100 m indoors, 500 m line of sight (subject to conditions)
    • Max receivers
      • DMX: No limit
      • RDM: Varies by transmitter used
      • Multiverse SHoW Baby®: 585
      • Multiverse Transmitter: 5,000
    • Broadcast power
      • 100 mW
  • Electrical
    • Voltage range
      • 100–240 VAC 50/60 Hz
    • Input method
      • powerCON TRUE1 TOP power in and thru
    • Inrush
      • 55 A at 120 V (First half-cycle)
      • 59 A at 240 V (First half-cycle)
    • Fixtures per circuit*
      • 8 fixtures (R20 module or similar)
      • *Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.
    • Wattage typical / standby
      • 199 W / 2 W at 100 V
      • 197 W / 2 W at 120 V
      • 194 W / 2 W at 240 V
    • Current draw typical / standby
      • 2 A / 0.07 A at 100 V
      • 1.65 A / 0.08 A at 120 V
      • 0.90 A / 0.10 A at 240 V
  • Thermal
    • Ambient operating temp
      • 0°–40° C (32°–104° F)
    • Fan (controllable)
      • Yes (yes)
    • Droop compensation
      • Yes
    • dB range
      • 24.4 dBA average at 1 m
    • BTUs/hour
      • 672
  • Physical
    • Materials
      • Die-cast, all metal housing
    • Color options
      • Black - White - Silver, or custom color
    • Mounting options
      • Yoke
    • IP rating
      • IP20
    • Weight
      • 7.7 kg (17 lb) (without lens)
    • Included accessories
      • Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
  • Warranty
    • Fixture
      • 5 years
    • LED array
      • 10 years
  • Regulatory and Compliance
    • Approved regulatory standards
      • cETLus Listed
      • Conforms to UL 1598 Listed
      • Conforms to UL 924 Listed
      • Certified to CSA C22.2 No. 250 Listed
      • Certified to CSA C22.2 No. 141 Listed
      • CE, UKCA, RCM, and CCC Compliant

*ETC LED50LT 50-Degree LED-Specific EDLT Lens Tube - Black

This is a 50° LED specific EDLT (Enhanced Definition Lens Tube) with lenses installed that's designed for the Source Four LED series of lights. This lens tube is built specifically to maximize the optics of the LED engine turning Source Fours into superior gobo projectors with remarkably crisp, high contrast imaging. This unit comes in a black finish.

*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black

6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
