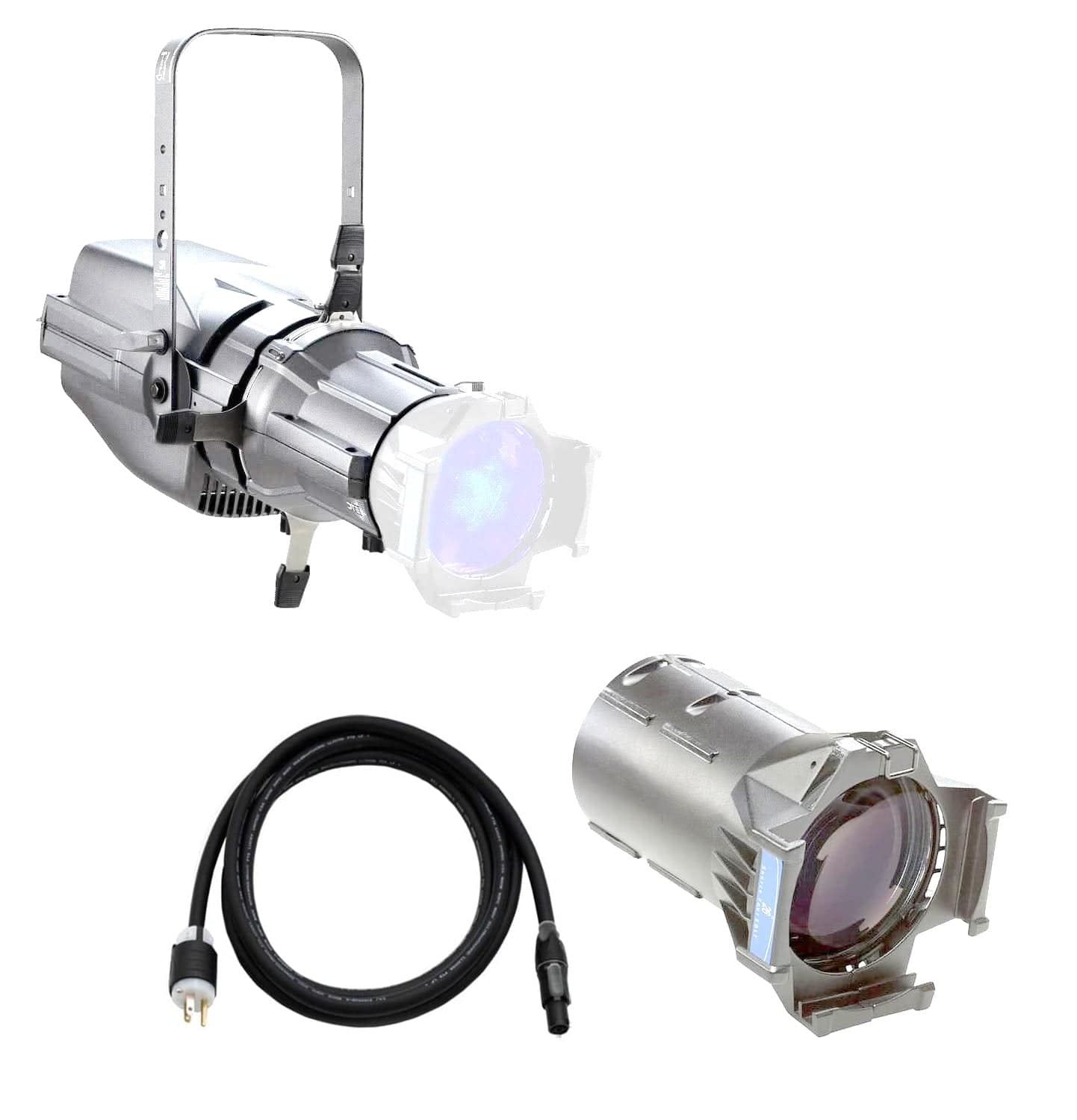

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 26-Degree EDLT Lens - Silver
The VMVS-5426EDLT-5-TA package contains the following items:
*ETC CSSPOTVMVS-5 ColorSource Spot V, Light Engine with EDLT Shutter barrel, with Multiverse - Silver
ColorSource Spot is a spot fixture with Multiverse wireless DMX/RDM and NFT technology built in.
Features:
- Five-color array (red, green, blue, indigo, and lime)
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
- Combine with available adapters to transform your fixture
Specifications:
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC 426EDLT-5 26-Degree EDLT Lens Tube - Silver
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC 426EDLT-5 26-Degree EDLT Lens Tube - Silver
When your lighting situation requires even more precise optics for projecting images, gobos, and logos, the Source Four EDLT (Enhanced Definition Lens Tube) option is an invaluable addition to your Source Four inventory. This version (426EDLT) is a 26 degree EDLT lens tube with lens installed in a silver finish. The EDLT attaches easily to any new or existing fixed-focus Source Four ellipsoidal spotlight. While increasing light output up to 10%, EDLT also provides heightened sharpness and stunning contrast to images when the Source Four is used as a pattern projector. With the innovative EDLT option on your Source Four, the best spotlight available gets even better.
Features:
- 26º field angle
- Heightened sharpness and contrast
- Increased output
- Advanced, dual aspheric lenses with anti-reflective coatings
- Fits all new and existing Source Four fixture bodies
*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black
6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
