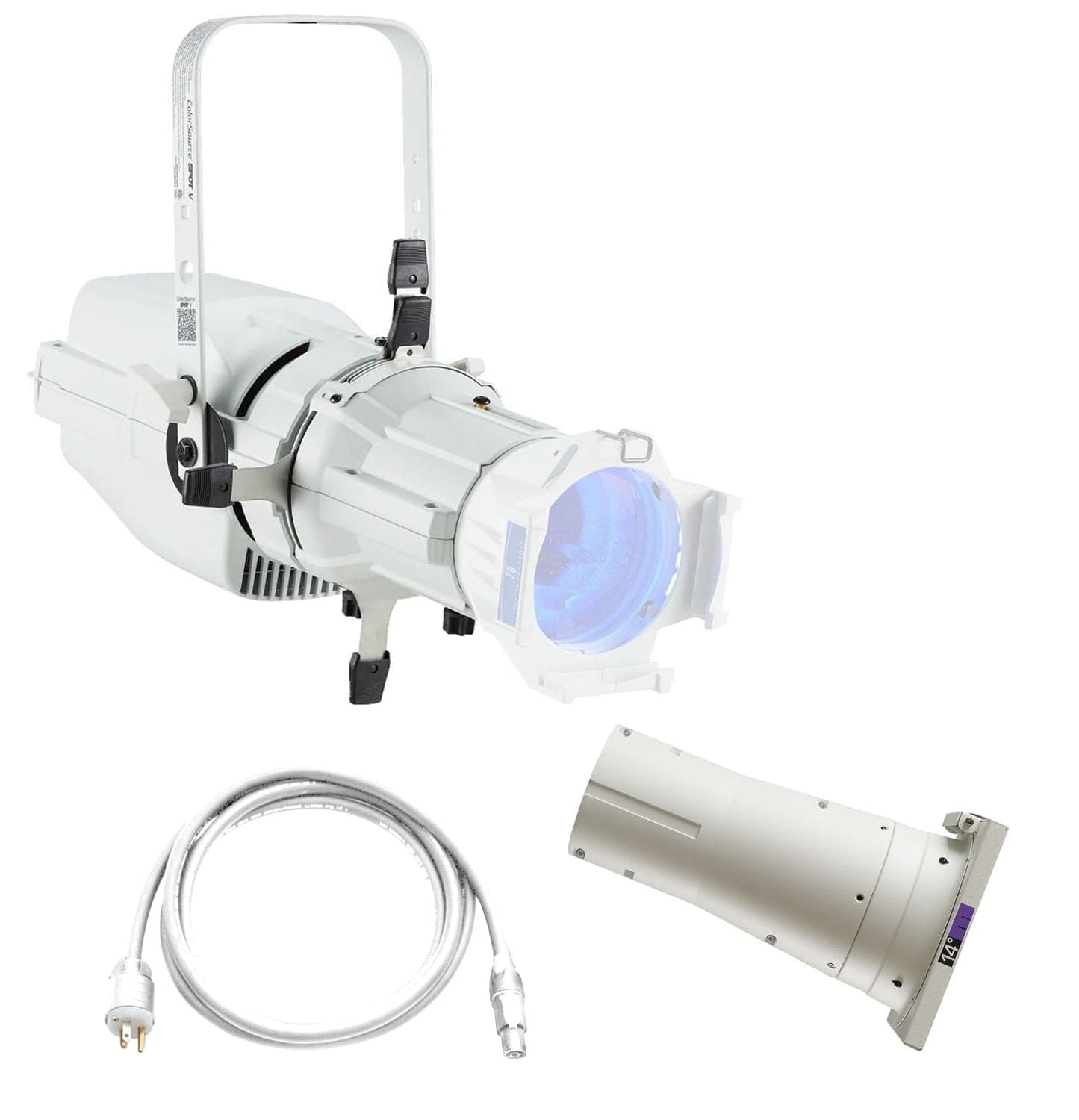

ETC ColorSource Spot V, Light Engine with EDLT Shutter Barrel with Multiverse, 14-Degree Lens - White
The VMVS-1414LT-1-TA-1 package contains the following items:
*ETC CSSPOTVMVS-1 ColorSource Spot V, Light Engine with EDLT Shutter Barrel and Multiverse - White
ColorSource Spot is a spot fixture with Multiverse wireless DMX/RDM and NFC technology built in.
Features:
- Five-color array (red, green, blue, indigo, and lime)
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
- Combine with available adapters to transform your fixture
Specifications:
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC 414LT-1 14-Degree Lens Tube - White
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 7.7 kg (17 lb) (without lens)
*ETC 414LT-1 14-Degree Lens Tube - White
This accessory from ETC is a 14° lens tube assembly with the lens installed that comes in with white finish. When used with a Source Four fixture it produces a narrow spread light pattern.
*ETC T1PA-A-1 Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - White
6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
