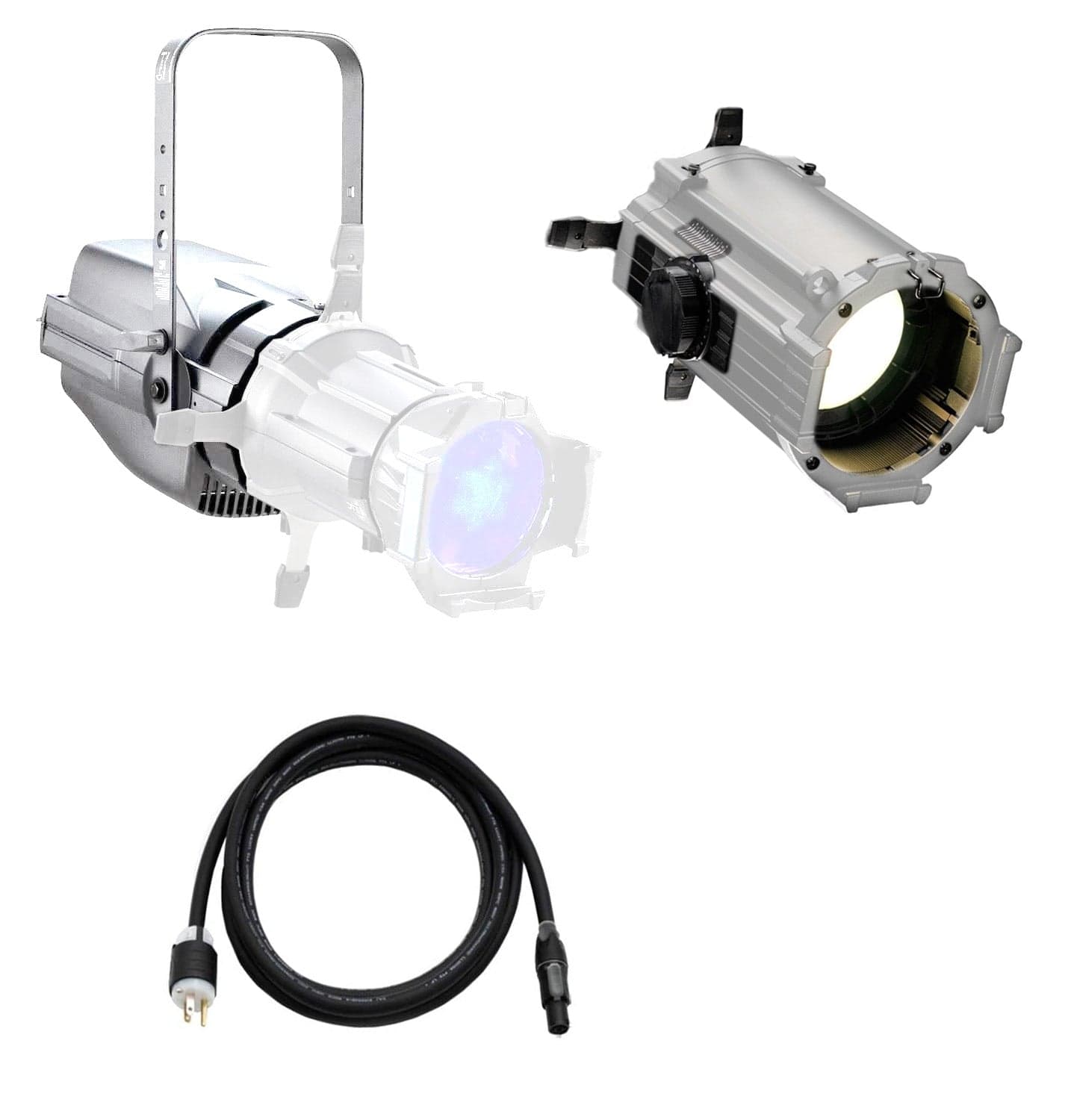

ETC ColorSource Spot V, Light Engine, with Multiverse, 25-to-50 Degree Zoom Lens Tube - Silver
The TVMV-5-42550LT-5-TA package contains the following items:
*ETC CSSPOTVMV-5 ColorSource Spot V, Light Engine Only, with Multiverse - Silver
The ColorSource Spot V is a spot fixture with Multiverse wireless DMX/RDM and NFT technology built in.
Features:
- Five-color array (red, green, blue, indigo, and lime)
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
- Combine with available adapters to transform your fixture
Specifications:
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees (shutter barrel needed)
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 5.9 kg (13 Lb) (without lens or shutter barrel)
*ETC 42550LT-5 25-to-50-Degree Zoom Lens Tube - Silver
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating: (hours to 70% output)* 54,000 hours
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
- Beam angle range: Swappable lens tubes, 5–90 degrees (shutter barrel needed)
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes:(footprint) 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Wireless Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Ambient operating temp: 0°–40° C (32°–104° F)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- Weight: 5.9 kg (13 Lb) (without lens or shutter barrel)
*ETC 42550LT-5 25-to-50-Degree Zoom Lens Tube - Silver
ETC’s 42550LT is a 25°-50° zoom lens tube assembly—in Silver—designed to be used with ETC’s Source Four incandescent and LED ellipsoidal light engine bodies. ETC’s patented one hand zoom and focus operation makes adjusting the lens simple and quick. But the best part is that Source Four Zoom has all the advantages of the revolutionary fixed-focus Source Four: bright even field, cool beam, and amazing efficiency. The patented dichroic mirror means shutters and accessories stay cool, and drop-in accessories are interchangeable with fixed-focus Source Fours. Source Four Zoom gives you Source Four's crisp optics for excellent imaging and field quality.
*ETC T1PA-A Edison Plug to True1 Receptacle, Ul 1573, 6-Foot/2-Meter Power Cable - Black
6-foot TRUE1 TOP to parallel blade U-ground (Edison) connector.
