Description

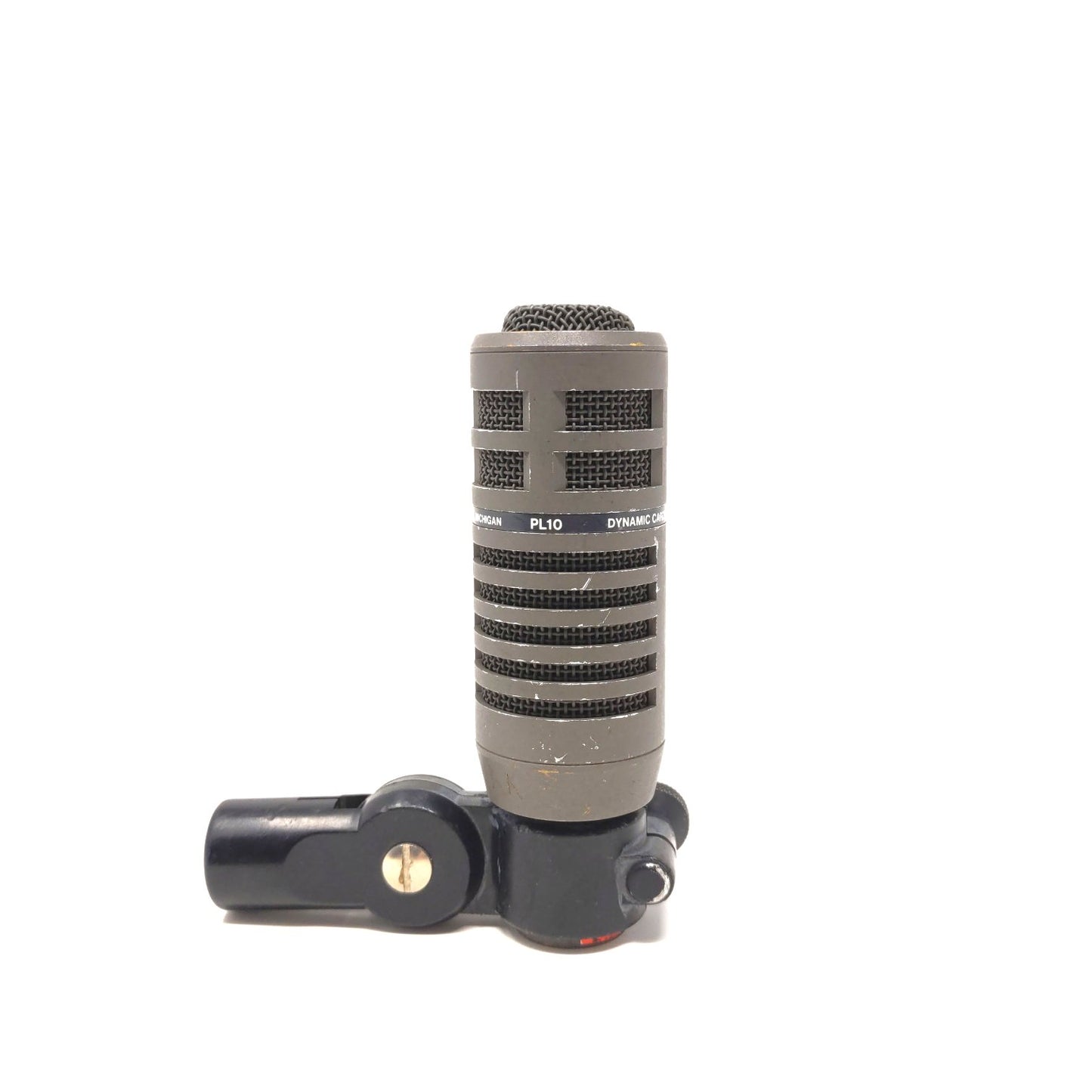

Electro Voice PL10 Dynamic Cardioid Microphone
The Electro-Voice Model PL 10 is a professional quality, dynamic, cardioid microphone created especially for music recording and live sound reinforcement applications requiring a flat frequency response over a very wide range. The extended frequency response, coupled with an excellent transient response, makes the PL 1 O easily comparable to the finest microphones for pickup of musical instruments or voices. The PL 10 is virtually free of bass-boosting "proximity effect" when used close to a sound source because the PL 10 is a Continuously Variable-Cl® microphone.
Specifications:
- Element: Dynamic
- Frequency Response: 75-15,000 Hz
- Polar Pattern: Cardioid
- Impedance: Lo-Z (15O ohms nominal)
- Output Level: -55.8 dB (0 dB= 1 mW/1 O dynes/cm2) 1 .26 mv/Pascal @ 1 kHz
- Hum Pickup Level: - 120 dBm/mOe
- Diaphragm: Electro-Voice Acoustalloy®
- Case Material: Steel
- Dimensions:
- 134.6 mm (5.3 in.) long
- 42.2 mm (1. 7 in.) wide
- Finish: Non-reflecting gray
- Net Weight: 315 g (11 OZ.)
- Accessories Furnished:
- No. 87213 stand adapter
- Zippered vinyl carrying case
- Optional Accessories:
- 309 shock mount
- 541 cable
- 542 cable
- 544 cable
