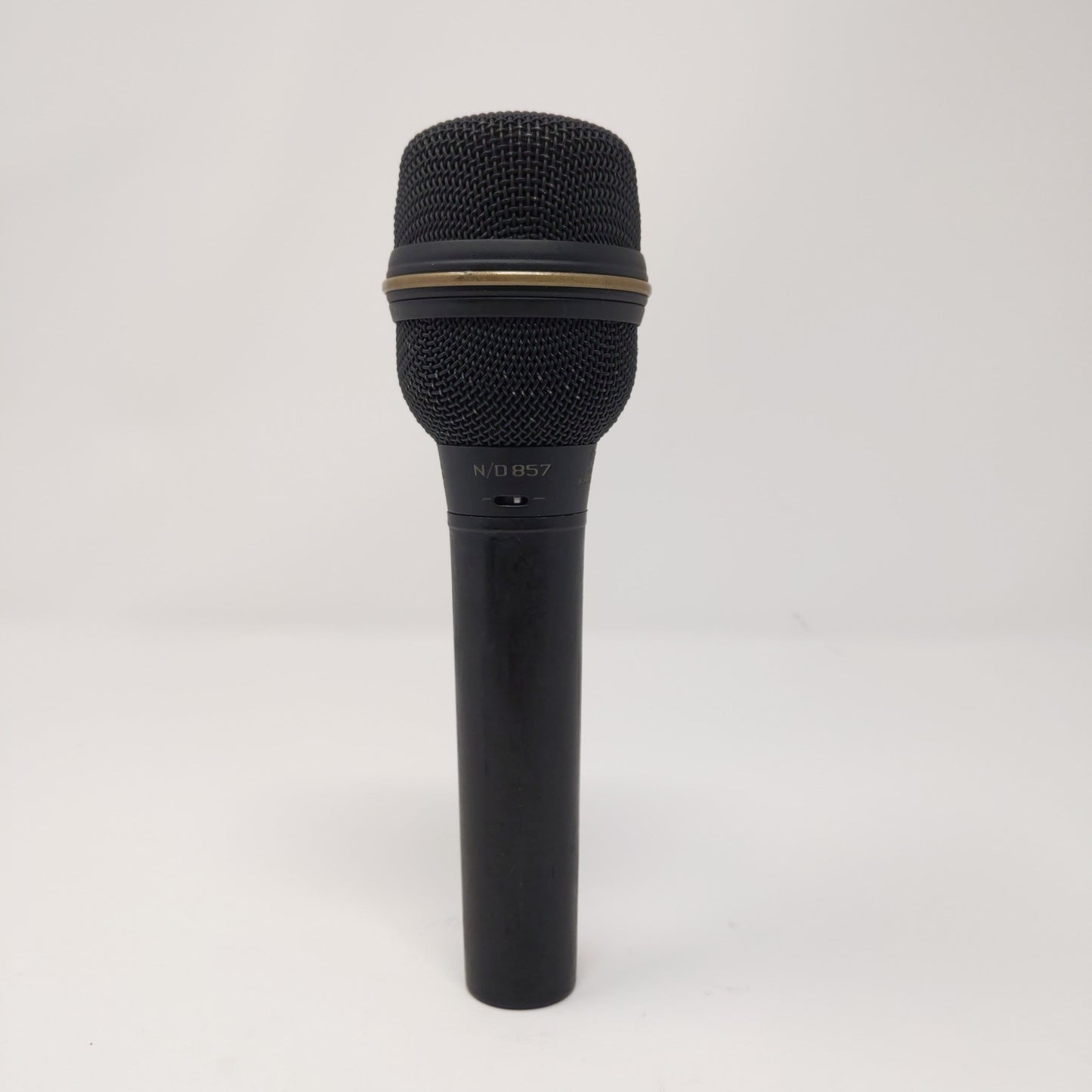

Electro Voice ND857 Dynamic Vocal Microphone
The Electro-Voice N/D857 is a supercardioid dynamic microphone utilizing a revolutionary neodymium alloy to form the EV-exclusive N/DYM®, magnet. The N/D857 was designed and field tested by the Electro-Voice engineering team for the specific, real-world conditions of high-performance, high level concert sound applications. All aspects of microphone performance - including frequency response. polar response, high-SPL performance, handling noise characteristics and vocal P-pop resistance - were examined and optimized for concert applications.
Specifications:
- Frequency Response:
- Close Response: 25 to 22,000 Hz
- Far Response: 50 to 18,000 Hz
- Polar Pattern: supercardioid
- Sensitivity:
- Open Circuit Voltage: 3.5 mV/pascal@ 1,000 Hz
- Power Level (measured at 1,000 Hz): -51 dB(0 dB= 1 mW/pascal)
- Dynamic Range: 144 dB
- Equivalent Output Noise: 14 dB (0 dB = 0.0002 dynes/cm2)
- Impedance (measured at 1,000 Hz): 150 ohms balanced (lo-Z)320 ohms actual
- Case:
- Grille: Steel Memraflex
- Inner Handle: Aluminum
- Sleeve: Elastomeric
- Dimensions:
- Length: 7.40 inches (188 mm)
- Diameter: 2.25 inches (57 mm)
- Shank: 0.80 in. (20 mm)
- Finish: Non reflecting black
- Weight:
- Net: 7.9 ounces (225 grams)
- Shipping: 1.41 lbs (620 grams)
- Accessories Included: 3
- PLC-25X cable
- PLC-25P cable
- 380 attenuator
- Replacement Parts:
- Warm Grip™ #72251
- Transducer SA #81963
