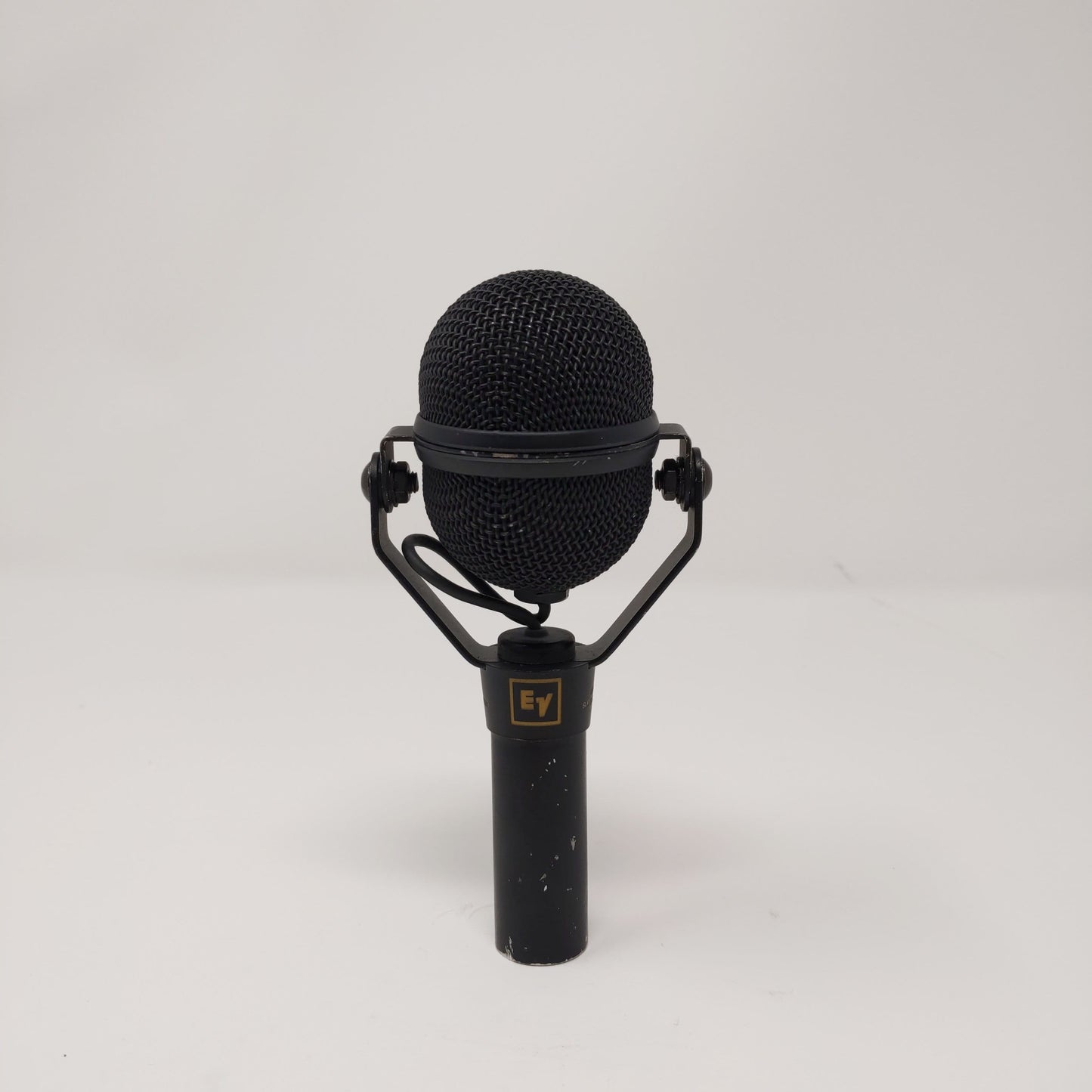

Electro Voice ND408B Supercardioid Dynamic Microphone

Electro Voice ND408B Dynamic Microphone

The Electro-Voice N/D408B is a supercardioid, dynamic microphone ideally suited to mic percussion, guitar amp and horns for live performance and studio recording. The unique pivoting yoke configuration provides the maximum flexibility in positioning the microphone. The N/D408B utilizes a revolutionary neodymium alloy to form the EV-exclusive N/DYM® magnet. With a computer-optimized design, the N/DYM magnetic structure is maximized in the N/D408B to provide 6-dB more output sensitivity over conventional designs while the more uniform magnetic field lowers distortion during peak sound pressure levels.

Specifications:

• Frequency Response:
  • Close Response: 30 to 22,000 Hz
  • Far Response: 60 to 22,000 Hz
• Polar Pattern: Supercardioid
• Open Circuit Voltage: 3.1 mV/pascal@ 1,000 Hz
• Power Sensitivity: -51 dB@ 1,000 Hz (0 dB= 1 mW/pascal)
• Dynamic Range: 144 dB
• Equivalent Output Noise: 14 dB (0 dB = 0.0002 dynes/cm2)
• Impedance: 150 ohms balanced (lo-Z)
• Weight: 6.7 ounces (190 grams)
• Dimensions:
  • Height: 4.55 in. (115 mm)
  • Width: 2.85 in. (72 mm)
  • Length: 2.75 in. (70 mm)
