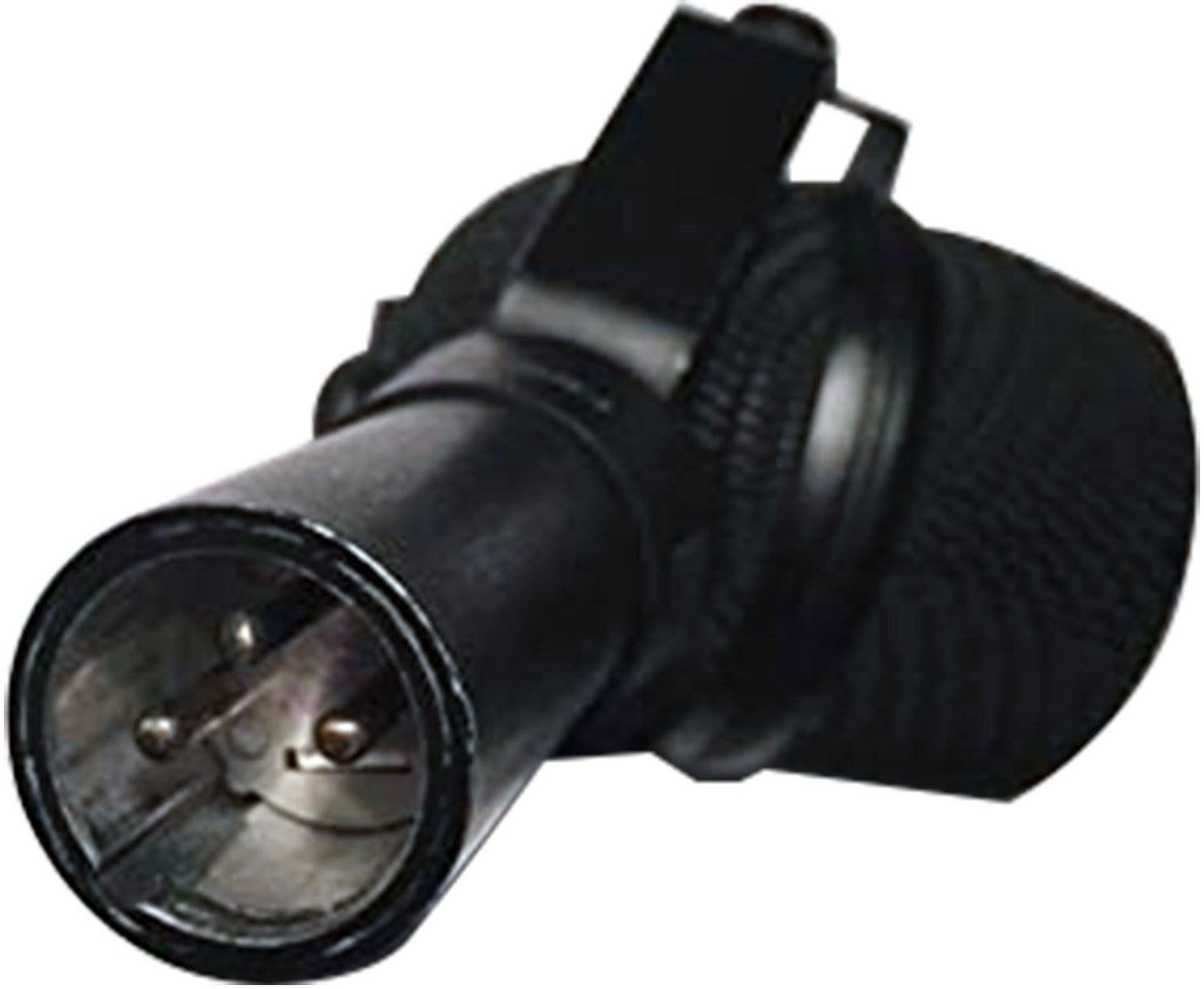

Electro-Voice ND308 Cardioid Dynamic Microphone
The Electro-Voice N/0308 is a cardioid dynamic microphone utilizing a revolutionary neodymium alloy to form the EV-exclusive N/DYM™ magnet with four times the power potential of conventional microphone magnets. With a computer-optimized design, the N/DYM magnetic structure provides unprecedented sensitivity while the more uniform magnetic field lowers distortion during peak sound pressure levels. The large diaphragm contains 50 percent more surface area than conventional designs and is reinforced to prevent "breakup." The result is an extended high-frequency response with an open, transparent sound quality.
Specifications:
- Frequency Response:
- Close Response: 40 to 20,000 Hz
- Far Response: 50 to 16,000 Hz
- Polar Pattern: cardioid
- Open Circuit Voltage: 2. 2 mV/Pascal@ 1000 Hz
- Sensitivity: -53dB
- Dynamic Range: 141 dB
- Equivalent Output Noise: 17 dB
- Impedance: 150 ohms balanced (Lo-Z)
- Weight: 6. 7 ounces (190 grams)
- Dimensions:
- Height: 455 inches ( 115 mm)
- Width: 2.85 inches (72 mm)
- Length: 2. 75 inches (70 mm)
- Close Response: 40 to 20,000 Hz
- Far Response: 50 to 16,000 Hz
- Height: 455 inches ( 115 mm)
- Width: 2.85 inches (72 mm)
- Length: 2. 75 inches (70 mm)
