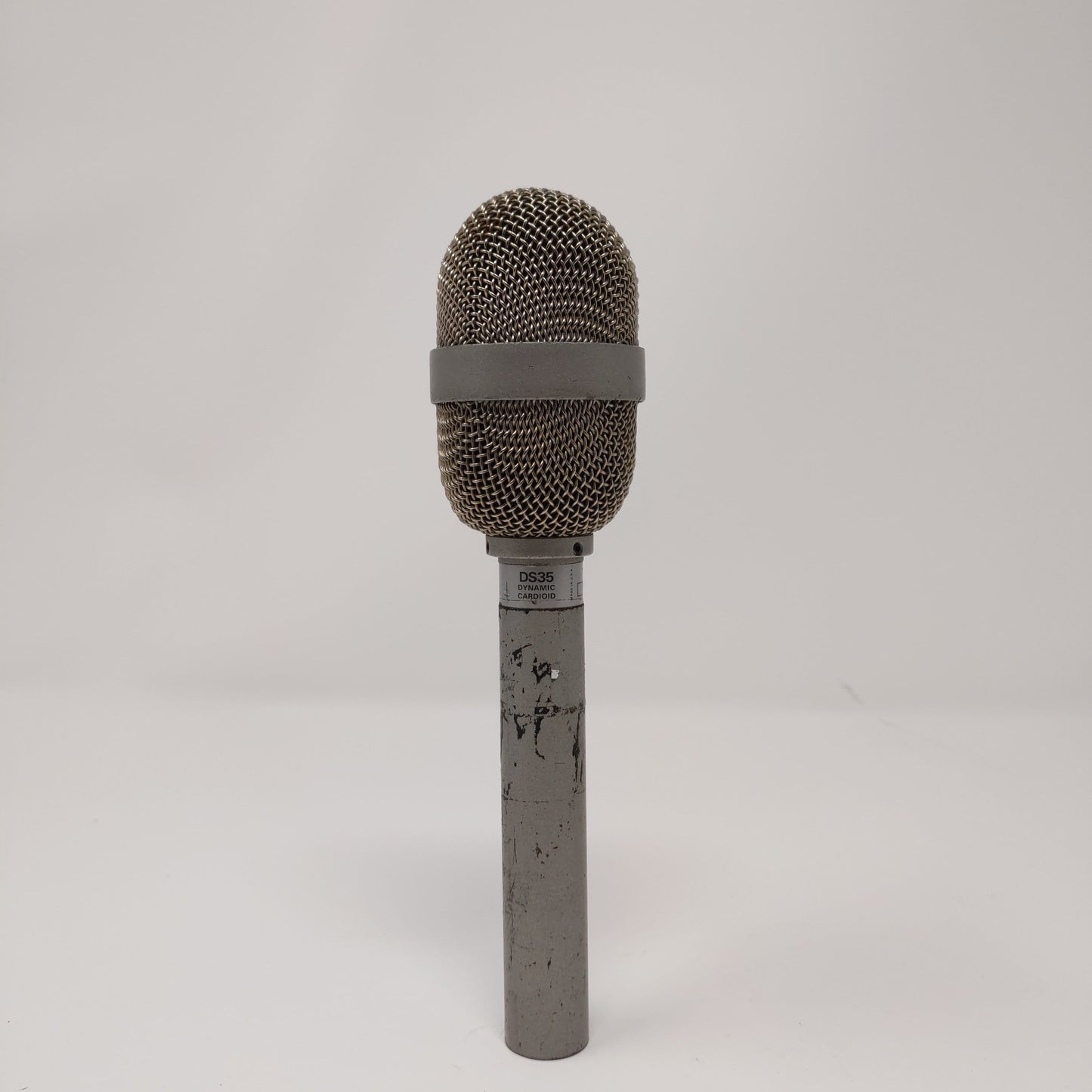

Electro Voice DS35 Cardioid Dynamic Microphone
The Electro-Voice Model DS35 is a dynamic Single-D cardioid microphone created especially for professional applications. The Single-D design emphasizes low frequencies when used "close up". Perfect for the exacting needs of high quality sound reinforcement and other professional perfom1er applications where proximity effect or "bass boost" is desired, the DS35 is ruggedly design and attractively styled. The broadcast painted finish of fawn beige Micromatte minimizes glare for camera use.
Specifications:
- Type: Dynamic
- Frequency Response: 60 to 17,000 Hz
- Polar Pattern: Cardioid
- Impedance: 150-Ohms balanced
- Output Level: -60 dB (0 dB== l mw/10 dynes/cm2)
- EIA Sensitivity Rating: -152 dB
- Diaphragm: Acoustalloy with laminated Volumetric dome
- Case: Turned Steel
- Finish: Fawn beige Micomatte
- Accessories Included: Model 3 12A Clamp
- Dimensions:
- 7¼" ( 184mm) long, 1-7/8" (48mm) max. dia.
- ¾" (19mm) shank diameter
- Net Weight: 9.2 ounces(26lg)
- Cable: IS' (457cm), 2-conductor, shielded, synthetic rubber jacketed with Switchcraft A3F connector.
- 7¼" ( 184mm) long, 1-7/8" (48mm) max. dia.
- ¾" (19mm) shank diameter
