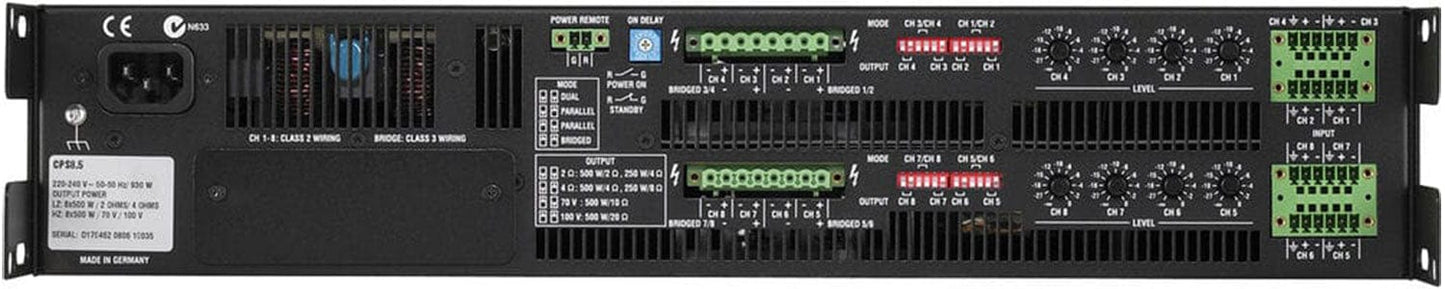

Electro-Voice CPS8.5 8x500W Power Amplifier

Electro-Voice CPS8.5 8x500W Power Amplifier

The Electro-Voice CPS4.5 is a four-channel amplifier from Electro-Voice featuring groundbreaking Class-D technology for maximum amp efficiency. Power into 2 Ohms, 4 Ohms, 70V or 100V lines are all possible, and no transformer is required. Additionally, amplifier channels can be bridged in pairs for double output power. A module slot for the optional RCM-810 remote control module provides control network functionality, allowing for remote system diagnostics via IRIS-Net software as well as Variable Load Drive (VLD).

Features:

• Designed for Cinema, Club Sound, Commercial Sound/Life Safety, Performance & Sports Venues, Stadium Systems, and other applications.
• Four amplifier channels, each can be run as either low or high impedance, delivering up to 500 W per channel
• Phoenix-type input and output connections
• Remote power-on/off contact
• Rear-mounted attenuators
• Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
• Optional RCM-810 card allows for VLD configuration in IRIS-Net allowing configuration of each output channel power to match any load from 2-10 ohms in 0.1 ohm steps
• 50 Hz high-pass filter when operating in Hi-Z mode
• Class-D design for optimum efficiency
• Complete protection package

Specifications:

• Amplifier Gain 32 dB (Lo-Z), 33 dB (70V), 36 dB(100V)
• Analog Inputs 4, electronically balanced, Phoenix-type
• Audio Network No
• CAN Bus Interface Yes (With Optional RCM-810Card)
• Continuous Rated Power (1 kHz, THD 1%) 100v 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 2 Ω 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 4 Ω 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 70v 500Watts
• Continuous Rated Power (1 kHz, THD 1%) 8 Ω 250Watts
• Continuous Rated Power (20-20 kHz, THD < 0,2%) 100v 450 Watts
• Continuous Rated Power (20-20 kHz, THD < 0,2%) 4 Ω 450 Watts
• Continuous Rated Power (20-20 kHz, THD < 0,2%) 70v 450 Watts
• Continuous Rated Power (20-20 kHz, THD < 0,2%) 8 Ω 225 Watts
• Cooling Front-to-Rear, continuously variable fans
• DIM 30 0.02 %
• Electronics Type Amplifier
• Frequency Response 15 Hz-30 kHz
• Input Impedance (Balanced) 20 kO
• Input Sensitivity 0 dBu (.775V)-2 Ω, +3dBu (1.1V)-4/8 Ω, +6 dBu (1.55) 70V/100V
• Input Sensitivity 0 dBu (.775V)-2 Ω,+3 dBu (1.1V)-4/8 Ω, +6 dBu (1.55) 70V/100V
• Intermodulation Distortion (SMPTE) 0.05 %
• Mains Voltage 220 - 240 V, 50 - 60 Hz or 120 V,50 - 60 Hz, 50 - 60 Hz
• Maximum Bridged Output 4 Ω 1000 Watts
• Maximum Bridged Output 8 Ω 1000 Watts
• Network Control (IRIS-Net) Optional
• Slew Rate 28 V/µs
• Total Harmonic Distortion 0.05 %
• Variable Load Drive (VLD) Yes
• Height 2RU 88.1 mm (3.47")
• Width 481 mm (18.94")
• Depth 421.5 mm (16.59")
• Weight Net 11.1 kg (24.47 lbs)
