ELC Lighting DLN3TMPOE 2 POE In 3 DMX Out Node

ELC Lighting DLN3TMPOE 2 Power over Ethernet In 3 DMX Out Node

The ELC dmXLAN node3 has 3 bi-directional DMX ports to convert from or to sACN, Art-Net or Shownet. An internal switch provides a second Ethernet port for a local lighting desk or additional Ethernet switches or nodes. The node3 can be outfitted with fully isolated DMX ports and Power over Ethernet.

Features:

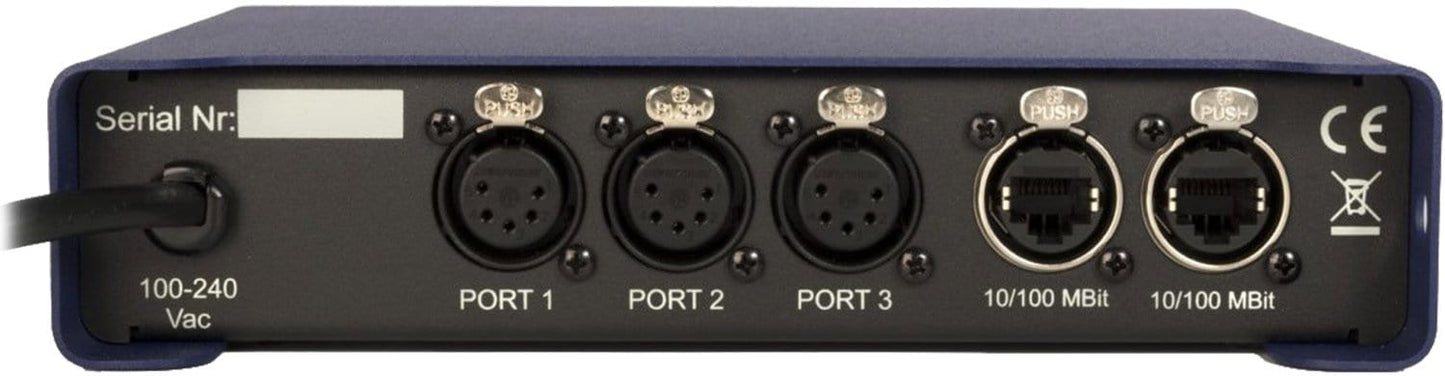

• 3 bi-directional DMX ports on the rear panel, XLR, RDM compatible
• 2 Ethernet ports (Neutrik Ethercon) 10/100MBit with integral Ethernet switch
• Remote programming and monitoring, remote fixture parameter override
• DMX input options (normal or backup)
• DMX output options: normal, merging in HTP, LTP, channel custom, priority merging, full softpatch (channel by channel), programmable merging with DMX channel control
• Local control via backlit display, rotary encoder/selector pushbutton
• Support for WYSIWYG, ESP, Capture

Specifications:

• Power: Power over Ethernet required on the internal connection
• Dimensions: 200 x 160 x 45 mm
• Weight: 1.2 kg
