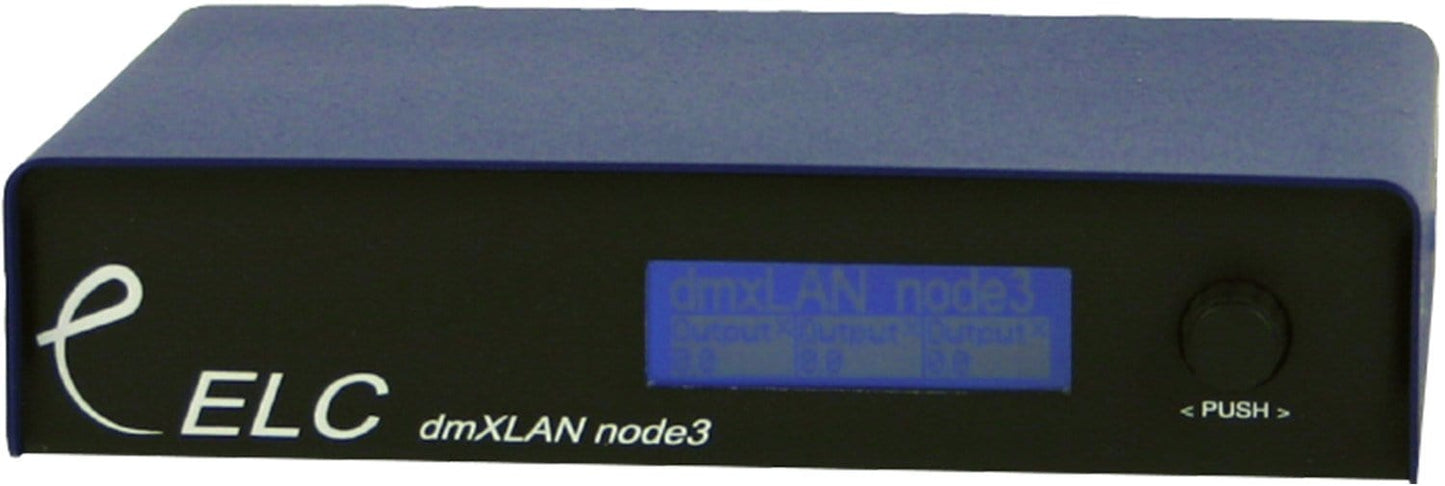

ELC Lighting DLN3TM 2 Ethernet In 3 DMX Out Node
The DLN3TM is a 3 bi-directional DMX ports to an Ethernet network. An internal switch provides a second Ethernet port for a local lighting desk or a PC running ELC dmXLAN control/management freeware or additional Ethernet switches or nodes. Also available with fully isolated DMX ports and Power over Ethernet.
Features:
- 3 bi-directional DMX ports on the rear panel, XLR, RDM compatible
- 2 Ethernet ports (Neutrik Ethercon) 10/100MBit with integral Ethernet switch
- Remote programming and monitoring, remote fixture parameter override
- DMX input options (normal or backup)
- DMX output options: normal, merging in HTP, LTP, channel custom, priority merging, full softpatch (channel by channel), programmable merging with DMX channel control
- Local control via backlit display, rotary encoder/selector pushbutton
- Support for WYSIWYG, ESP, Capture
Specifications:
- Power: 100-240 VAC 47-440 Hz 10VA max
- Dimensions: 200 x 160 x 45 mm
- Weight: 1.2 kg
- Power: 100-240 VAC 47-440 Hz 10VA max
- Dimensions: 200 x 160 x 45 mm
- Weight: 1.2 kg
