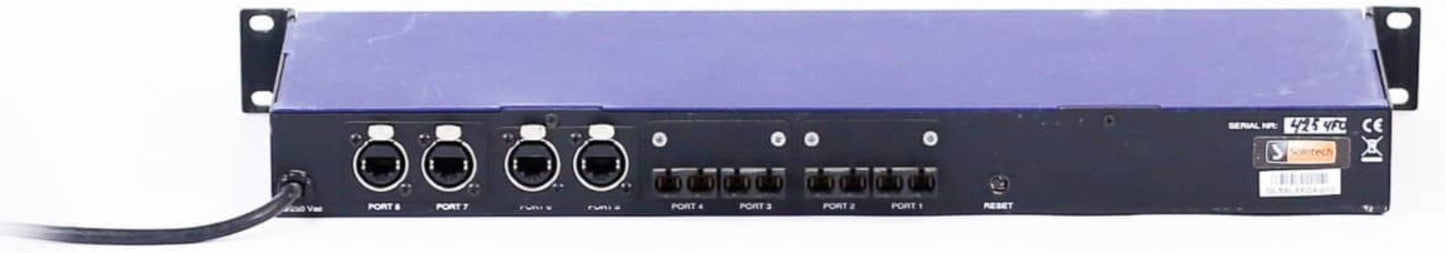

ELC dmXLAN switch8LX FO4 Network Switch

ELC dmXLAN switch8LX FO4 Network Switch

The dmXLAN switch8LX range is based on a high specification 10/100 MBit Ethernet layer 2 switching engine with optimized controller CPU, featuring 8 programmable network ports, and programmable static multicast routing. The dmXLAN switch8LX has been specifically designed for live entertainment applications where a mixture of data protocols can overload and saturate commercially available network switches.

Features:

• Real-time backup loop
• Multicast filtering
• Gateway support
• Available in 4 versions:
  • 8 x CAT5 Ethernet ports on Neutrik Ethercon
  • 6 x CAT5 Ethernet ports on Neutrik Ethercon and 2 x fiberoptic 100MBit ports (ports 1 & 2) on SC connector
  • 8 x CAT5 Ethernet ports on Neutrik Ethercon, with Power Over Ethernet on ports 3 to 8
  • 6 x CAT5 Ethernet ports on Neutrik Ethercon and 2 x fiberoptic 100MBit ports (ports 1 & 2) on SC connectors with Power over Ethernet on ports 3 to 8

Specifications:

• Dimensions: 19” x 1U x 6.3in, 5.5lbs (box size: 22.5 x 11 x 2.8in, 6.4lbs gross)
• Power: 100-240VAC 50/60Hz, fixed power cord
• Connections: Ethernet ports RJ45 on Neutrik Ethercon, fiberoptic ports on SC connectors
• Supplied: DLS8LX, fitted power cord, operator instructions
• Versions:
  • DLS8LX: 8 x CAT5 ethernet ports
  • DLS8LX FO: 6 x CAT5 ethernet ports and 2 x fiberoptic 100MBit ports
  • DLS8LX POE: 8 x CAT5 ethernet ports, with Power Over Ethernet
  • DLS8LX FO POE: 6 x CAT5 ethernet ports and 2 x fiberoptic 100MBit ports, with PoE
