Elation VOLT+ PAR L VOLT+ PAR L; 60W RGBLA+UV LED BATTERY WIRELESS PAR

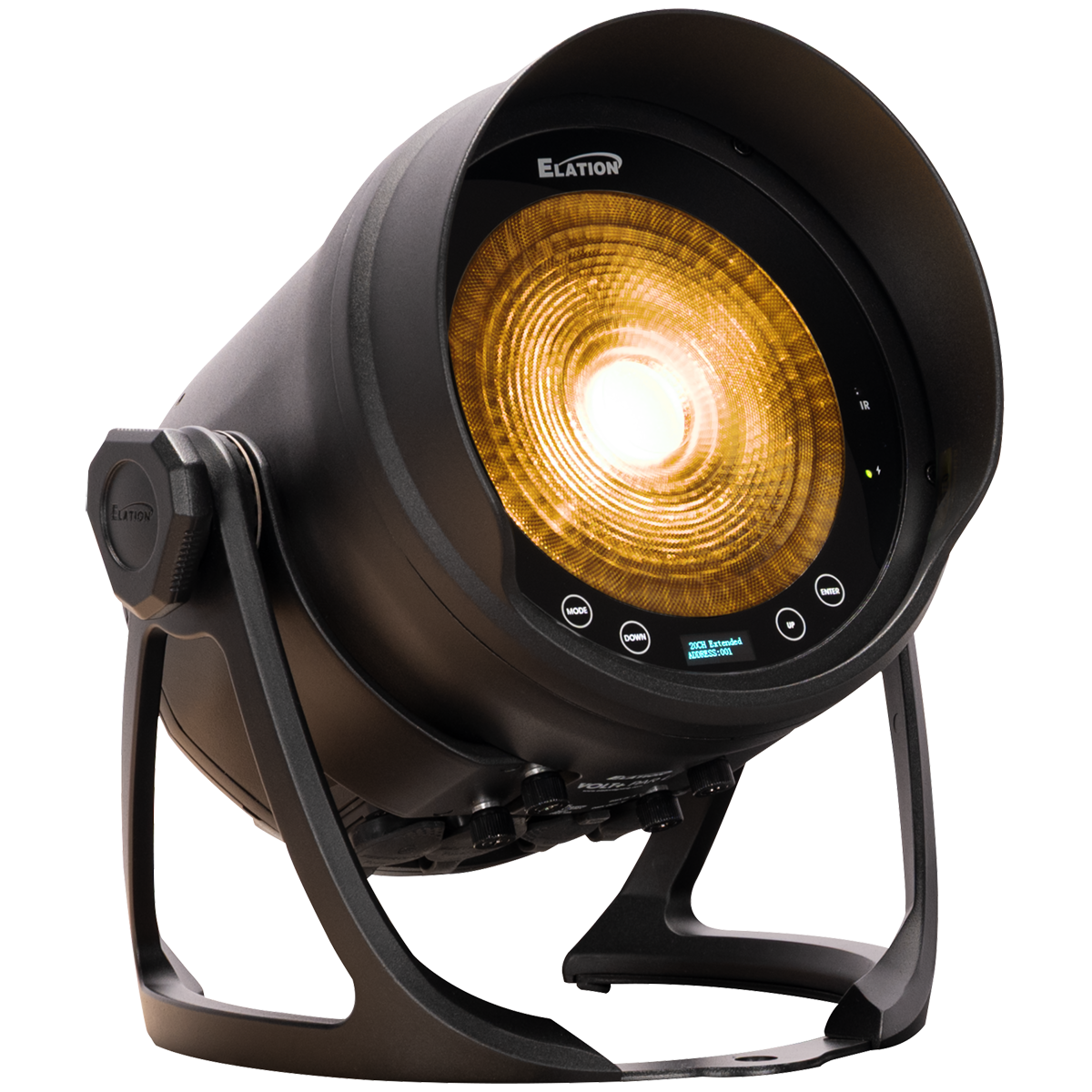

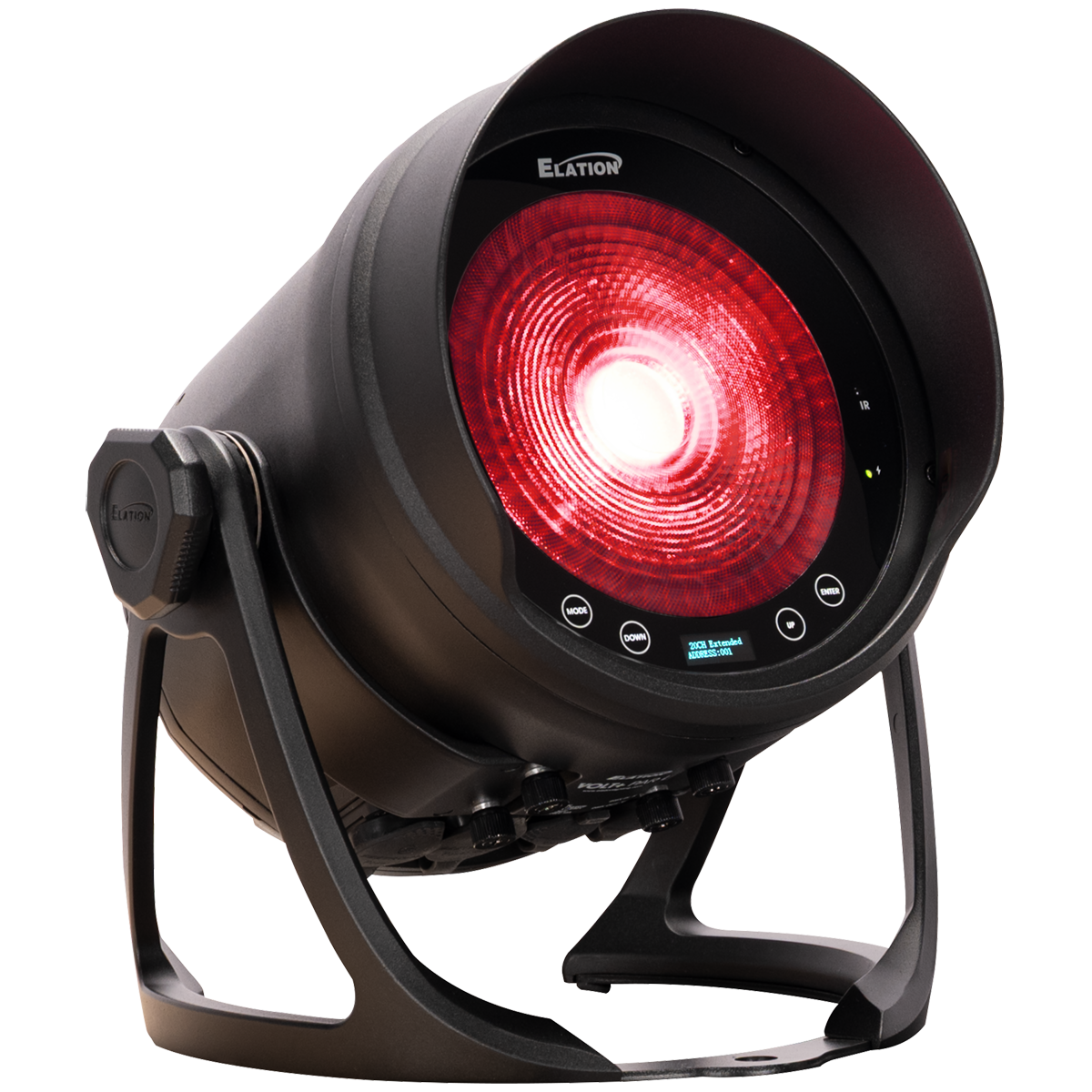

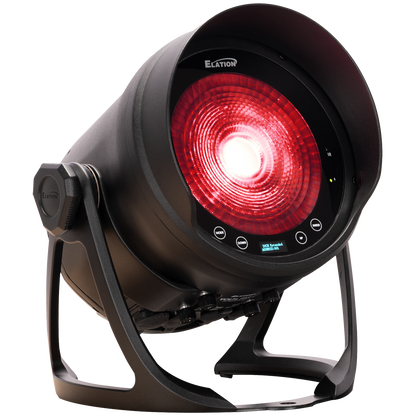

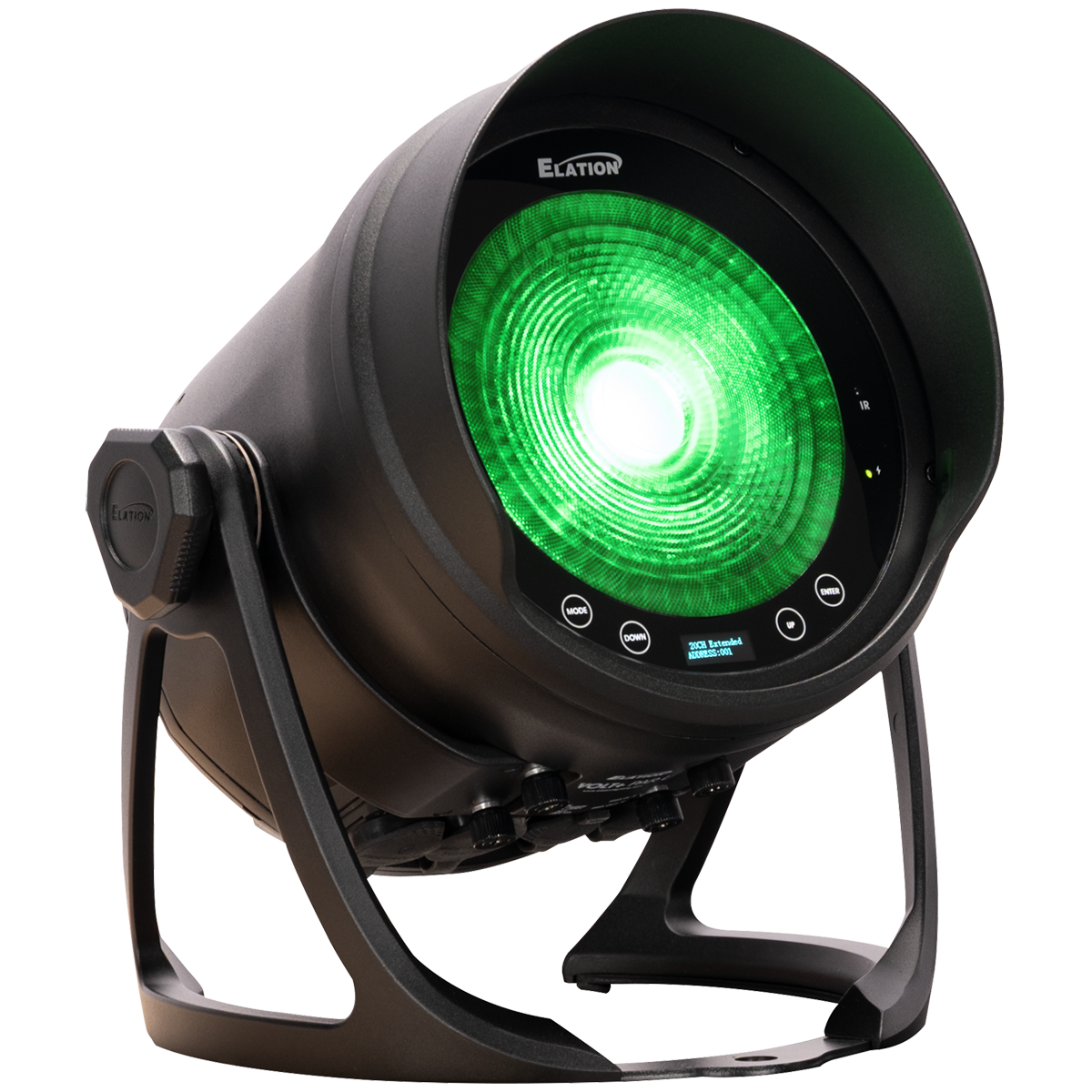

Introducing the VOLT+ PAR L, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR L features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek design with integrated power and DMX connectors make wire free, or wired setups a breeze.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR L is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended wireless runtime, the VOLT+ PAR L offers an optional external battery, giving users the flexibility to keep their designs untethered for even longer durations.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR L delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR L is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

60W RGBLA+UV LED
3600 Total Fixture Lumen Output (Sphere)

90.9 CRI
15° Beam Angle, Diffusion Lens Included
Removable Snoot Included
>12hr Maximum Battery Run Time
IP65 Rated

Specifications

  • SOURCE

    • 60W RGBLA+ UV LED

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 3,600 (Integrating Sphere)

    • CRI- 90.9

    • TLCI- 80

    • Beam Angle: 15°

    • Field Angle: 28°

  • EFFECTS

    • Prebuilt Custom Standalone Effect Sequences

    • Electronic Dimmer and Strobe

    • Variable 16-bit Dimming Modes and Curves

  • COLOR

    • RGBLA+ UV Color Array

    • CMY Emulation

    • Variable CCT 2400K - 8500K

    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)

    • 4 Button Control Panel, LED Display

    • Aria x2 Wireless Device Management

    • IR Remote

    • NFC Configuration

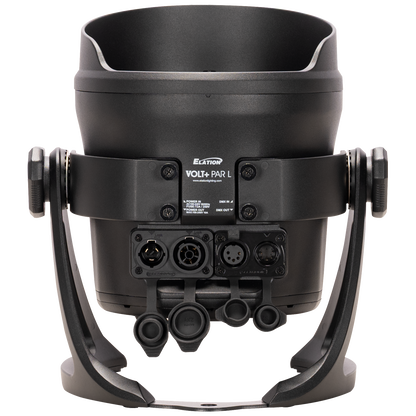

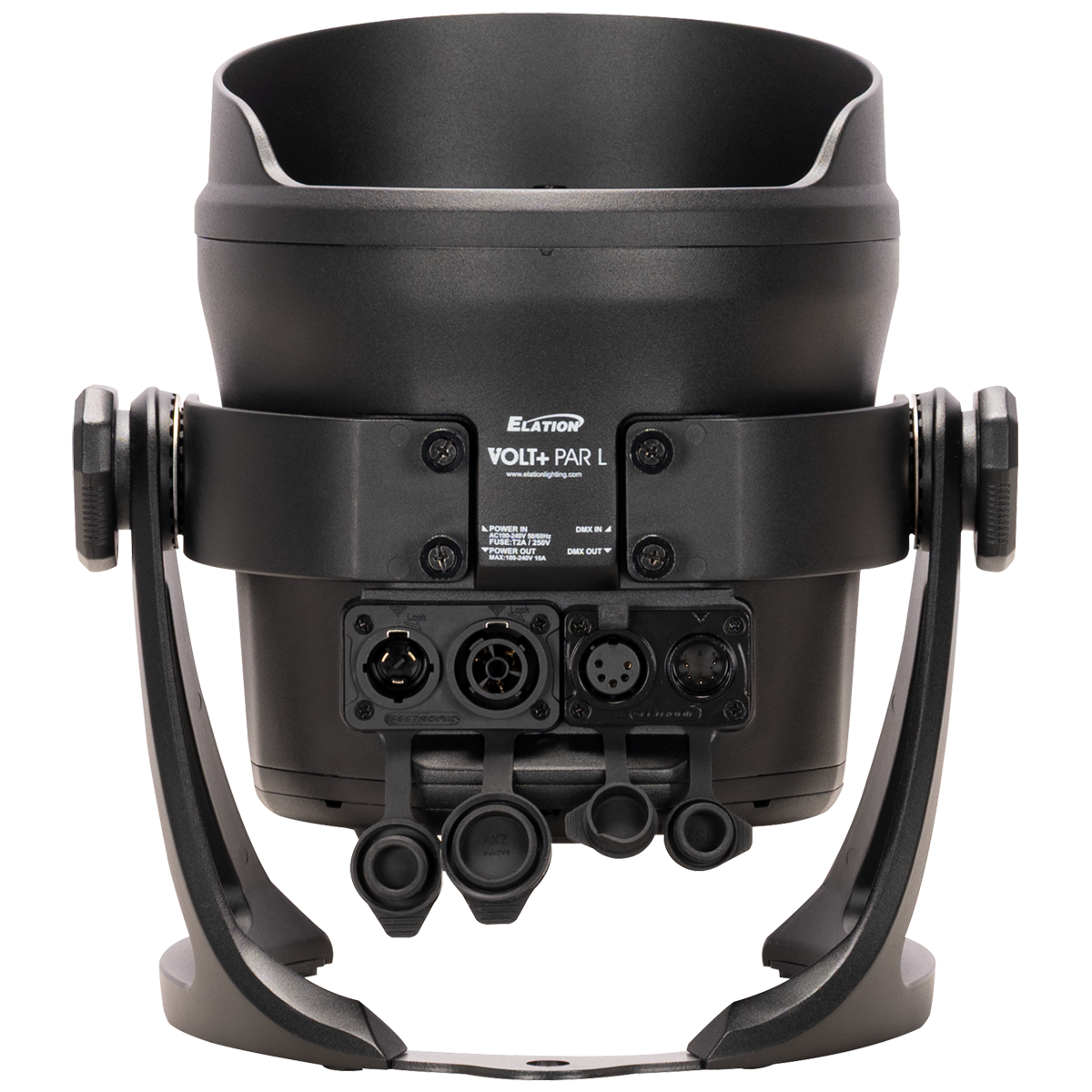

    • 5pin DMX and IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT

    • Length: 8.11" (206 mm)

    • Width: 8.11" (206mm)

    • Vertical Height (with Snoot): 9.28" (235.7mm)

    • Vertical Height (without Snoot): 7.08" (180mm)

    • Weight: 15.1lbs (6.85kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 160W Max Power Consumption

    • 5°F to 104°F (-15°C to 40°C)

    • BTU/hr (+/- 10%) 238.7

  • BATTERY

    • Lithium Ion Rechargeable

    • Battery Capacity: 19.2Ah

    • Battery Voltage: 18V

    • Charge Time: 4.5hr

    • Battery Life: >12hr

    • Battery Recharge Cycles: >300 to 80% Capacity

  • INCLUDED ITEMS

    • Diffusion Filter

    • Concentric Ring

    • Removable Half Snoot

  • OPTIONAL ITEMS

  • VOLT+ IR REMOTE (VOL555)

  • VOLT+ PAR L YOKE (VOL359)

  • VOLT+ PAR L LENS KIT (VOL345)

  • VOLT+ PAR BATTERY BASE (VOL402)

  • VOLT+ PAR STAND ADAPTER (VOLSAL)

  • VOLT+ PAR L SILICONE SLEEVE- WHITE (VOL381)

  • VOLT+ PAR L 6-PACK (VOL302)

  •

  • APPROVALS / RATINGS

    • CE | cETLus | IP65 | FCC | UKCA

  • FIRMWARE UPDATE

    • Current Update: V1.01

    • Click HERE for software update

    • Specifications and documentation subject to change without notice.
