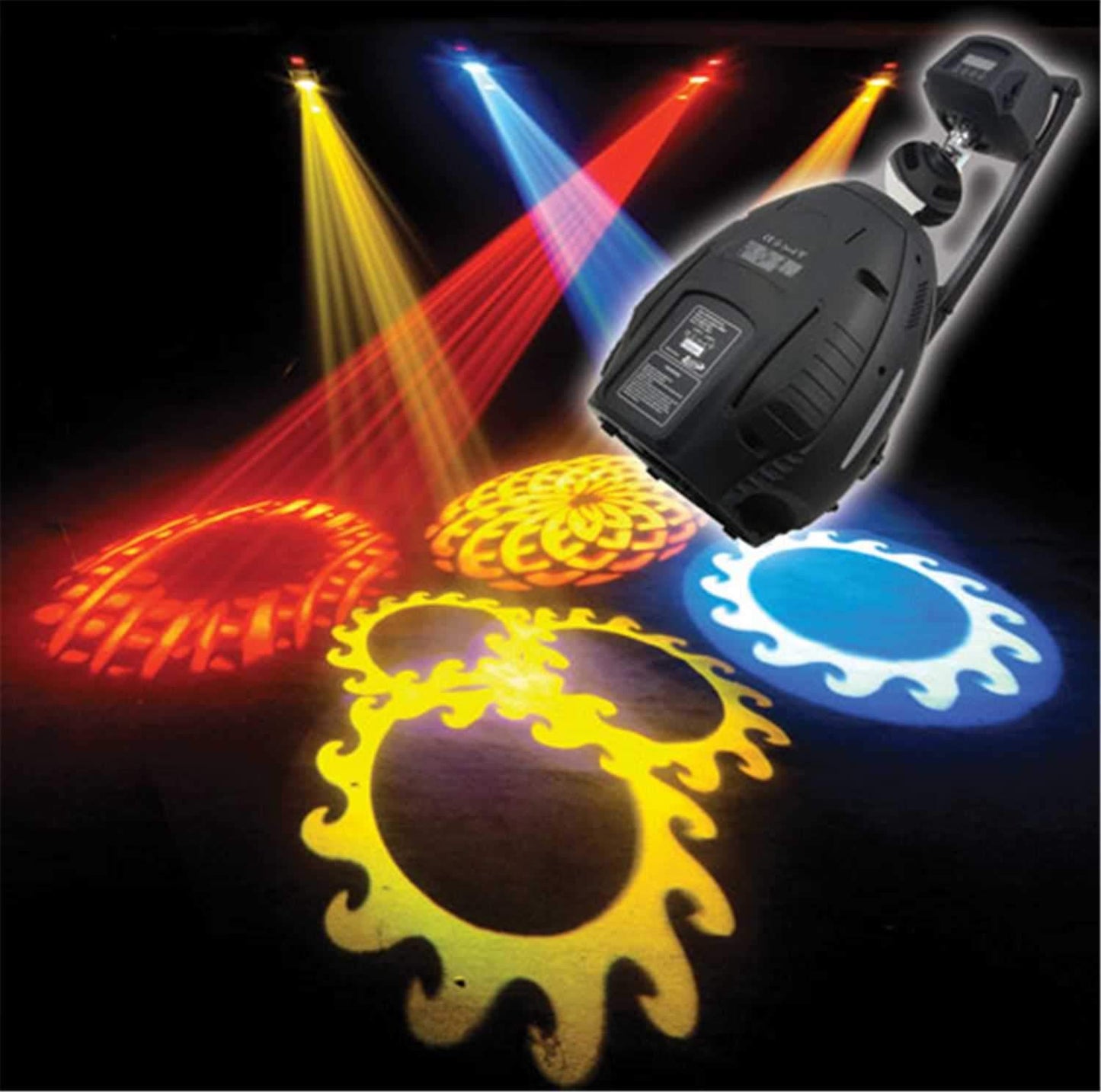

Elation VISION-SCAN-575 W DMX Scanner

More Elation Professional products

Write a review Q&A SKU: VISIONSCAN-575 Solotech ID#: 58522
Elation VISION-SCAN-575 W DMX Scanner - PSSL ProSound and Stage Lighting
1 1
Unfortunately the Elation VISION-SCAN-575 W DMX Scanner is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

800-268-5520 Send a message
View full details
Unfortunately the Elation VISION-SCAN-575 W DMX Scanner is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

800-268-5520 Send a message

Description

ELATION VISION SCAN 575 W DMX SCANNER



Control Features:
  • USITT DMX-512 (16-bit resolution)
  • Pan 170?/Tilt 80?
  • 16 DMX channels
  • 4 Digit L.E.D. Display
  • 3 pin XLR serial input/output

Optical System:
  • Remote Focus via DMX
  • High Output Luminous-Parabolic dichroic reflector

Beam Feature:
  • 20?, 22? & 24? Beam Angle

Color Features:
  • 8 Colors + White
  • UV filter
  • Color Scroll
  • Split Colors

Gobo Features:
  • 16 Gobos on 2 wheels
  • Convenient Slot-Lock gobo replacement system
  • Gobo Shake Effect
  • Gobo Scroll
  • Wheel 1: 6 interchangeable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
  • Wheel 2: 7 interchangeable Static Metal gobos
  • Gobo Size Wheel 1: 22mm x 23mm viewing x 4mm thickness
  • Gobo Size wheel 2: 22mm x 23mm viewing metal only

Effect Features:
  • 3-facet prism rotating in both directions at variable speeds
  • Gobo Overlaying

Shutter/Dimmer Features:
  • Mechanical Dimming 0-100%
  • Mechanical High Speed shutter & Pulse Effect

Special DMX-Control Features:
  • 16 pan/tilt preprogrammed movements via DMX
  • Built-in Programs via DMX
  • Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

Stand-Alone Features:
  • Sound activated built in programs
  • Sensitivity knob
  • Linkable up to 16 units
  • Self Test & Stand Alone settings
  • Built-in Microphone with sensitivity knob

Technical Features:
  • Lamp: Phillips MSR-575/2 (575W, 7200?K, 1000hrs)
  • Size: 13.75? x 15.5?W x 30.5?H
  • Weight: 65lbs
  • Fuse: 10A
  • Voltage: 120V/220v (50/60Hz)
  • Power Consumption: 700VA
  • Fan cooled 1 axial fan
