Description
Elation TRITON T-20 TRITON 20W IP65 LASER FIXTURE W MERCURY
The X-Laser Triton T-20 is a high-power, durable laser fixture designed for demanding professional use, featuring a robust IP65-rated enclosure made from 6061-T6 Aluminum for extreme weather resistance in tours and permanent installs. It delivers an impressive 20W of balanced, direct-diode RGB power (6.4W red, 6.4W green, 8.0W blue), utilizing specific Direct-Injection Diode Modules for vivid and precise color mixing. This allows designers to achieve over 1,000 full RGB colors, perfectly blending with traditional lighting fixtures. Key optical features include rapid 30K PPS closed-loop galvanometers and a highly flexible, instant 0.1º to 45º zoom range.
Control is streamlined through X-Laser's integrated Mercury Laser Control System, enabling direct programming from a lighting console using industry-standard protocols like sACN, Art-Net, DMX, and RDM. The fixture comes equipped with extensive built-in creative content, including 450+ digital patterns ("Gobos"), 50 Color Macros, and 60 Motion Macros. For easy maintenance, it features an accessible service "hood" and an onboard 2.25" LCD readout for live diagnostics. The fixture weighs 30 lbs (13.6 kg) and ships in a standard Pelican-style road case, backed by a 2-year warranty.
Specifications
-
Source
- 20W Balanced RGB Laser Engine
- Direct-Injection Diode Modules
- Red: 638 nm
- Green: 520 nm
- Blue: 450 nm
- 6.5W red, 6.5W green, 8.0W blue
-
Photometrics / Optics
- High-Speed Closed-Loop Galvanometers
- Max Scan Angle 45º
- 30,000 PPS Scanner Speed at 8º Scan Angle
- Beam Divergence: <1.2 mRad
- Fully Sealed Optical Deck
-
Electrical / Thermal
- 90-246V AC Auto-Switching
- Power draw: 400W peak
- Neutrik PowerCON TRUE1
- Operating range: 0º F to 105º F (-17º C to 41º C)
-
Other
- FDA / IEC Hazard Class IV
- U.S. FDA Variance Required
-
Control and Interface

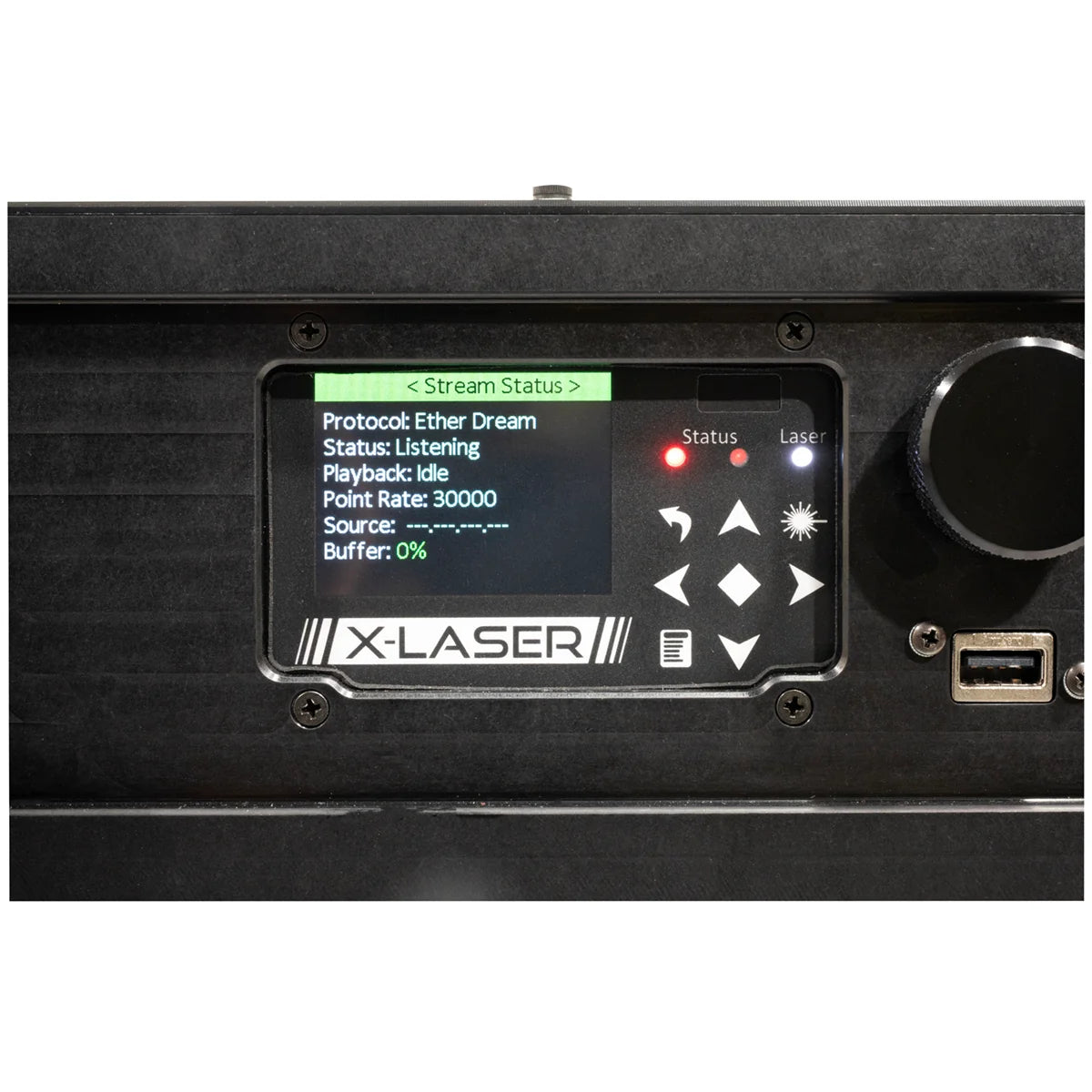

- X-Laser Mercury integrated, 2.25" LCD
- Fixture profiles for all major console brands
- EtherStop combined remote stop and control data in / thru
- PowerCON TRUE1 in / thru
- RJ45 (sACN, etc.) in / thru
-
Color and Effects
- Additive RGB Analog Color Mixing
- 1,000+ Colors
- 50 Color Macros
- 11 Digital Prisms
- 450+ “Gobos” / Digital Patterns Built-In
- 60 Motion Macros with variable speed and amplitude
-
Dimensions / Physical / Materials
- 15.6” L x 14.7” W x 8.0” H (13.8” H w/ yoke up)
- (396 mm x 373 mm x 203 mm; 351 mm yoke up)
- Weight: 48 lbs (21.2 kg)
- Rugged 6061 Aluminum Enclosure
- IP Rating: IP65
