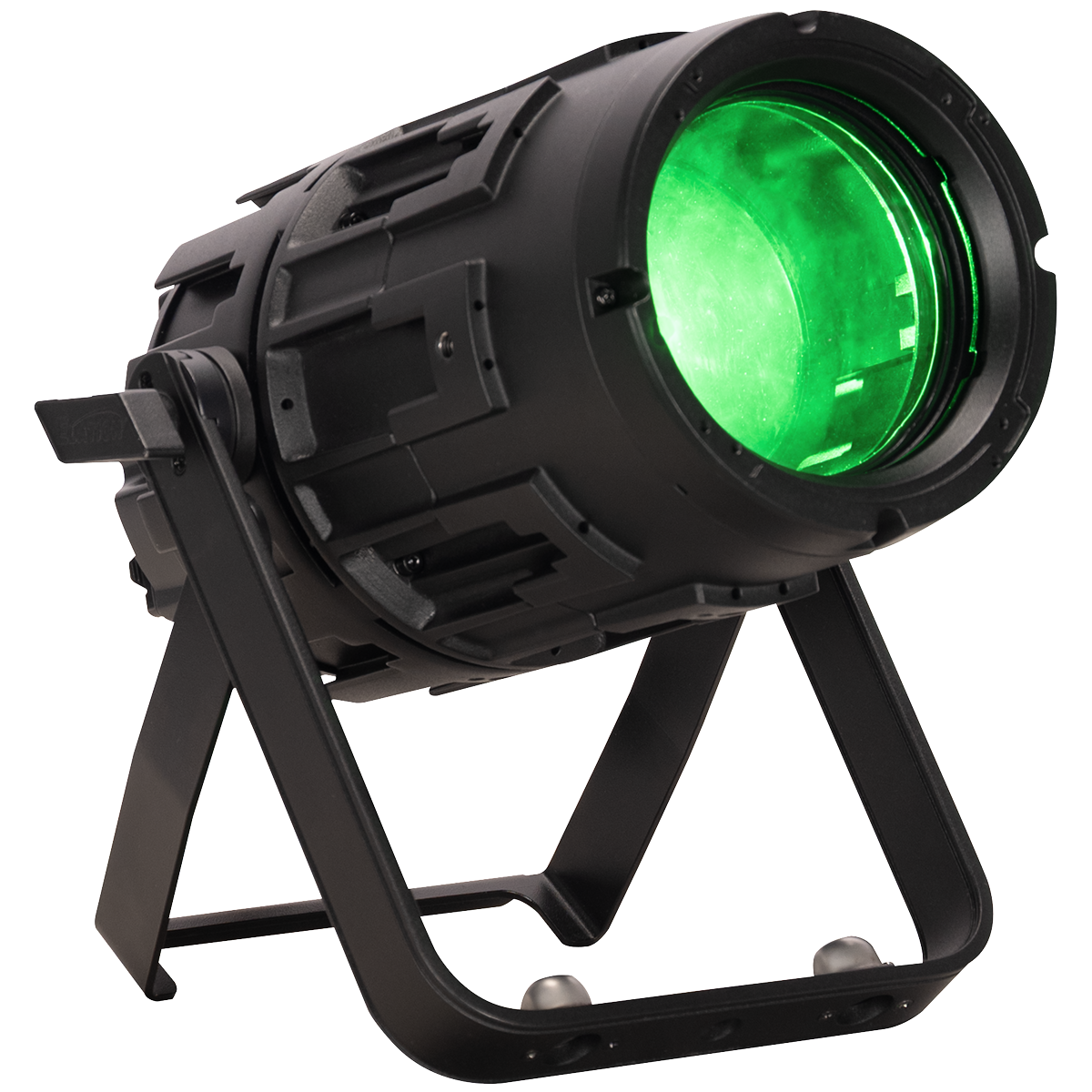

Elation SOL101 SOL I ACL, 150W RGBLA MODULAR ACL WITH ZOOM

Elation SOL101 SOL I ACL, 150W RGBLA MODULAR ACL WITH ZOOM

Write a review

SKU: SOL101

$1,250.00
$1,250.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation SOL101 SOL I ACL, 150W RGBLA MODULAR ACL WITH ZOOM

Built as an extension of the S?L system, the S?L I ACL integrates seamlessly into existing arrays, adding a focused-beam tool that expands creative possibilities without complicating the rig.

Engineered for consistent visual impact, S?L I ACL produces controlled, narrow beams that remain uniform across distance, atmosphere, and multi-fixture arrays. Its dedicated narrow-beam optical approach and RGBLA engine prioritize beam clarity and saturated color, ensuring every look feels intentional. An ultrafast 4°–41° zoom adds dynamic range—shifting instantly from tight, punchy beams to wider effects for layered visual moments.
Built to integrate seamlessly into existing S?L and select Pulse arrays, the compact form factor makes it easy to adapt to evolving layouts and creative concepts. With silent, convection-cooled operation and an IP-rated enclosure, S?L I ACL performs reliably wherever you need it—from rooftops and hospitality spaces to touring and live events.


150W RGBLA LED Array

1,860 Total Fixture Lumen Output (Sphere)
4°- 41° Ultrafast Zoom
Simple 'Array Mode' Addressing System
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options
Nearly Endless Mounting and Configuration Options
Fully Compatiable with S?L I Interconnectivity
IP65 Rated

Specifications

  • SOURCE

    • 150W RGBLA LEDs

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

    • Total Lumen Output

    • 1,860 (Integrating Sphere)

    • TBA (Goniometer)

    • CRI 83

    • Zoom Range 4° - 41°

    • Beam Angle: 4° - 36°

    • Field Angle: 5° - 41°

  • EFFECTS

    • Ultrafast Zoom

    • Electronic Dimmer and Strobe

    • Variable 16-bit Dimming Modes and Curves

  • COLOR

    • RGBLA Color Array

    • CMY Emulation

    • Variable CCT 1800K - 8500K

    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 12 DMX Channel Modes (1ch/4ch/5ch/6ch/7ch/9ch/14ch/21ch/12ch/17ch/12ch/17ch)

    • Manual and DMX Controlled Dimmer, Color Zoom

    • 4 Button Control Panel, LED Display

    • Aria x2 Wireless Device Management

    • RDM (Remote Device Management)

    • 5pin DMX and IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT (Without Accessories)

    • Length: 11.56" (293.5mm)

    • Width: 4.48” (114mm)

    • Vertical Height: 4.48” (114mm)

    • Weight: 12.3 lbs. (5.6 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 154W Max Power Consumption

    • Power Thru Capacity: 9A (6 units @110V; 14 units @240V)

    • 5°F to 113°F (-15°C to 45°C)

    • 525.14 BTU/hr (+/- 10%)

  • INCLUDED ITEMS

    • IP65 Locking Power Cable

    • Safety Cable

    • Split Yoke/ Floor Stand

    • Fixture Interconnect Adapter
