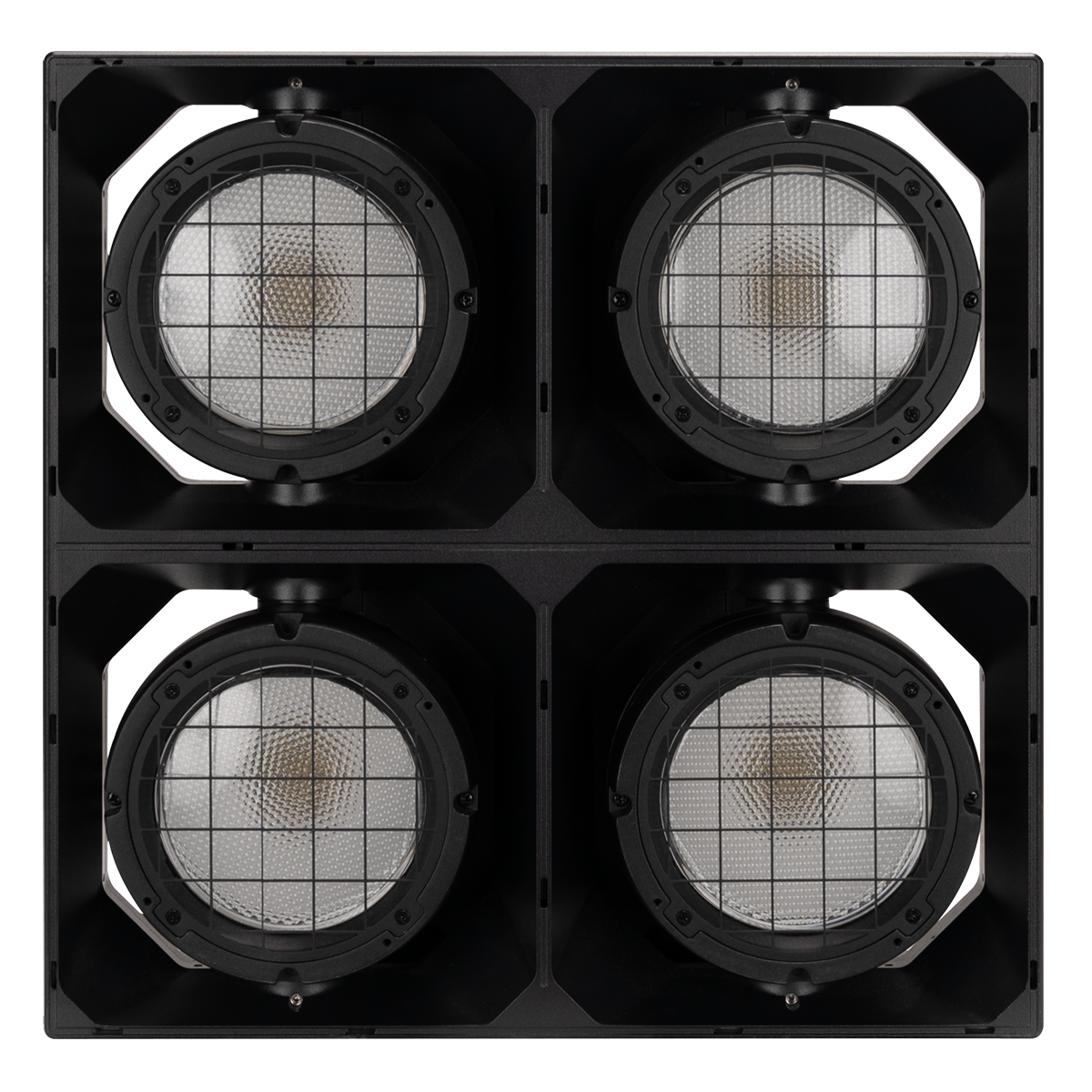

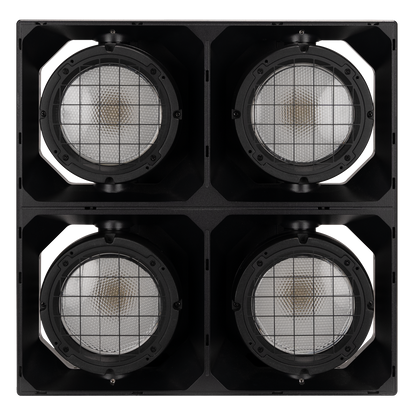

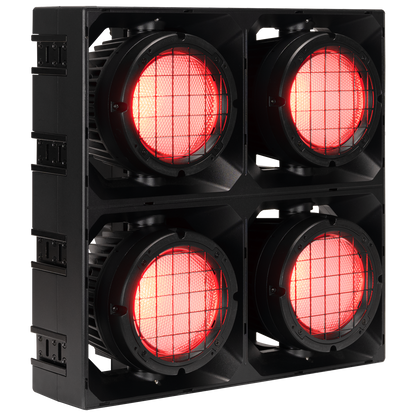

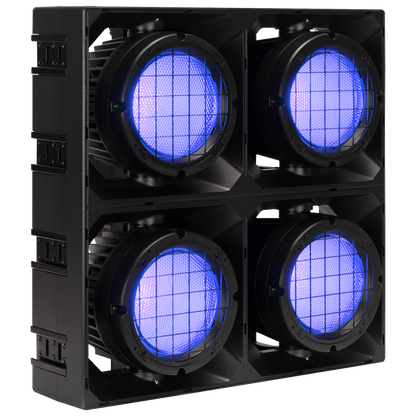

Elation SOL IV Blinder SOL IV Blinder; 4x 250W RGBLAW LED Blinder IP65

Elation SOL IV Blinder SOL IV Blinder; 4x 250W RGBLAW LED Blinder IP65

Write a review

SKU: SOL401

$4,494.00
$4,494.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation SOL IV Blinder SOL IV Blinder; 4x 250W RGBLAW LED Blinder IP65

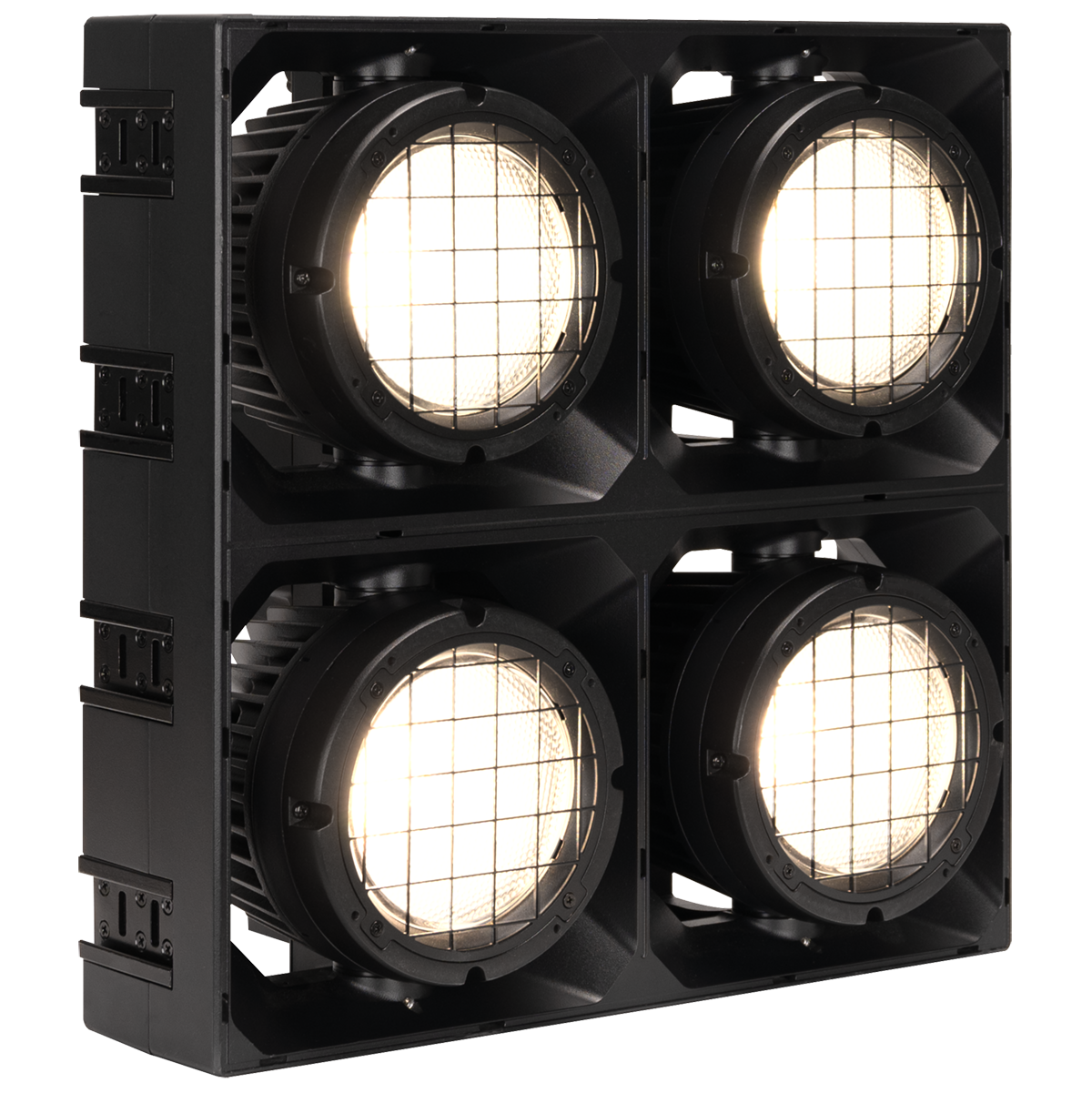

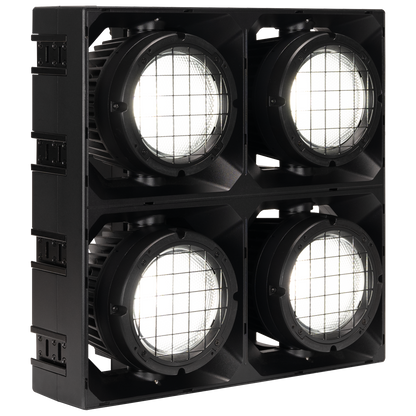

Introducing the SOL IV BLINDER, the most versatile addition to the SOL Series yet, featuring a grid of four fixtures in a single modular housing. Like the SOL I and SOL II, the SOL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.


The SOL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SOL IV units, as well as the SOL I and SOL II models. This flexibility allows lighting professionals to craft expansive arrays, intricate shapes, and dynamic effects that adapt to any stage or event setup.

With the same 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and IP65-rated durability, the S?L IV delivers unmatched brightness, color fidelity, and performance. Whether you’re looking for an impactful standalone solution or a fixture that integrates seamlessly into a larger lighting design, the SOL IV BLINDER provides the ultimate canvas for your creativity.

Illuminate your vision with the boundless possibilities of the SOL IV BLINDER – the next step in redefining stage lighting innovation.

Features

  • 4x 350W RGBLAW LED
  • 59,830 Total Fixture Lumen Output (Sphere)
  • 46° Beam Angle
  • Simple 'Array Mode' Addressing System
  • Individual Pan Adjustment with Lock

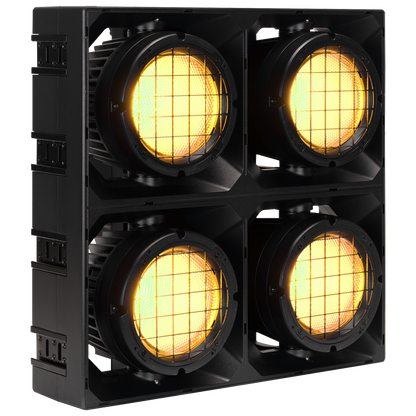

  • Dim-to-Warm/ Red Shift Emulation
  • High Output Blinder Mode or Constant Output Mode Options

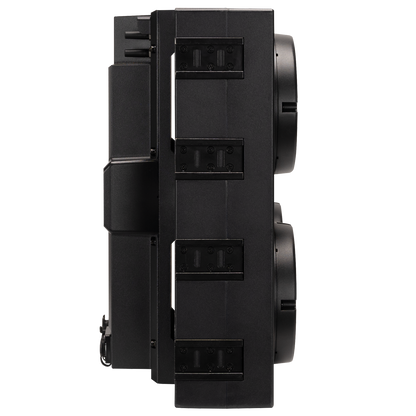

  • Unique Horizonal and Vertical Array Rigging Method (Compatible with SOL II, SOL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)
  • IP65 Rated

Specifications

  • SOURCE

    • 4x 350W RGBLAW LED

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 59,830 (Integrating Sphere)

    • CRI TBA

  • Compound Lens

    • Beam Angle: 46°

    • Field Angle: 85°

  • No Lens

    • Beam Angle: 52°

    • Field Angle: 95°

  • EFFECTS

    • Variable Strobe Rate: 1- 20Hz

    • Dim-to-Warm/ Red Shift Emulation

    • Variable 16-bit Dimming Modes and Curves

    • High Output Blinder Mode or Constant Output Mode Options

  • COLOR

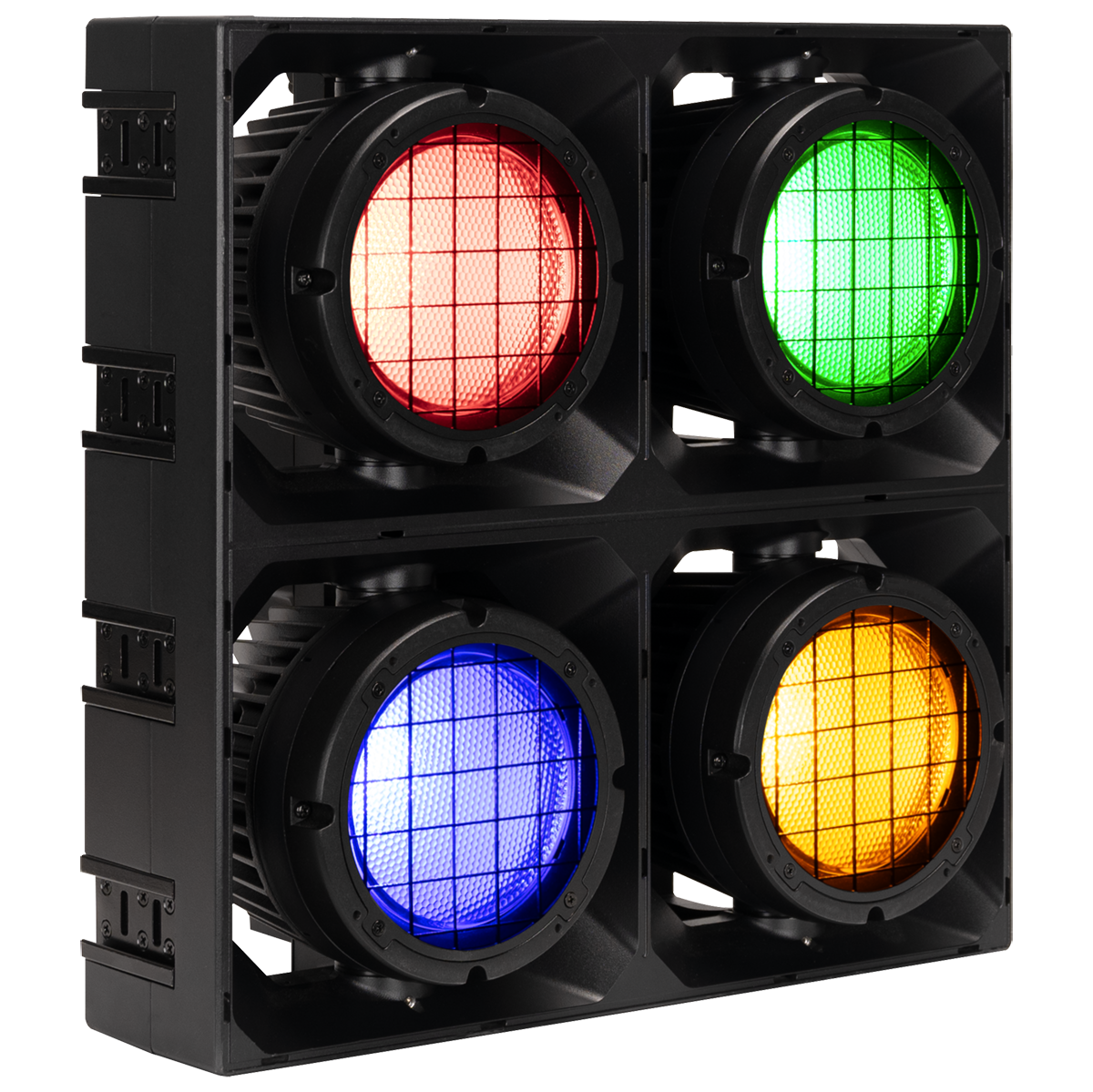

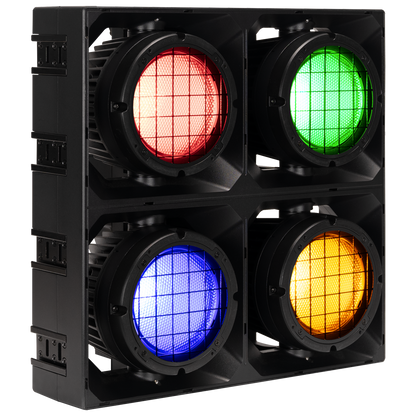

    • RGBLAW Color Array

    • CMY Emulation

    • Variable CCT 1800K - 8500K

    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch 45ch)

    • Simple 'Array Mode' Addressing System

    • Manual and DMX Controlled Dimmer and Color

    • 4 Button Control Panel, LED Display

    • Aria x2 Wireless Device Management

    • RDM (Remote Device Management)

    • IP65 5pin DMX Cable In/Out

    • IP65 Locking Power Cable In

  • SIZE / WEIGHT (Without Accessories)

    • Length: 9.4" (240mm)

    • Width: 16.5” (420mm)

    • Vertical Height: 18.6” (471mm)

    • Weight (Fixture Only): 39 lbs (17.7 kg)

    • Weight (w/ Removable Yoke): 44 lbs (19.7 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 1300W Max Power Consumption

    • 5°F to 113°F (-15°C to 45°C)

    • BTU/hr (+/- 10%) 4262.5

  • INCLUDED ITEMS

    • Removable Fixture Yoke / Omega Bracket

    • 2x Fixture Interconnect Splices

    • Safety Cable

    • IP65 Locking Power Cable

  • OPTIONAL ITEMS

    • SOL IV HD Yoke (SOL4HDY)

    • SOL Fresnel Lens (SOLFL)

    • SOL Frosted Lens (SOLFRO)

    • SOL Bowens Adapter (SOLBA)

    • SOL Dome Lens (SOLDL)

    • SOL Blackout Lens (SOLBL)

    • SOL Gel Frame Holder Kit (SOLGFHK)

    • SOL Barndoor (SOLBD)

    • Fixture Interconnect Splice 6 Pack (FISP06)

    • Interconnect Clamp Adapter (FICA01)

    • # 8050000053 - Omega Bracket

  • APPROVALS / RATINGS

    • CE | IP65 | FCC | UKCA
