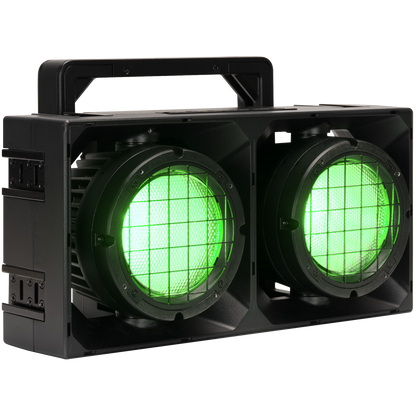

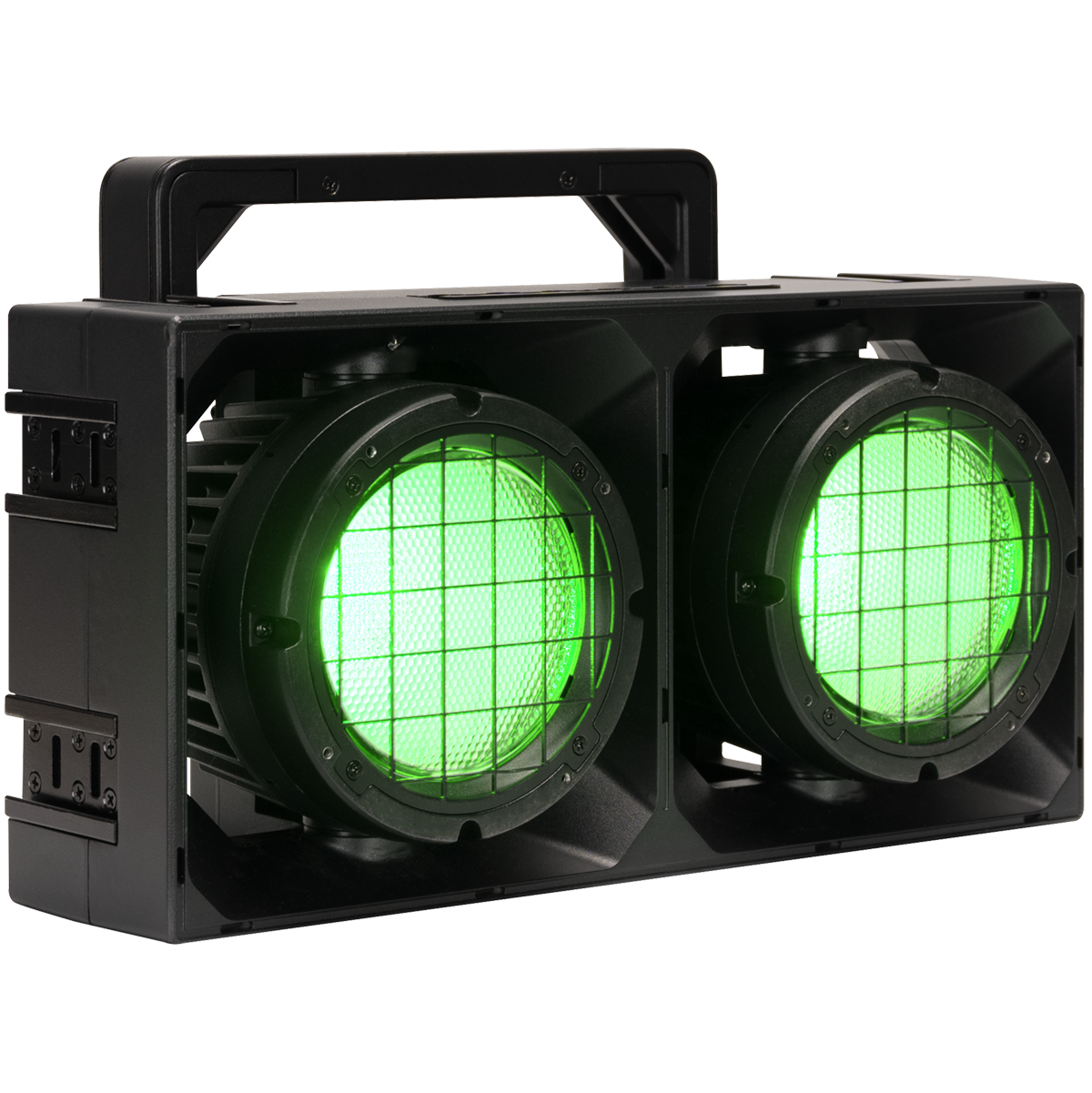

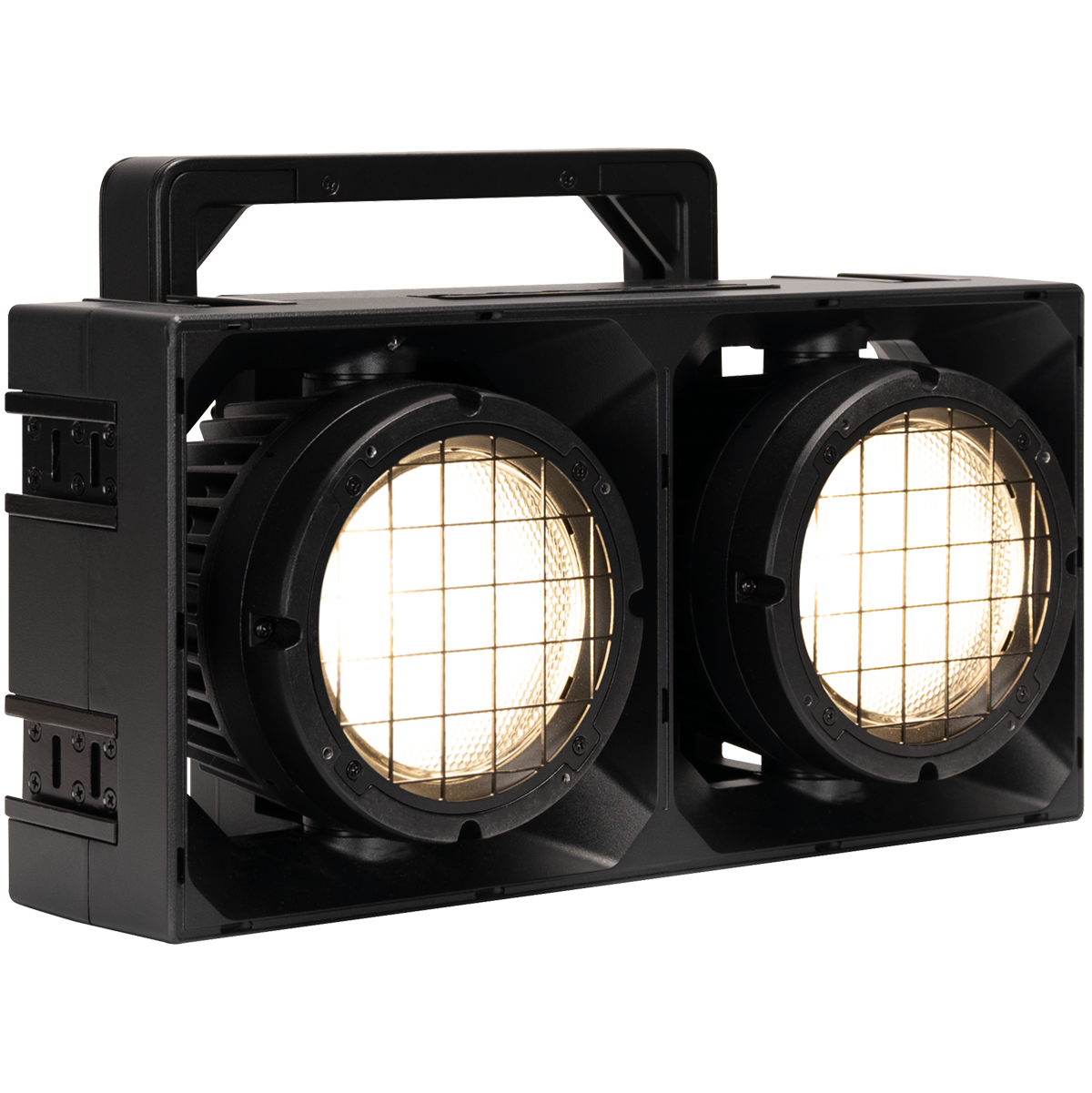

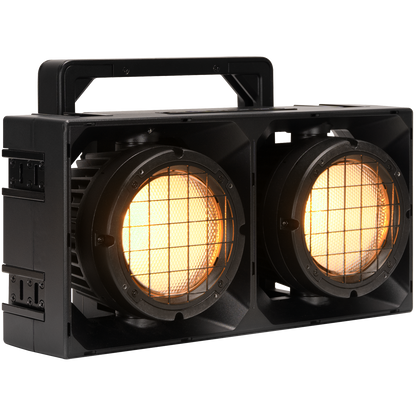

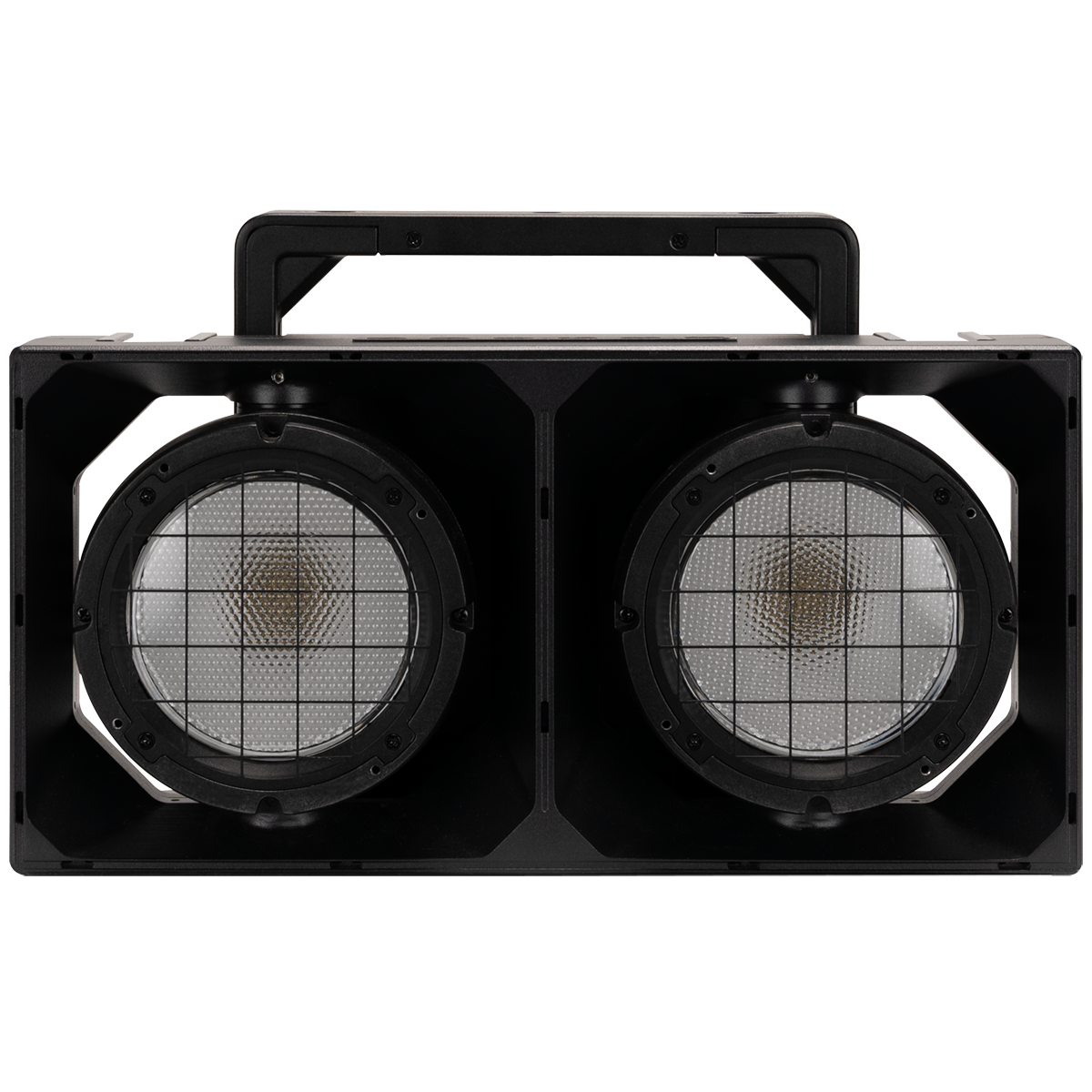

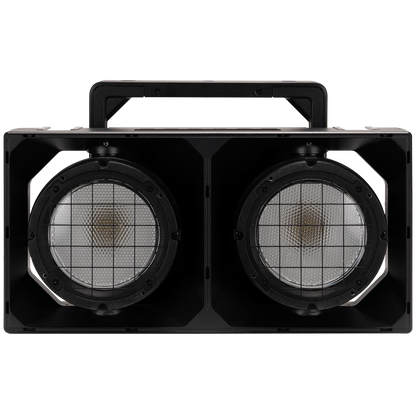

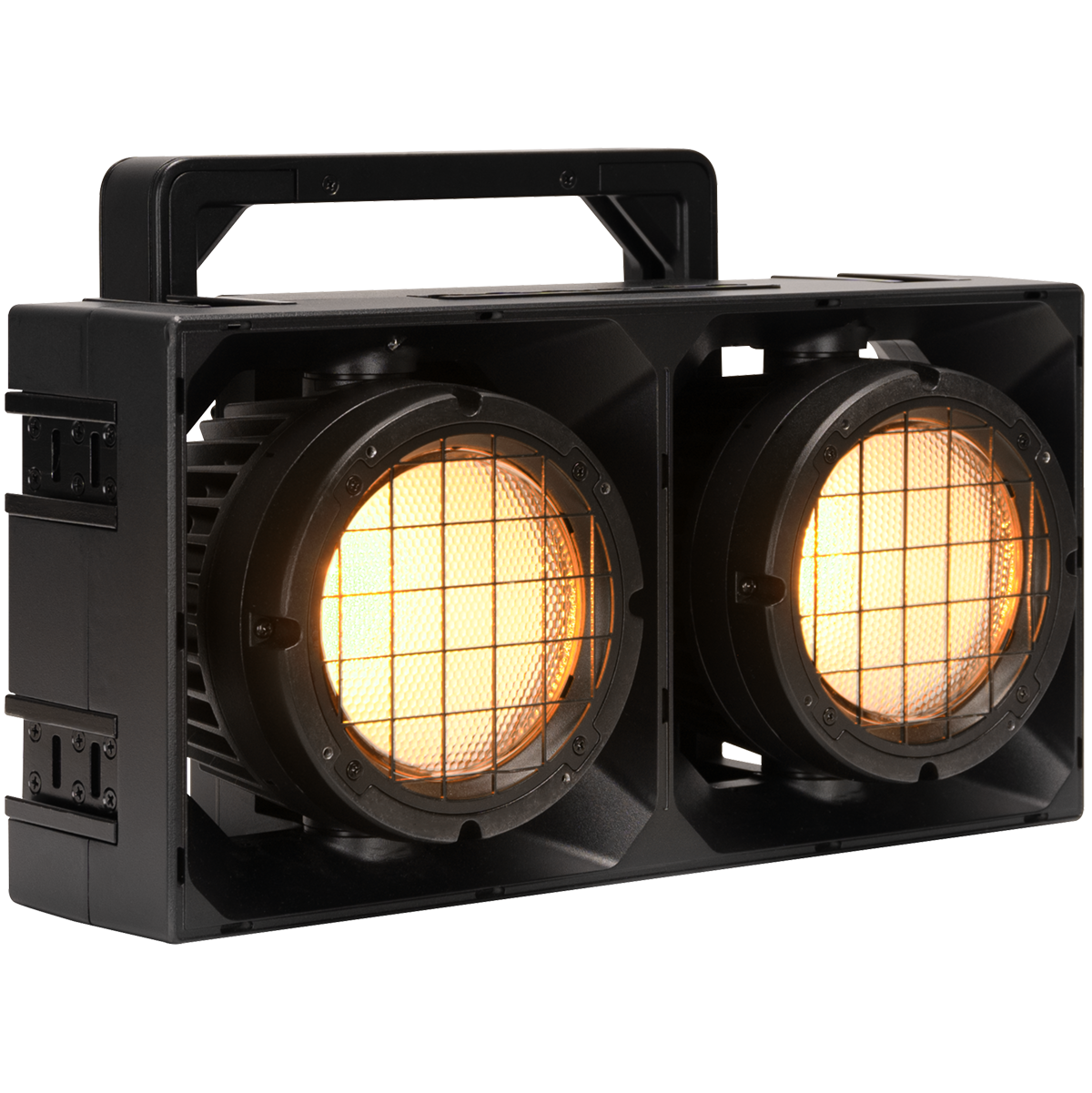

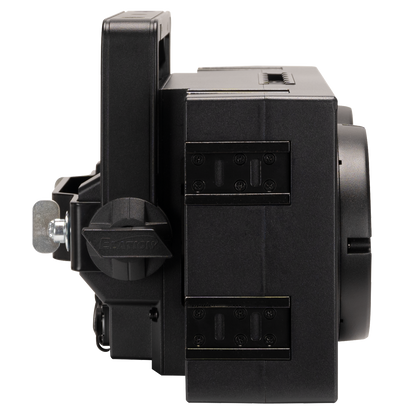

Elation SOL II Blinder; 2x 250W RGBLAW LED Blinder IP65

Elation SOL II Blinder; 2x 250W RGBLAW LED Blinder IP65

Write a review

SKU: SOL201

$2,354.00
$2,354.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

Elation SOL II Blinder; 2x 250W RGBLAW LED Blinder IP65

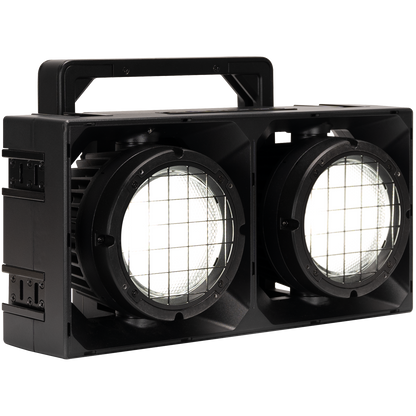

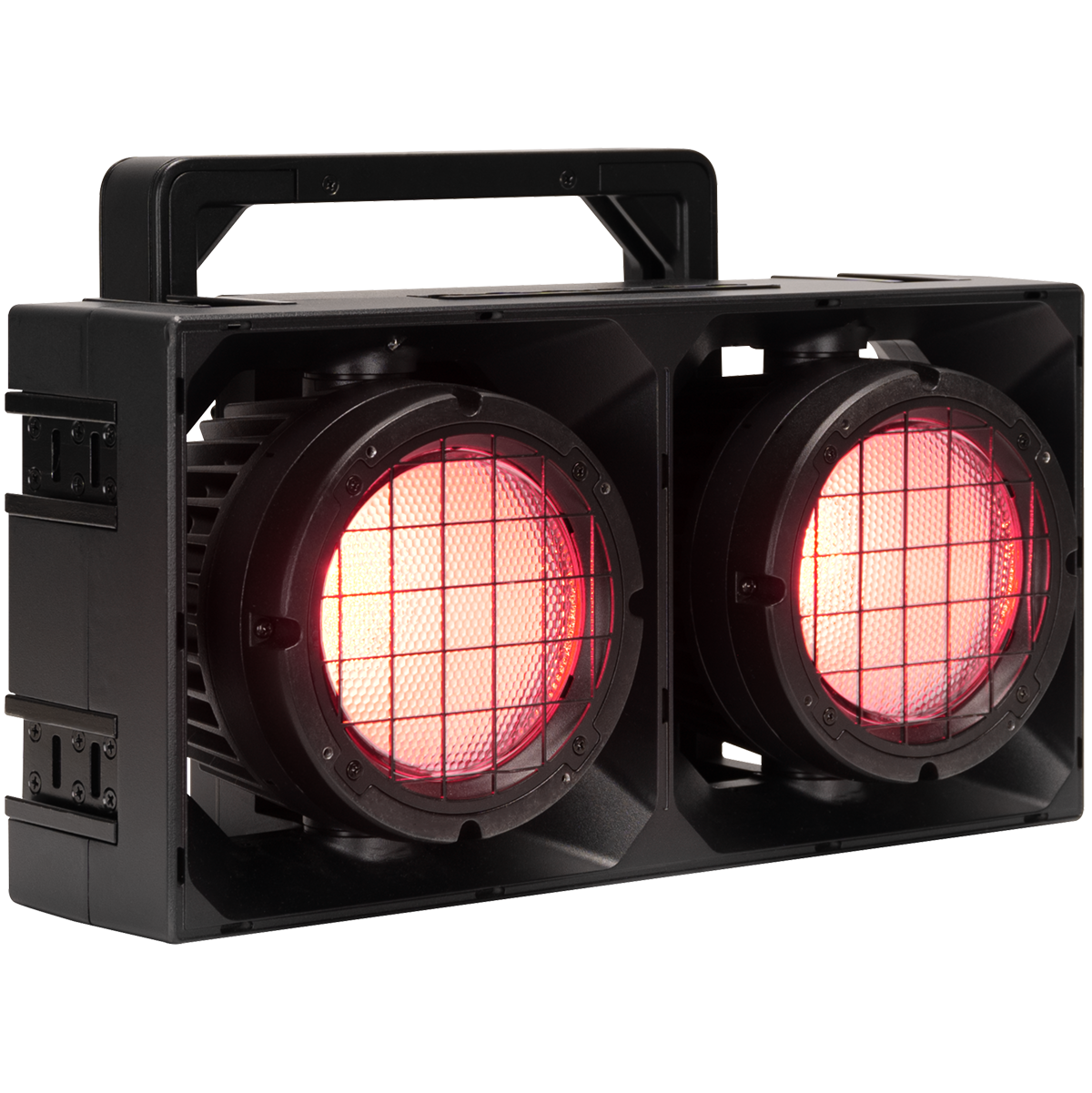

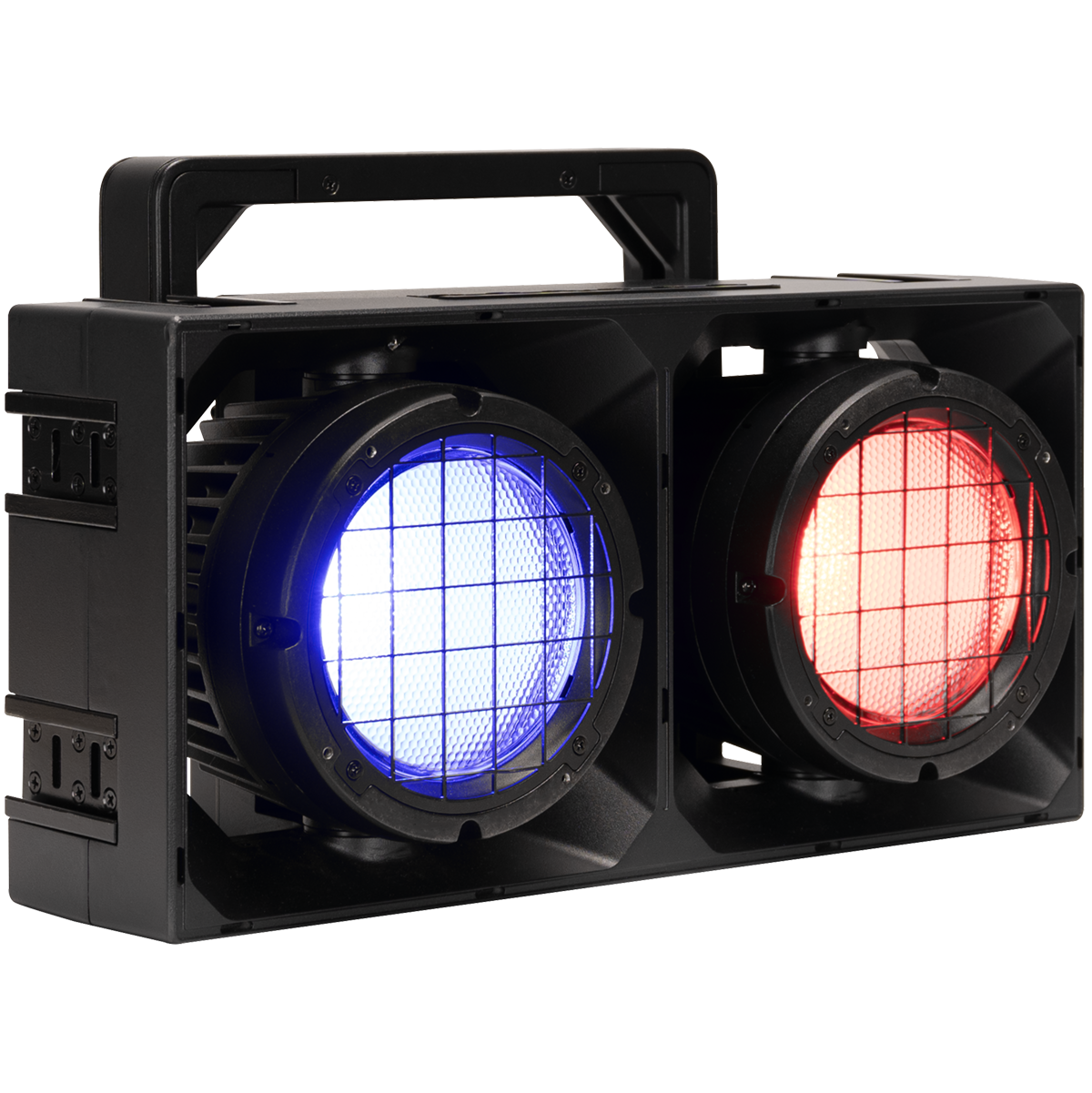

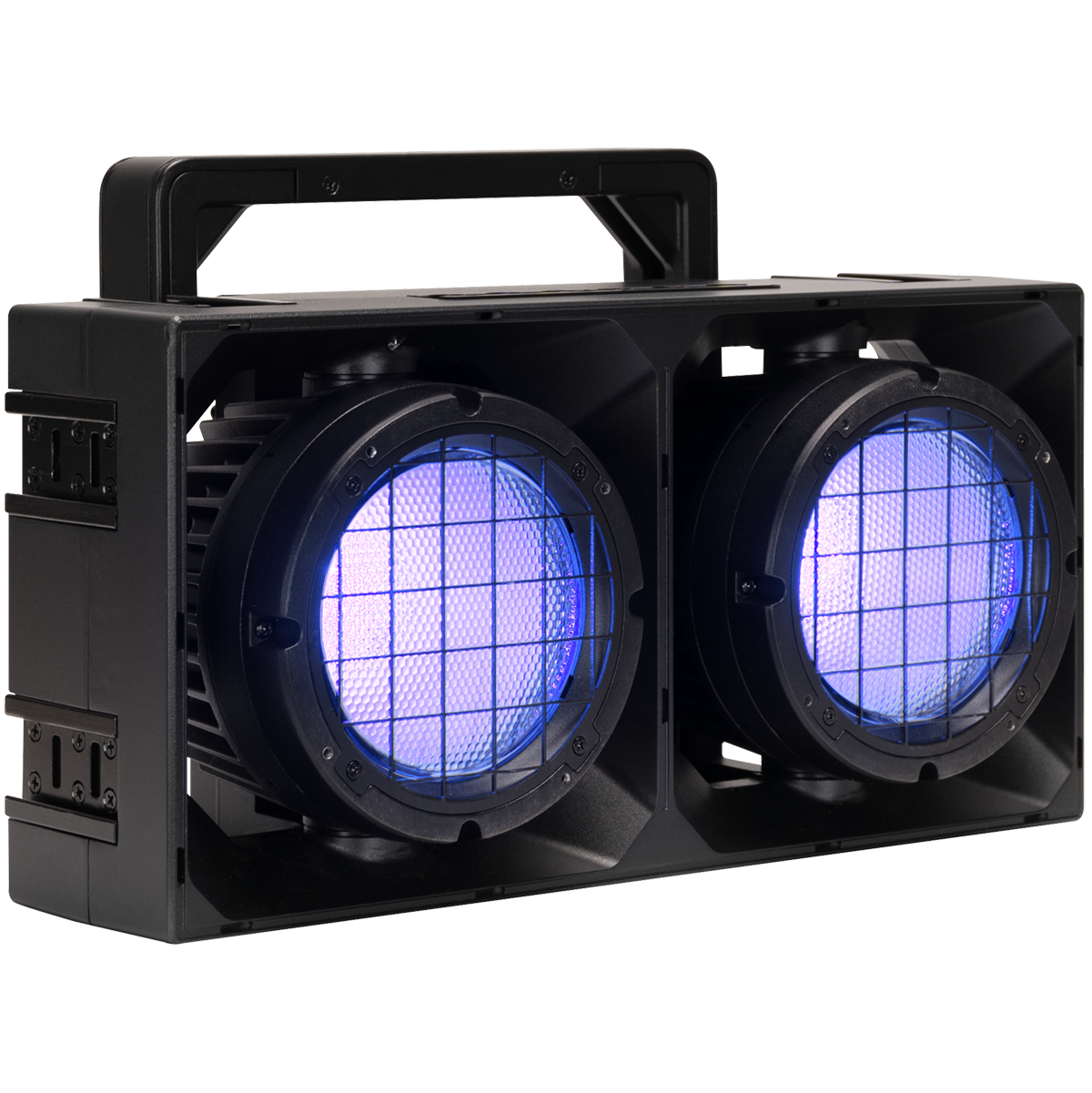

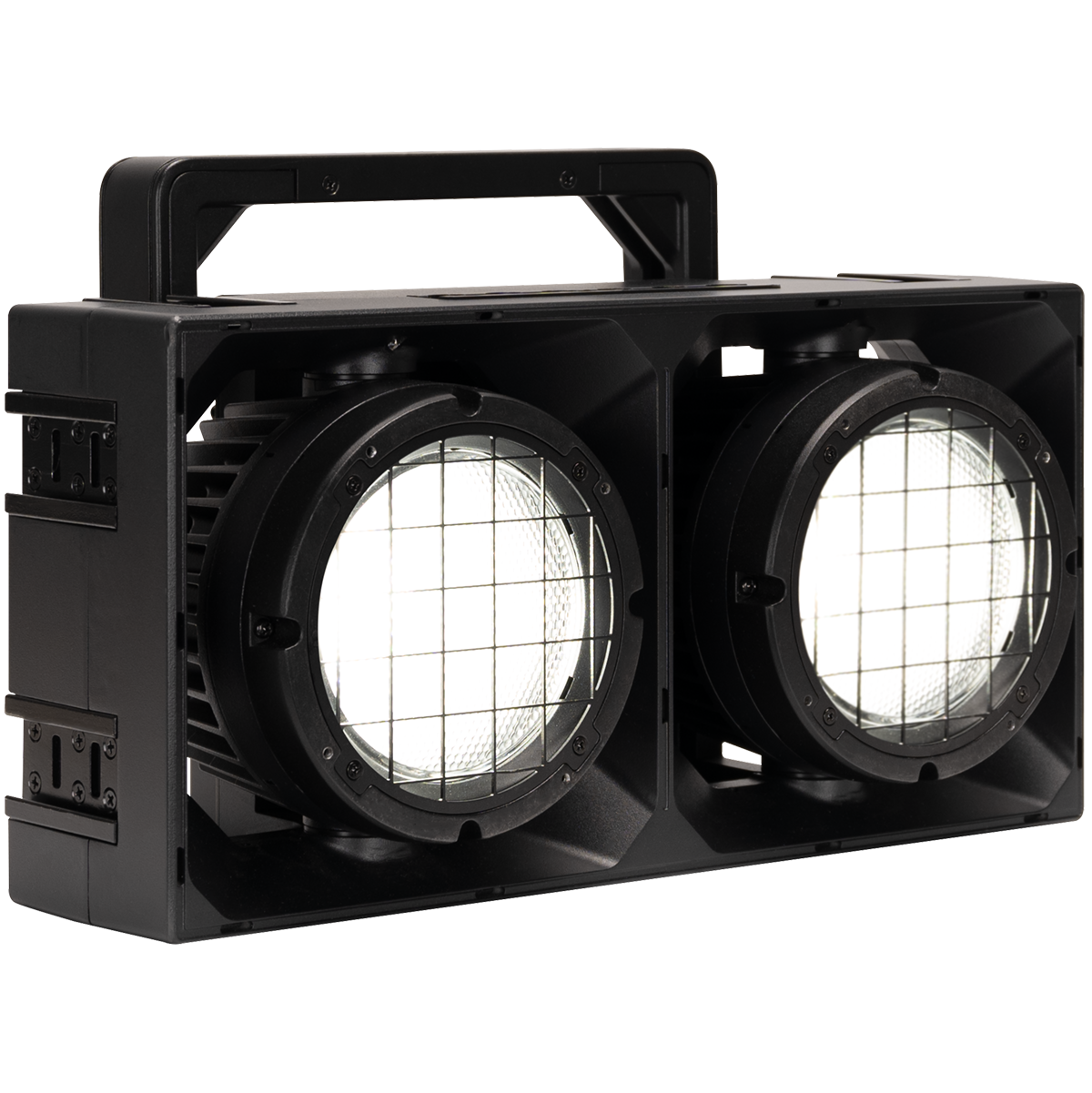

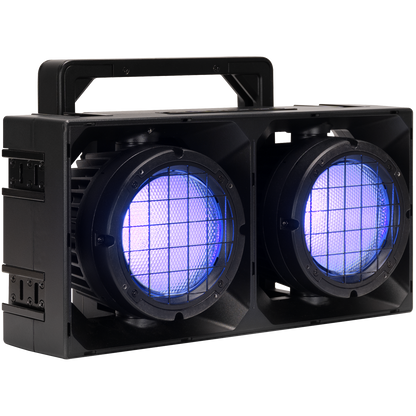

Introducing the SOL II BLINDER, the next evolution in the SOL Series, offering double the impact with two fixtures housed in a single modular unit, arranged side-by-side. Maintaining all the innovative features of the SOL I BLINDER, the SOL II provides even greater flexibility for creative configurations and designs.

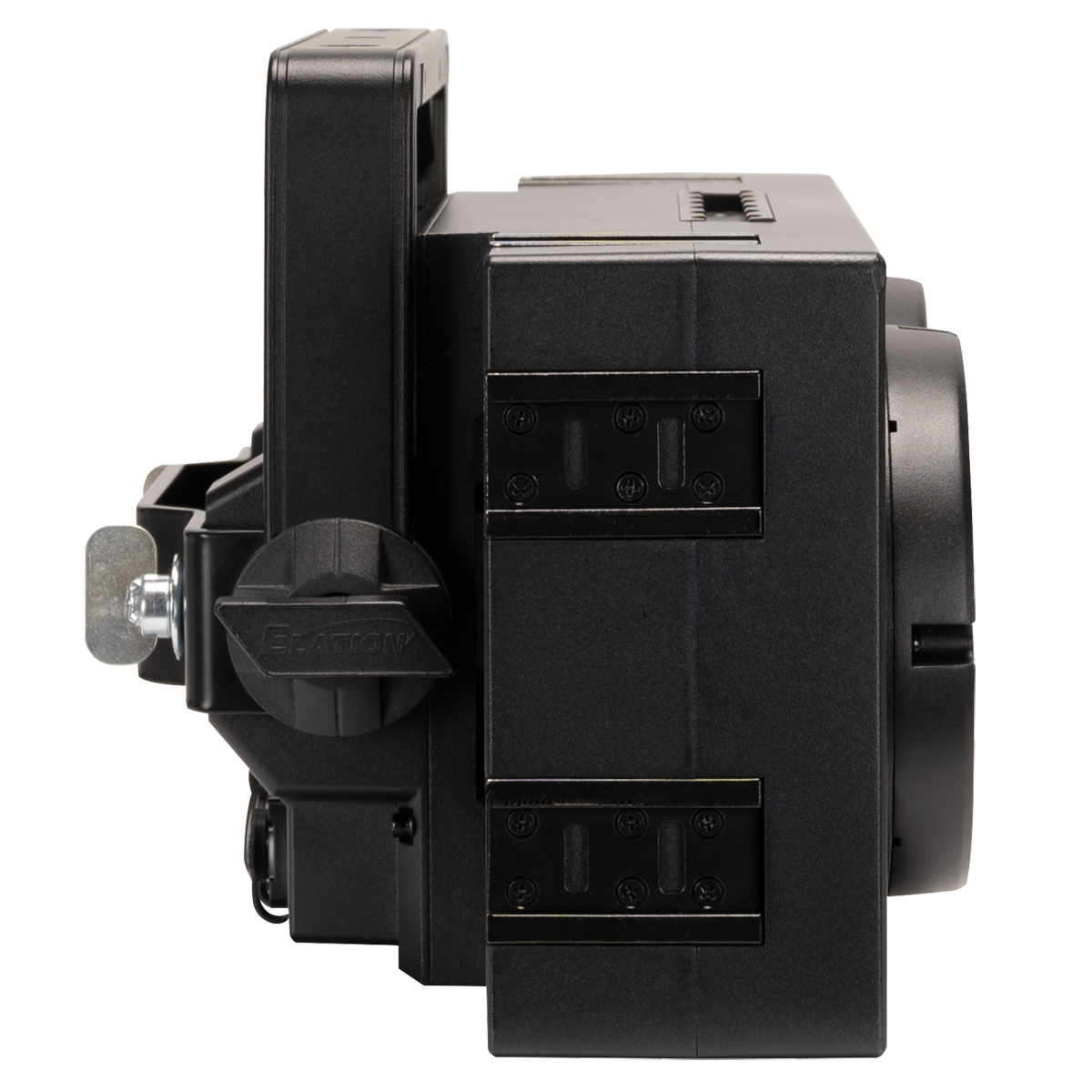

The SOL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.
With the same powerful 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and robust IP65 rating, the SOL II BLINDER delivers unmatched brightness, color fidelity, and durability, just like its single-fixture counterpart. Whether you’re using it as a standalone unit or integrating multiple fixtures into your design, the SOL II BLINDER elevates your creative possibilities, offering limitless options for crafting unforgettable visual experiences.
Illuminate your stage with the enhanced power and flexibility of the SOL II BLINDER – redefining what's possible in entertainment lighting design.

Features

  • 2x 350W RGBLAW LED
  • 30,750 Total Fixture Lumen Output (Sphere)
  • 46° Beam Angle
  • Simple 'Array Mode' Addressing System
  • Individual Pan Adjustment with Lock
  • Dim-to-Warm/ Red Shift Emulation
  • High Output Blinder Mode or Constant Output Mode Options
  • Unique Horizonal and Vertical Array Rigging Method (Compatible with S?L IV, S?L I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)
  • IP65 Rated

Specifications

  • SOURCE

    • 2x 350W RGBLAW LED

    • 30,000 Hour Average LED Life*

  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 30,750 (Integrating Sphere)

    • CRI TBA

  • Compound Lens

    • Beam Angle: 46°

    • Field Angle: 85°

  • No Lens

    • Beam Angle: 52°

    • Field Angle: 95°

  • EFFECTS

    • Variable Strobe Rate: 1- 20Hz

    • Dim-to-Warm/ Red Shift Emulation

    • Variable 16-bit Dimming Modes and Curves

    • High Output Blinder Mode or Constant Output Mode Options

  • COLOR

    • RGBLAW Color Array

    • CMY Emulation

    • Variable CCT 1800K - 8500K

    • Virtual Gel Swatch Book

  • CONTROL / CONNECTIONS

    • 18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch 25 ch)

    • Simple 'Array Mode' Addressing System

    • Manual and DMX Controlled Dimmer and Color

    • 4 Button Control Panel, LED Display

    • Aria x2 Wireless Device Management

    • RDM (Remote Device Management)

    • 5pin DMX and IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT (Without Accessories)

    • Length: 9.3" (236mm)

    • Width: 16.5” (420mm)

    • Vertical Height: 10.3” (261mm)

    • Weight (Fixture Only): 24.7 lbs (11.2 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V - 50/60Hz

    • 650W Max Power Consumption

    • 5°F to 113°F (-15°C to 45°C)

    • BTU/hr (+/- 10%) 2216.5

  • INCLUDED ITEMS

    • Removable Fixture Yoke / Omega Bracket

    • 2x Fixture Interconnect Splices

    • Safety Cable

    • IP65 Locking Power Cable

  • OPTIONAL ITEMS

    • SOL/PULSE HD Yoke (SPHDY)

    • SOL Fresnel Lens (SOLFL)

    • SOL Frosted Lens (SOLFRO)

    • SOL Bowens Adapter (SOLBA)

    • SOL Dome Lens (SOLDL)

    • SOL Blackout Lens (SOLBL)

    • SOL Gel Frame Holder Kit (SOLGFHK)

    • SOL Barndoor (SOLBD)

    • Fixture Interconnect Splice Package (FISP06)

    • Interconnect Clamp Adapter (FICA01)

    • # 8050000053 - Omega Bracket

  • APPROVALS / RATINGS

    • CE | IP65 | FCC | UKCA | cETLus

  • FIRMWARE UPDATE

  • Current Update:

    • Specifications and documentation subject to change without notice.
