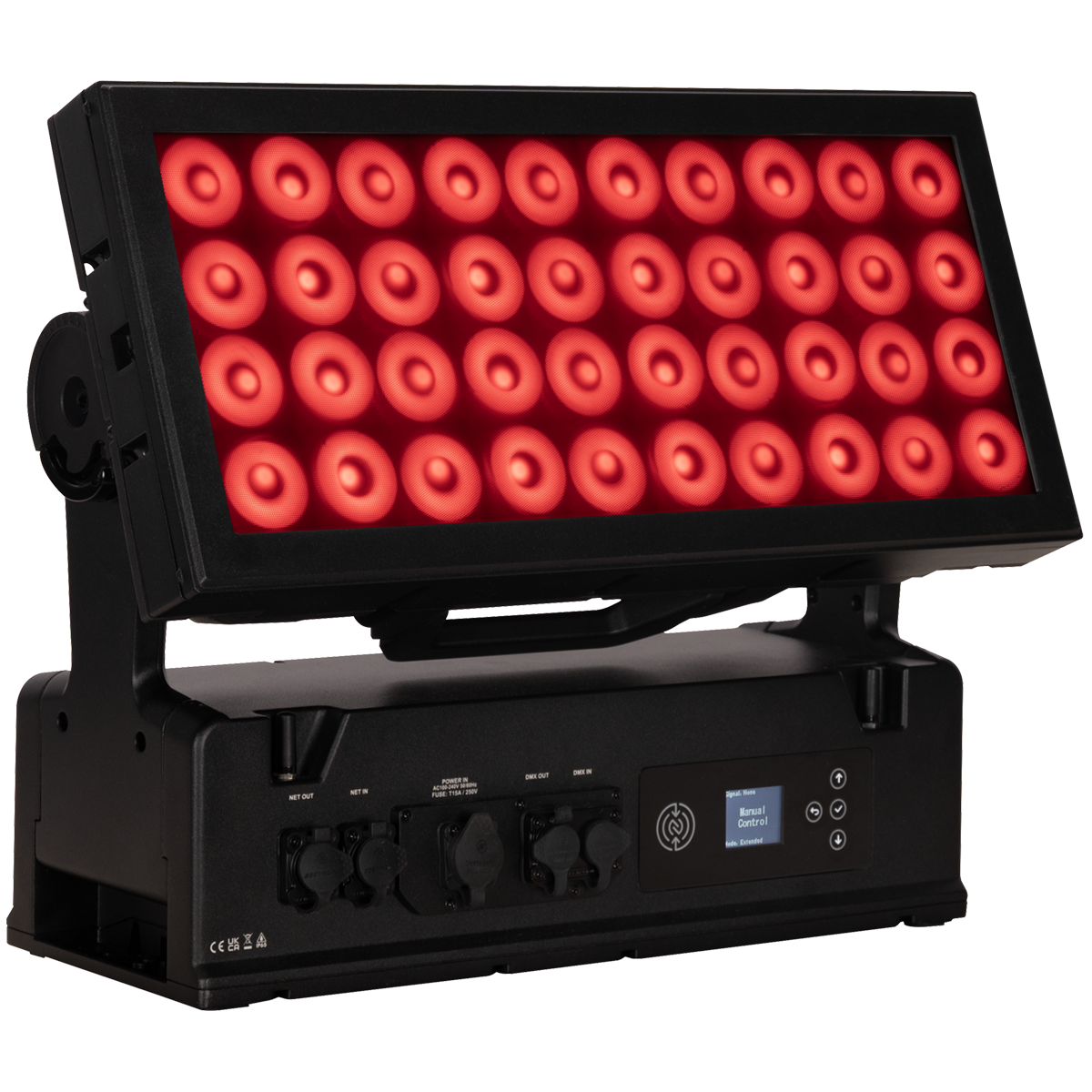

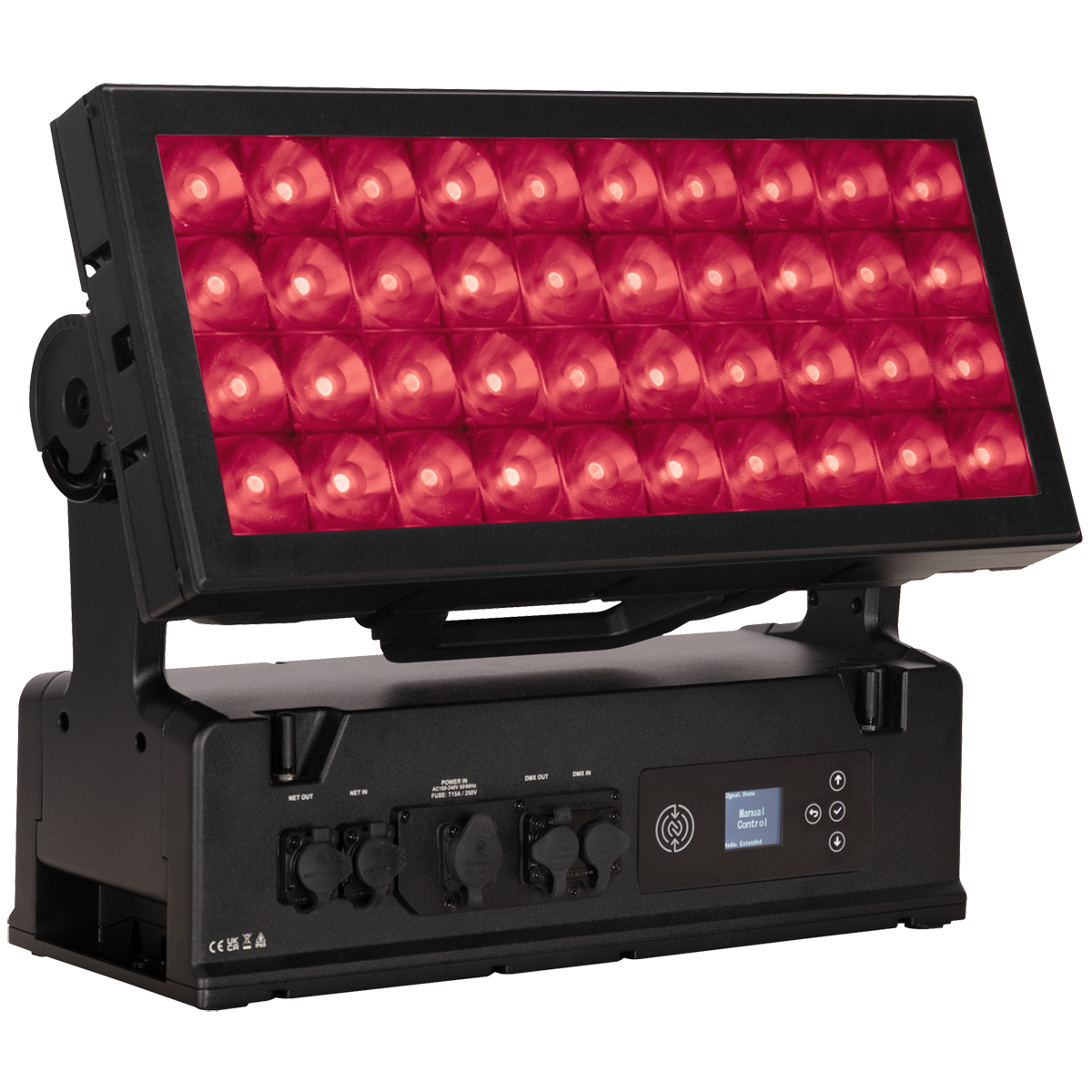

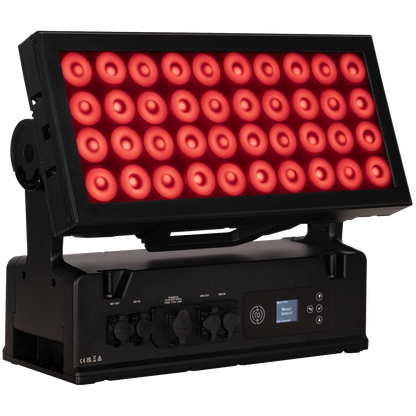

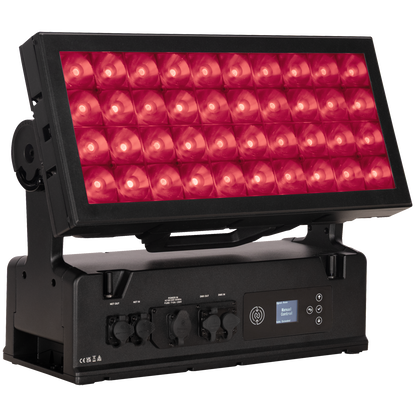

Elation SIX525 SIX+ PANEL; 40x 40W RGBLA+UV LED Panel
Elation SIX525 SIX+ PANEL; 40x 40W RGBLA+UV LED Panel
SKU: SIX525
Regular price
$3,975.00
Sale price
$3,975.00
Shipping calculated at checkout.
Available options
Description
Elation SIX525 SIX+ PANEL; 40x 40W RGBLA+UV LED Panel
Crafted for modern lighting design, the SIX+ PANEL combines refined color quality, powerful output, and flexible deployment in a single, durable fixture.
Built on the SIX+ Series dynamic color platform, SIX+ PANEL delivers cleaner, richer, and more accurate color that translates confidently across cameras, stages, and mixed lighting environments—from subtle tonal shifts to bold, saturated looks. Its RGBLA+UV 6-color engine with high CRI, precise calibration, and integrated UV produces natural whites, consistent fixture-to-fixture color, and creative depth beyond traditional RGBW or RGBL panels.
Multi-zone control enables pixel-style effects, gradients, and dynamic looks, while still allowing the panel to operate as a smooth, unified wash when needed—adding visual texture without sacrificing color quality or output.
With an output of approximately 46,600 lumens from a high-power array of 40W LED engines, SIX+ PANEL provides intense, focused performance that holds up in large venues, outdoor environments, and high-demand productions. A 15° native beam and optional lenses provide wider coverage options, allowing the fixture to adapt easily as scale, layout, or conditions change.
Built for real-world stages, SIX+ PANEL features durable IP65-rated construction for dependable indoor or outdoor performance. Optional battery power enables cable-free placement for faster setups and cleaner designs, while quiet fan modes, flexible control options, and Aria X2 wireless management with NFC configuration streamline programming and system management.
Whether subtle or bold, controlled or expressive in color, SIX+ PANEL is ready to shine—wherever the show takes you.
(40) 40W RGBLA+UV LED Array
46,625 Lumens, 92.3 CRI
Beam Angle: 15°
2x5 Cell Pixel Control
Optional 14.4V V-Mount Dual Battery Plate
>8hr Maximum Battery Run Time
2x5 Cell Pixel Control
Optional 14.4V V-Mount Dual Battery Plate
>8hr Maximum Battery Run Time
NFC & Aria x2 Wireless Device Management
IP65 Rated
Specifications
-
SOURCE
- (40) x 40W RGBLA+ UV LEDs
- 30,000 Hour Average LED Life*
- May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
- PHOTOMETRIC DATA
- Total Lumen Output:
- 46,625 (Integrating Sphere)
- TBA (Goniometer)
- CRI- 92.3
- TLCI- 83
- Beam Angle: 15°
- Field Angle: 25°
-
EFFECTS
- 2x5 Cell Pixel Control
- Prebuilt Custom Standalone Effect Sequences
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
-
COLOR
- RGBLA+ UV Color Array
- CMY Emulation
- Variable CCT 2400K - 8500K
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
-
CONTROL / CONNECTIONS
- 19 DMX Channel Modes (1ch, 3ch, 4ch, 6ch, 6ch, 9ch, 12ch, 16ch, 21ch, 19ch, 27ch, 25ch, 39ch, 43ch, 75ch, 30ch, 73ch, 135ch, 60ch)
- 4 Button Control Panel, LED Display
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net sACN Protocol Support
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 Locking RJ45 Ethernet In/Out
- IP65 5pin DMX In/Out
- IP65 Locking Power Cable In
-
SIZE / WEIGHT
- Length: 9.4" (239mm)
- Length w/ Battery Cover: 12.4" (314 mm)
- Width: 20" (509mm)
- Vertical Height: 15.4" (391.5mm)
- Weight: 45lb (20.4kg)
-
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Optional DC 14.4V
- 1300W Max Power Consumption
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 4433
-
BATTERY
- Optional Battery Plate Requires 2x V-Mount Batteries
- (See Battery Plate Specification for Supported Battery Sizes)
- Battery Voltage: 14.4V
- Battery Life: >8hr
-
INCLUDED ITEMS
- Barndoor
- Safety Cable
- IP65 Locking Power Cable
-
OPTIONAL ITEMS
- SIX+ PANEL BATTERY PLATE (SIXBP2)
-
APPROVALS / RATINGS
- IP65
