Description

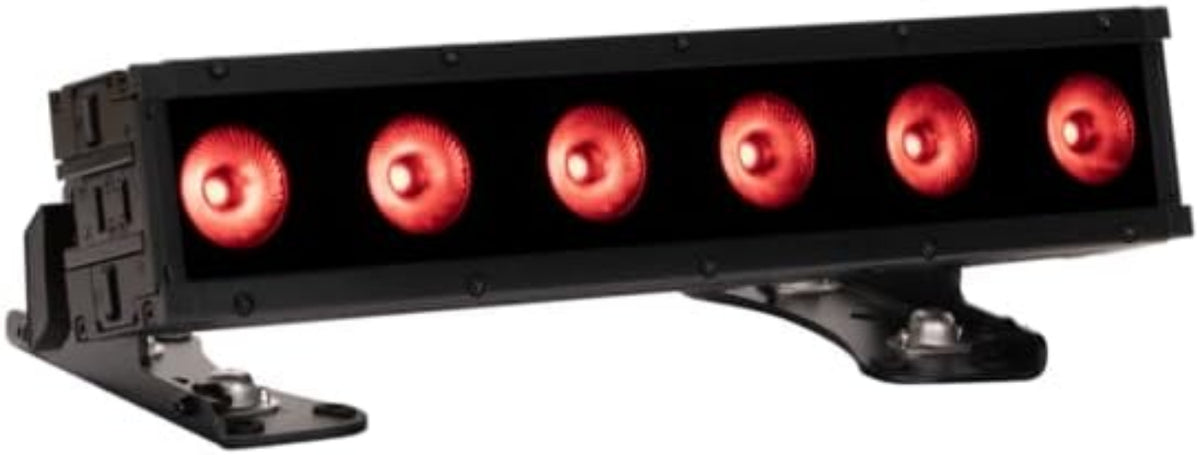

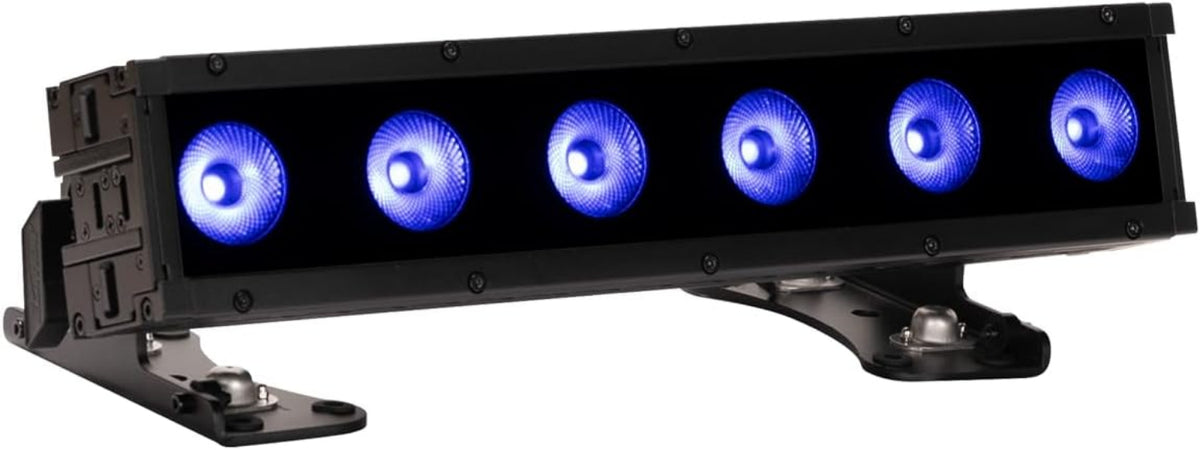

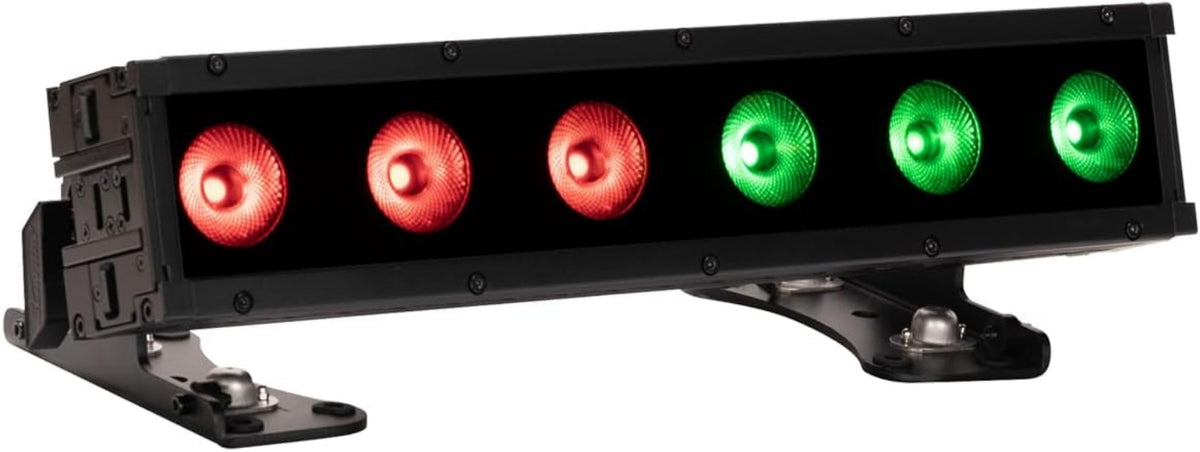

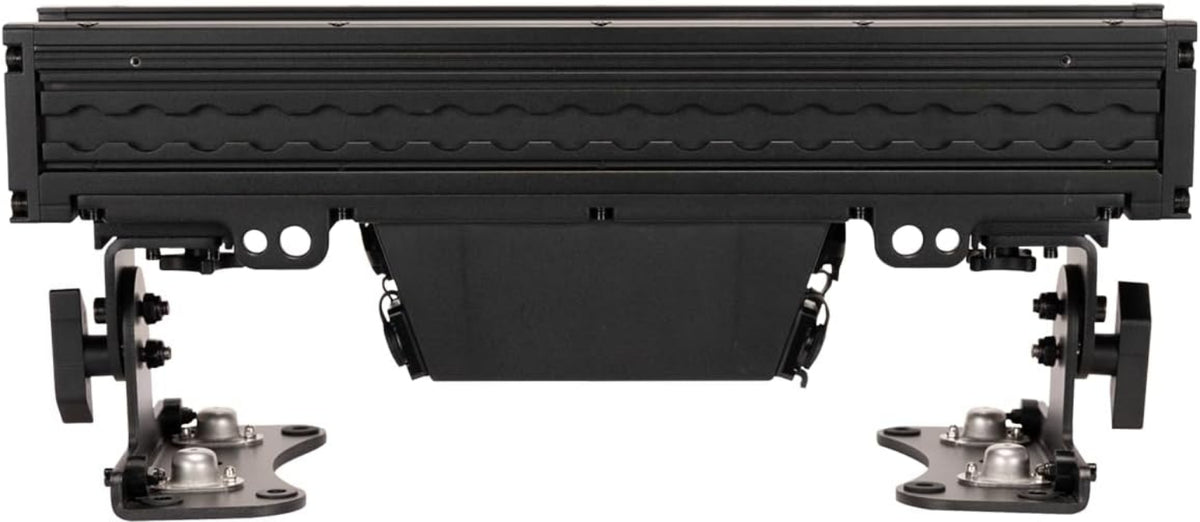

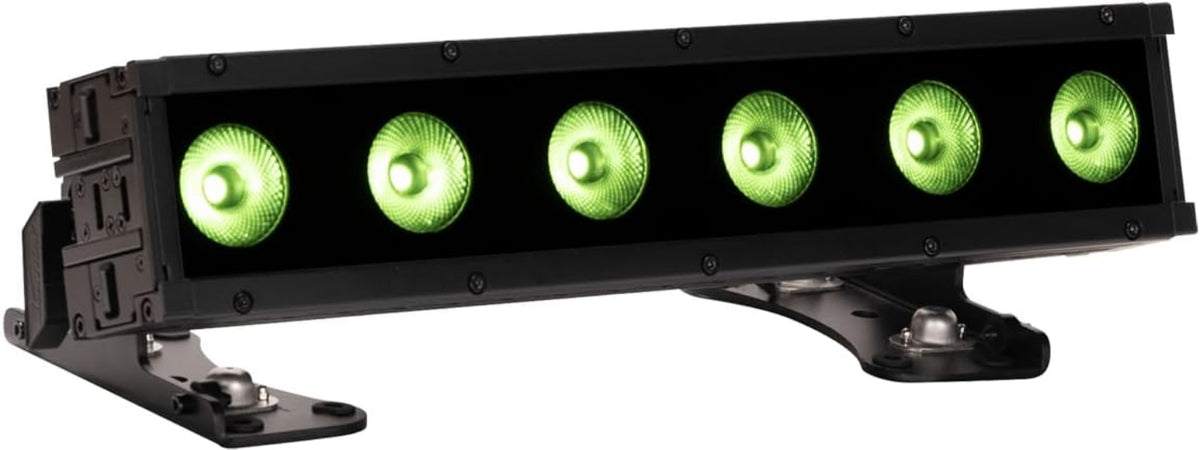

Elation SIX226 SIX+ BAR S (6x) 20 Watt RGBMA and UV LED Par Light
The SIX+ BAR S is an innovative LED batten solution that merges cutting-edge LED color technology with versatile design, delivering enhanced artistic capabilities. As an upgrade to Elation’s popular SixBar 1000, the SIX+ BAR S provides higher output, an expanded color spectrum, and superior light quality. Featuring 20W RGB+Lime+Amber+UV LEDs, it achieves a CRI of 93 and offers a beautifully homogenized wash of light. Its advanced optical system ensures even light distribution, while the RGBLA+UV engine produces vibrant whites and intense primary colors. Ideal for direct view applications, its large 50mm lenses and individual cell control expand creative possibilities.
Features:
- (6) 20W RGBLA+UV LED Array
- >4000 Lumens, 93 CRI
- Extra Large 50mm Lenses
- Beam Angle: 30°x 14° (Frost Filter Included)
- Full Pixel Control
- Completely Fanless Cooling

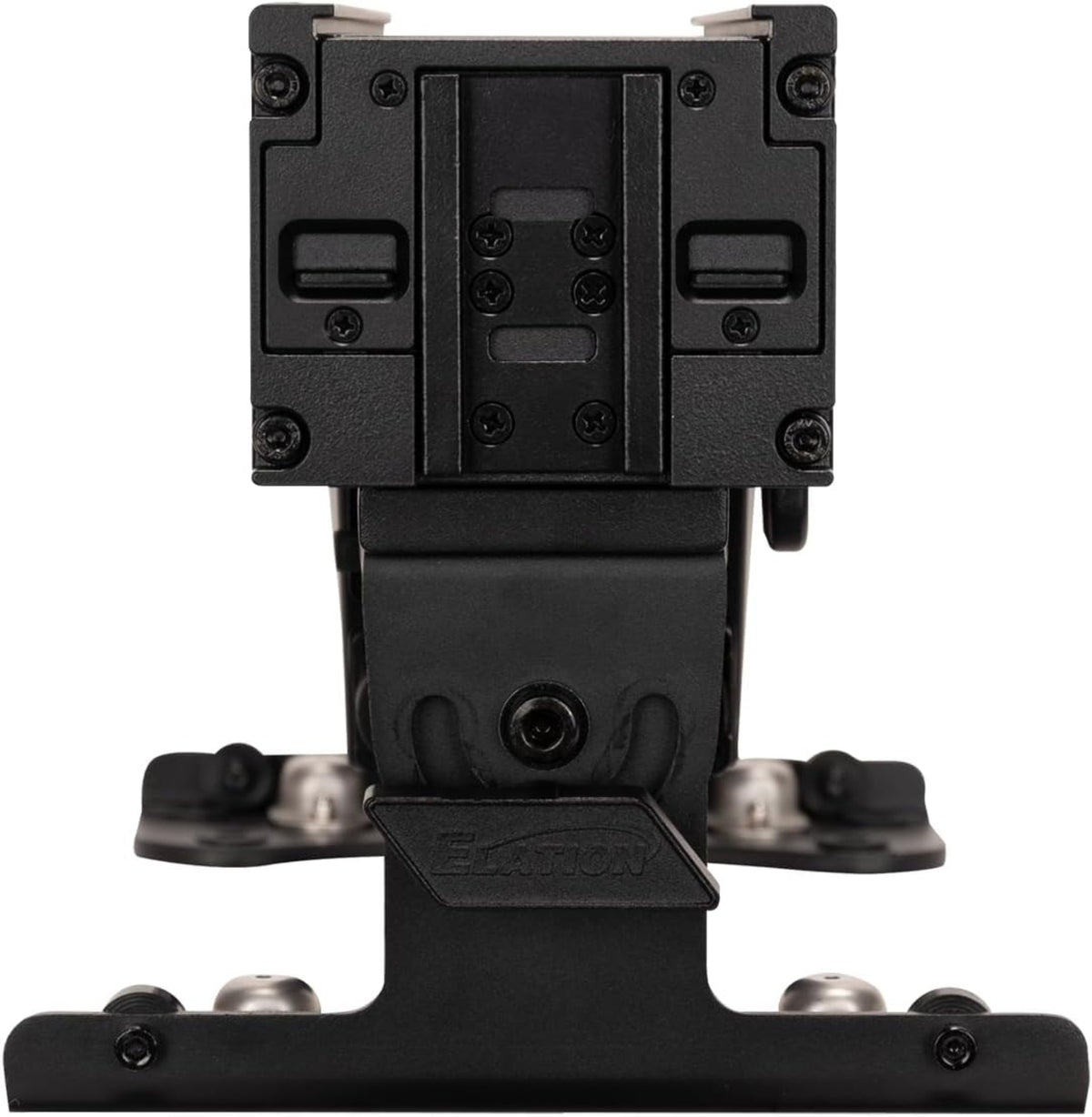

- Integrated L Track for Flexible Mounting
- Unique End-to-End Interconnection System
- Art-Net, sACN and KlingNet Support
- IP65 Rated
Specifications:
- Source: (6) x 20W RGBLA+UV LEDs, 30,000 Hour Average LED Life
- Photometric Data: >4000 Lumens, CRI 93, Beam Angle: 30°x 14°, Field Angle: 44°x 30°
- Effects: Full Pixel Control, Electronic Dimmer and Strobe, Variable 16-bit Dimming Modes and Curves
- Color: RGBLA+UV Color Array, CMY Emulation, Variable CCT 2400K–8500K, Virtual Gel Swatch Book

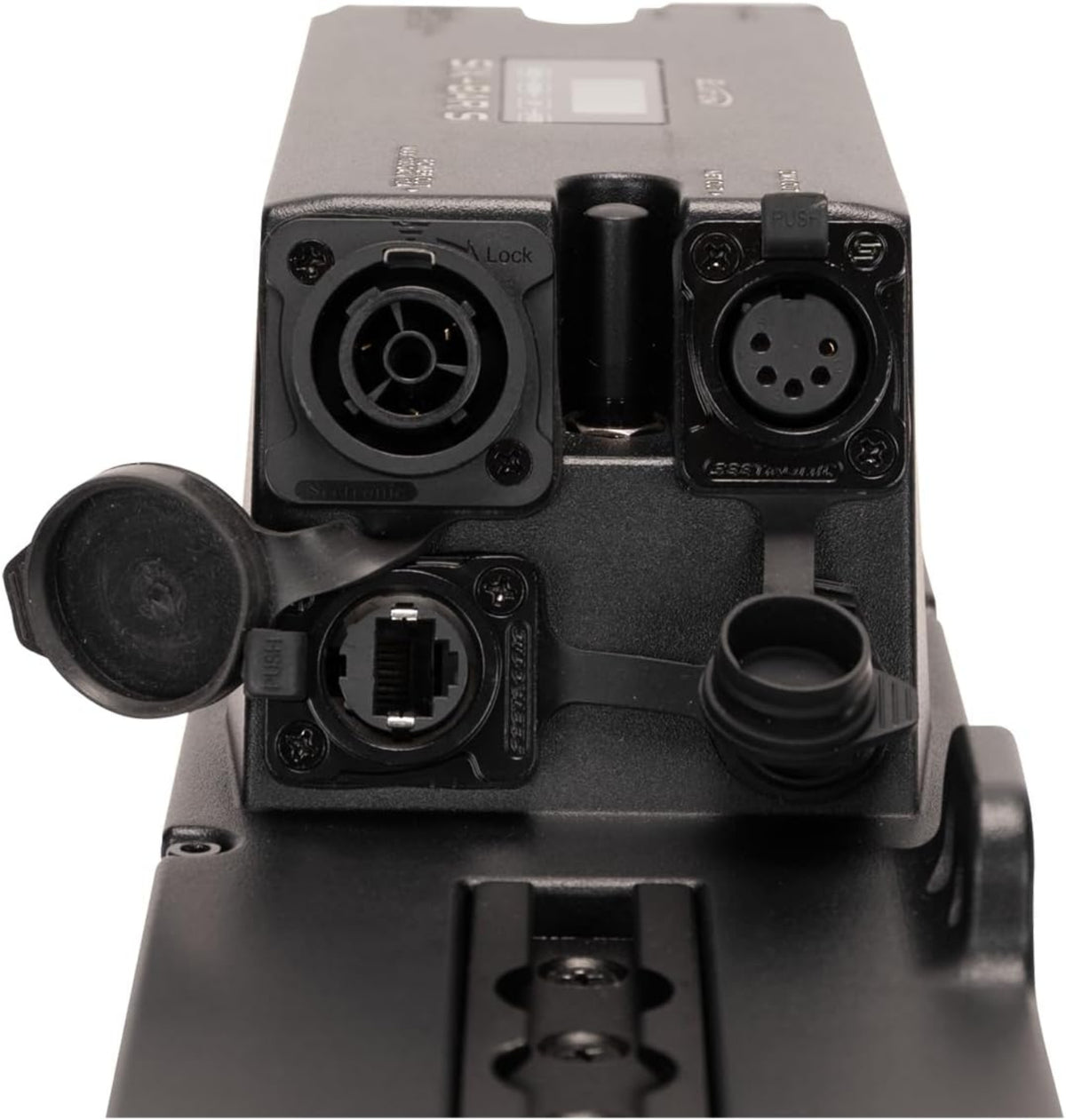

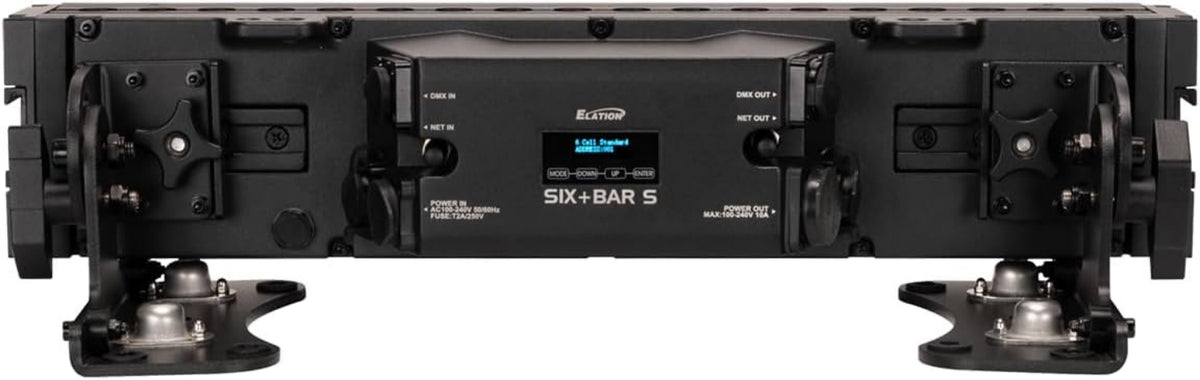

- Control/Connections: 13 DMX Channel Modes, 8 SixBar 500 Emulation DMX Modes, LED Display, RDM, IP65 5-pin XLR DMX, Ethernet, Locking Power Cable
- Size/Weight: Length: 19.69" (500mm), Width: 4.13" (105mm), Height: 8.11" (206mm), Weight: 14.88 lbs (6.75kg)
- Electrical/Thermal: AC 100-240V 50/60Hz, 110W Max Power, Operating Temp: 5°F to 113°F (-15°C to 45°C), Power Thru Capacity: @110V: 16 Units; @240V: 32 Units
- Approvals/Ratings: CE, cETLus, UL, IP65, FCC, UKCA
