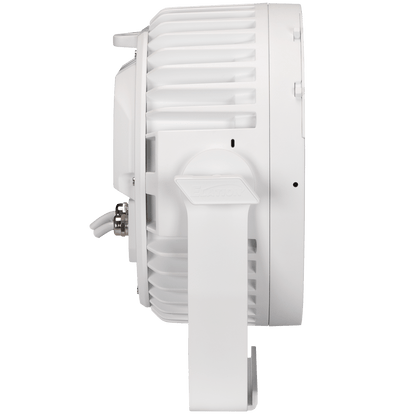

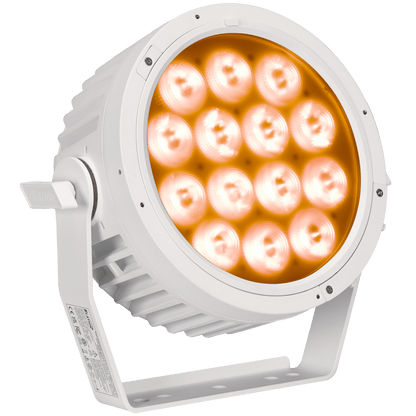

Elation SIX+ PAR L OPS Wht 2 wire SIX+ PAR L OPS Wht 2 wire; 14x20W RGBLA+UV

Elation SIX+ PAR L OPS Wht 2 wire SIX+ PAR L OPS Wht 2 wire; 14x20W RGBLA+UV

Write a review

SKU: SIX442

$1,712.00
$1,712.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

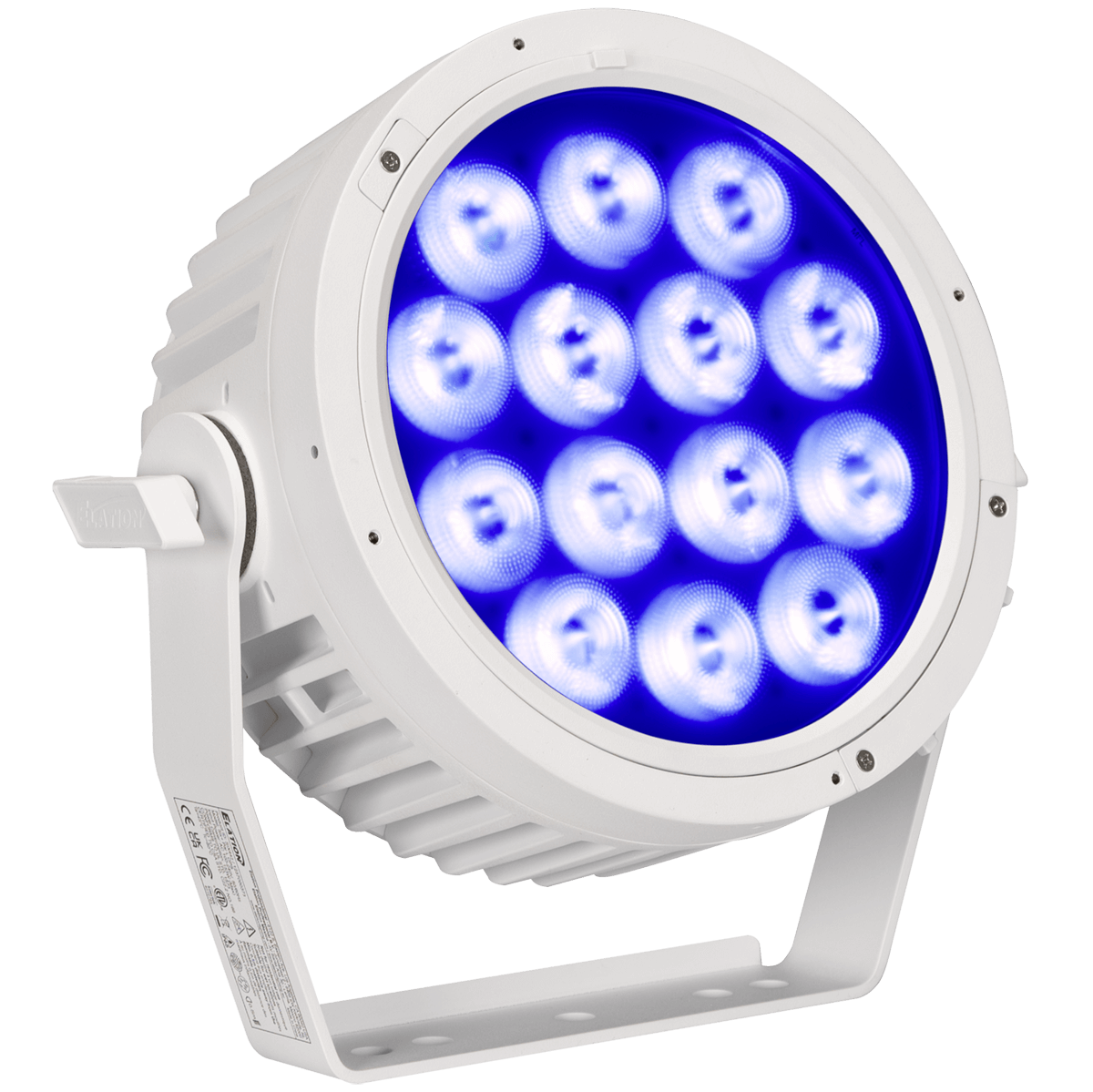

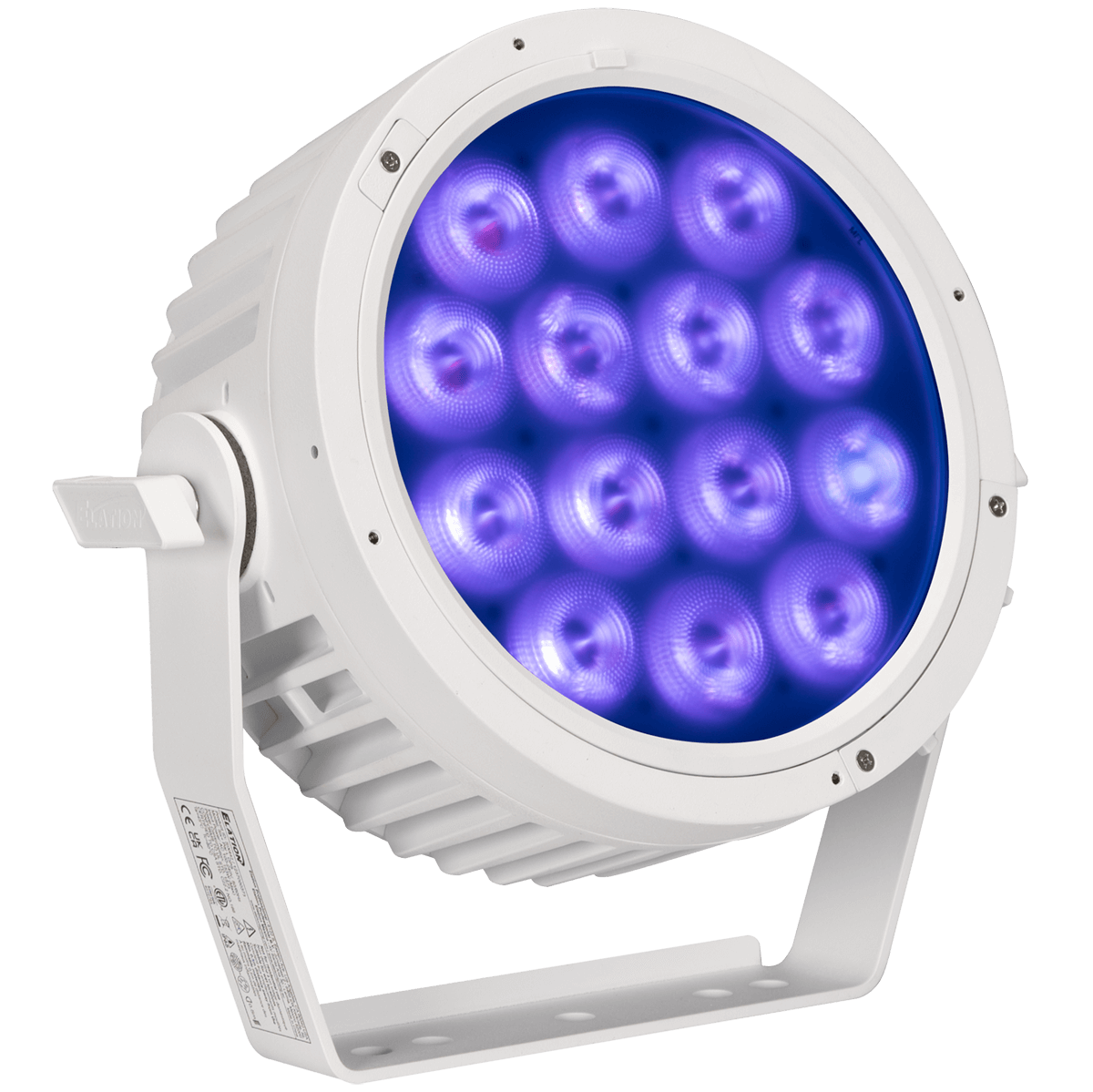

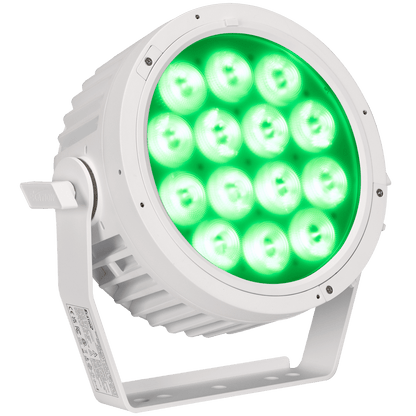

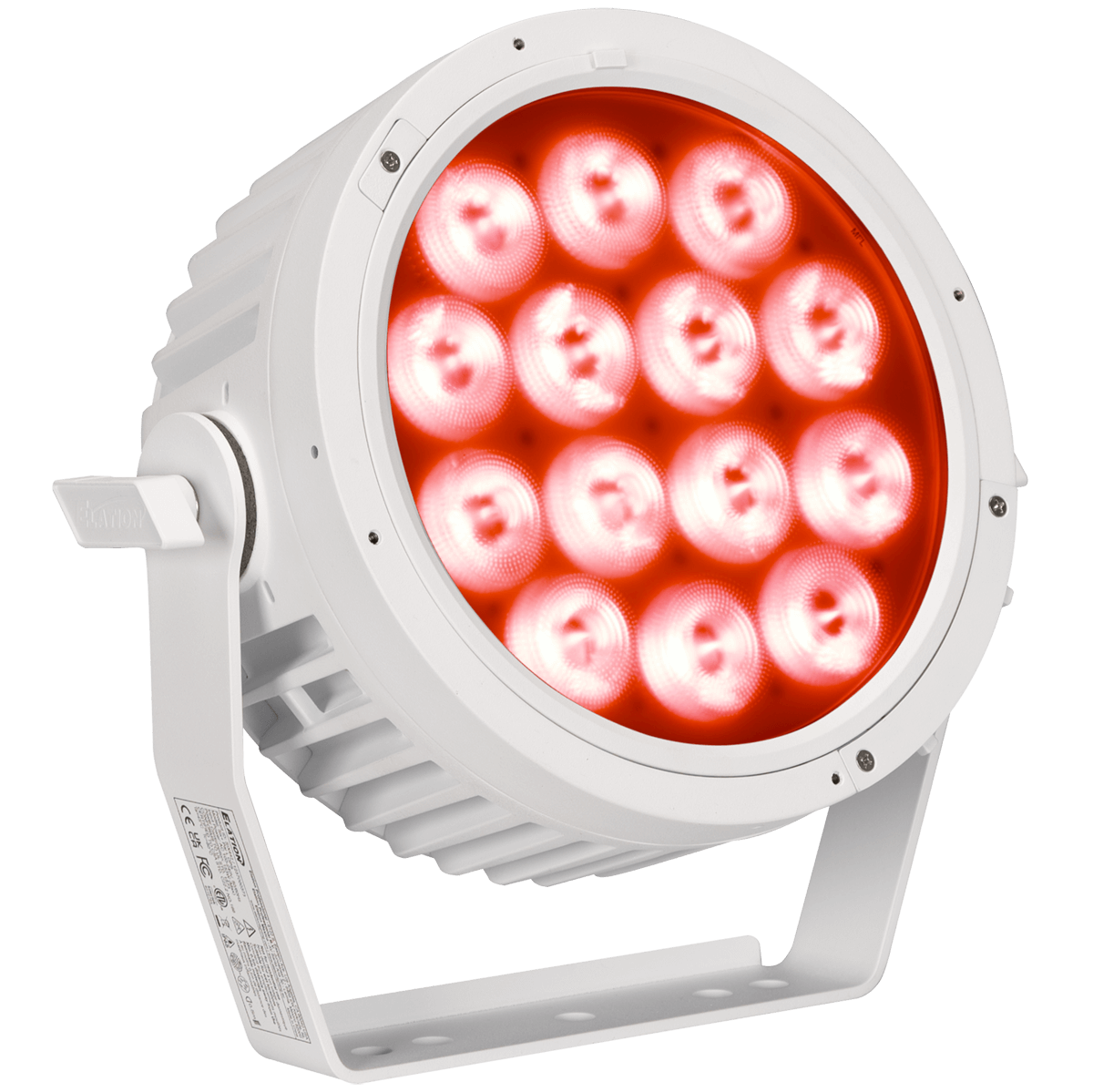

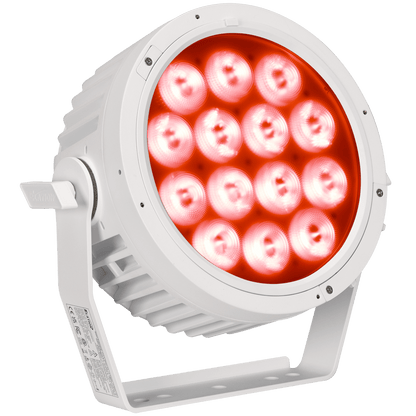

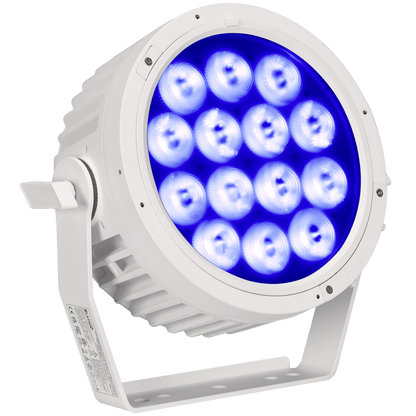

Elation SIX+ PAR L OPS White 2 wire 14x20W RGBLA+UV

The SIX+ PAR L OPS includes the same features as the standard SIX+ PAR L model but adds a CX Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power and data cables and is designed for permanent marine/coastal environment installations.

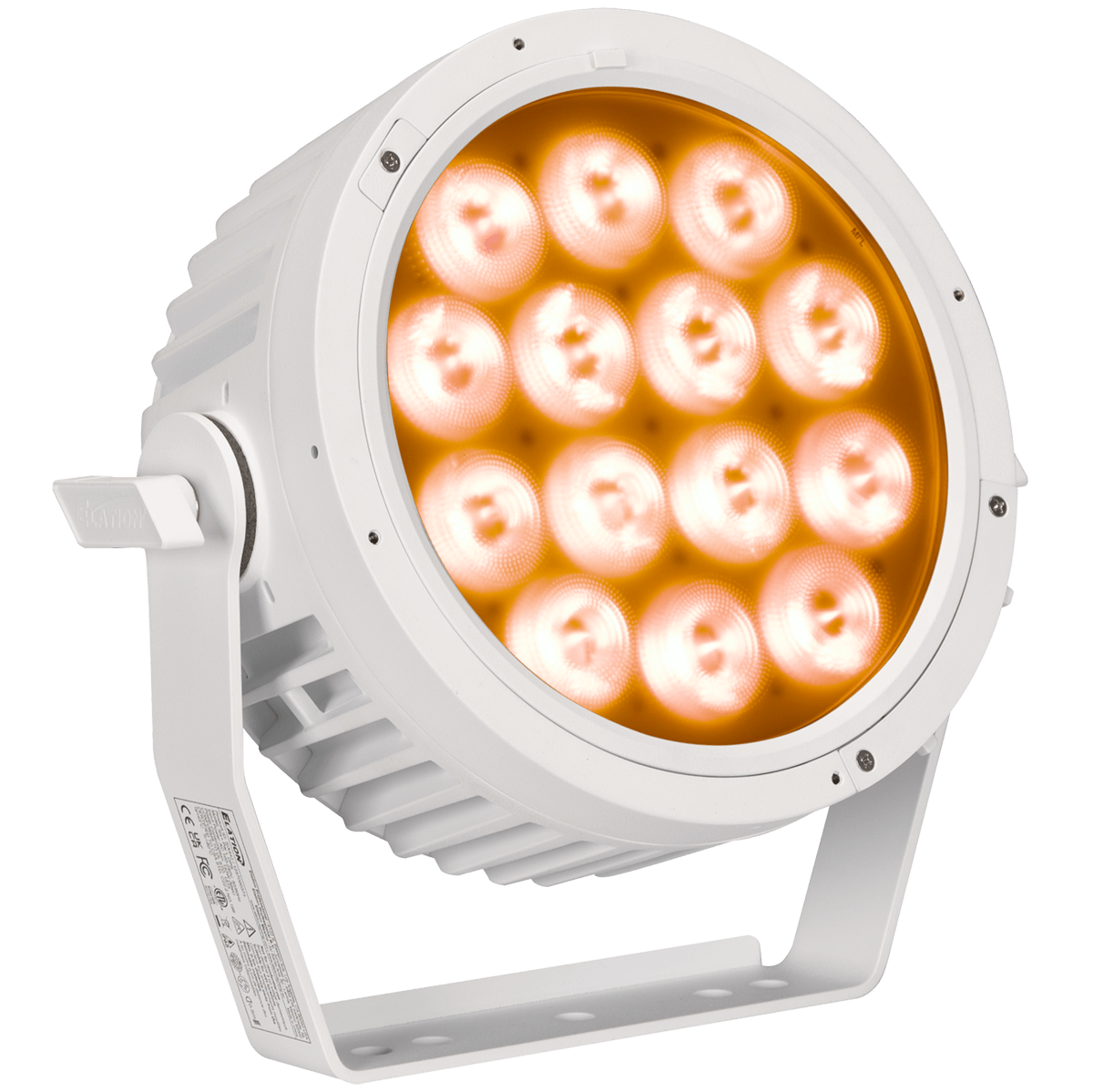

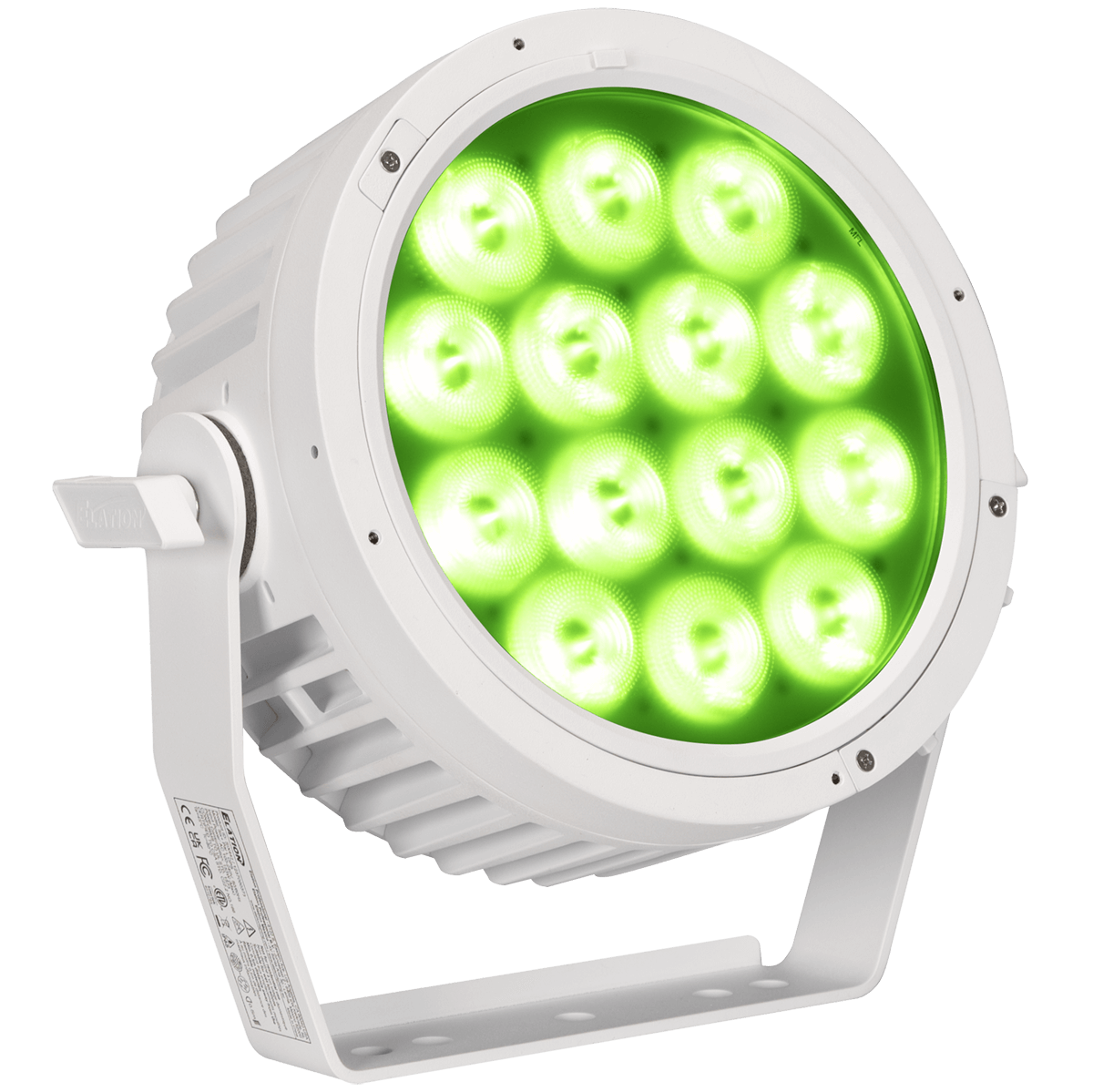

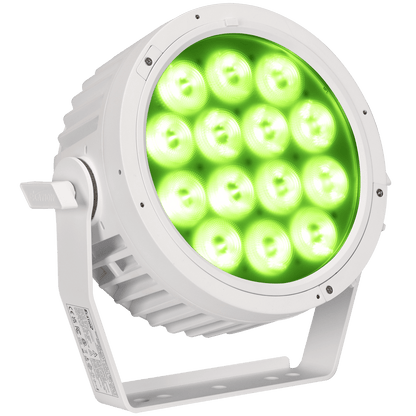

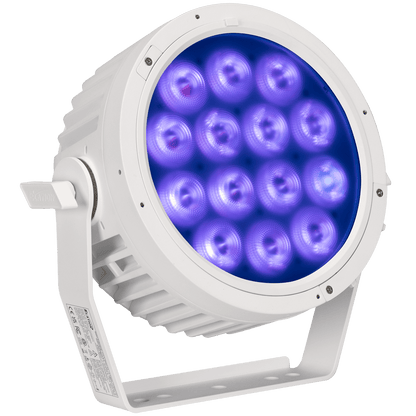

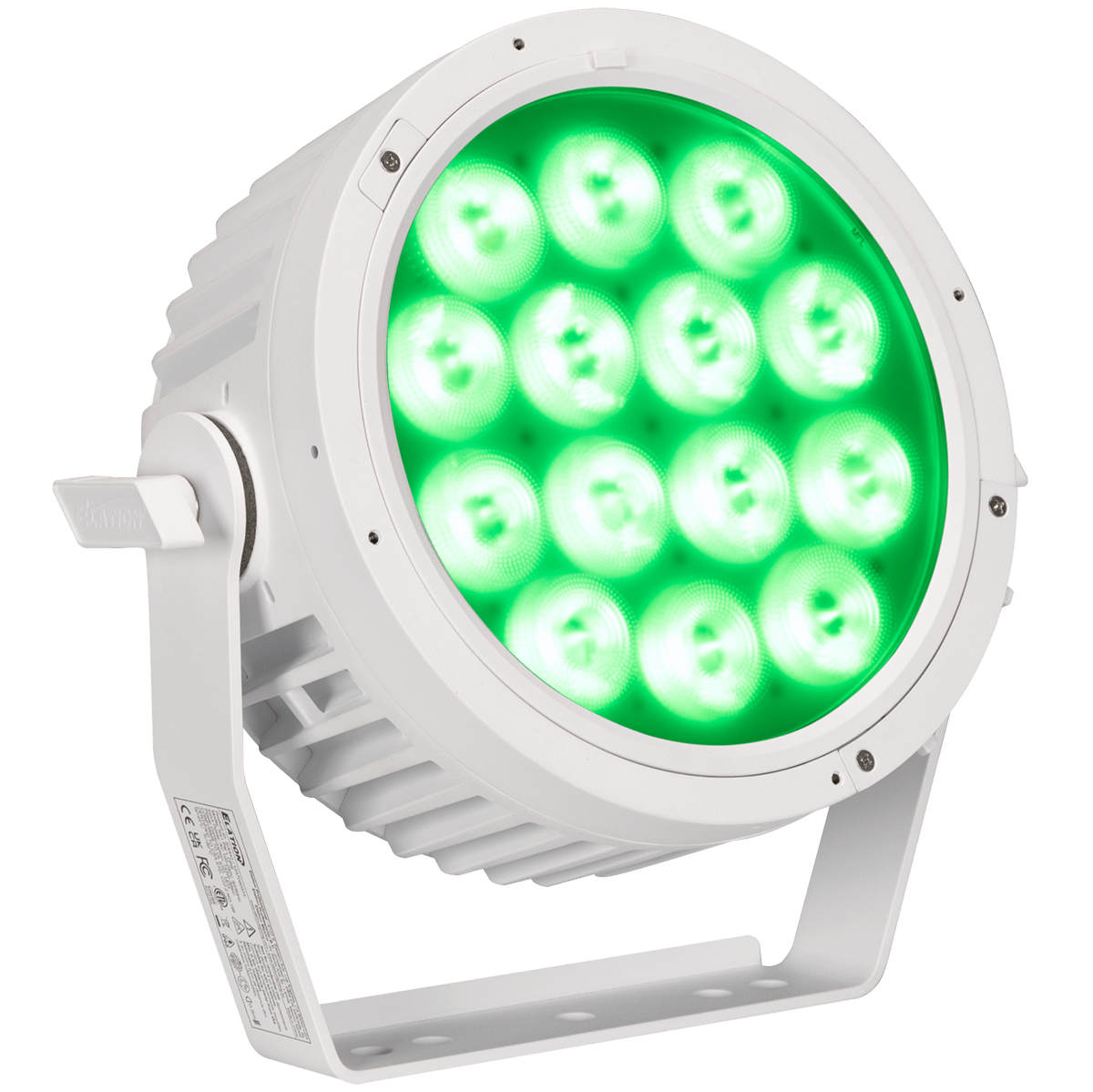

The SIX+ PAR L OPS is a compact and rugged LED fixture that features (14) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

With a six color LED array, the SIX+ PAR L OPS is able to offer outstanding color rendering capabilities with a high CRI of 87. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.


To expand the control capabilities on the SIX+ PAR L OPS precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.


The IP65 housing can be ordered in BLACK or WHITE color and includes a dedicated diffusion lens holder and the gel frame holder can accommodate industry standard 10” accessories. One 22° lens is included with the fixture, and other optional lenses are also available. The single yoke design allows the fixture to be mounted using the same bolt spacing as the SIXPAR 200 or 300 for retrofit applications.

To ensure the SIX+ PAR L OPS can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.

The SIX+ PAR L OPS is an ideal fixture for Themed Environments, Hospitality or Installations where high output, small form factor, simple design and permanent installation are required.



(14) 20W RGBLA+UV LED Array

7300 Total Fixture Lumen Output (Sphere)
91.7 CRI
12° Beam Angle, MFL (20°) Lens Included

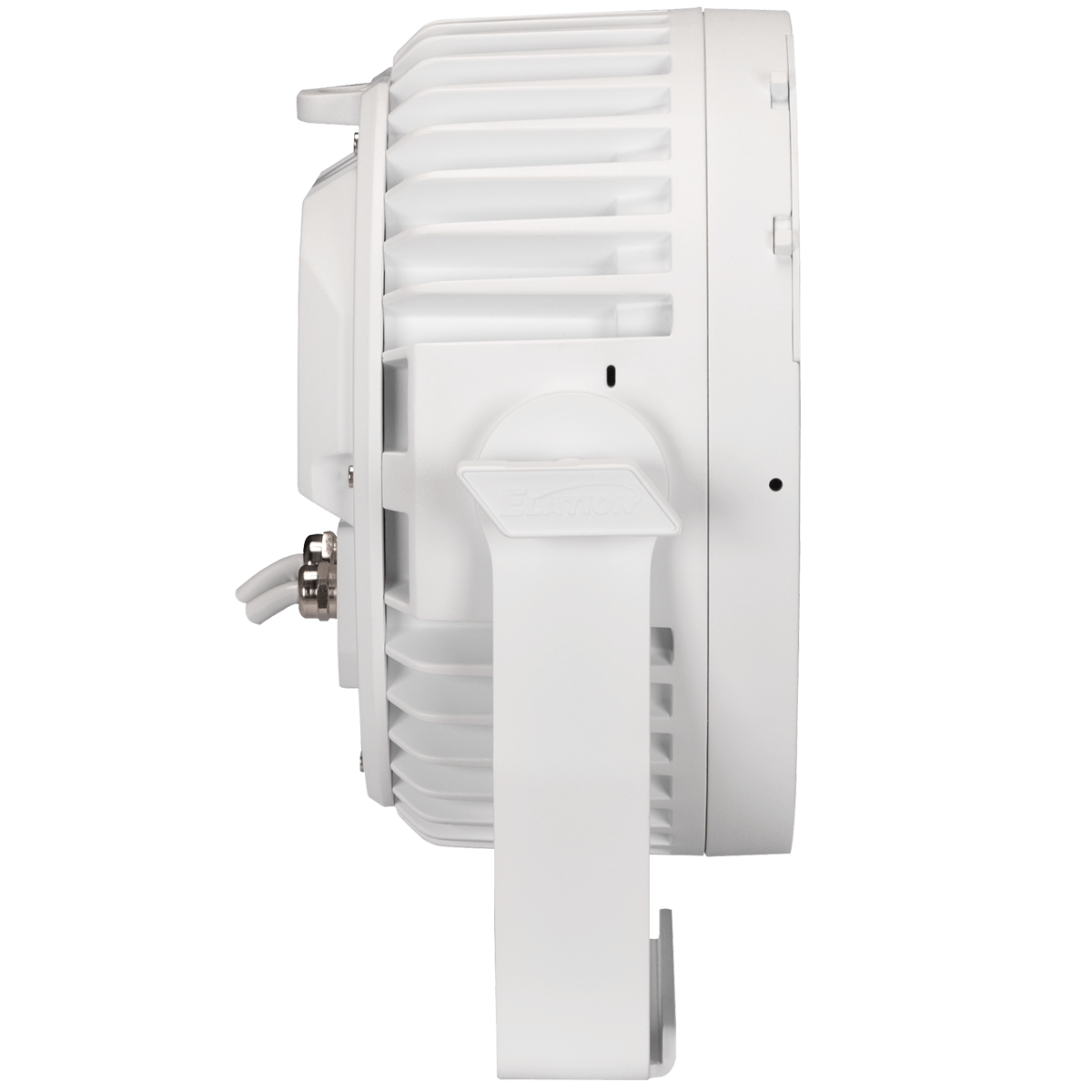

Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Optional 10” Accessory Holder

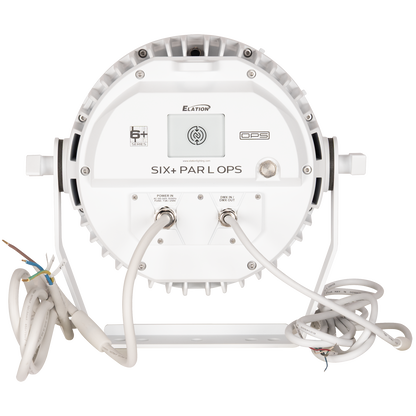

Hard Wired (Bare Wire) IP Rated Power and Data Cables Attached
Special Marine Grade Exterior Coating

Specifications

  • SOURCE
    • (14) x 20W RGBLA+ UV LEDs
    • 30,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to:
    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
  • PHOTOMETRIC DATA

    • Total Lumen Output

    • 7,300 (Integrating Sphere)
    • 6,763 (Goniometer)

    • CRI - 91.7

    • TCLI- 81
  • EFFECTS
    • Electronic Dimmer and Strobe
    • Variable 16-bit Dimming Modes and Curves
  • COLOR
    • RGBLA+ UV Color Array
    • CMY Emulation
    • Variable CCT 2400K - 8500K
    • Virtual Gel Swatch Book
  • CONTROL / CONNECTIONS
    • 9 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 9ch, 11ch, 14ch, 14ch, 20ch)
    • 4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
    • RDM (Remote Device Management)
    • NFC Configuration (If Equipped)
    • Aria X2 Wireless Management System

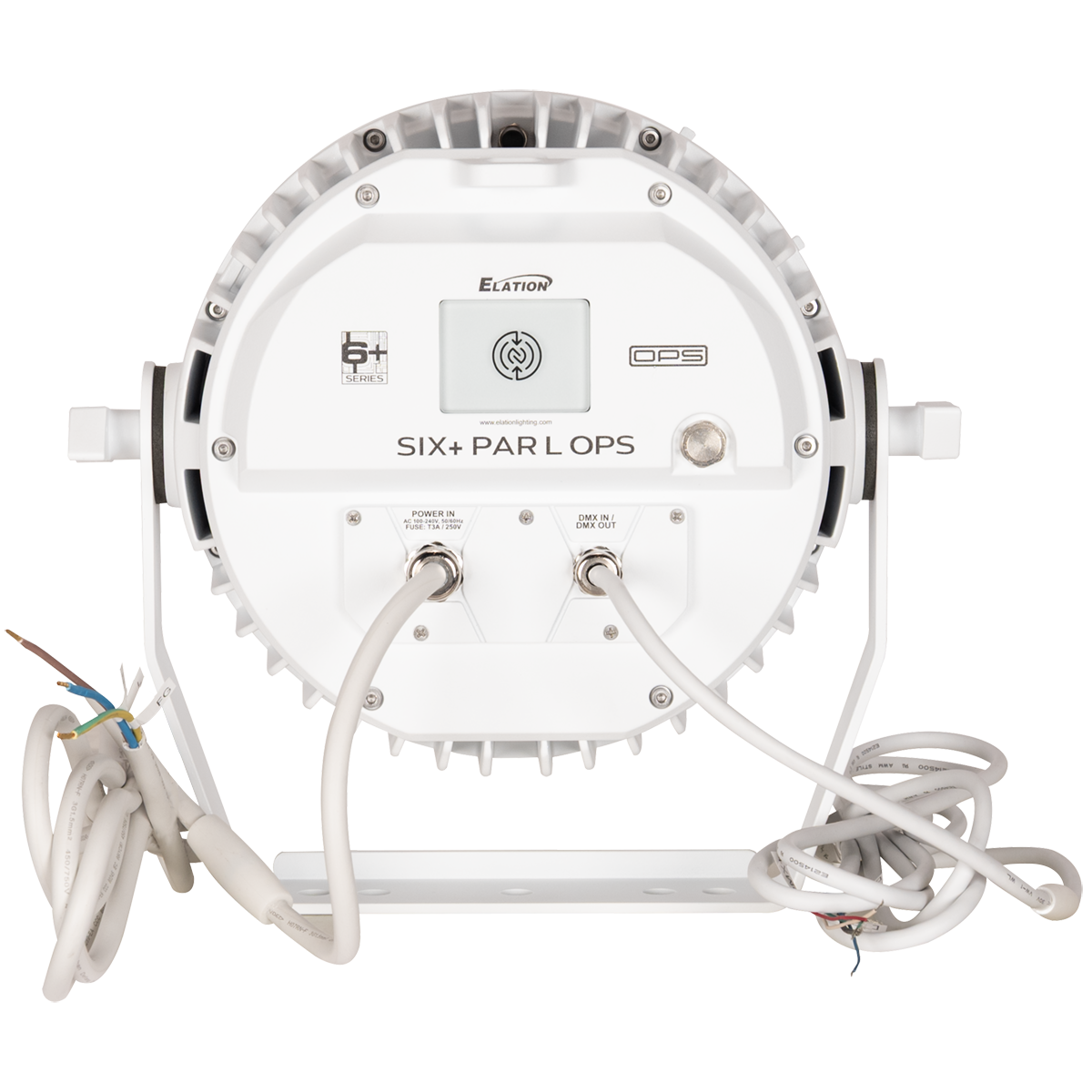

  • Hard Wired (Bare Wire) IP Rated Power and Data Cables, 3 meters with the following cable options:
    • 2-Wire- Power In Combination DMX In/Out Cables
    • 4-Wire- Power In, Power Out, DMX In and DMX Out Cables
  • SIZE / WEIGHT
    • Length: 5.9" (149mm)
    • Width: 13.2” (334mm)
    • Vertical Height: 12.3” (312mm)
    • Weight: 15.7lbs. (7.1kg)
  • ELECTRICAL / THERMAL
    • AC 100-240V - 50/60Hz
    • 165W Max Power Consumption
    • 40°F to 113°F (-40°C to 45°C)
    • BTU/hr (+/- 10%) 562.65
  • INCLUDED ITEMS

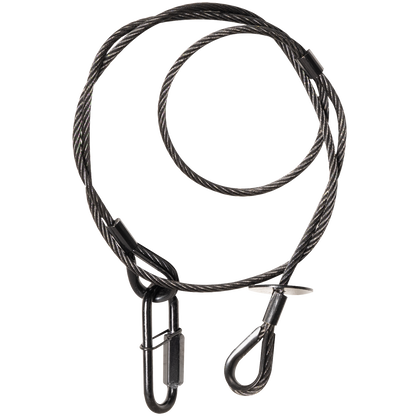

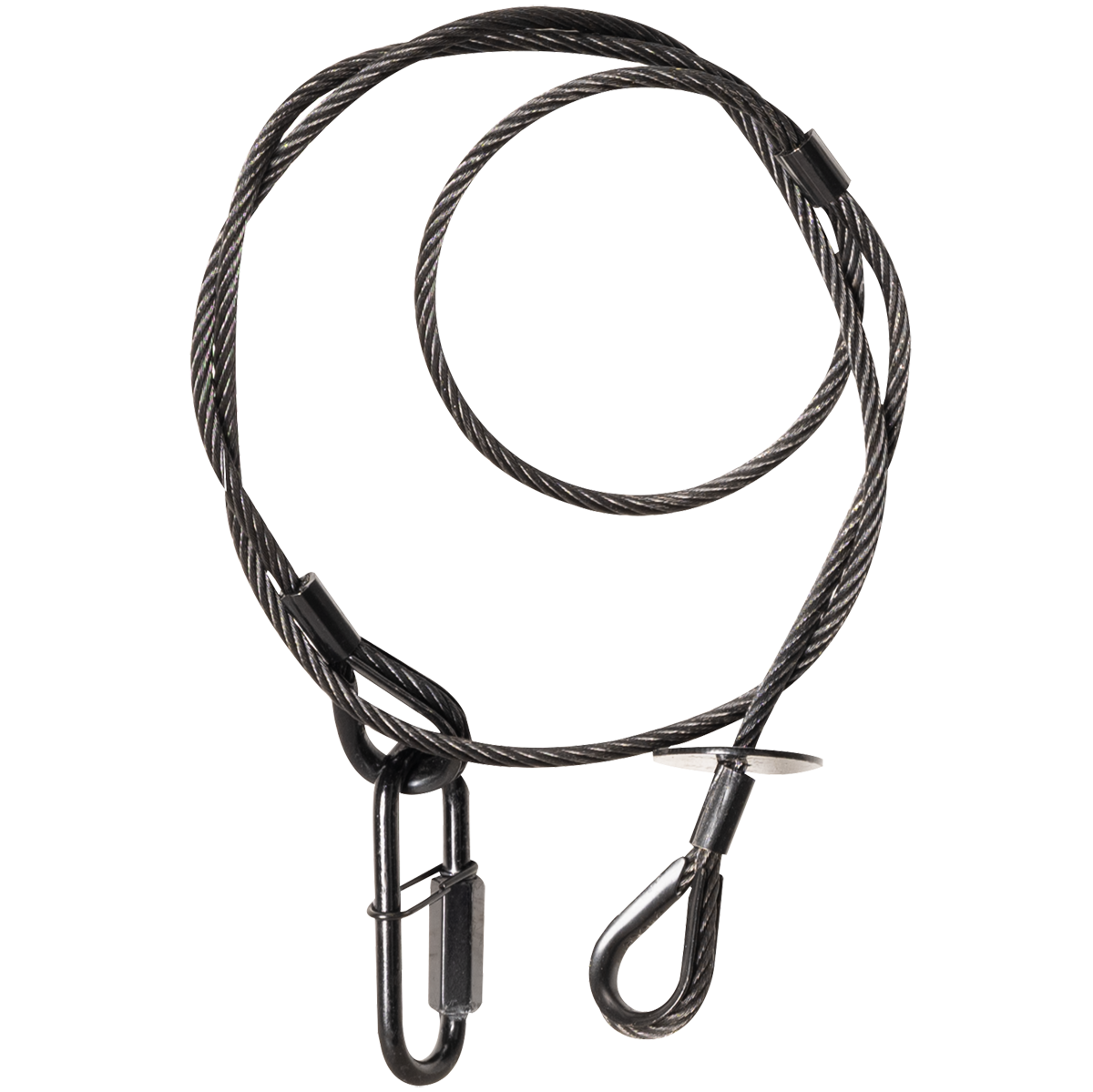

    • Safety Cable
  • ORDERING INFORMATION
    • SIX442: SIX+ PAR L OPS, White Housing, 2-Wire Backplate
    • SIX467: SIX+ PAR L OPS, White Housing, 4-Wire Backplate
    • SIX501: SIX+ PAR L OPS, Black Housing, 2-Wire Backplate
    • SIX523: SIX+ PAR L OPS, Black Housing, 4-Wire Backplate
  • OPTIONAL ITEMS
    • 60° Lens (SIX+L WFL)
    • 100° Lens (SIX+L XFL)
    • 1°x 40° Lens (SIX+L L140)
    • 10°x 60° Lens (SIX+L L1060)
    • 4 Wire OPS Hardwire Installation Plate (HWP414)
    • 2 Wire OPS Hardwire Installation Plate (HWP212)
  • APPROVALS / RATINGS
    • CE | cETLus | IP65 | FCC | UKCA
