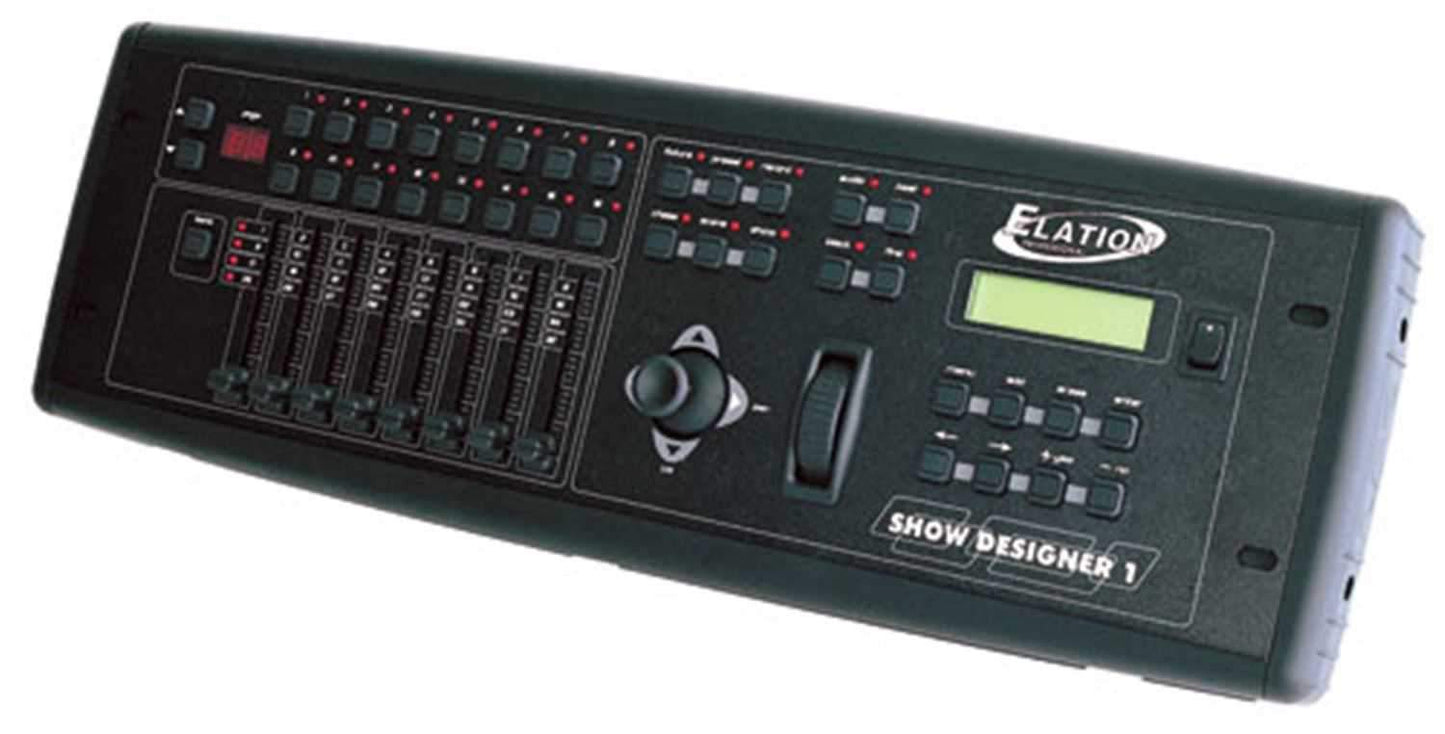

ELATION SHOW DESIGNER 1: Intelligent Lighting Controller
This is a surprisingly affordable, yet fully professional DMX lighting contoller. The Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier!
Features:- Pan/Tilt joystick
- Controller comes ?Tabletop Style? and includes removable rubber rails to fit standard 19" rack mount; 3 rack space
- Control a wide variety of DMX intelligent lighting fixtures
- Large library of fixture settings for many different brands of lighting equipment
- Control up to 512 channels (USITT DMX-512 compatible)
- Control up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller fixtures
- Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
- Fixtures and memories are quickly selectable from an array of 16 switches
- Software updates can be easily downloaded from this web page.
- MIDI capable
- 8 faders allow direct control of channel settings for 32 channel fixtures using a bank switch
- Large rotary wheel for data entry
- Pan and tilt can also be controlled using a standard PC trackball/keyboard (sold separately)
- 32 character backlit LCD display for easy programming
- REAR PANEL
- 3 pin XLR connector for DMX-512 output
- Polarity switch to accommodate different types of cable requirements
- MIDI In & Out
- Audio input
- RS232 port for trackball or pc connection
- Size: 19" x 5.25" x 4.75". Wt. 7 lbs.
