Elation Seven Batten 42 RGBAW UV Lime Wash Bar
The Seven Batten 42™ is a seven color 3.5 foot (1m) long batten wash luminaire featuring (36) individual 25W 7-in-1 RGBAW Lime and UV LEDs, manual and DMX controllable, smooth color mixing, variable dimming curve, strobe, and color macro effects, (6) pixel mapping zones with individual dimmer channels, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and Film, 3/5pin DMX, RJ45 etherCON, powerCON True1 in/out connections, DMX, RDM (remote device management), Art-Net, and Kling-Net protocol support, OLED menu display with (4) touch button control panel, dual mounting brackets, multiple unit power linking, rugged die-cast aluminum exterior, a multi-voltage universal auto switching power supply (100-240v), and 220° manual tilt adjustable mounting brackets.
Features:
- Seven Colors RGBWA + Lime + UV (395nm)
- Individual Hue, Saturation, and Intensity Control
- Art-Net and Kling-Net Protocol Support
- RGB + Dynamic Amber Channel Modes
- Smooth Color Mixing
- 6 Pixel Mapping Zones
- 12 Internal Programs with Speed Control
- 64 Color Macros
- Selectable Dimming Curve Modes
- Adjustable LED Refresh Rate + Gamma Brightness
- Flicker Free Operation for TV and Film

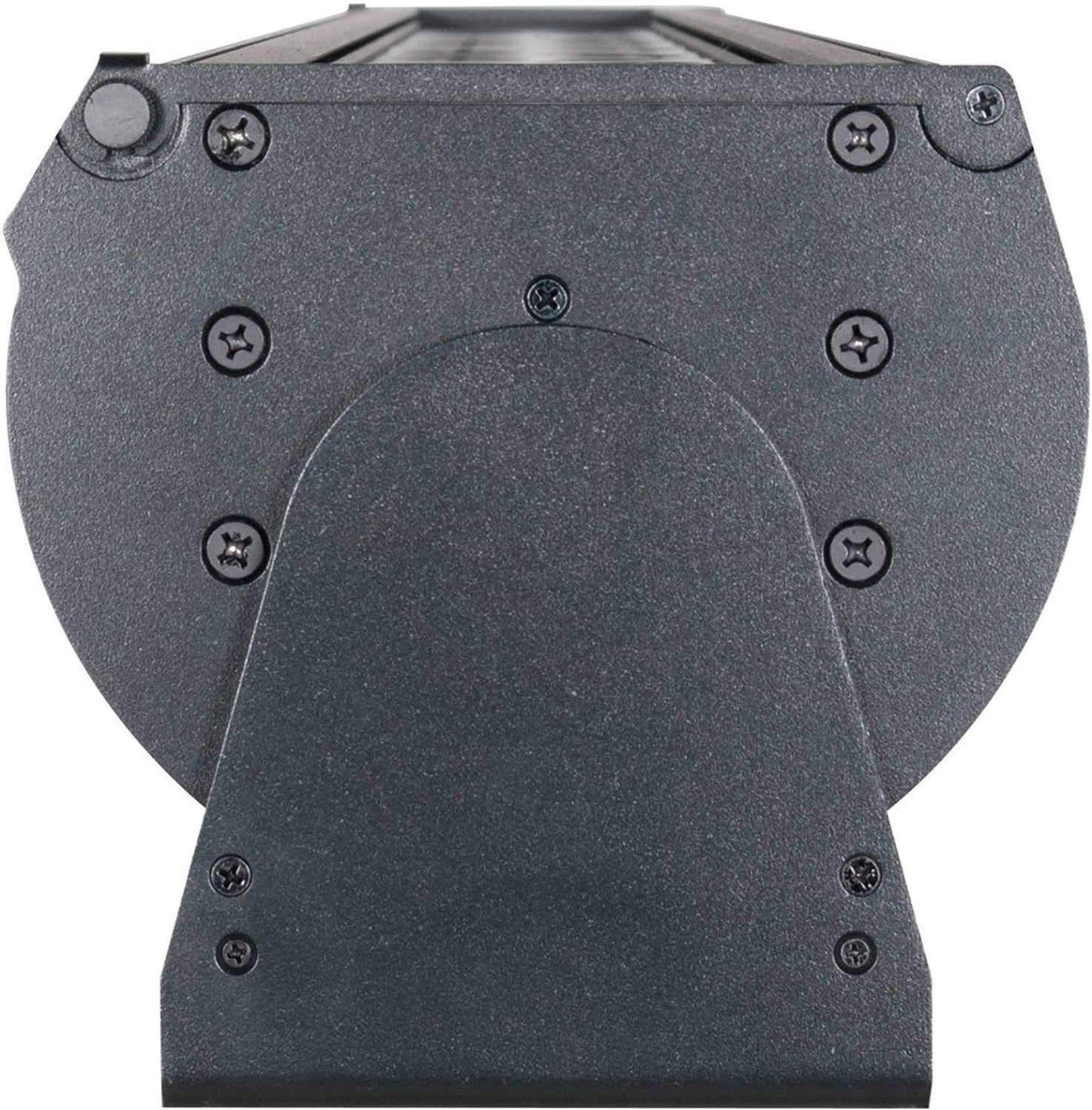

- 220° Manual Tilt Adjustable Mounting Brackets
Specifications:
- Source:
- (36) 25W 7-in-1 RGBAW + Lime + UV LEDs
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- Effects:
- Individual Hue, Saturation, and Intensity Control
- Dynamic Amber (automatically added to RGB LEDs in Dynamic (+) DMX Modes)
- 2 Pixel Mapping Zones
- 12 Program Macros with Variable Speed Control
- 64 Color Macros
- Electronic Strobe and Variable Effects
- Selectable Dimming Curve Effects
- Adjustable LED Refresh Rate and Gamma Brightness
- Color
- RGBAW + Lime + UV (395nm)
- Control/Connections:
- Multiple DMX Channel Modes
- DMX and Manual Control
- 4 Button OLED Menu Control Display
- Adjustable Refresh Rate (900-28,800 (Hz)
- Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
- Art-Net, Kling-Net, and RDM (Remote Device Management) Protocol Support
- IP Rated 3/5pin DMX In/Out
- IP Rated RJ45 etherCON In/Out
- powerCON True1Power In/Out
- Size/Weight:
- Length: pending
- Width: pending
- Vertical Height: pending
- Weight: pending
- Electrical/Thermal
- AC 100-240V - 50/60Hz
- Max Power Consumption: pending
- 5°F to 113°F (-15°C to 45°C)
- Approvals/Ratings
- CE|IP20
- Source:
- (36) 25W 7-in-1 RGBAW + Lime + UV LEDs
- 50,000 Hour Average LED Life*
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- Effects:
- Individual Hue, Saturation, and Intensity Control
- Dynamic Amber (automatically added to RGB LEDs in Dynamic (+) DMX Modes)
- 2 Pixel Mapping Zones
- 12 Program Macros with Variable Speed Control
- 64 Color Macros
- Electronic Strobe and Variable Effects
- Selectable Dimming Curve Effects
- Adjustable LED Refresh Rate and Gamma Brightness
- Color
- RGBAW + Lime + UV (395nm)
- Control/Connections:
- Multiple DMX Channel Modes
- DMX and Manual Control
- 4 Button OLED Menu Control Display
- Adjustable Refresh Rate (900-28,800 (Hz)
- Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
- Art-Net, Kling-Net, and RDM (Remote Device Management) Protocol Support
- IP Rated 3/5pin DMX In/Out
- IP Rated RJ45 etherCON In/Out
- powerCON True1Power In/Out
- Size/Weight:
- Length: pending
- Width: pending
- Vertical Height: pending
- Weight: pending
- Electrical/Thermal
- AC 100-240V - 50/60Hz
- Max Power Consumption: pending
- 5°F to 113°F (-15°C to 45°C)
- Approvals/Ratings
- CE|IP20
*May vary depending on several factors including but not limited to:
