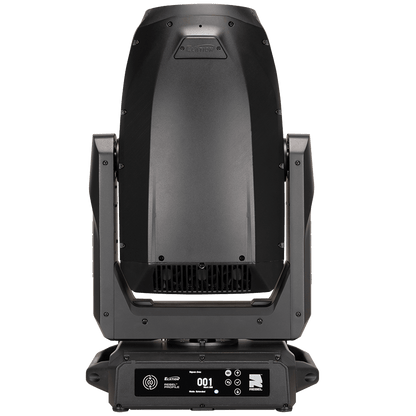

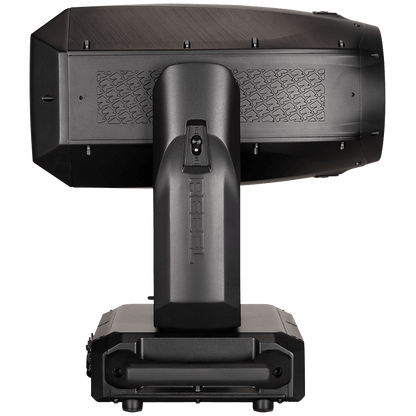

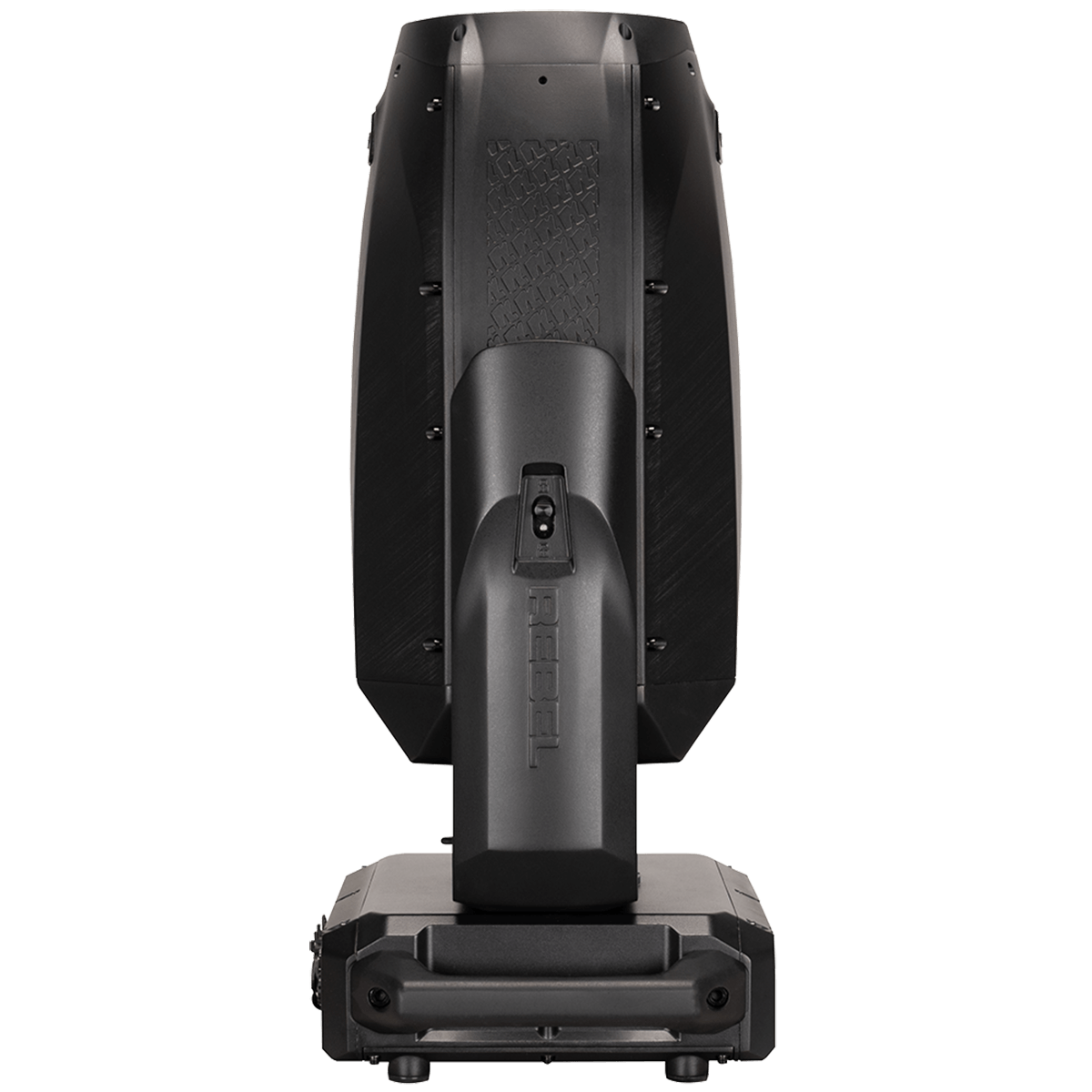

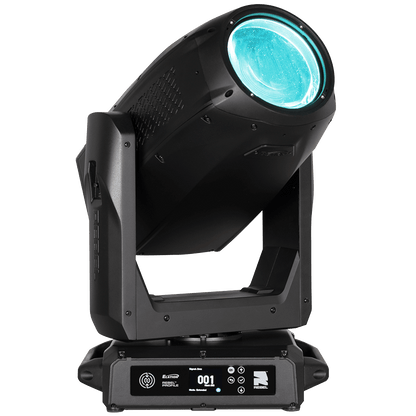

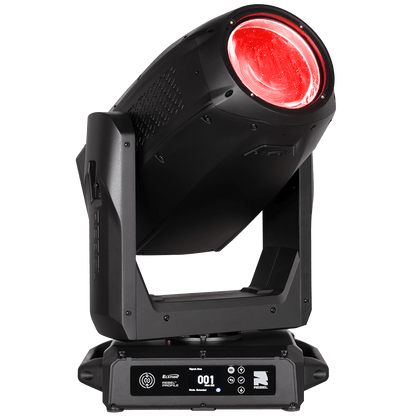

Elation REBEL Profile; 600W LED Profile IP65

Elation REBEL Profile; 600W LED Profile IP65

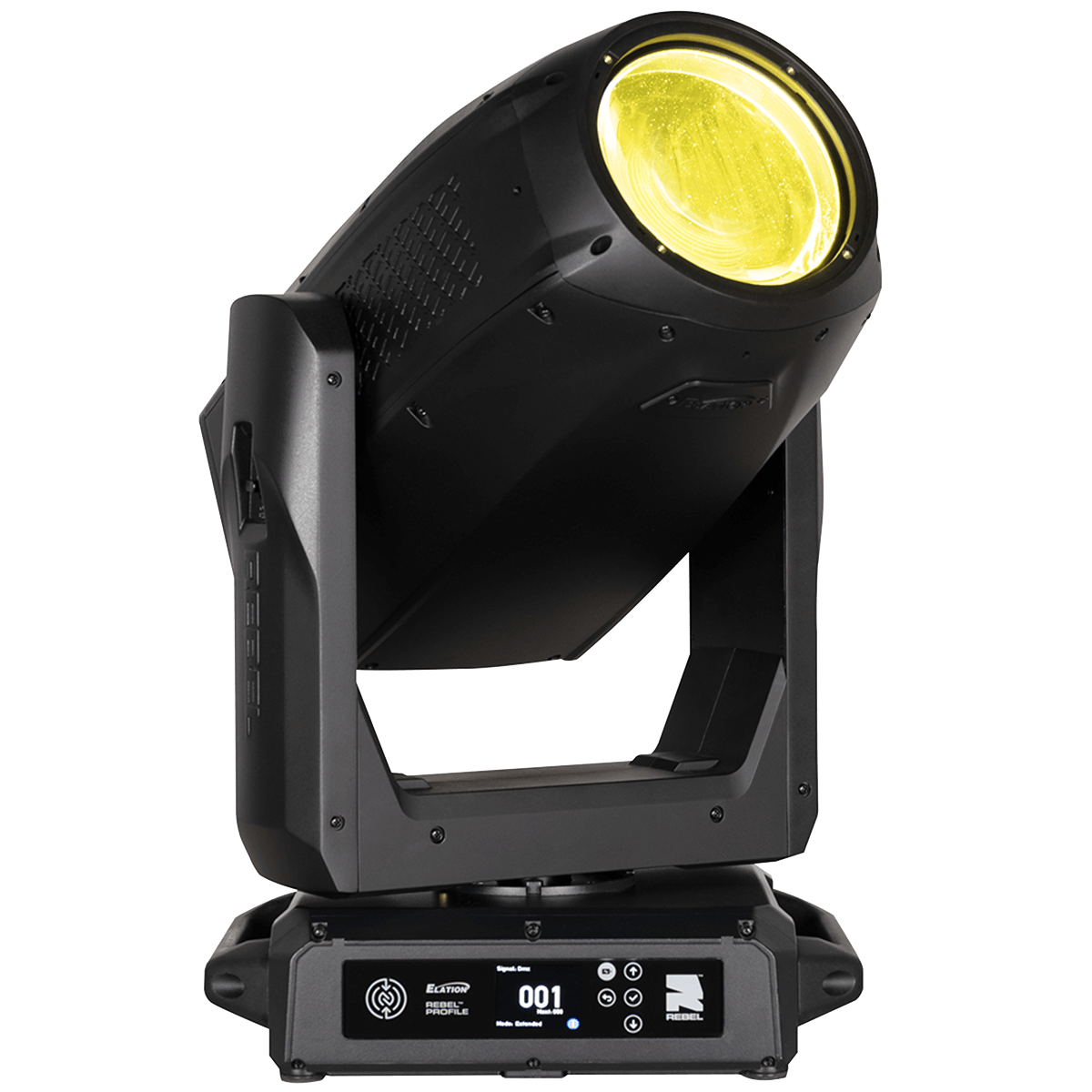

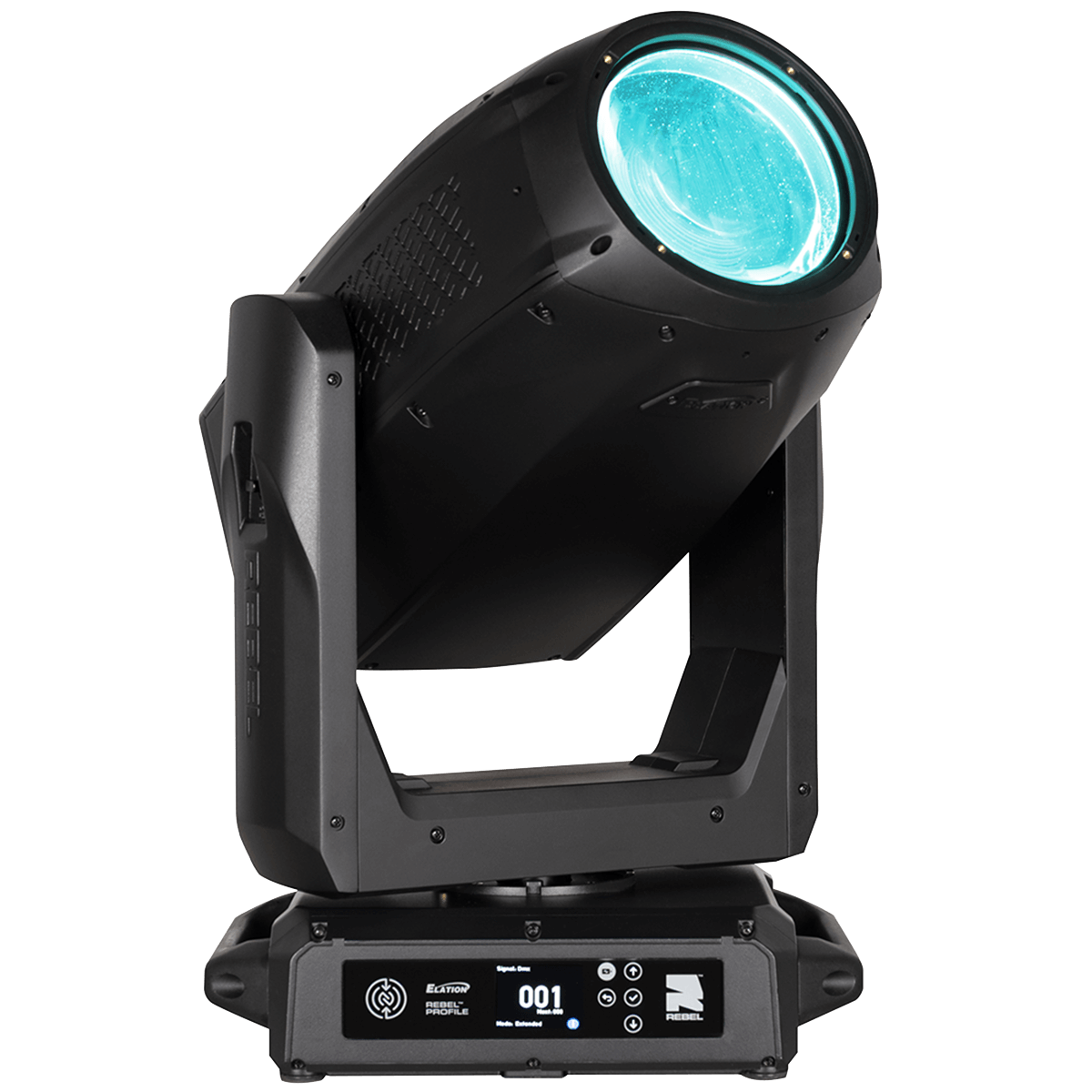

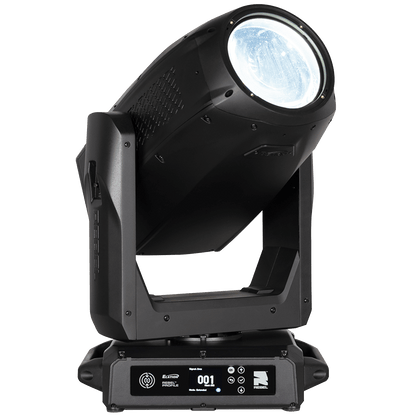

The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.
The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

Features

• IP65 for temporary outdoor applications

• Peak field 600W 6,500K White LED Engine
• Up to 22000 Total Lumens Fixture Output
• CMY Color Mixing and Variable CTO

• 7-Position Color Wheel with dual High CRI Filters
• Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 3.5° to 51°

Specifications

• SOURCE

  • 600W 6,500K Bright White Peak Field LED Engine

  • 20,000 Hour Average LED Life*

• *Test lab conditions. May vary depending on several factors including but not limited to:

  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

• PHOTOMETRIC DATA

  • 22000 Total Lumen Fixture Output

  • CRI 70+ (80 or 90 with HCRI Filter)

  • 2:1 Hotspot Ratio

  • Zoom Range 3.5° - 51°

  • Beam Angle

  • Field Angle

• EFFECTS

  • Motorized Zoom

  • 4 Rotating Full Blackout Framing Blades

  • +/-60° Framing Module Index

  • Full 360°Bi-Directional Animation Wheel

  • 4-Facet Round and 6 Facet Linear Rotating Prisms

  • 2 Variable Frost Filters (Light and Wash)

  • Motorized Iris with Variable Pulse Effects

  • Variable 16-bit Dimming Curves

  • High Speed Electronic Shutter and Strobe

  • DMX Controllable LED Refresh Rate

  • Pan Angle: 540°

  • Tilt Angle: 270°

  • Continuous 360° Pan Rotation

• COLOR

  • CMY Color Mixing

  • Linear CTO Color Correction (2400K)

  • 7 Dichroic Colors, including CRI 80 and CRI90 filters

• GOBOS

  • 2 Gobo Wheels

  • 7 Rotating Glass Gobos

  • 8 Static Glass Gobos

• CONTROL / CONNECTIONS

  • 2 DMX Channel Modes

  • (5) Button Touch Control Panel

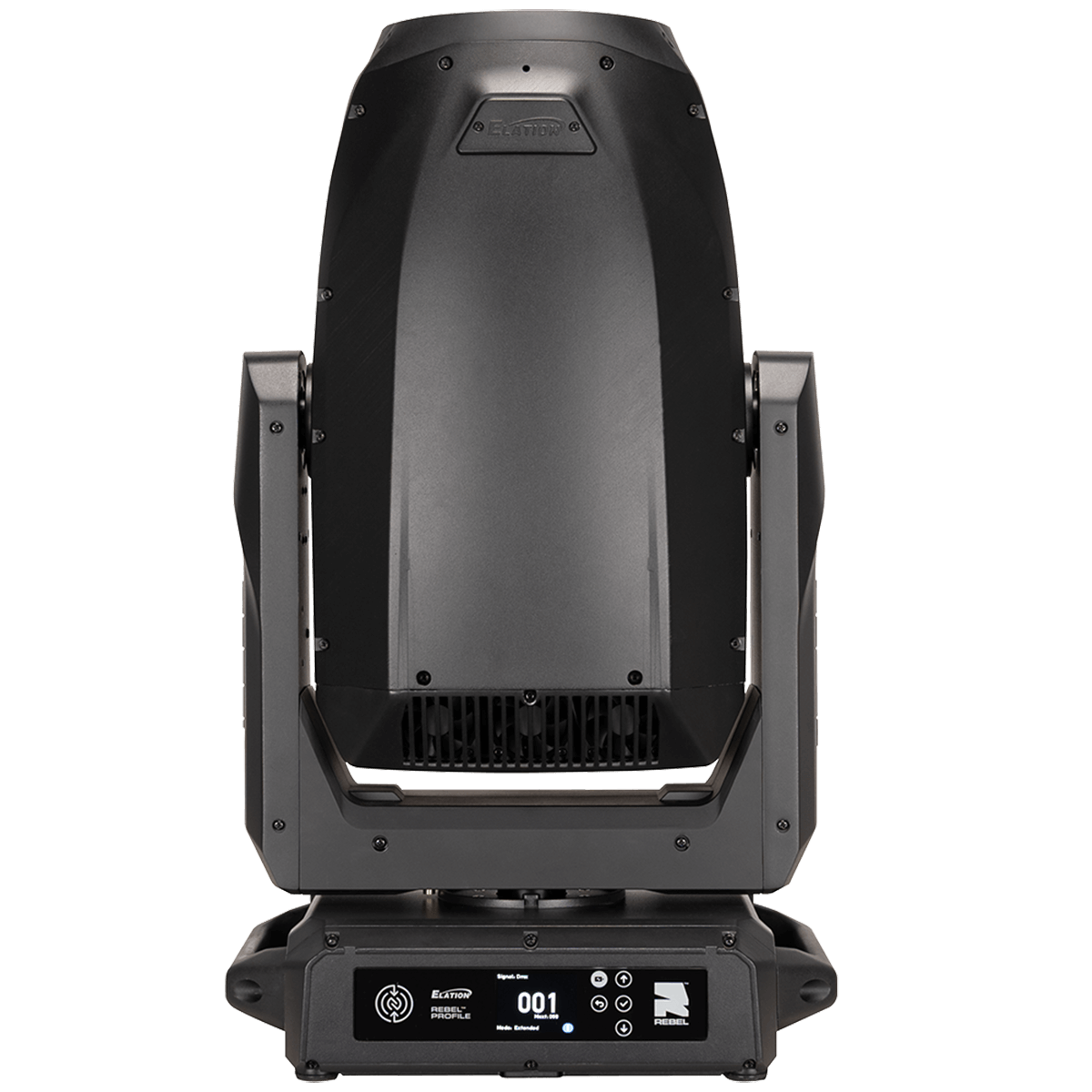

  • Full Color 180° Reversible LCD Menu Display

  • Hibernation Mode (Power Save)

  • Aria x2 Wireless Device Management

  • NFC Configuration

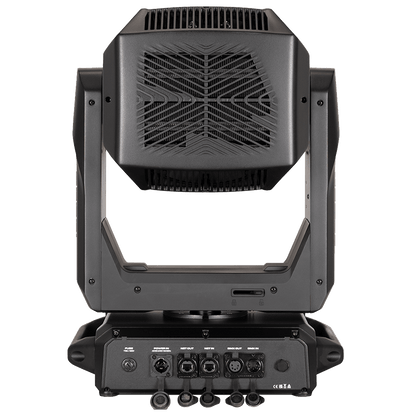

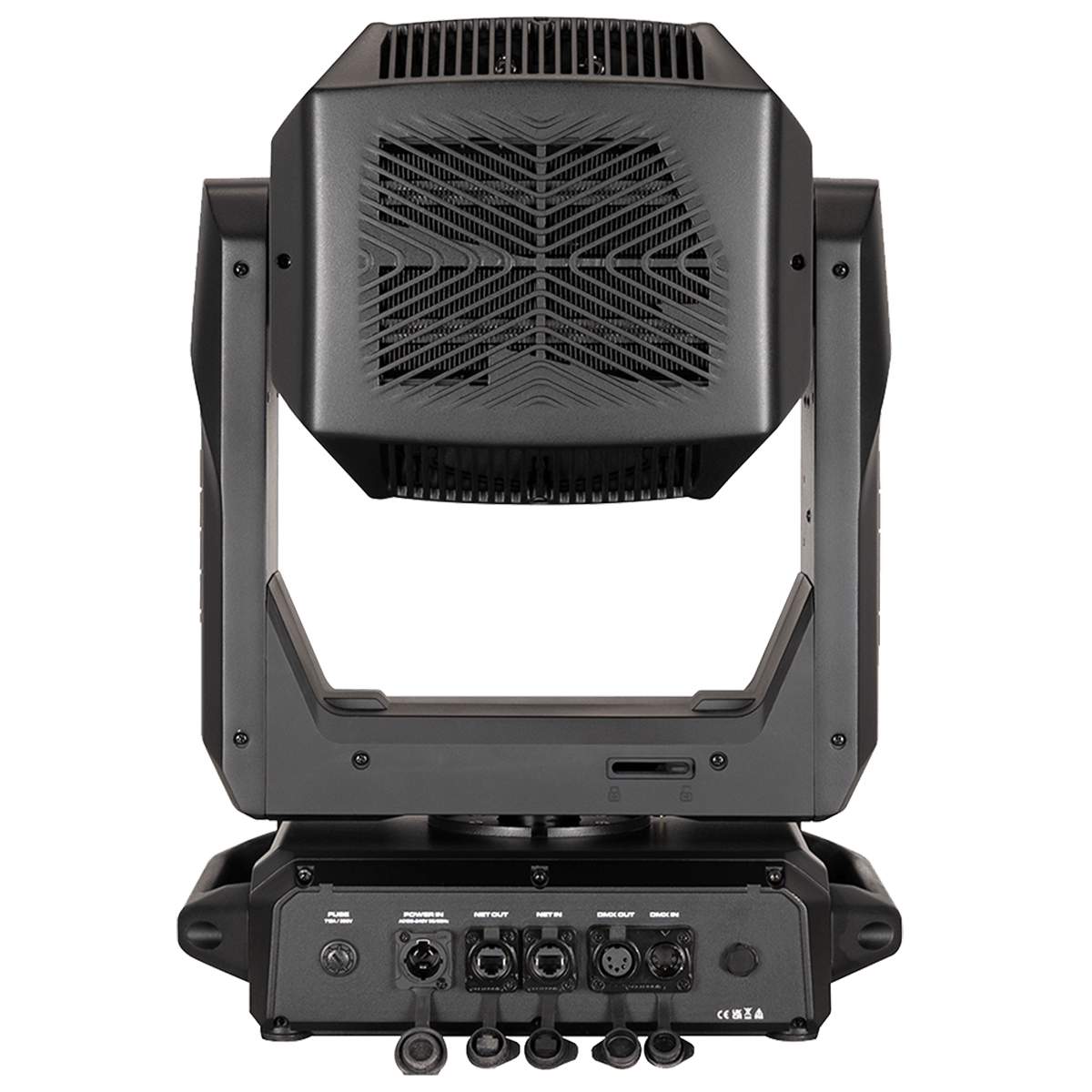

  • IP65 Locking 5pin XLR Connector In/Out

  • IP65 Locking RJ45 Ethernet Connector In/Out

  • IP65 Locking Power Connector In

• SIZE / WEIGHT

  • Length: 15.65 in (398mm)

  • Width: 11.06 in (281mm)

  • Height: 26.2 in (666mm)

  • Center-to-Center Spacing: 23.2in (589mm)

  • Weight: 66 lbs. (29.9 kg)

• ELECTRICAL

  • AC 100-240V 50/60Hz

  • Max Power Consumption: 950W

  • -4° to 113°F (-20°C to 45°C)

  • 3509 BTU/hr (+/- 10%)

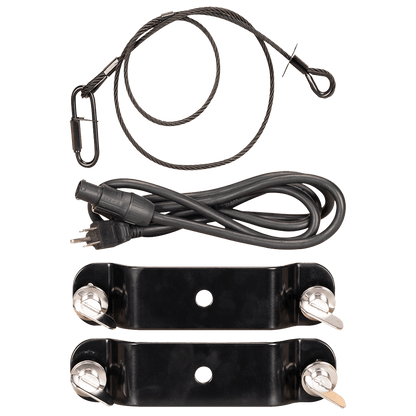

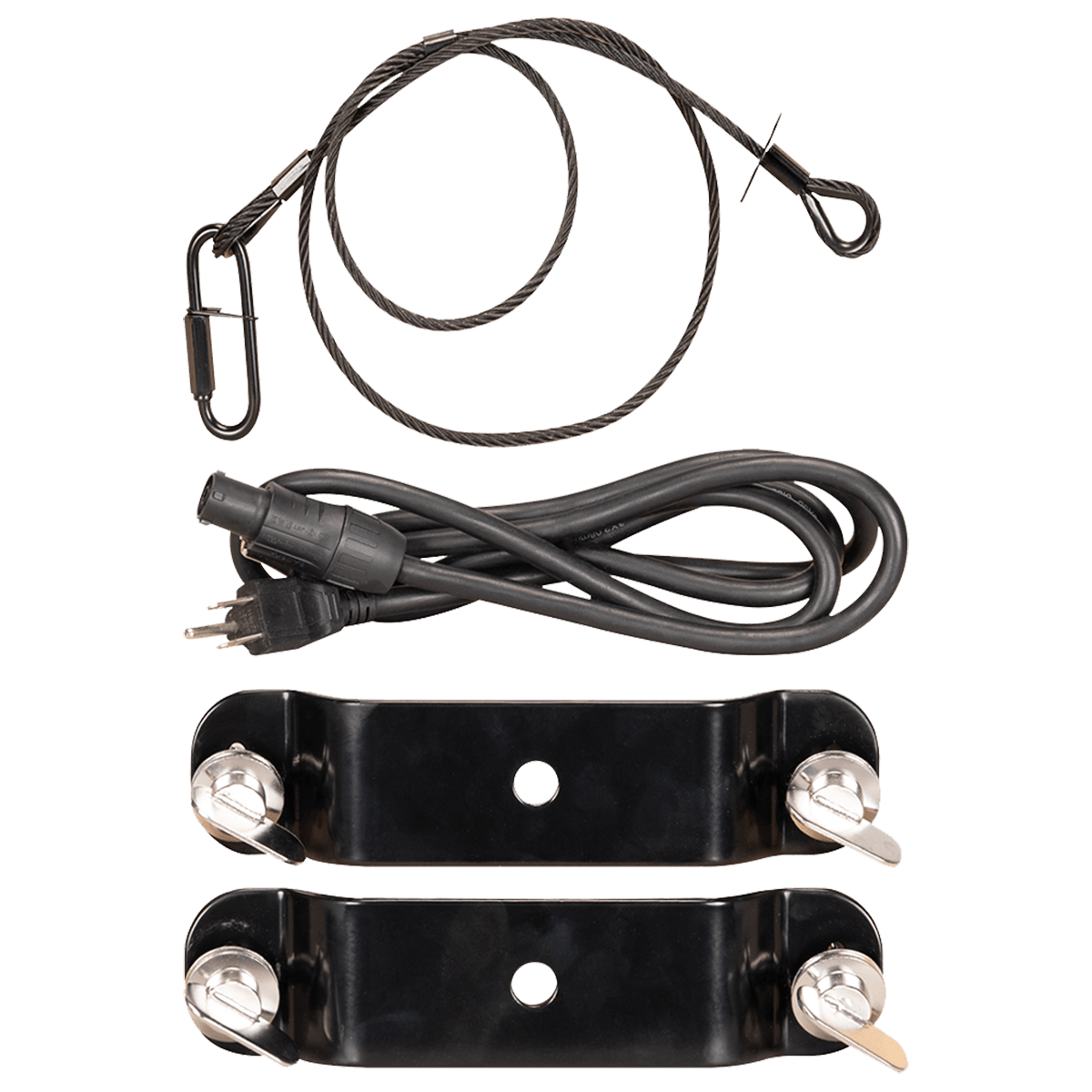

• INCLUDED ITEMS

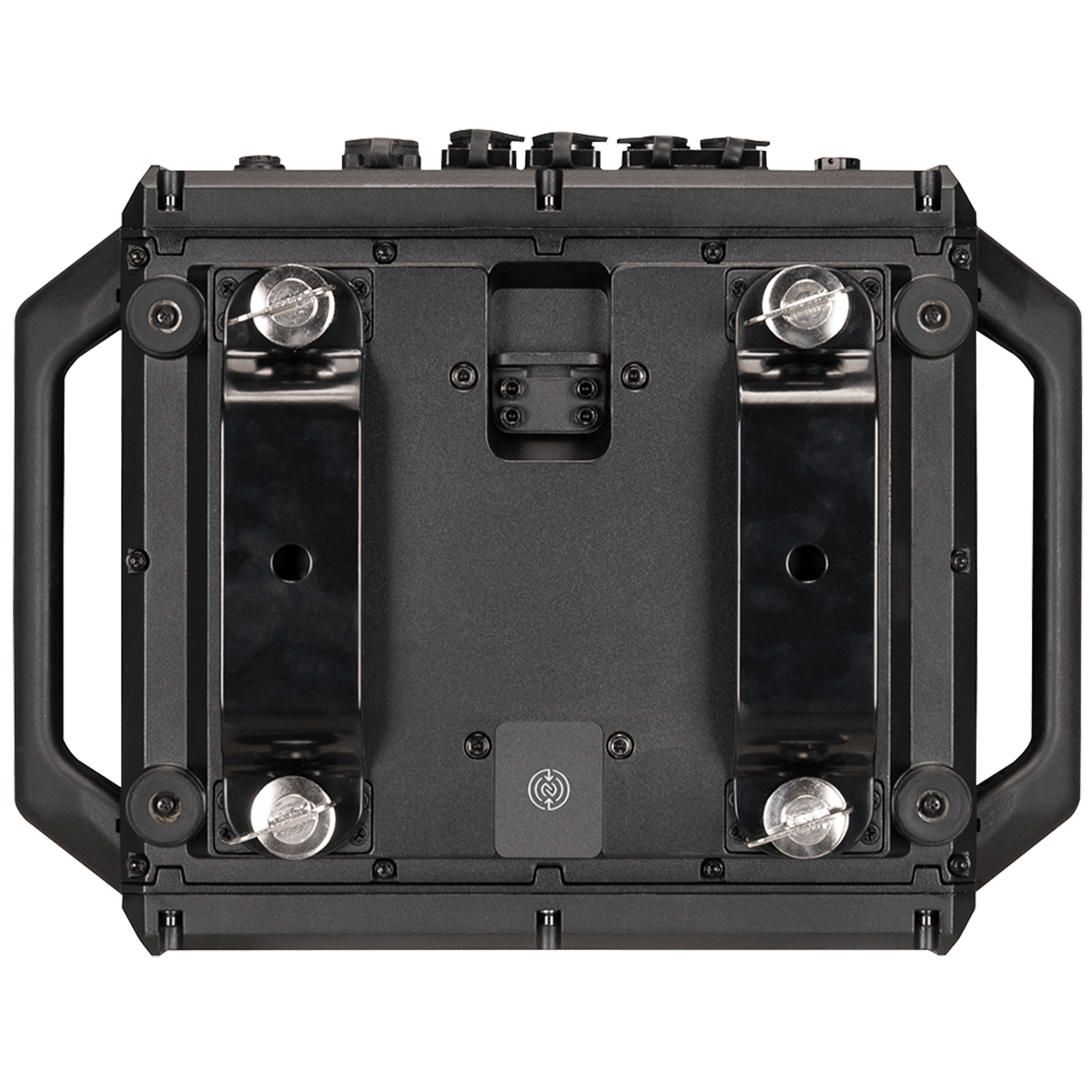

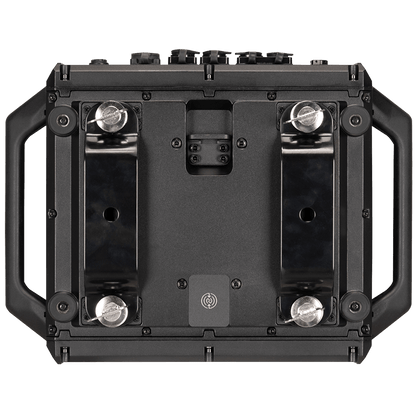

  • Omega Brackets (x2)

  • Safety Cable

  • IP65 Rated Locking Power Cable
