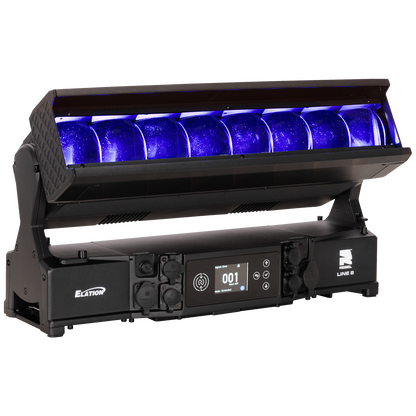

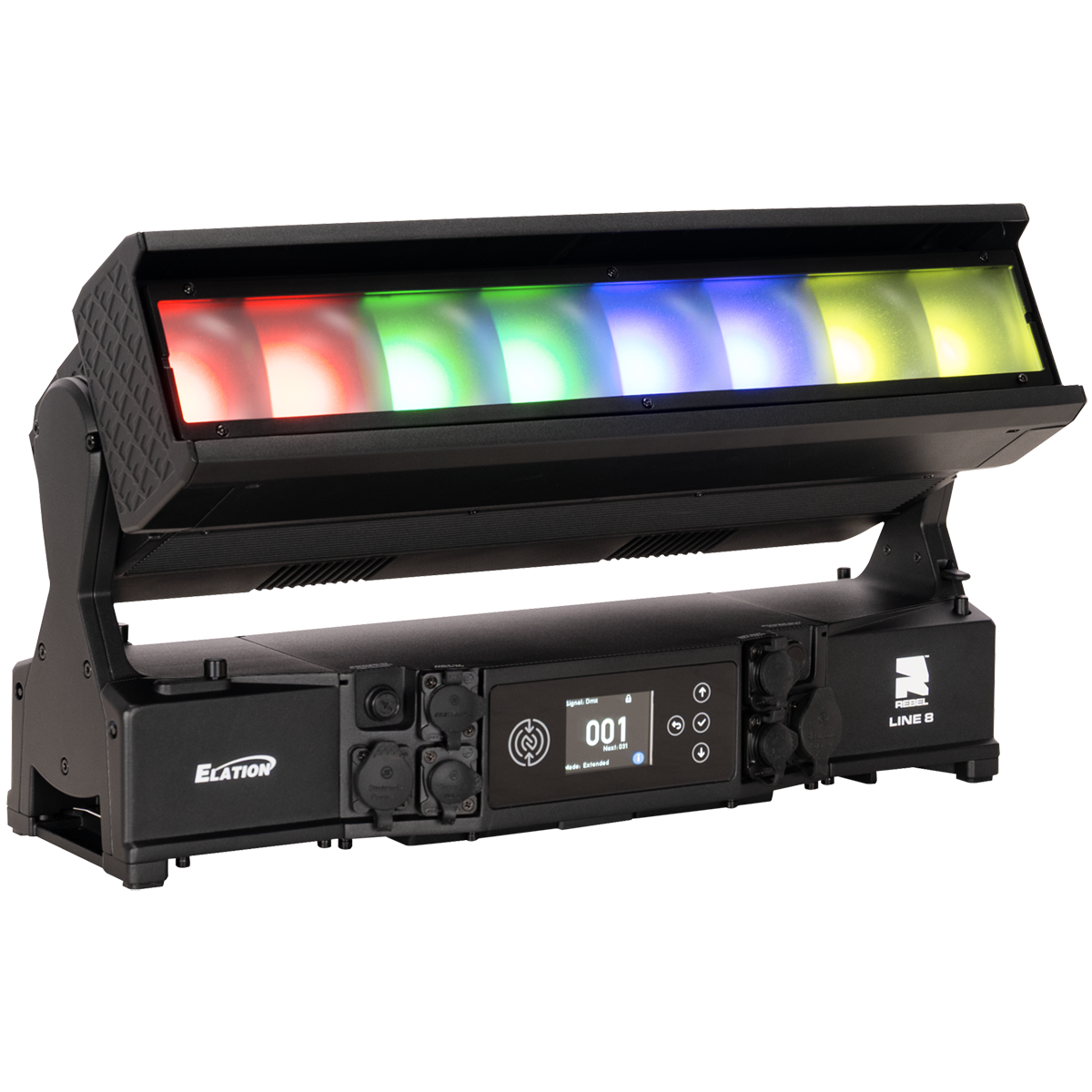

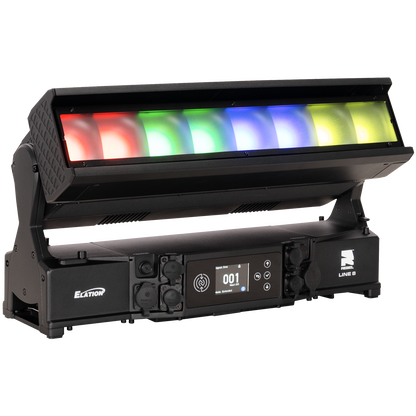

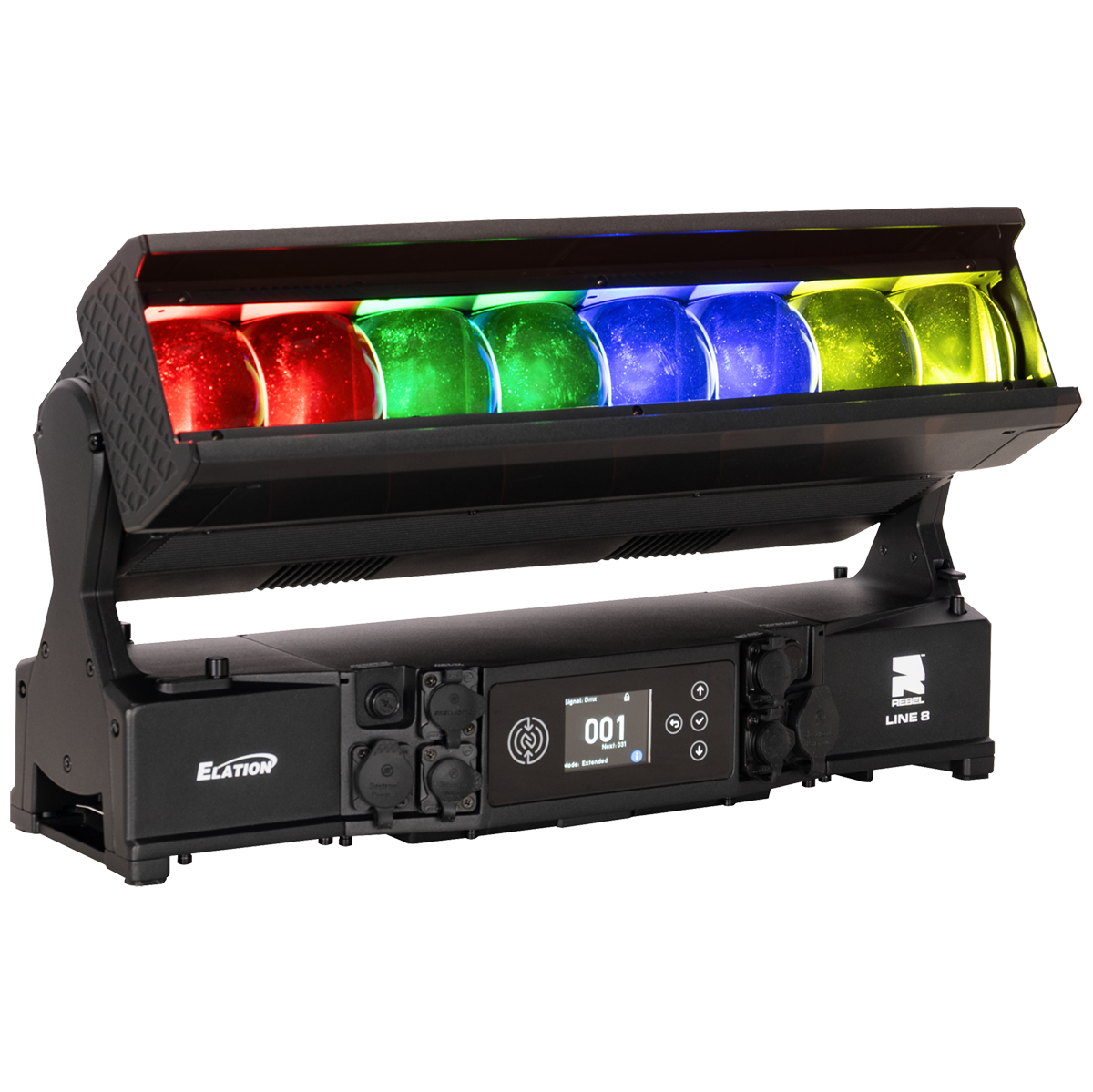

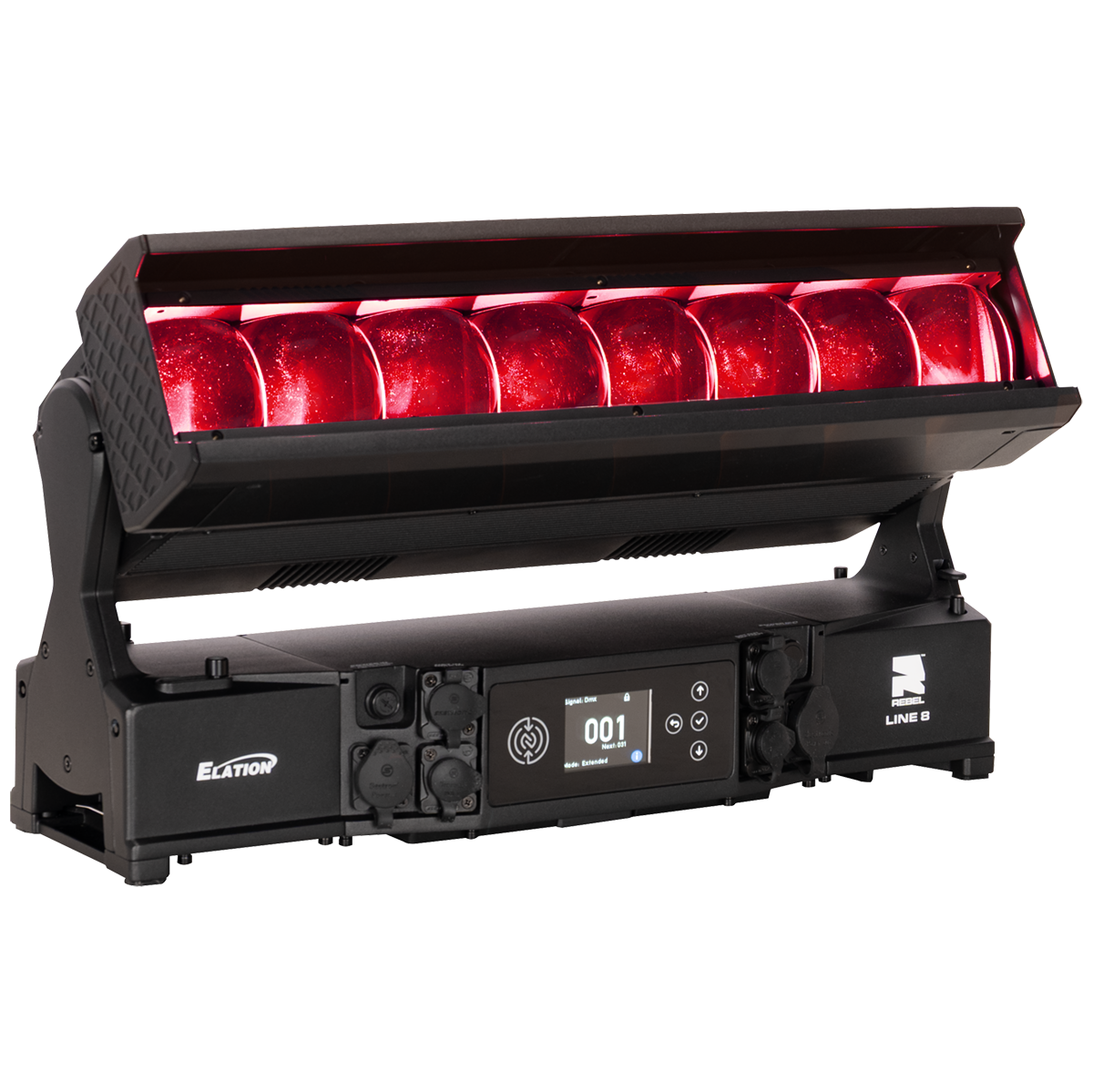

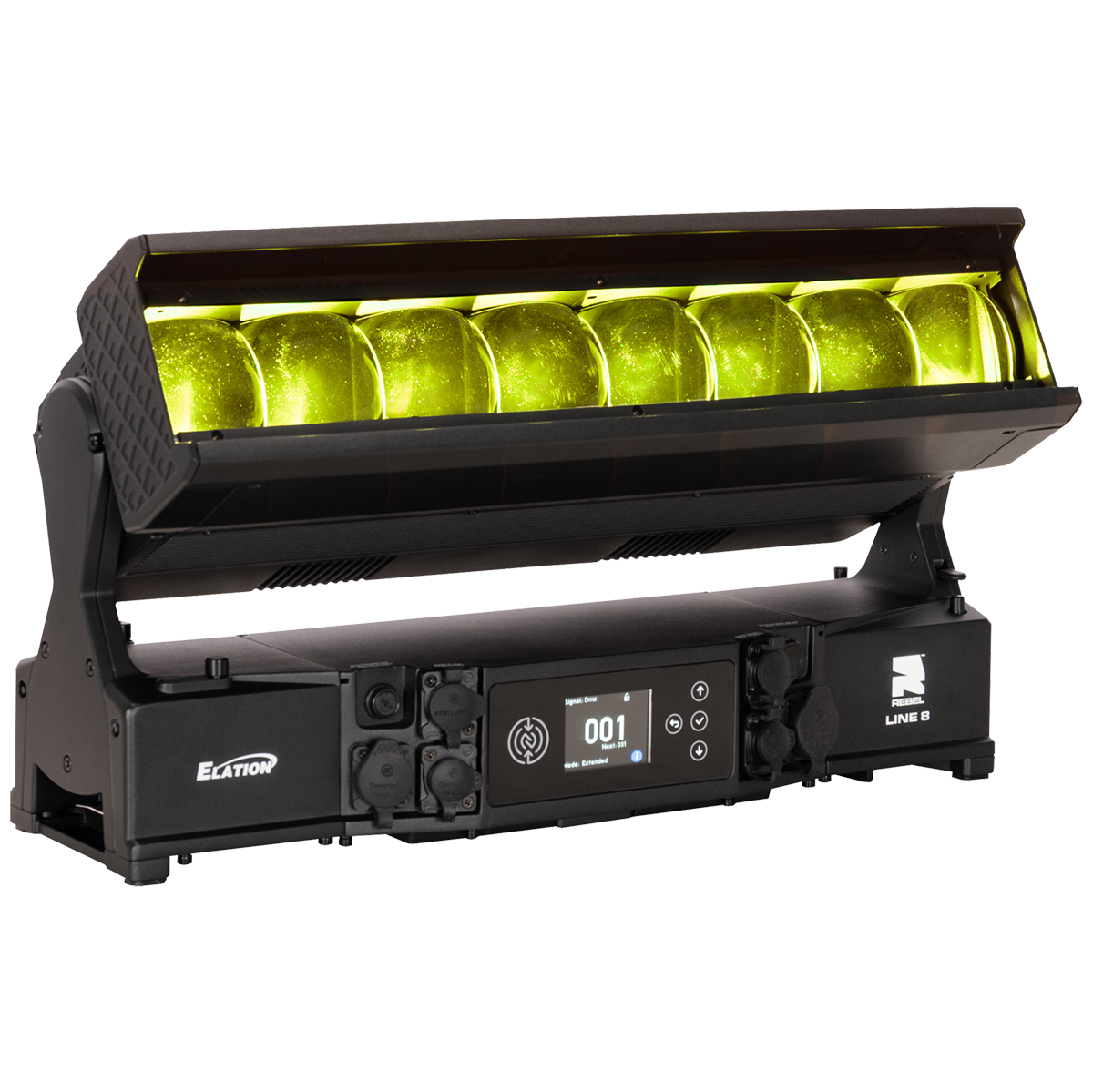

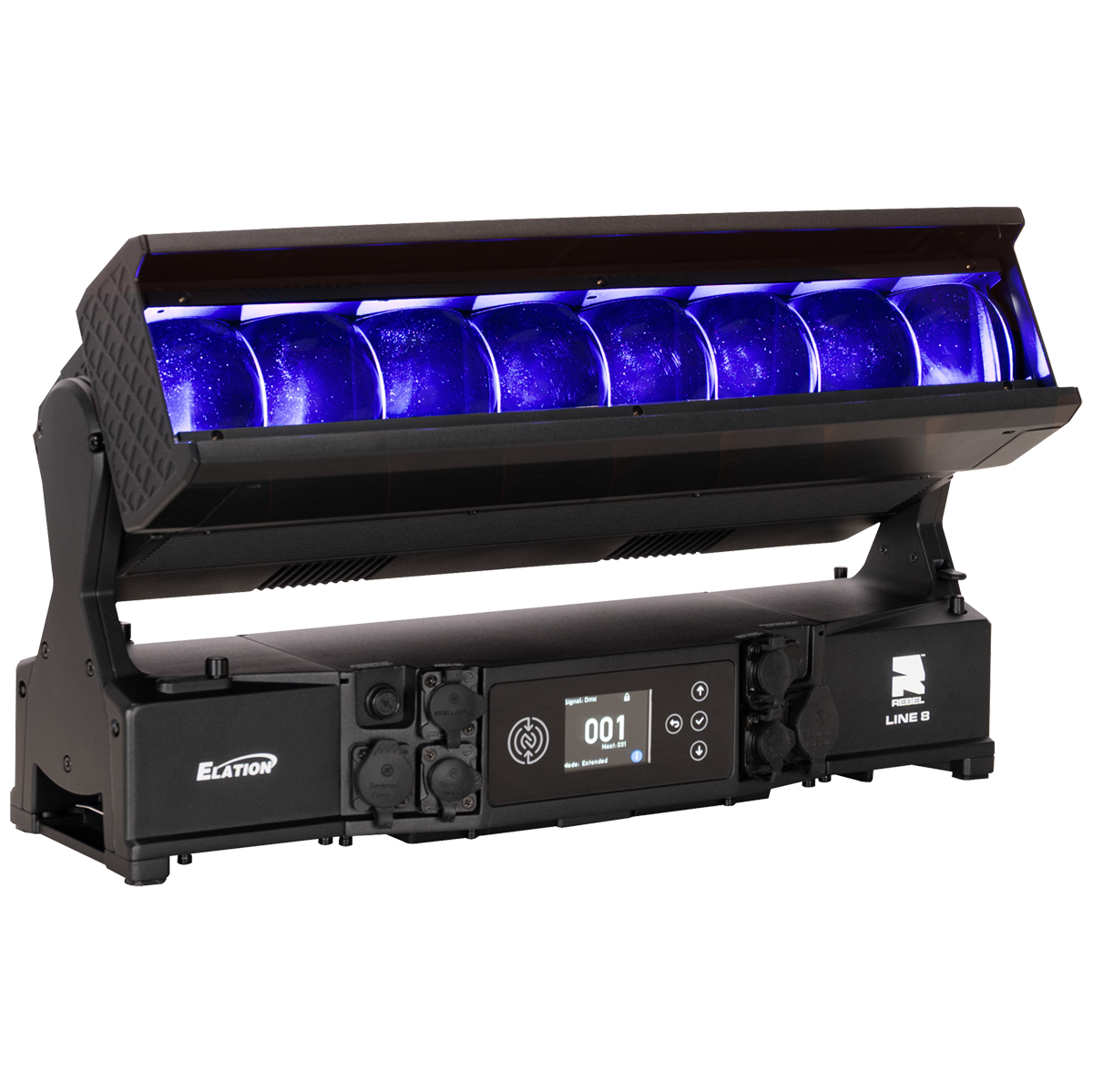

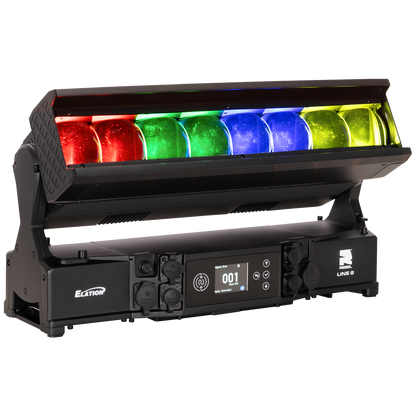

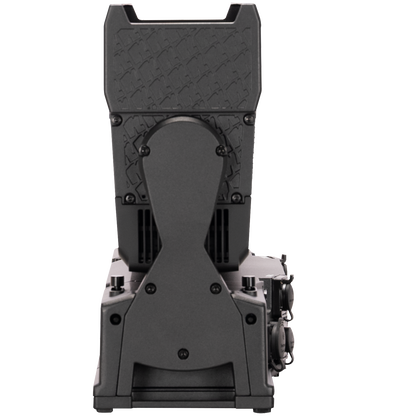

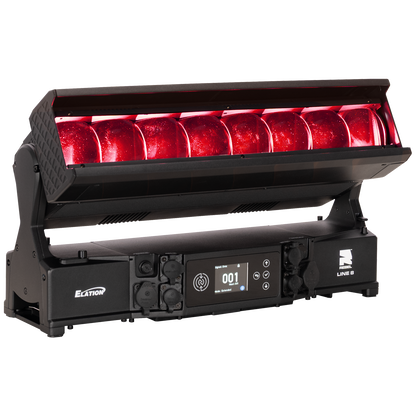

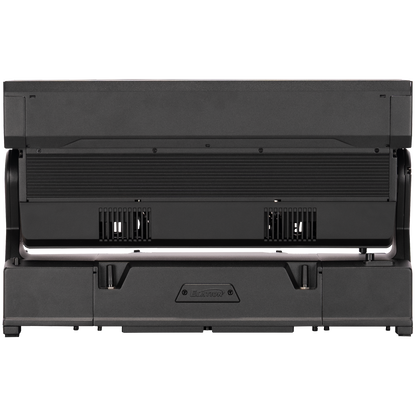

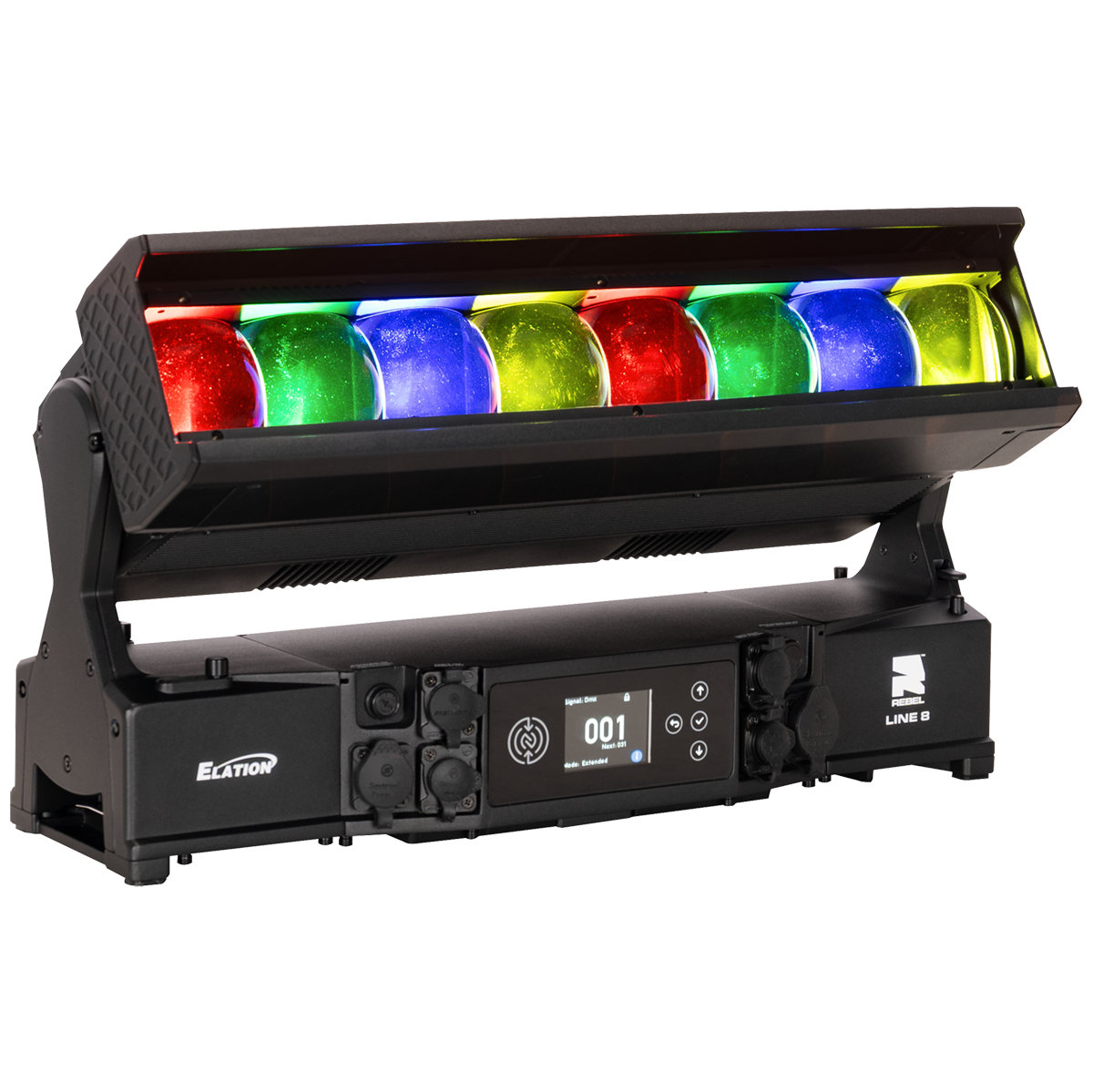

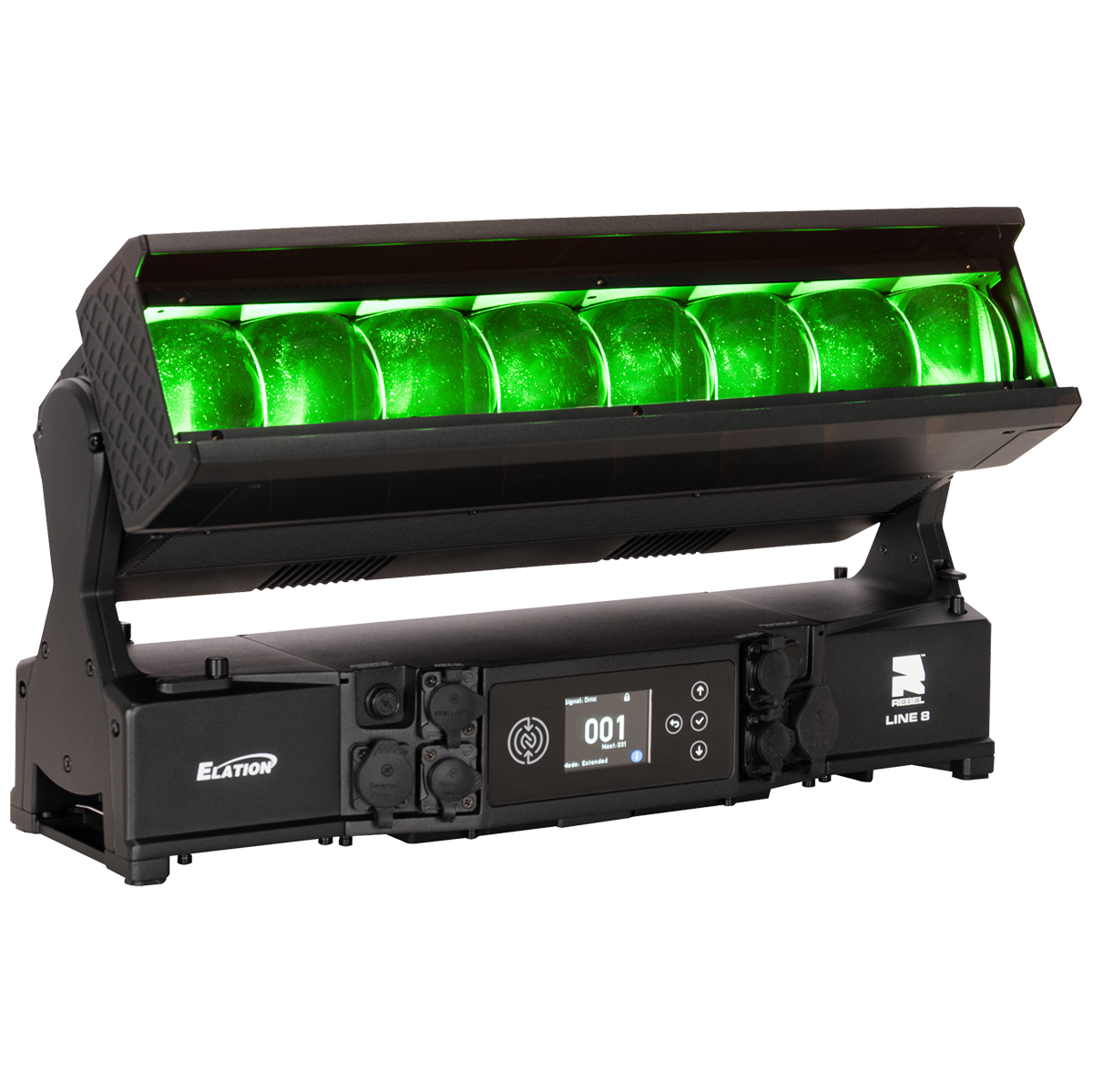

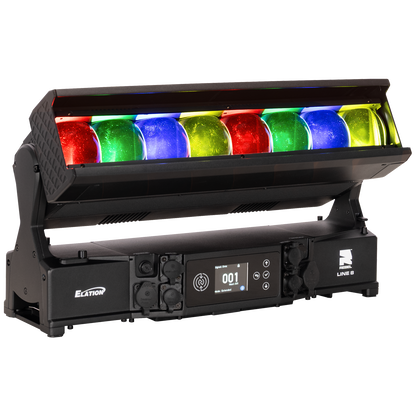

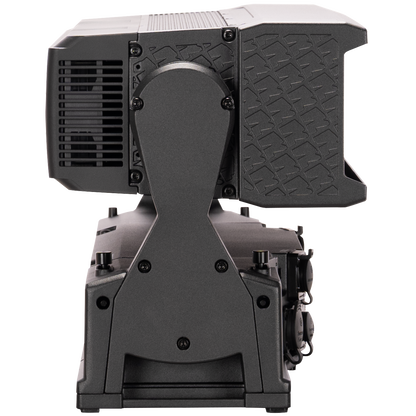

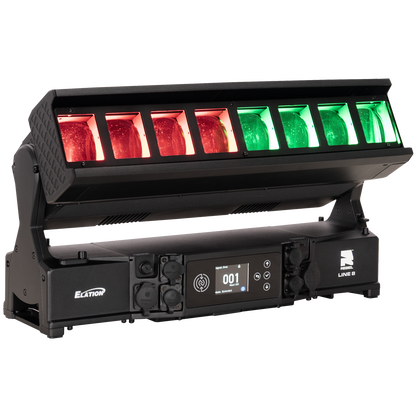

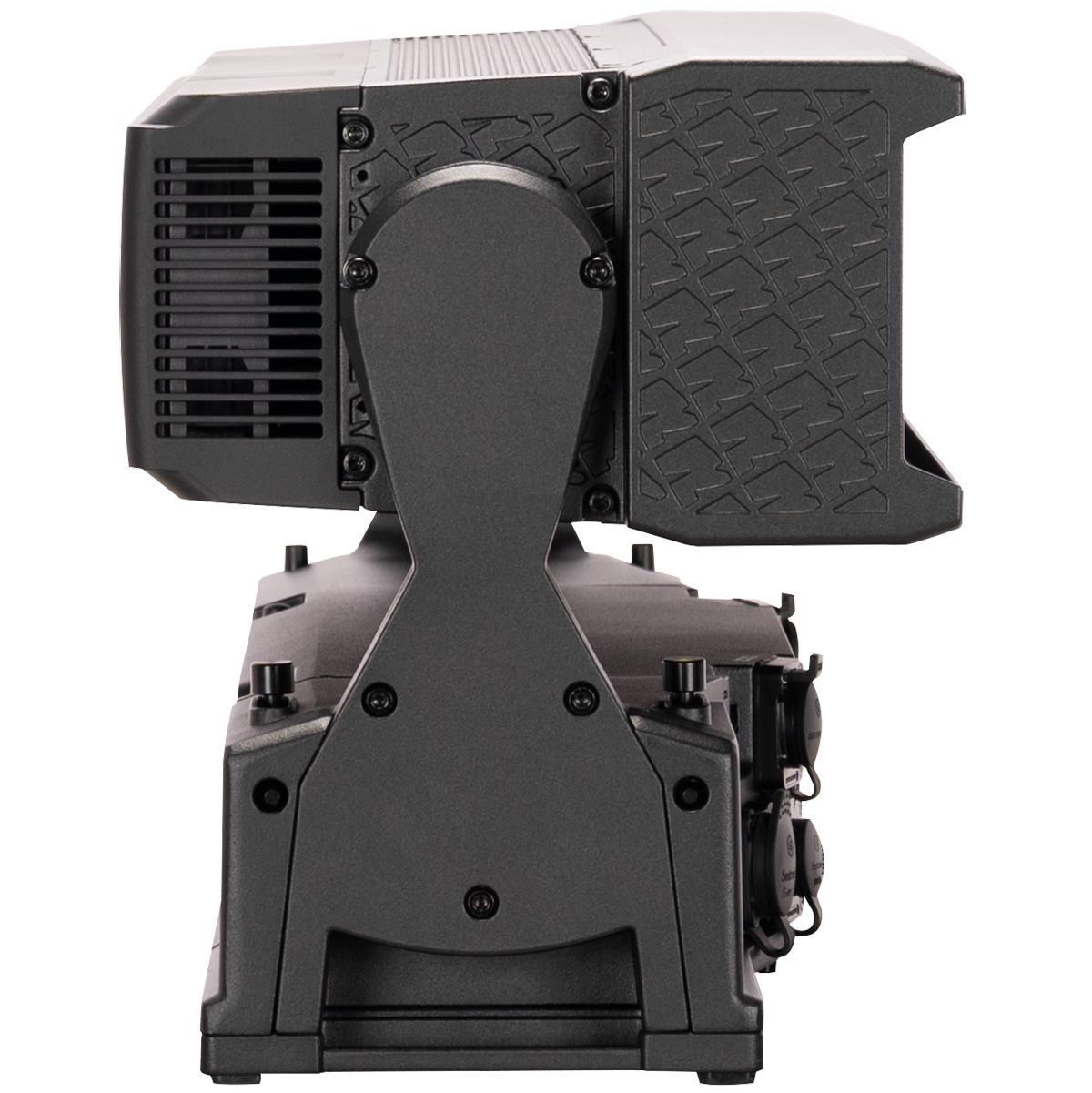

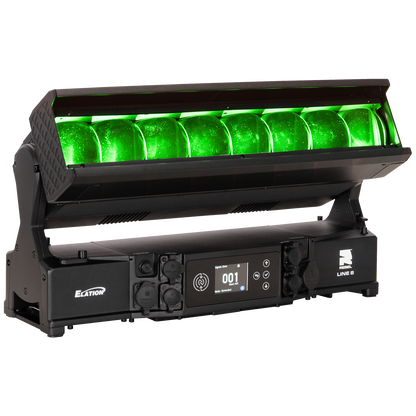

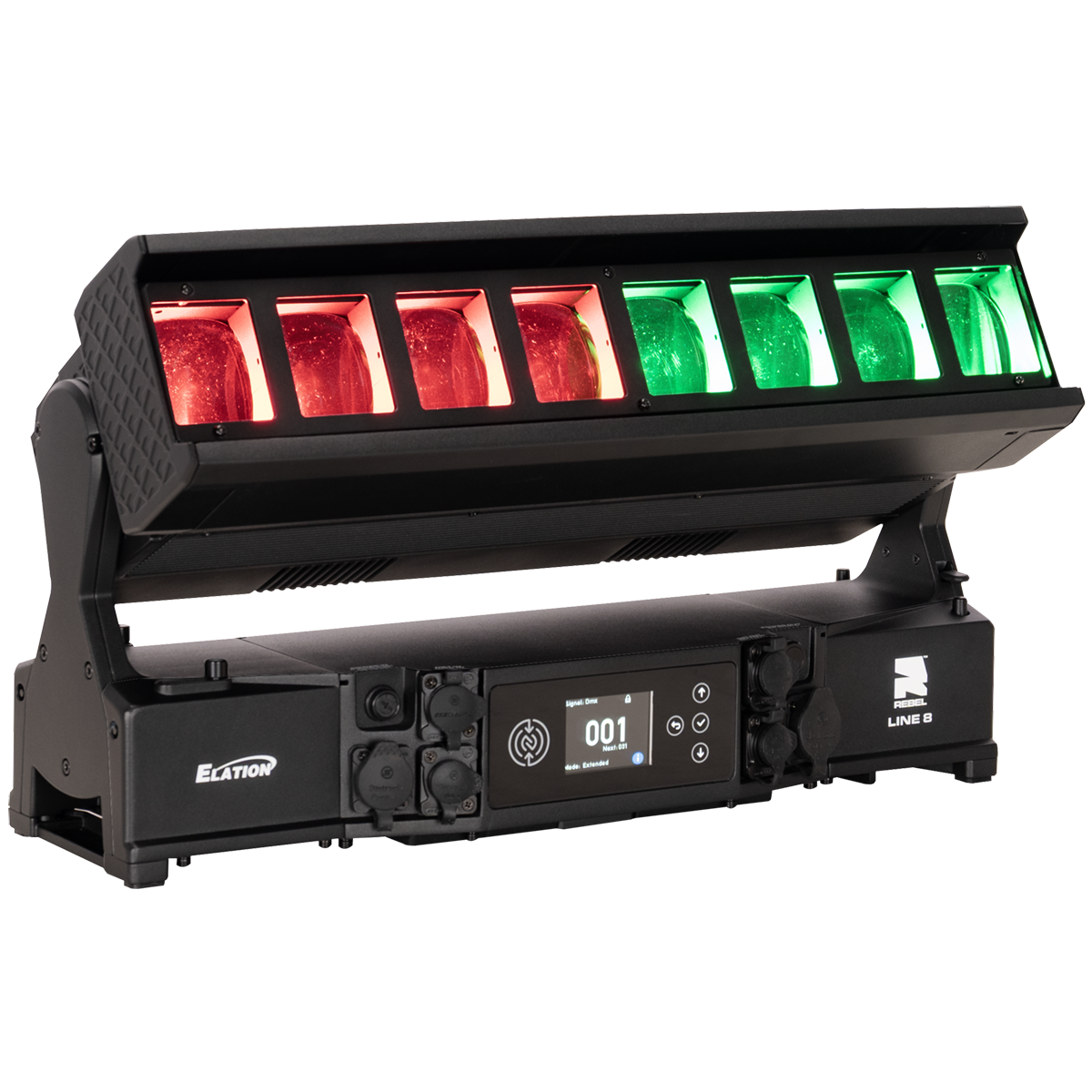

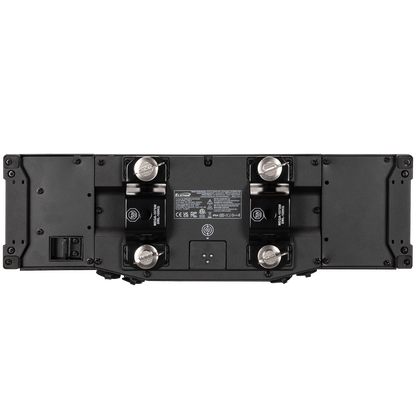

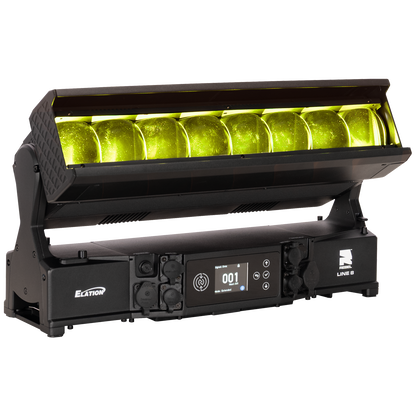

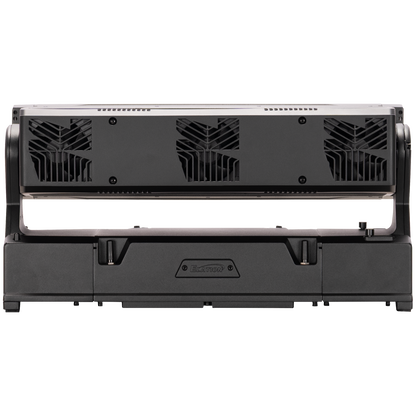

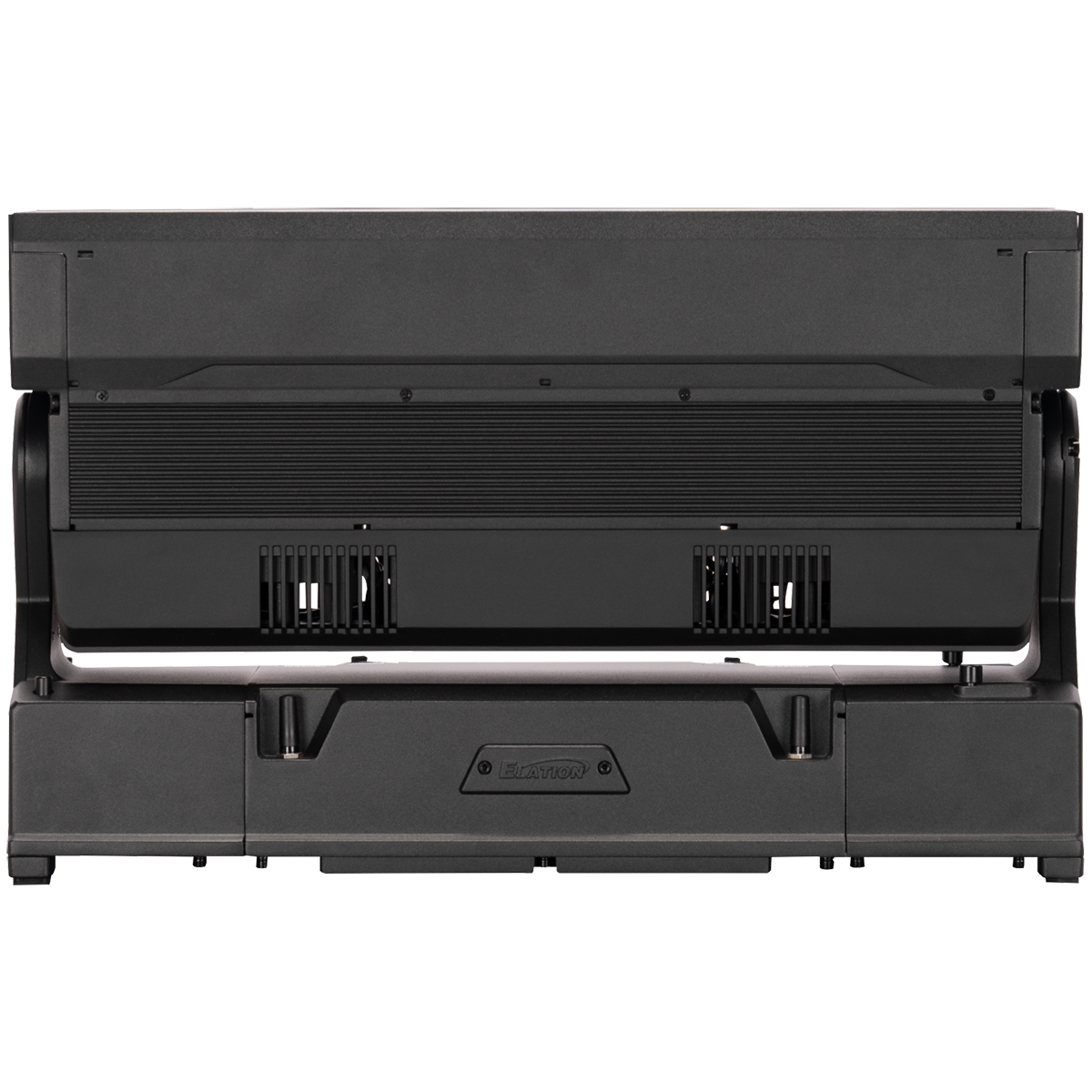

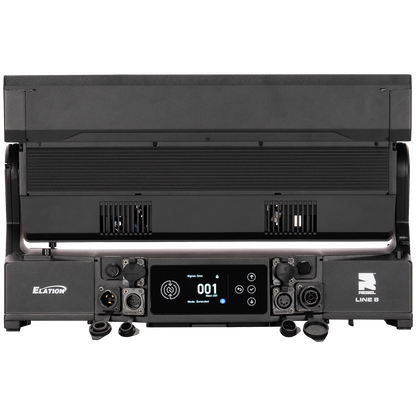

Elation REBEL LINE 8 REBEL LINE 8; 8xRGBL IP65 Tilt FX Bar

Elation REBEL LINE 8 REBEL LINE 8; 8xRGBL IP65 Tilt FX Bar

0 reviews Write a review

SKU: REB208

Regular price $3,800.00
Sale price $3,800.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Elation REBEL LINE 8; 8xRGBL IP65 Tilt FX Bar

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.

A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.
A built-in mechanical alignment system allows the REBEL LINE 8 to connect together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP55 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.

Features

  • (8) 60W RGBL LEDs with Pixel Control
  • (16) 5W CW SparkX LEDs with Pixel Control
  • 11,548 Total Fixture Lumen Output (Sphere)
  • 4° - 35° Beam Angle
  • Fast and precise 210° Tilt Rotation
  • IP55 Tilt FX Fixture

Specifications

  • SOURCE

    • (8) 60W RGBL LEDs

    • (16) 5W CW SparkX LED Pixels

    • 30,000 Hour Average LED Life*

  • *Test lab conditions. May vary depending on several factors including but not limited to:

    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • Integrating Sphere

    • All LED: 11,548 Lumens

    • RGBL LED: 7,128 Lumens

    • CW LED: 4,752 Lumens

    • CRI 82

    • Zoom Range 4° - 35°

  • EFFECTS

    • Motorized Zoom

    • Full Pixel LED Control

    • SparkX LED Beam Effect

    • Electronic Dimmer and Strobe

    • Variable 16-bit Dimming Modes and Curves

    • Tilt Angle: 210°

  • COLOR

    • RGBL LED Array

    • CW SparkX LED Array

    • Variable CCT 2400K - 8500K

    • Virtual Gel Swatch Book

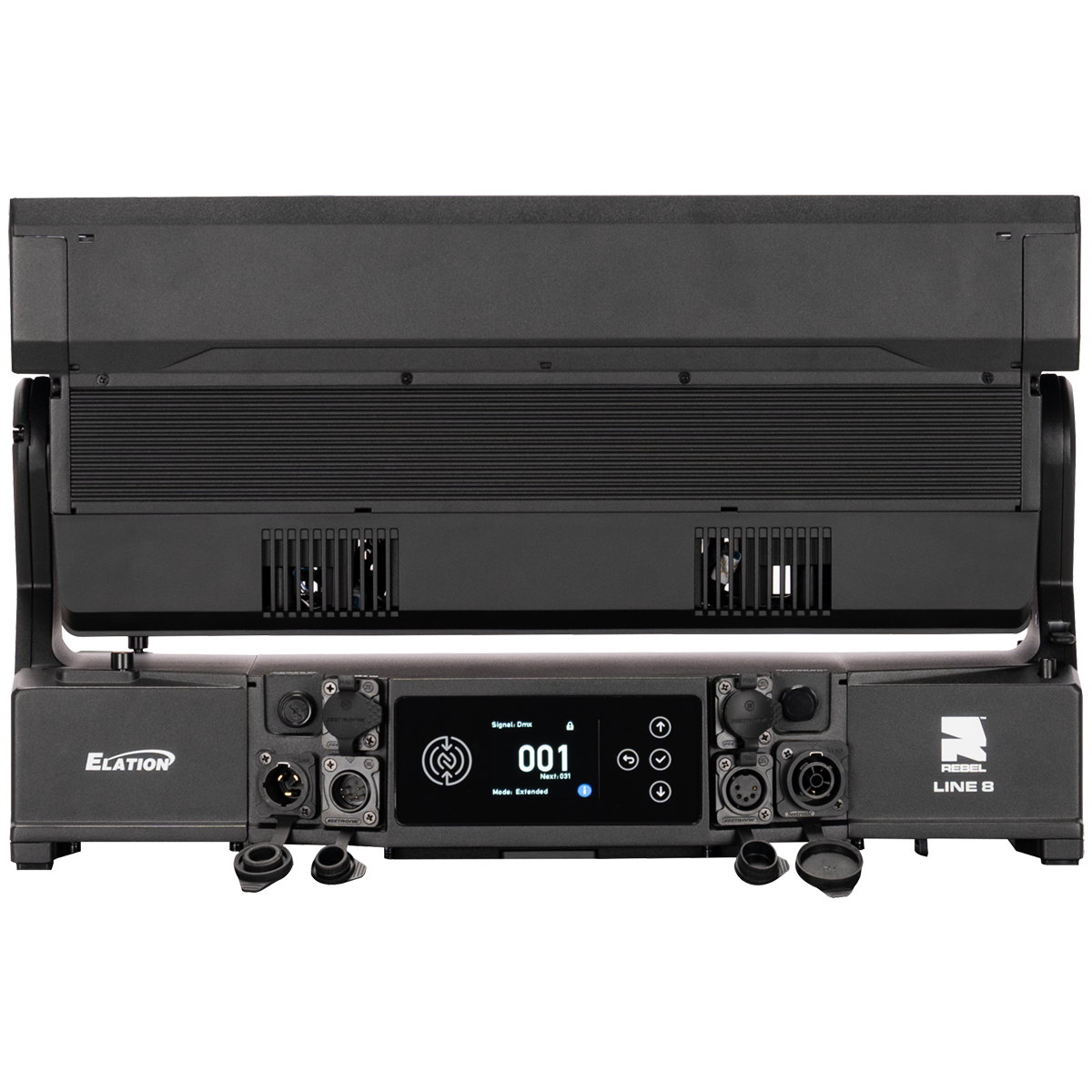

  • CONTROL / CONNECTIONS

    • 3 DMX Channel Modes (22/30/70 channels)

    • DMX Adjustable Refresh Rate (900 -25000 Hz)

    • 4 Button Control Panel, LED Display

    • Aria x2 Wireless Device Management

    • NFC Configuration

    • DMX, RDM, Art-NET, sACN Protocol Support

    • IP65 Locking 5pin XLR Connector In/Out

    • IP65 Locking RJ45 Ethernet Connector In/Out

    • IP65 Locking Power Cable In/Out

  • SIZE / WEIGHT

    • Length: 19.8 in (502mm)

    • Width: 6.5 in (164mm)

    • Height (head up): 13.2 in (336mm)

    • Height (head 90 degree): 10 in (254mm)

    • Weight: 29.3 lb (13.3 kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V 50/60Hz

    • 810W Max Power Consumption

    • Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)

    • BTU/hr (+/- 10%) 2762.1

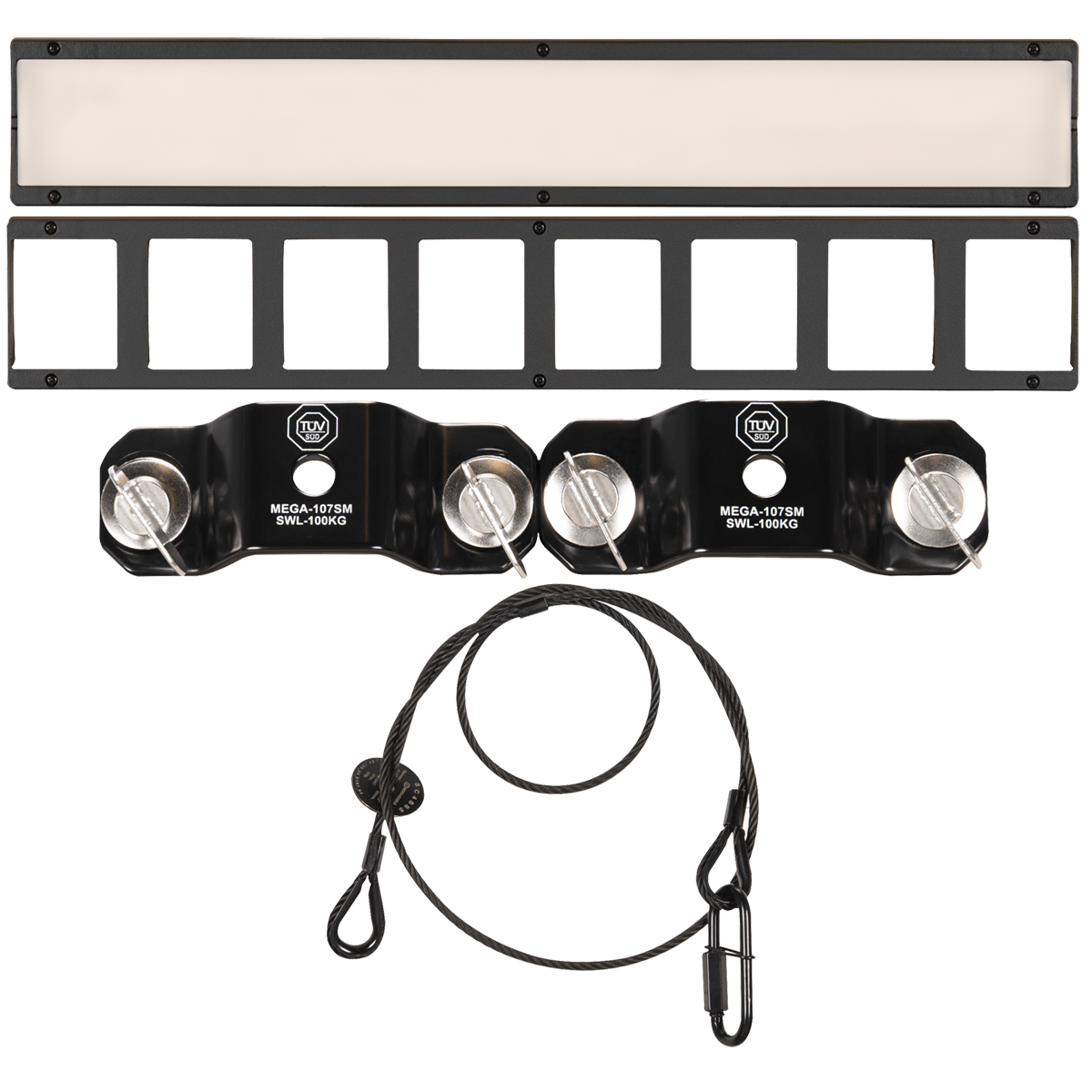

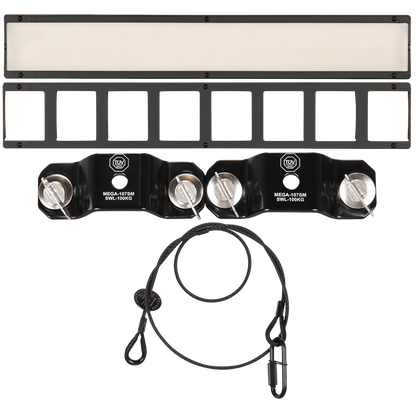

  • INCLUDED ITEMS

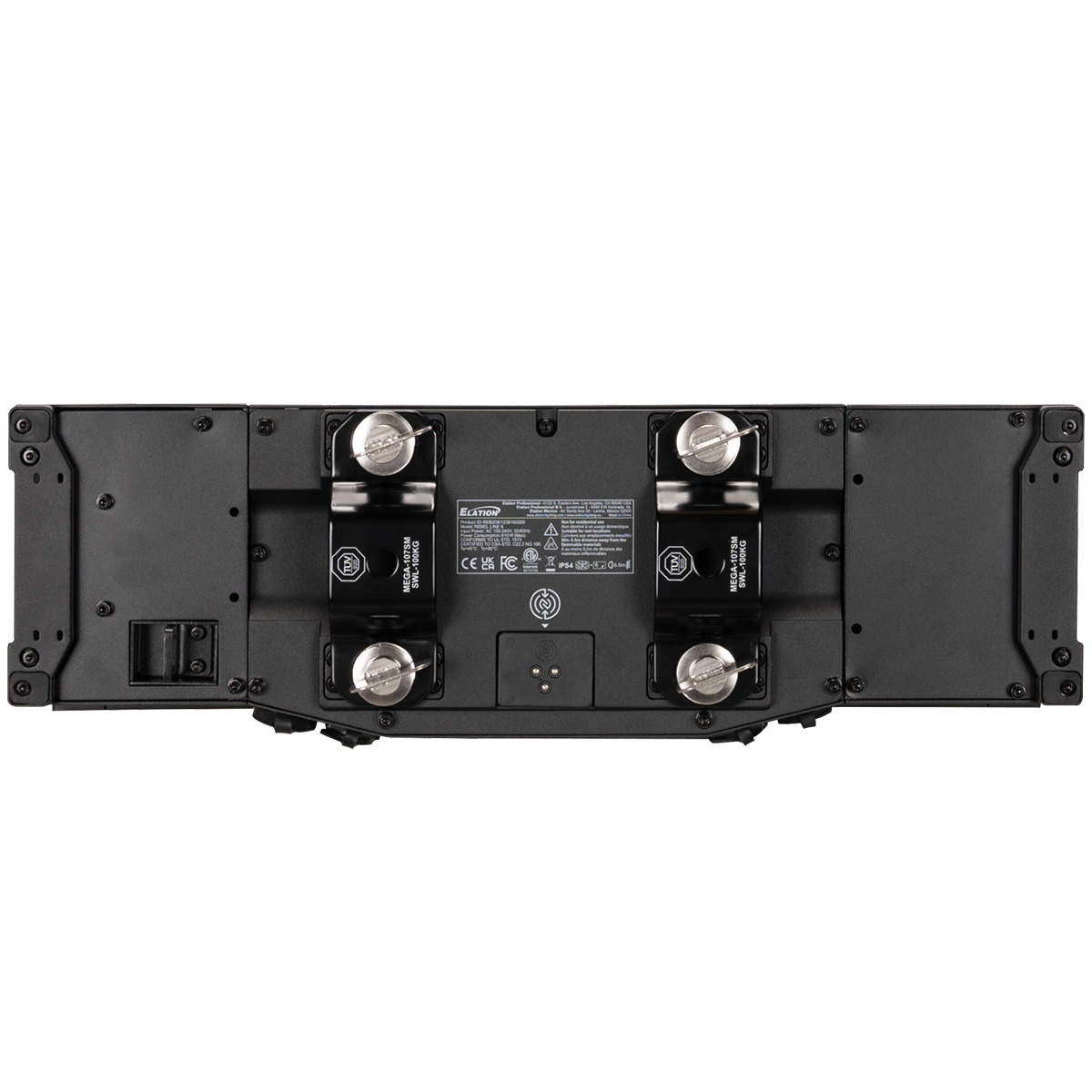

    • Omega Brackets (x2)

    • Blank Name Plate

    • Front Louver/Grid

    • Diffusion Filter

    • Safety Cable IP65 Rated

    • IP65 Locking Power Cable
