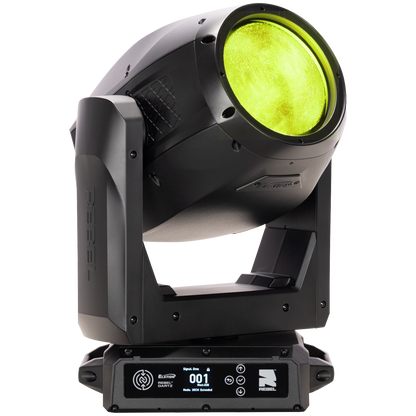

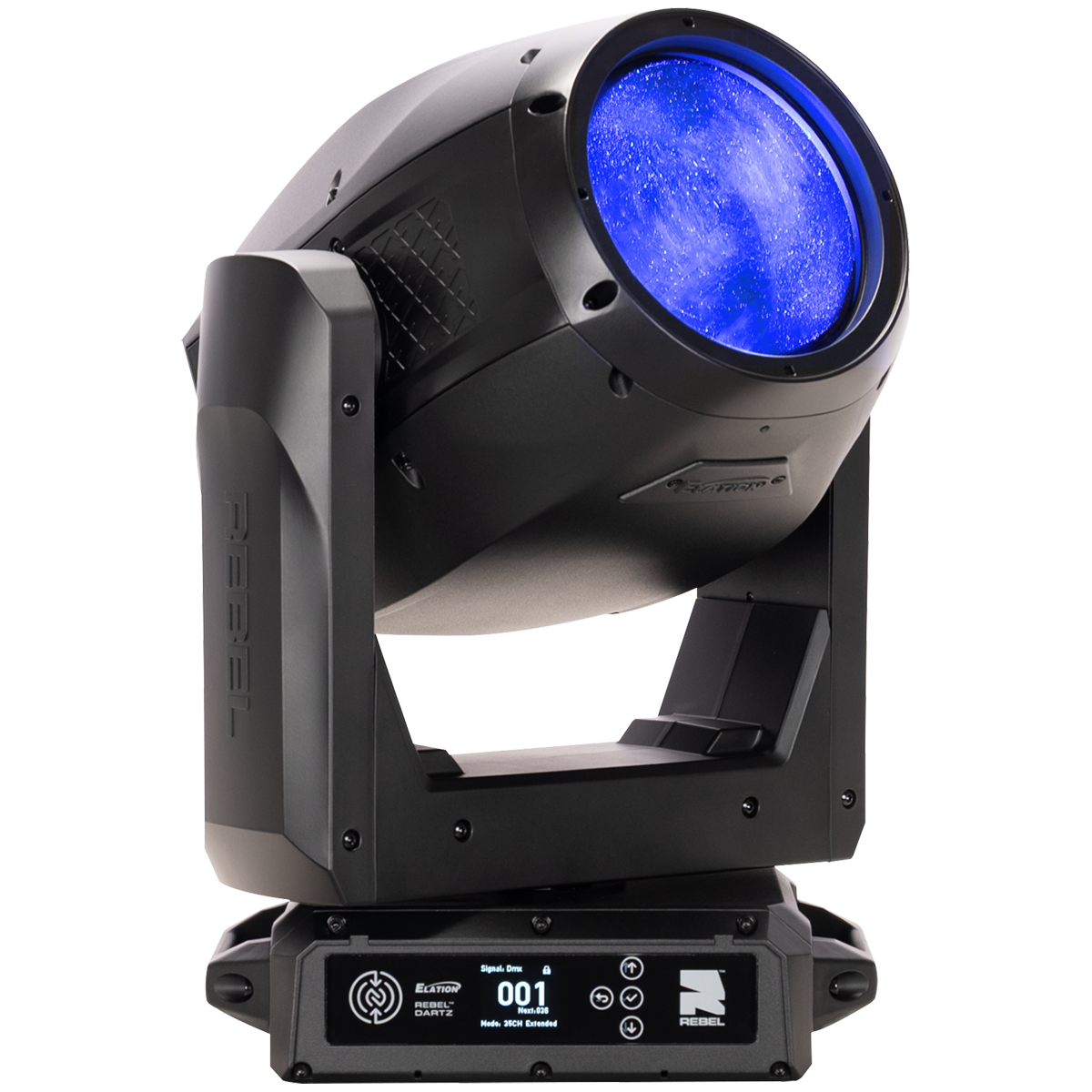

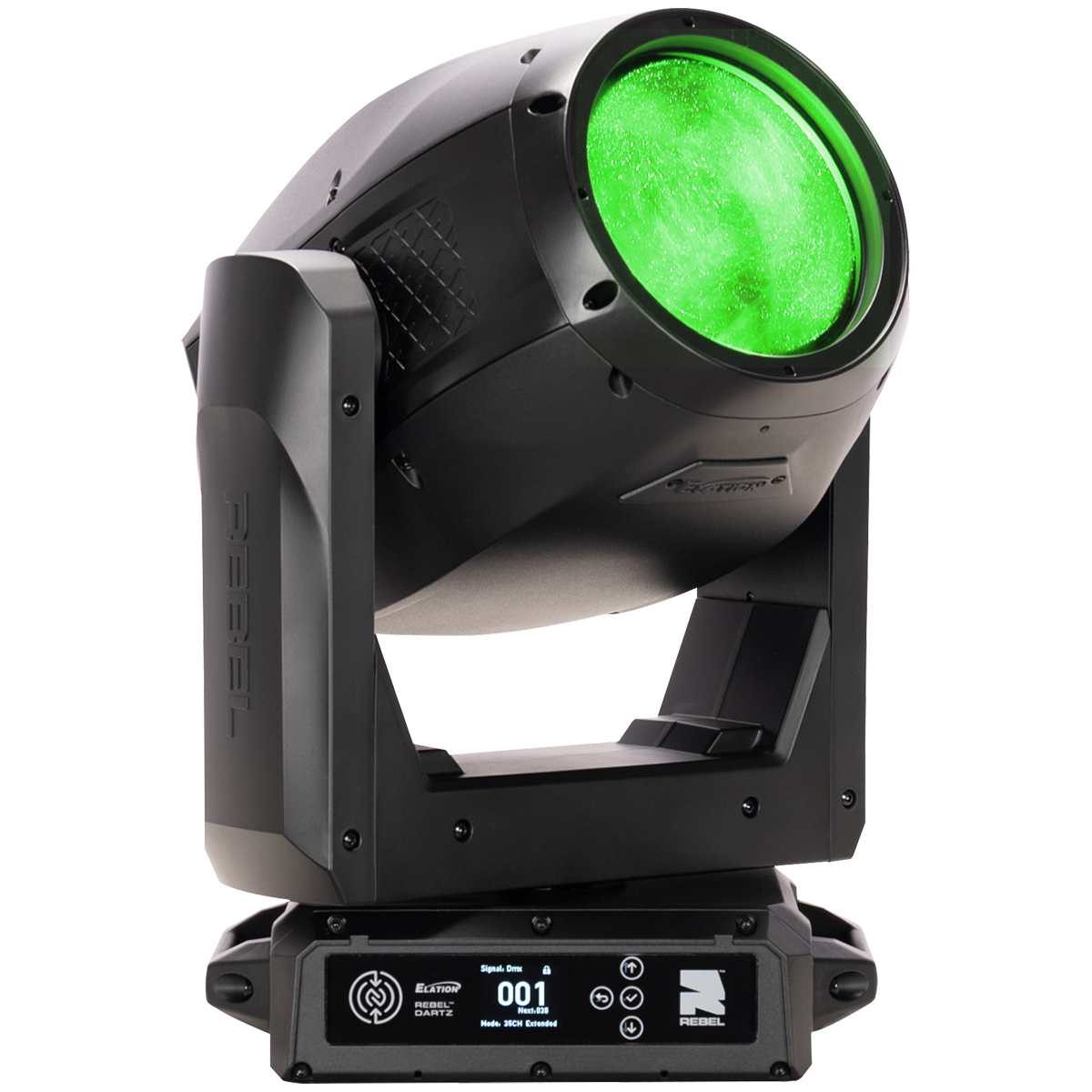

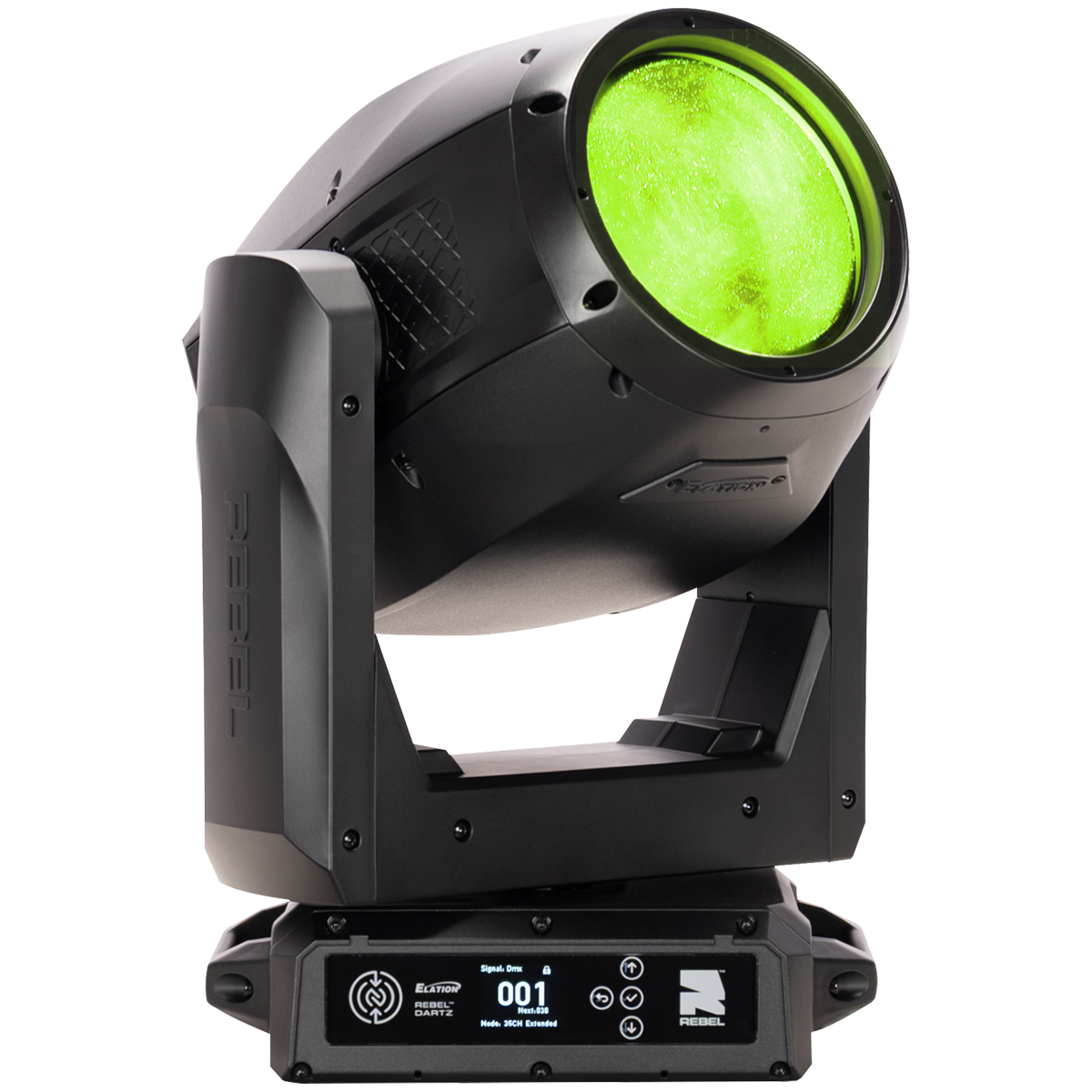

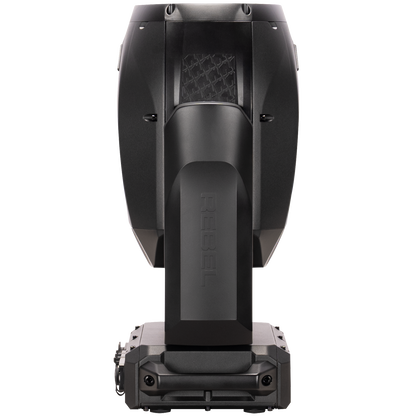

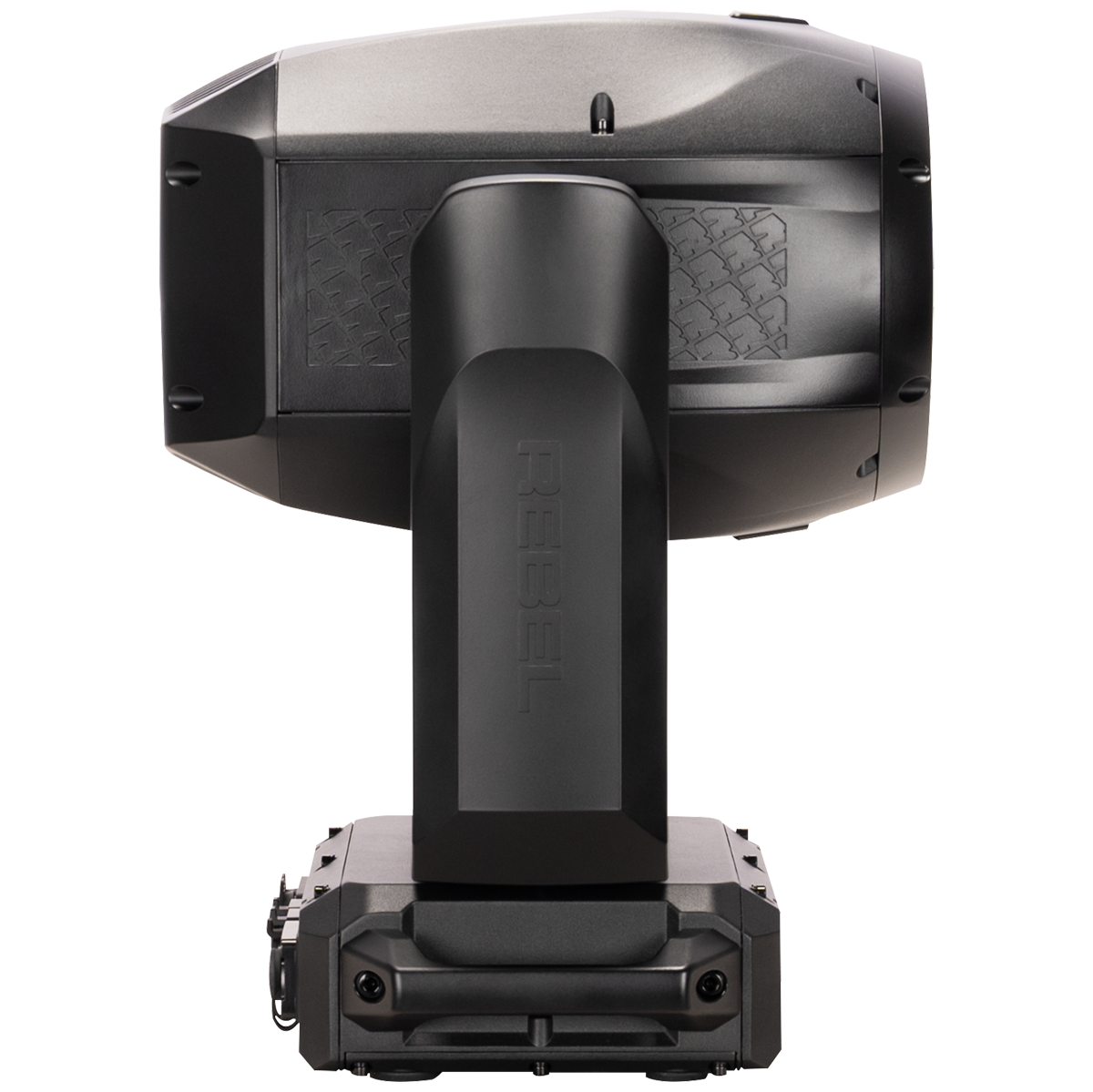

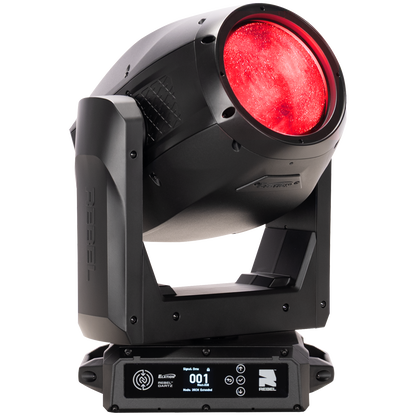

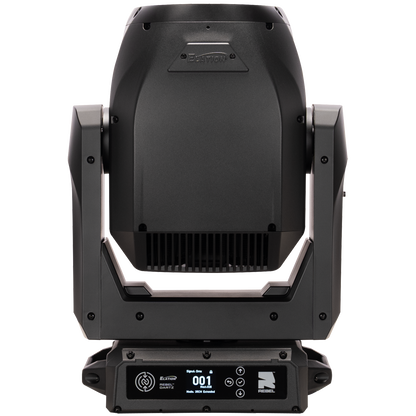

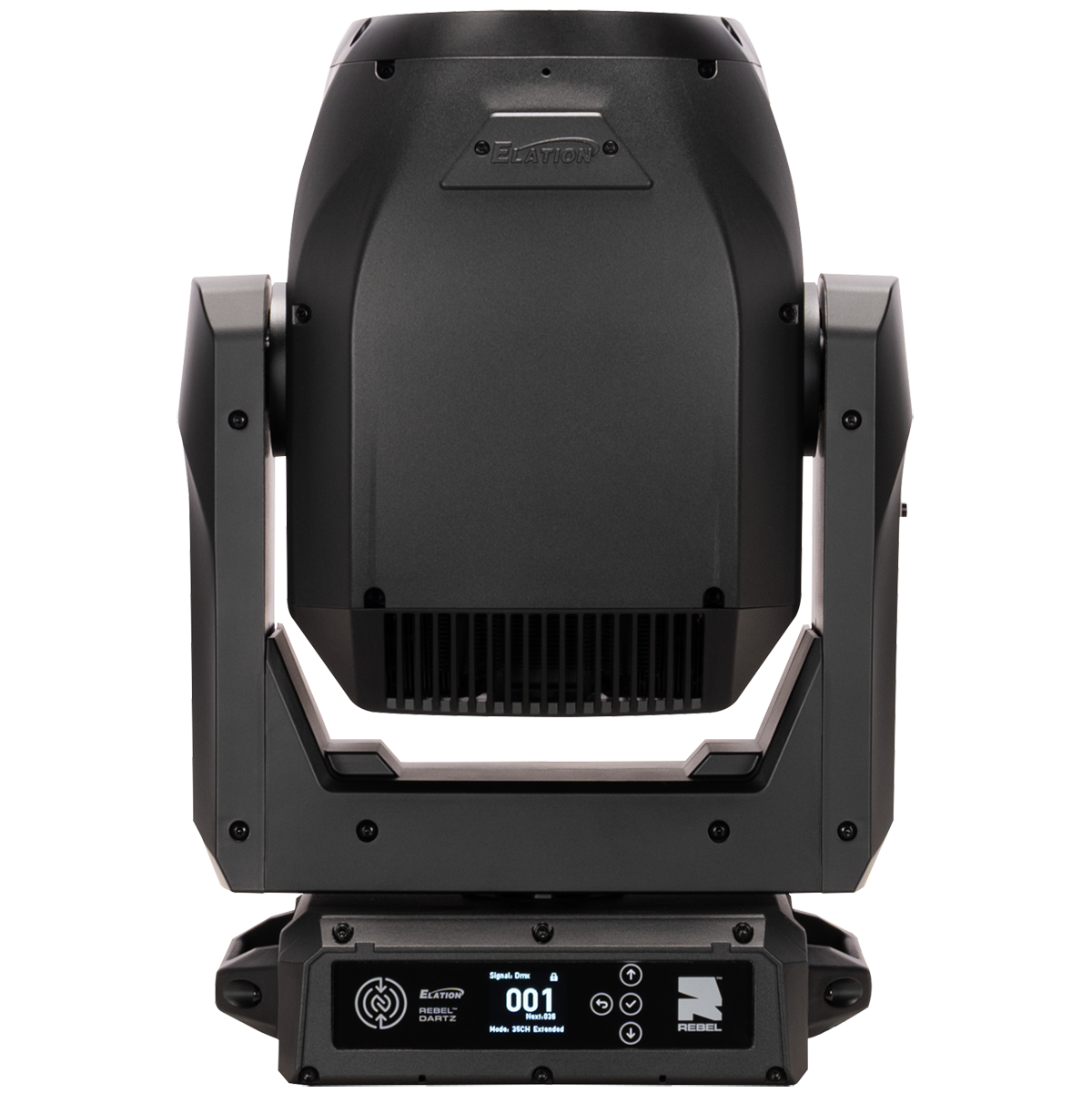

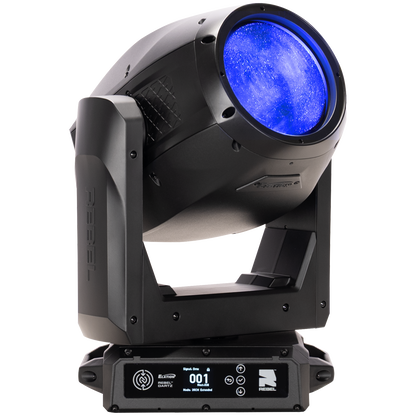

Elation REBEL DARTZ 150W RBL Beam FX Fixture

Elation REBEL DARTZ 150W RBL Beam FX Fixture

0 reviews Write a review

SKU: REB224

Regular price $4,800.00
Sale price $4,800.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Elation REBEL DARTZ 150W RBL Beam FX Fixture

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment.

Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.
With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint.
With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.
As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands—and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.
Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.


150W RBL LED Engine
1.5? Beam

125,475 lux @ 5M
True Green Color Filter
FX Package with Rotating & Fixed Gobos, Dual Stacking Prisms & Frost

Variable CCT 3200K- 16000K
Endless High-Speed 360? Pan and Tilt Movements
NFC & Aria x2 Wireless Device Management
IP65

Specifications

  • SOURCE

    • 150W RBL LED Engine

    • 20,000 Hour Average LED Life*

  • *Test lab conditions. May vary depending on several factors including but not limited to:

    • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • PHOTOMETRIC DATA

  • Total Lumen Output:

    • 1,785 (Integrating Sphere)

    • TBA (Goniometer)

    • 125,475 lux @ 5M

    • Beam Angle 1.5

  • EFFECTS

    • Variable Strobe Rate: 1- 20Hz

    • Remote Focus

    • Heavy Frost Filter

    • Dual Independent Stacking Prisms (6 Facet Linear & 8 Facet Circular)

    • Variable 16-bit Dim Curve Modes

    • DMX Controllable LED Refresh Rate

    • Pan Angle: 360/540°

    • Tilt Angle: 360/270°

    • Continuous 360° Pan and Tilt Rotation

  • COLOR

    • RBL Color Array

    • True Green Color Filter

    • Variable CCT 3200K- 16000K

    • Virtual Gel Swatch Book

  • GOBOS

    • 2 Gobo Wheels

    • 10 Interchangeable-Rotating / Indexing Metal Gobos

    • 16 Static-Stamped Metal Gobos

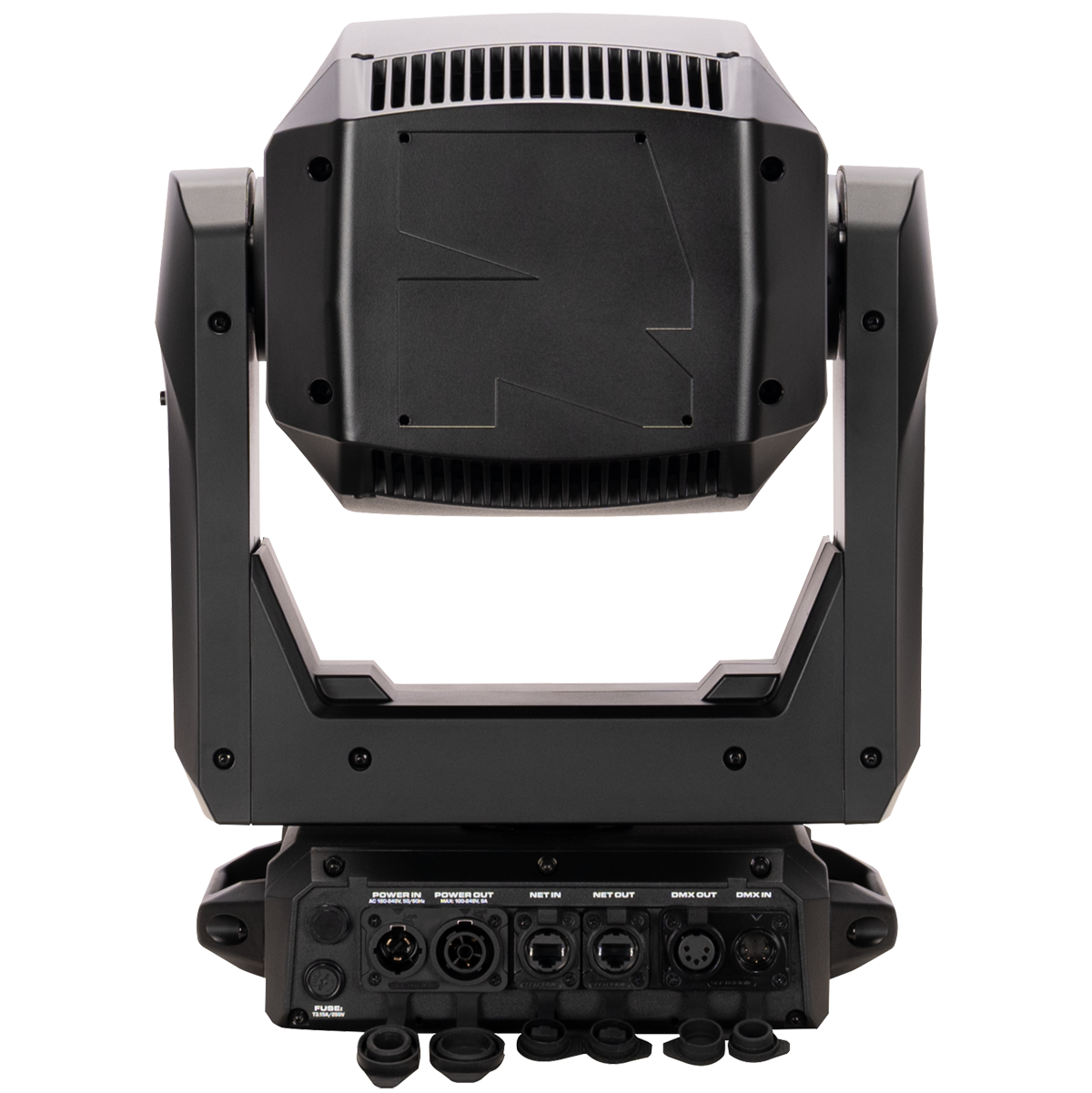

  • CONTROL / CONNECTIONS

    • 2 DMX Channel Modes

    • (4) Button Touch Panel

    • 180° Reversible LCD Menu Display

    • Hibernation Mode (Power Save)

    • DMX, RDM, Art-Net and sACN Protocol Support

    • Aria x2 Wireless Device Management

    • NFC Configuration

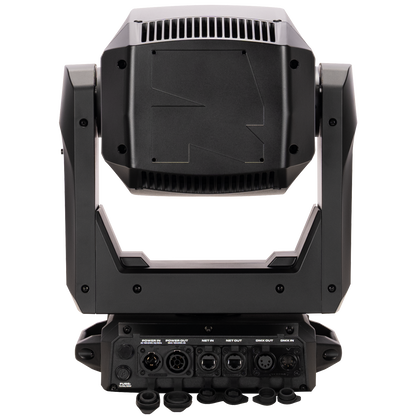

    • IP65 5pin DMX In/Out

    • IP65 RJ45 Ethernet In/Out

    • IP65 Locking Power In/Out

  • SIZE / WEIGHT

    • Length: 13.3" (337mm)

    • Width: 8.6” (219mm)

    • Height: 18.8” (478mm)

    • Weight: 35 lbs. (15.9kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V 50/60Hz

    • 240W Max Power Consumption

    • Power Thru Capacity: 10A (4 units @115V, 9 units @240V)

    • -4°F to 113°F (-20°C to 45°C)

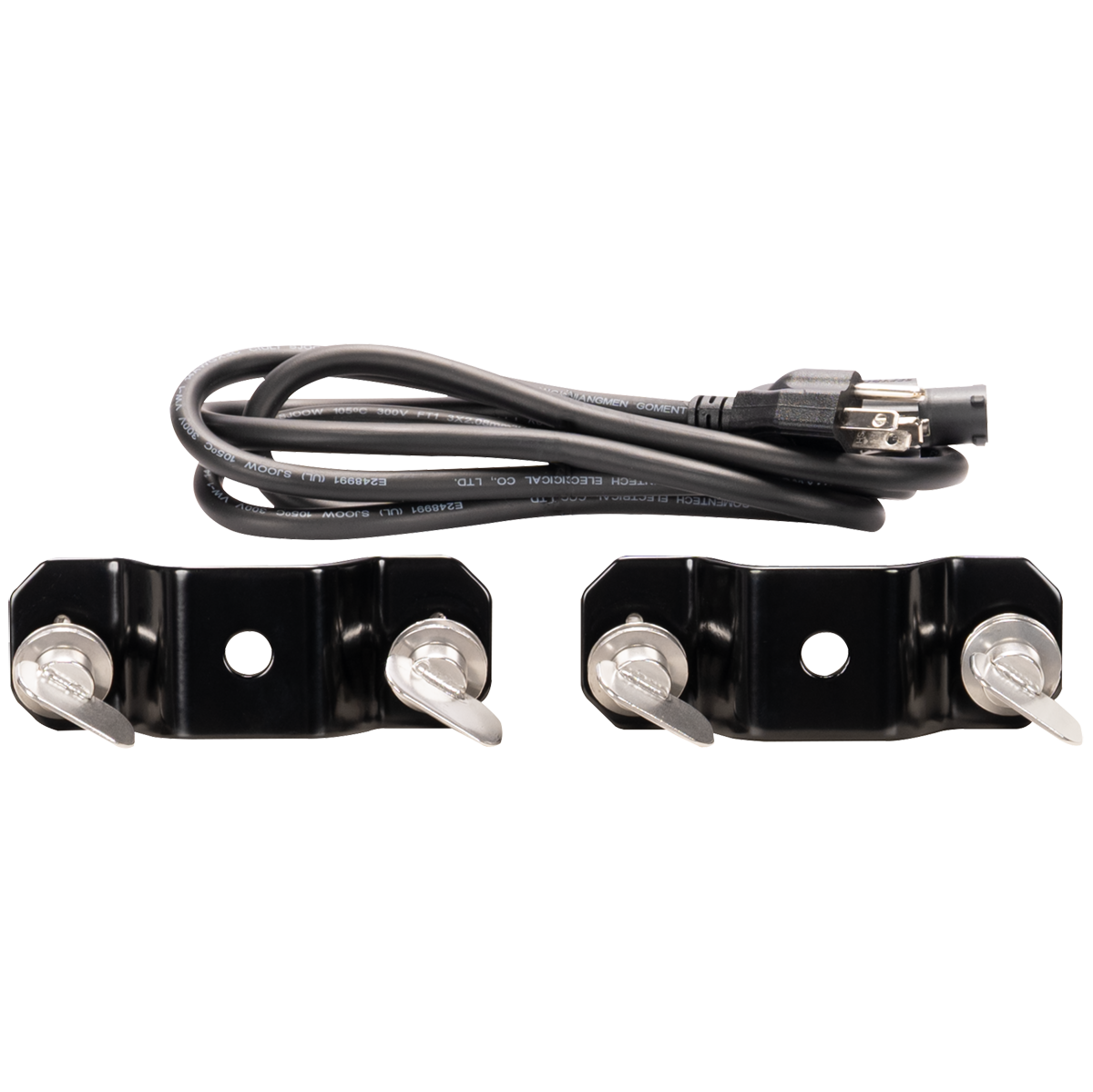

  • INCLUDED ITEMS

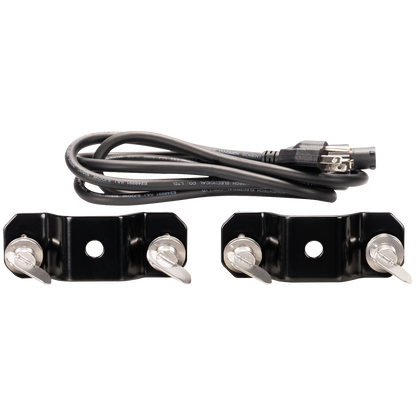

    • Omega Bracket x2

    • Safety Cable

    • Power Cable

  • APPROVALS / RATINGS

    • CE | cETLus | IP65 | FCC
