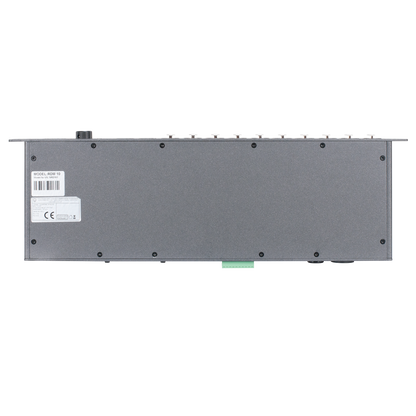

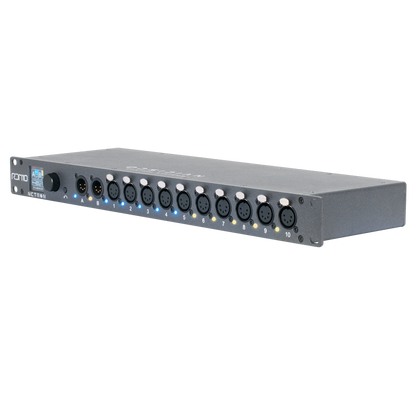

Elation RDM 10; RDM Splitter/Node 2U, 10 XLR

Elation RDM 10; RDM Splitter/Node 2U, 10 XLR

The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.

• 10 assignable DMX outputs
• Integrated 2 Universe Artnet/sACN node

• Configurable DMX refresh rate

• Dual DMX Inputs for backup and signal loss options

• Remote configuration via internal webpage

• 1.8” OLED Display with rotary knob

• 99 Internal cues with fade and delay time

• Contact closures for cue or preset recall

• Powder-coated aluminum rackmount housing

• Unlocks ONYX NOVA 4 Universe License
• NETRON CLU for remote configuration and firmware updates

Specifications

• Mounting
  • Rackmount
• Connections

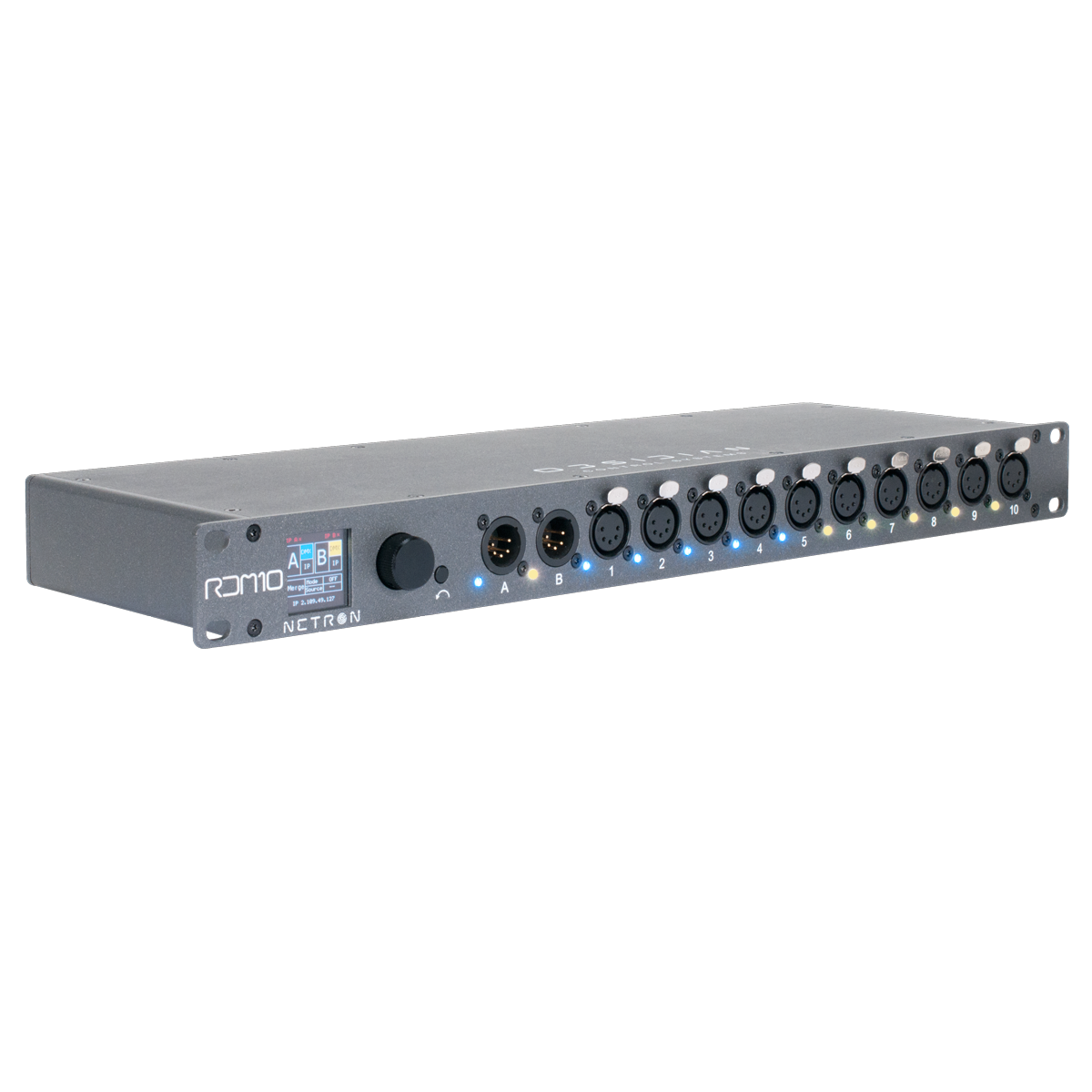

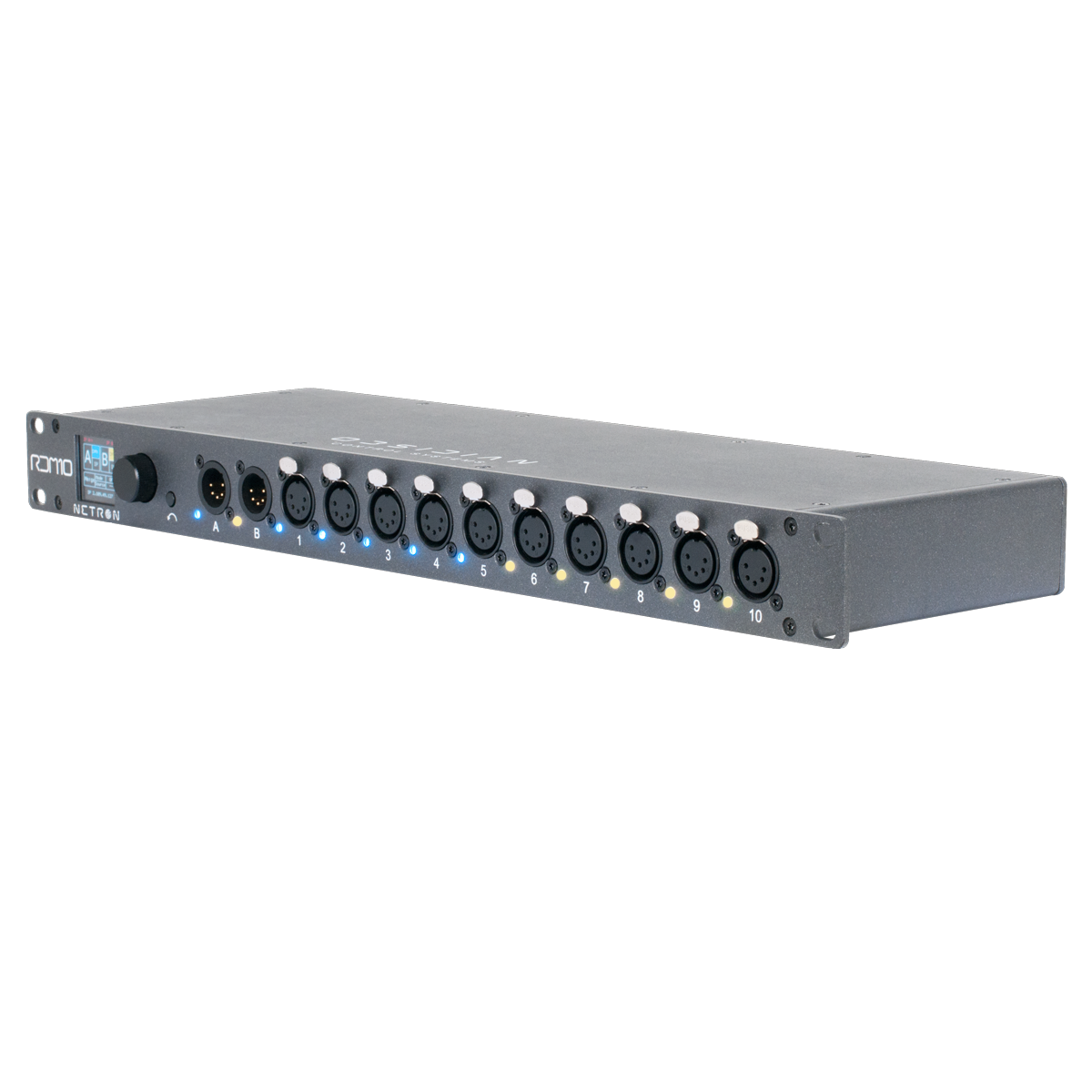

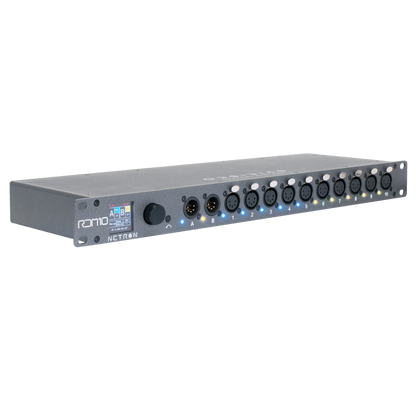

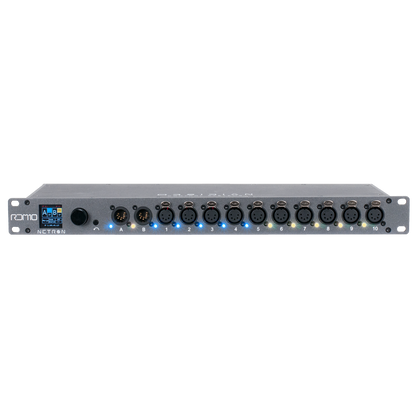

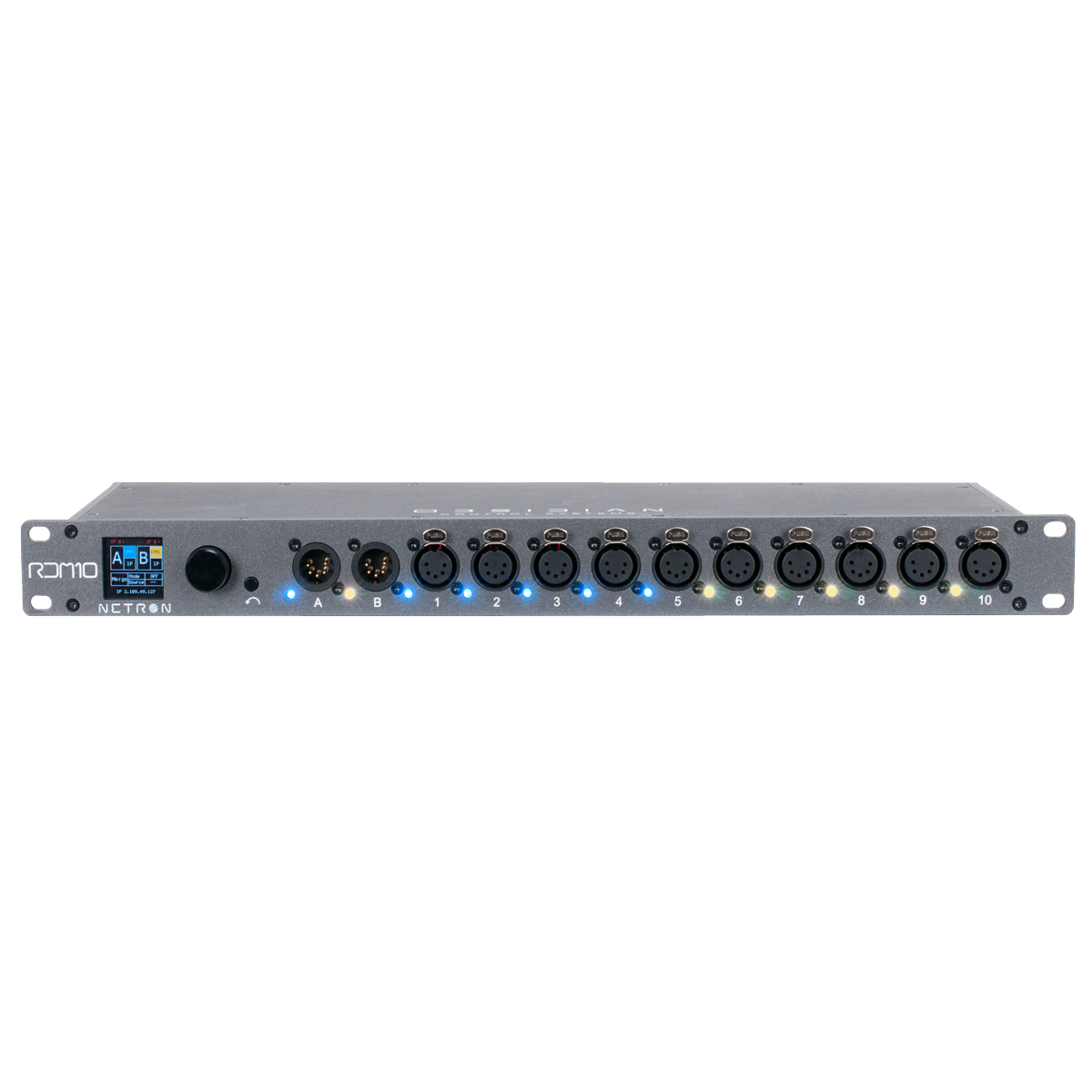

• Front
  • (2) 5pin DMX Input
  • (10) 5pin Opto-Isolated DMX Outputs
  • Full color OLED display
  • Encoder w. Push to Select / Exit Button

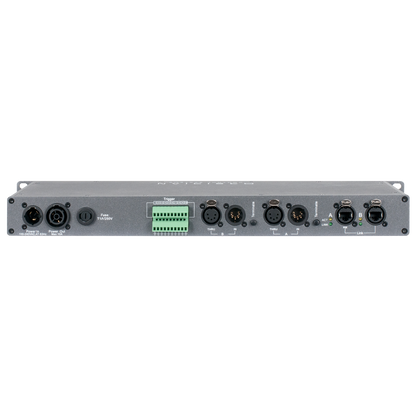

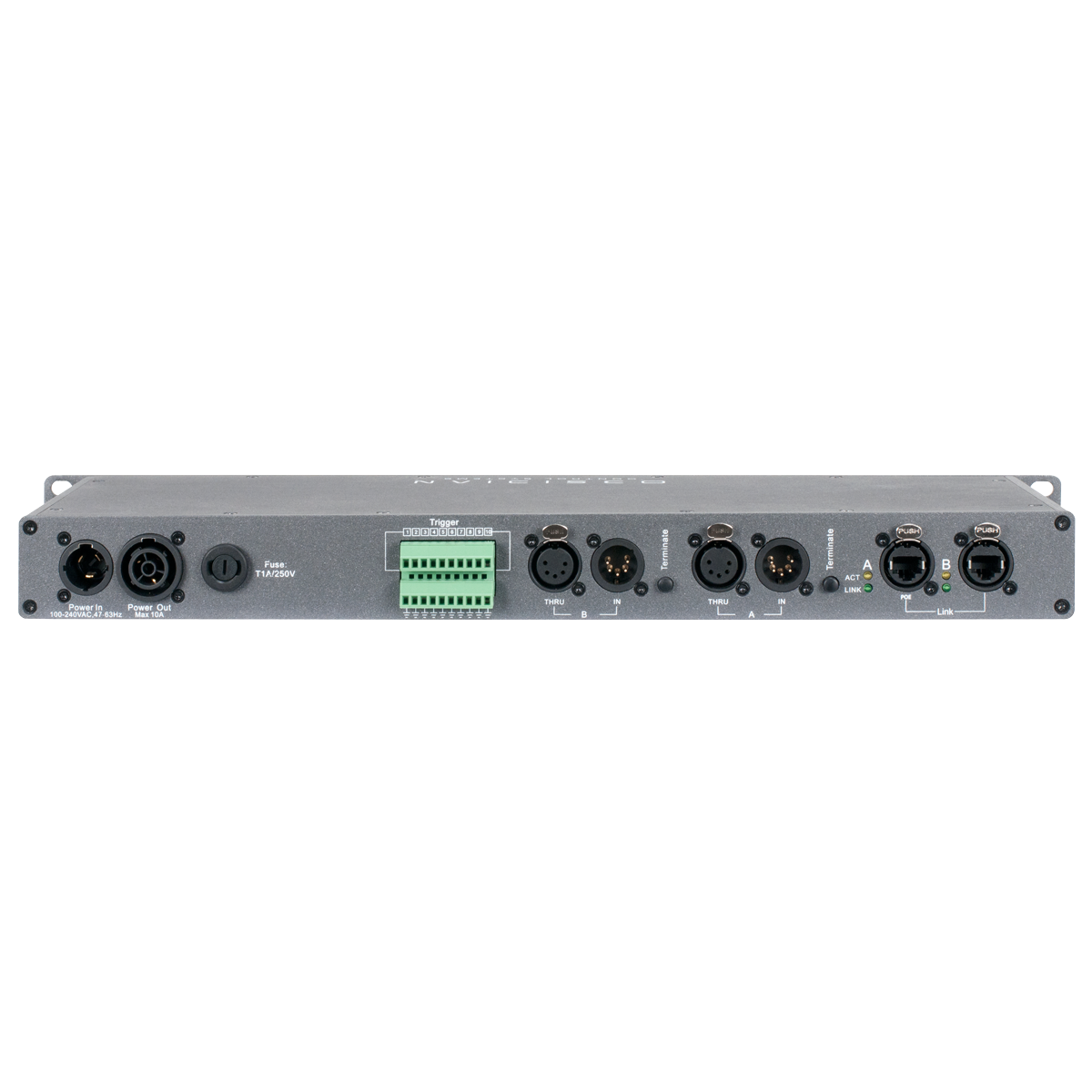

• Back
  • (2) 5pin DMX Input (parallel with front)
  • (2) 5pin DMX Through
  • (2) Locking RJ45 Ethernet Network In
  • (10) Contact Closures (Terminal Block)
  • Locking Power In/Thru
• Specifications
• Physical
  • Length: 482.5 mm (19 in.)
  • Width: 146 mm (5.7 in.)
  • Height: 44 mm (1.7 in.)
  • Weight: 1.82 kg (4 lbs)
• Electrical
  • 100-240 V nominal, 50/60 Hz
  • POE 802.3af
  • Power Consumption: 10W
• Included Items
  • 1.5m Locking power cable (EU or US version)
