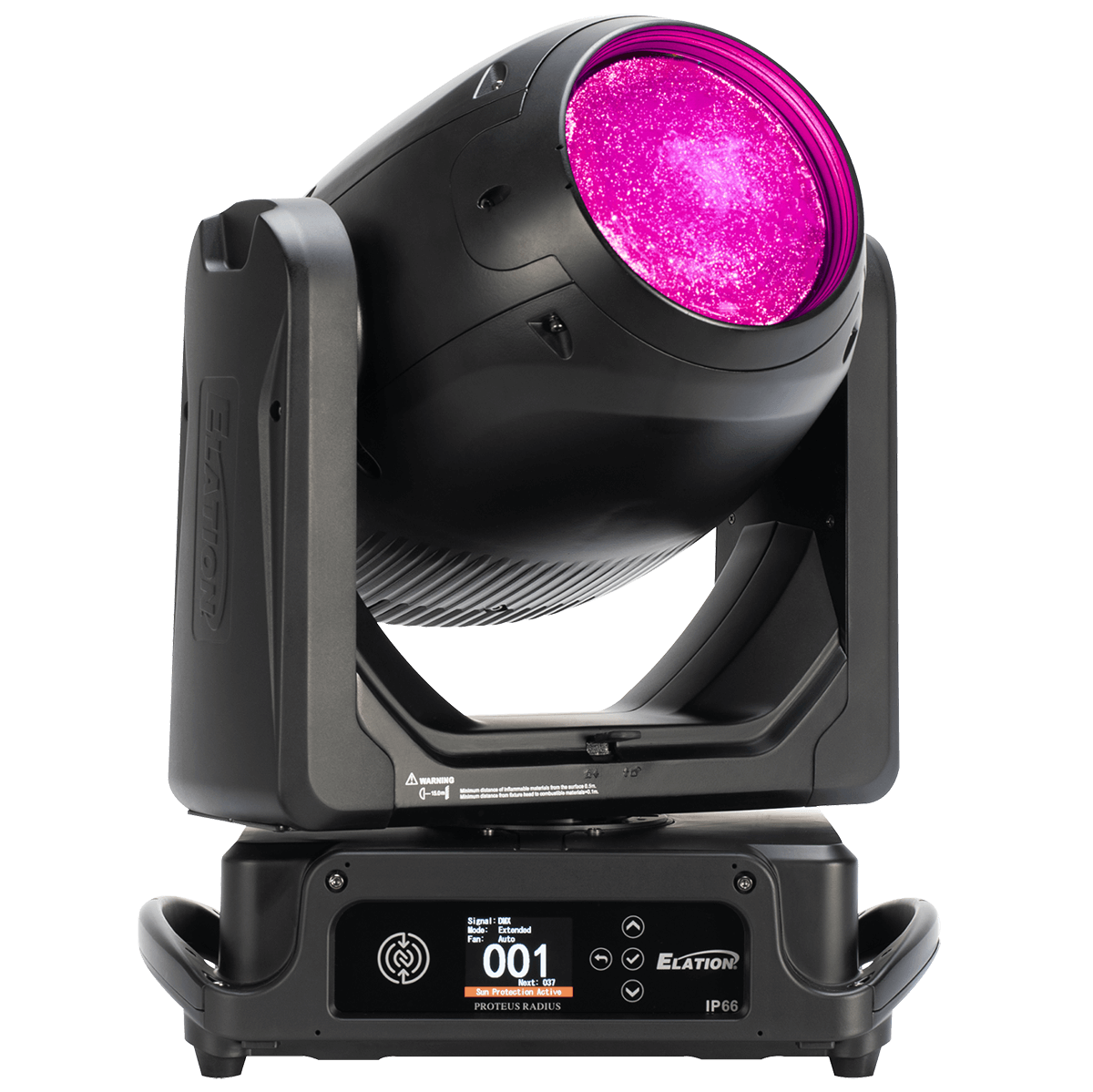

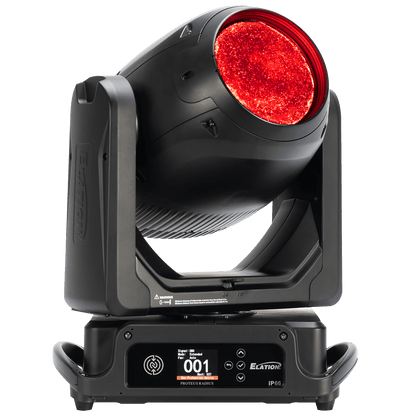

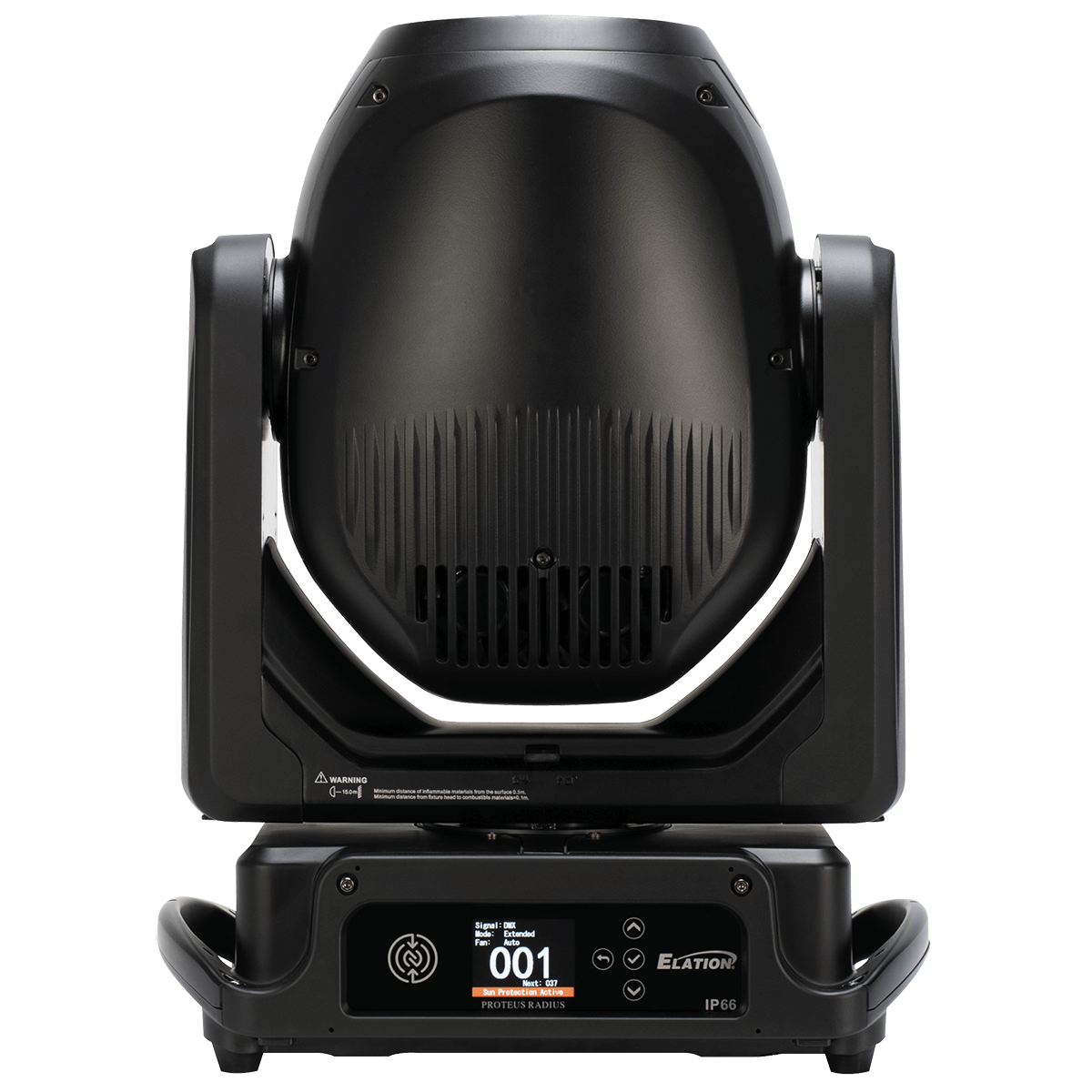

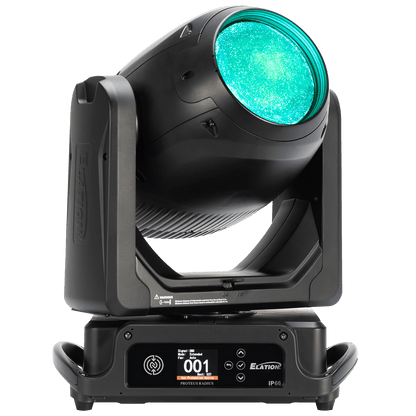

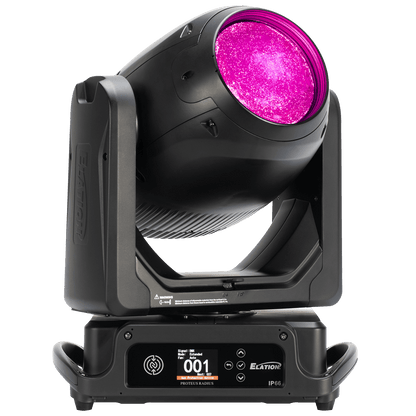

Elation Proteus Radius; 100W SSPC Beam FX IP66

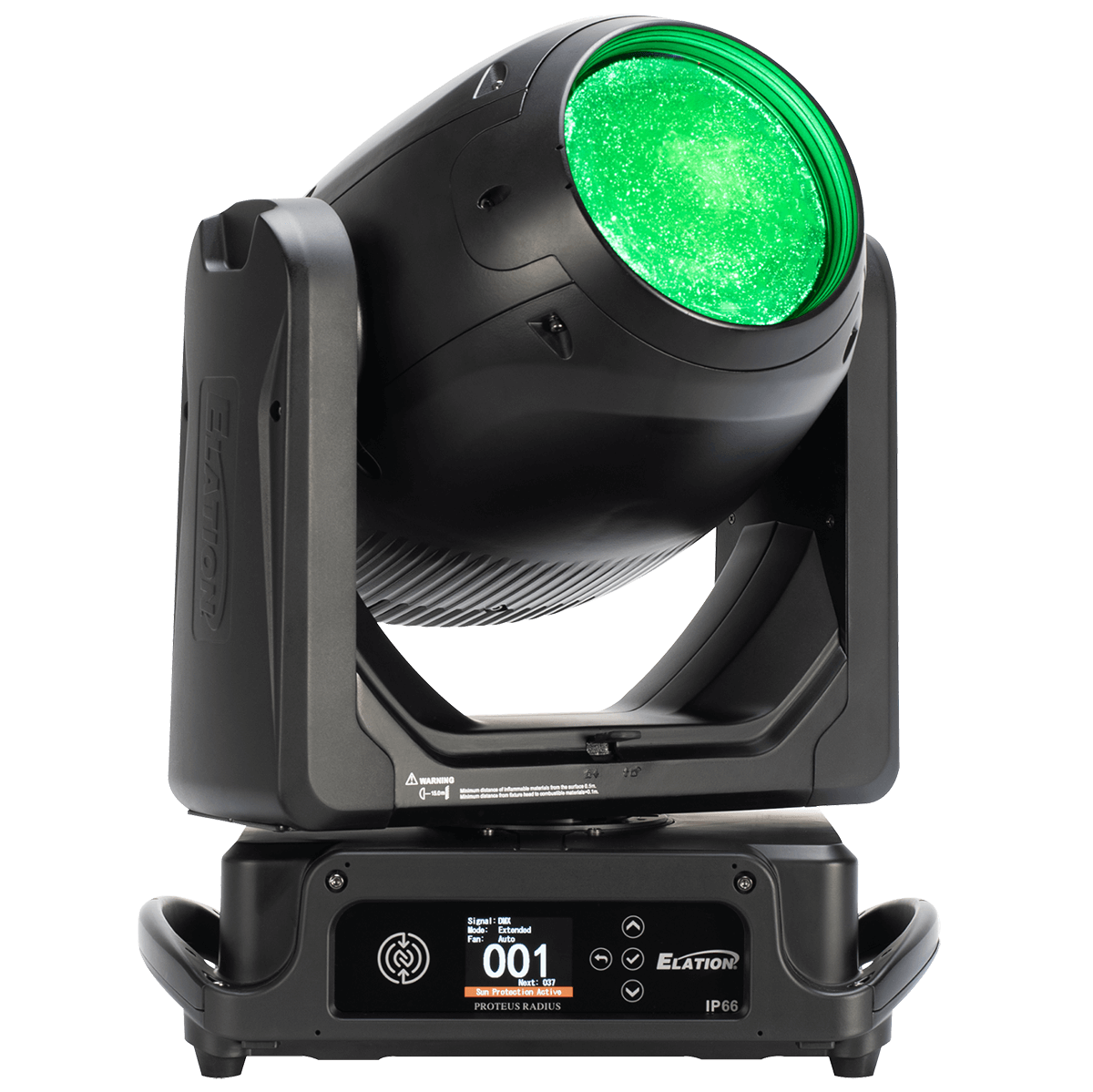

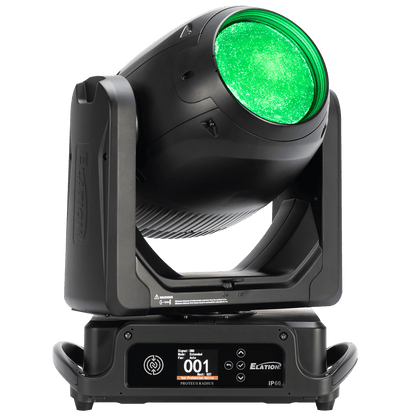

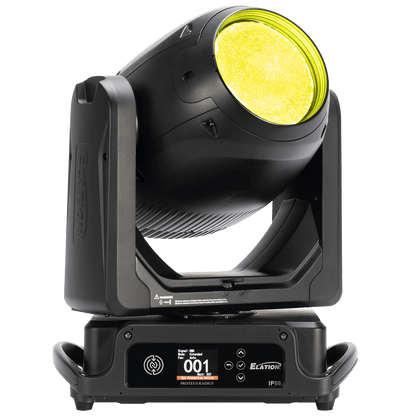

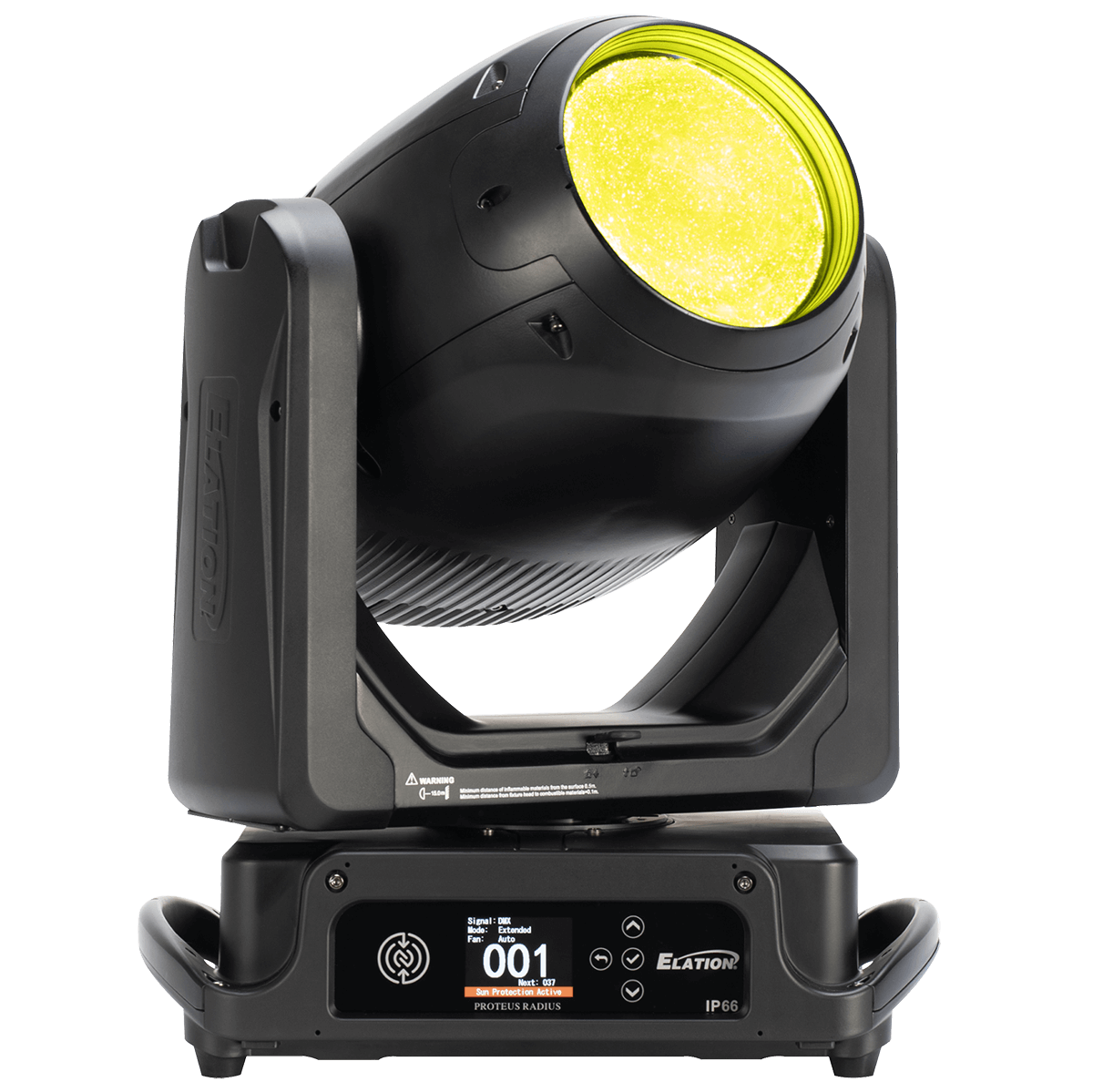

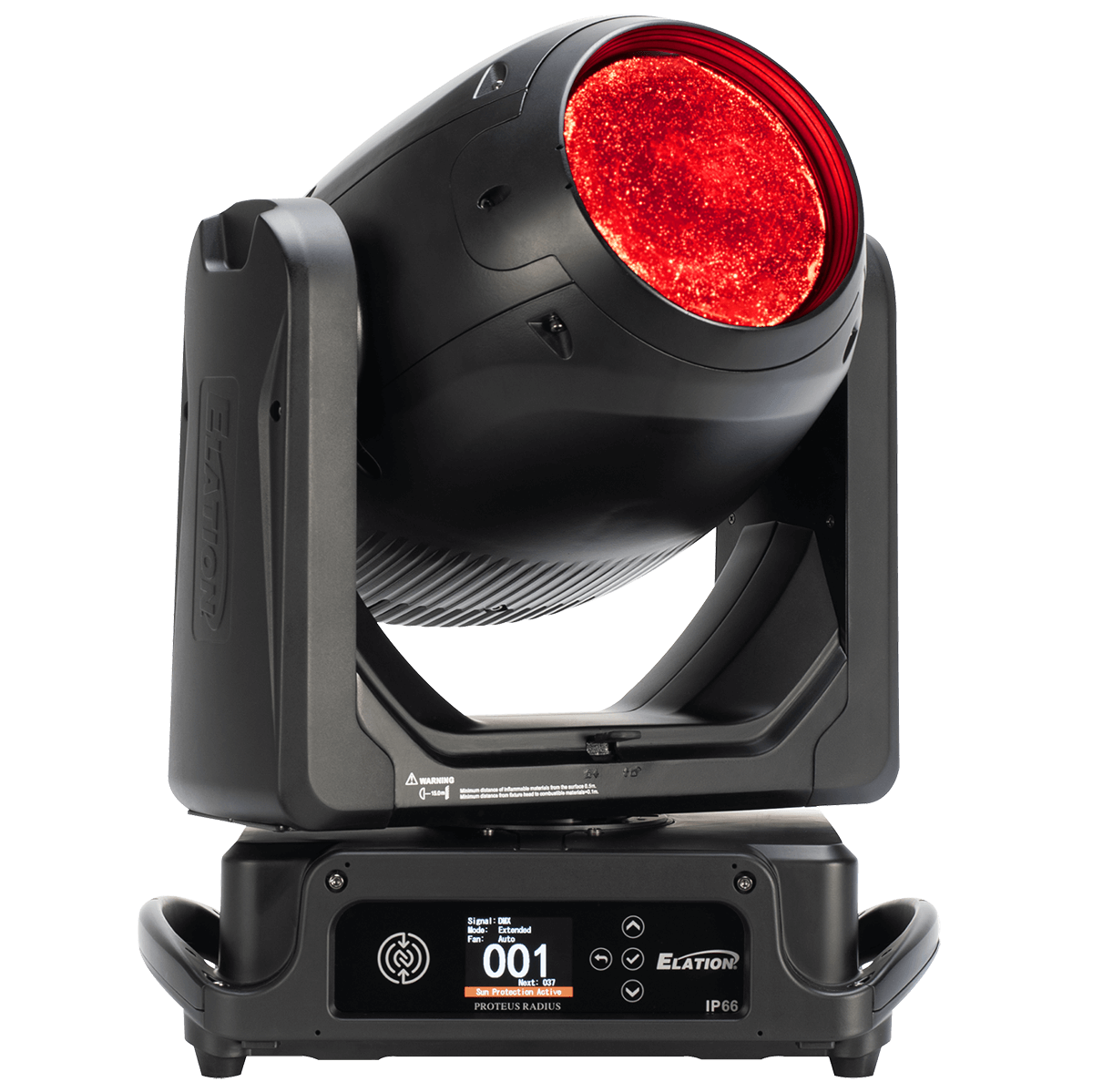

The PROTEUS RADIUS is a high impact, IP66-rated beam fixture that combines cutting-edge technology with a compact design. It uses a 100W laser-pumped phosphor light engine to project narrow, powerful beams that reach incredible distances with precision. Its standout feature is ultra-fast 360-degree continuous rotation on both axes, allowing for bold and dynamic beam animations. Add to that CMY color mixing, customizable gobos, prisms, and frost effects, and you have a versatile tool that empowers lighting designers to create stunning aerial visuals.
The PROTEUS RADIUS is available as a Class 1 Risk Group 2 Laser Product, meaning it requires no federal operator variance for use in the United States1. Whether for concerts, competitions, or high-profile events, the PROTEUS RADIUS is built to deliver when it matters most.
  • 100W Laser-Pumped Phosphor Light Engine
  • Compact and lightweight IP66 housing
  • Ultra Intense 0.9? Beam
  • Endless High-Speed 360 Pan and Tilt Movements
  • CMY Color Mixing CMY
  • FX Package with rotating, fixed gobo, four prisms, and dual frost
  • NFC Support
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included

Specifications

  • SOURCE

    • 100W Laser-Pumped Phosphor Light Engine

    • 6000K, CRI 70

    • 10,000 Hour Lamp Life

  • PHOTOMETRIC DATA

    • 2700 Lumen Total Fixture Output

    • Beam Angle 0.9?

  • EFFECTS

    • Dual Frost

    • 4 Prisms on Dual Planes

    • CMY Color, Gobo, Prism Macros

    • Motorized Focus

    • Digital Shutter and Strobe

  • COLOR

    • Full CMY Color Mixing System

    • 25 Position Color Wheel

  • GOBOS

    • 2 Gobo Wheels

    • 13 Interchangeable-Rotating / Indexing Metal Gobos

    • 24 Static-Stamped Metal Gobos

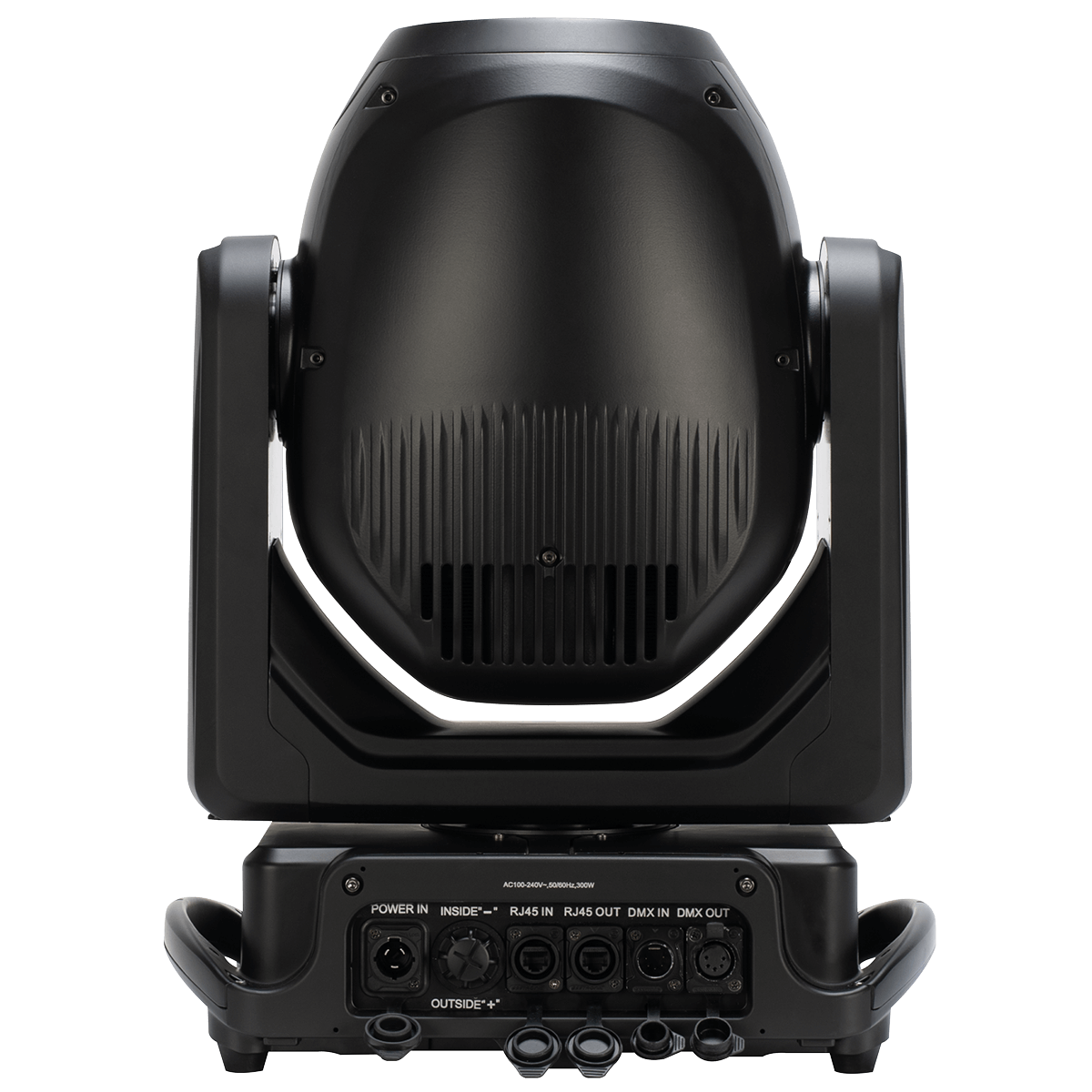

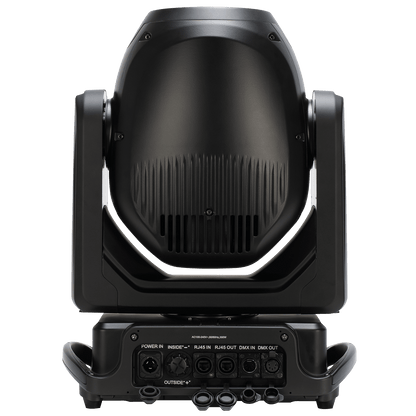

  • CONTROL / CONNECTIONS

    • 2 DMX Channel Modes

    • (4) Button Touch Panel

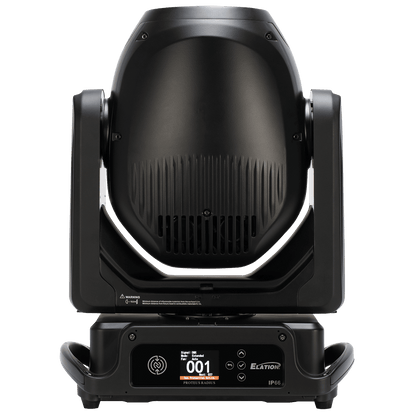

    • Full Color 180° Reversible LCD Menu Display

    • DMX, RDM, Art-Net and sACN Protocol Support

    • IP65 5pin DMX In/Out

    • IP65 RJ45 Ethernet In/Out

    • IP65 Locking Power In

  • SIZE / WEIGHT

    • Length: 10.6” (270mm)

    • Width: 15.5” (395mm)

    • Height: 20.3” (516mm)

    • Weight: 45.0 lbs. (20.4kg)

    • Center-to-Center: 18.0" (456mm)

  • ELECTRICAL / THERMAL

    • AC 100-240V 50/60Hz

    • 300W Max Power Consumption

    • -4°F to 113°F (-20°C to 45°C)
