Elation PROTEUS ATLAS;500W SSPC Beam FX IP66

Elation PROTEUS ATLAS;500W SSPC Beam FX IP66

Write a review

SKU: PRA501

$21,595.00
$21,595.00
Sale Sold out
Shipping calculated at checkout.

Available options

 View full details

Description

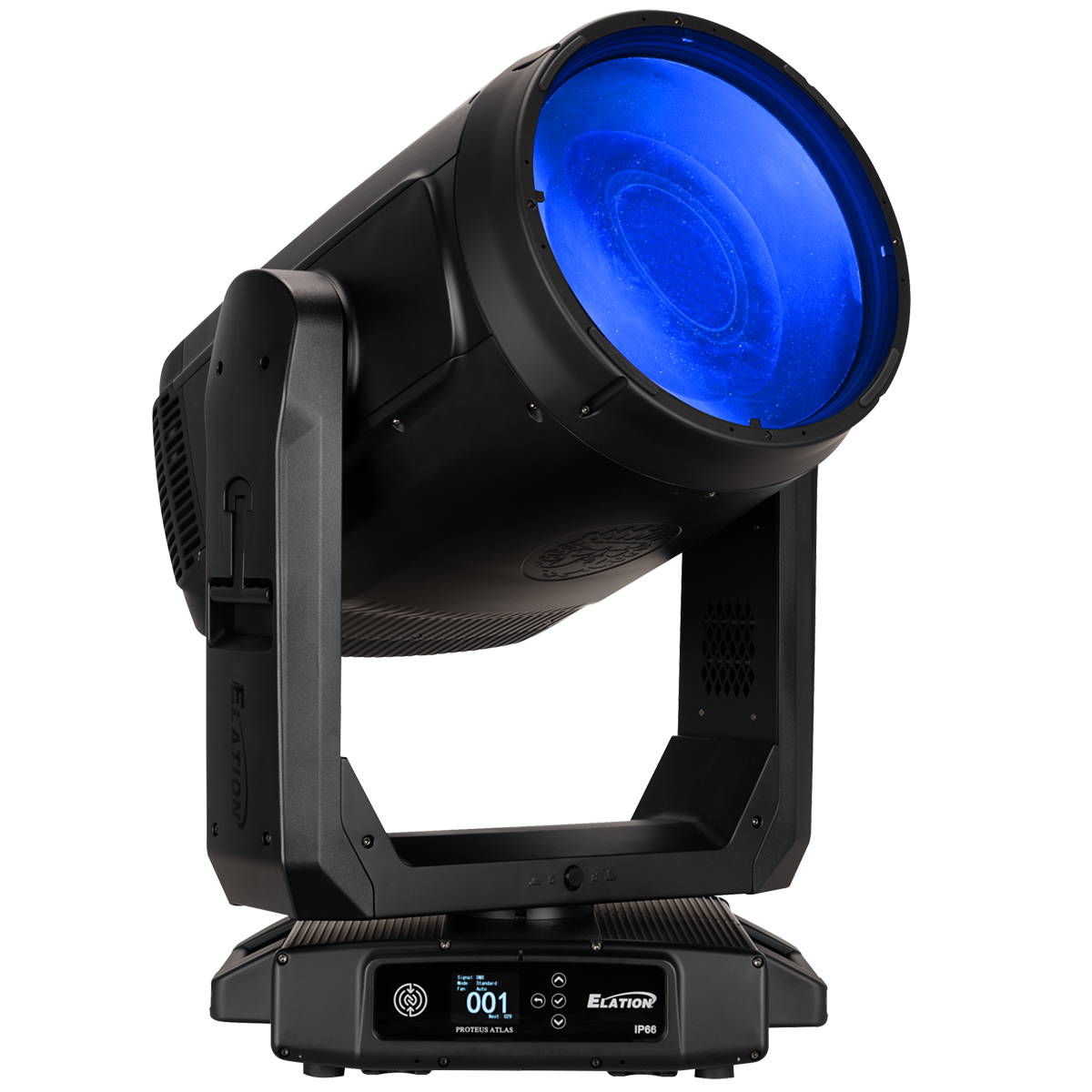

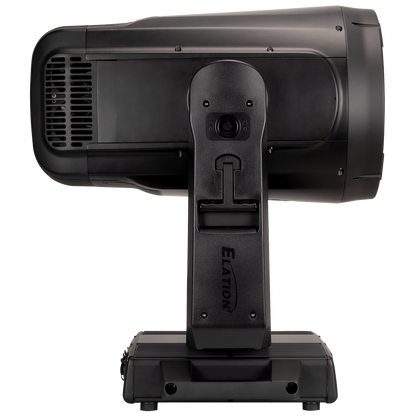

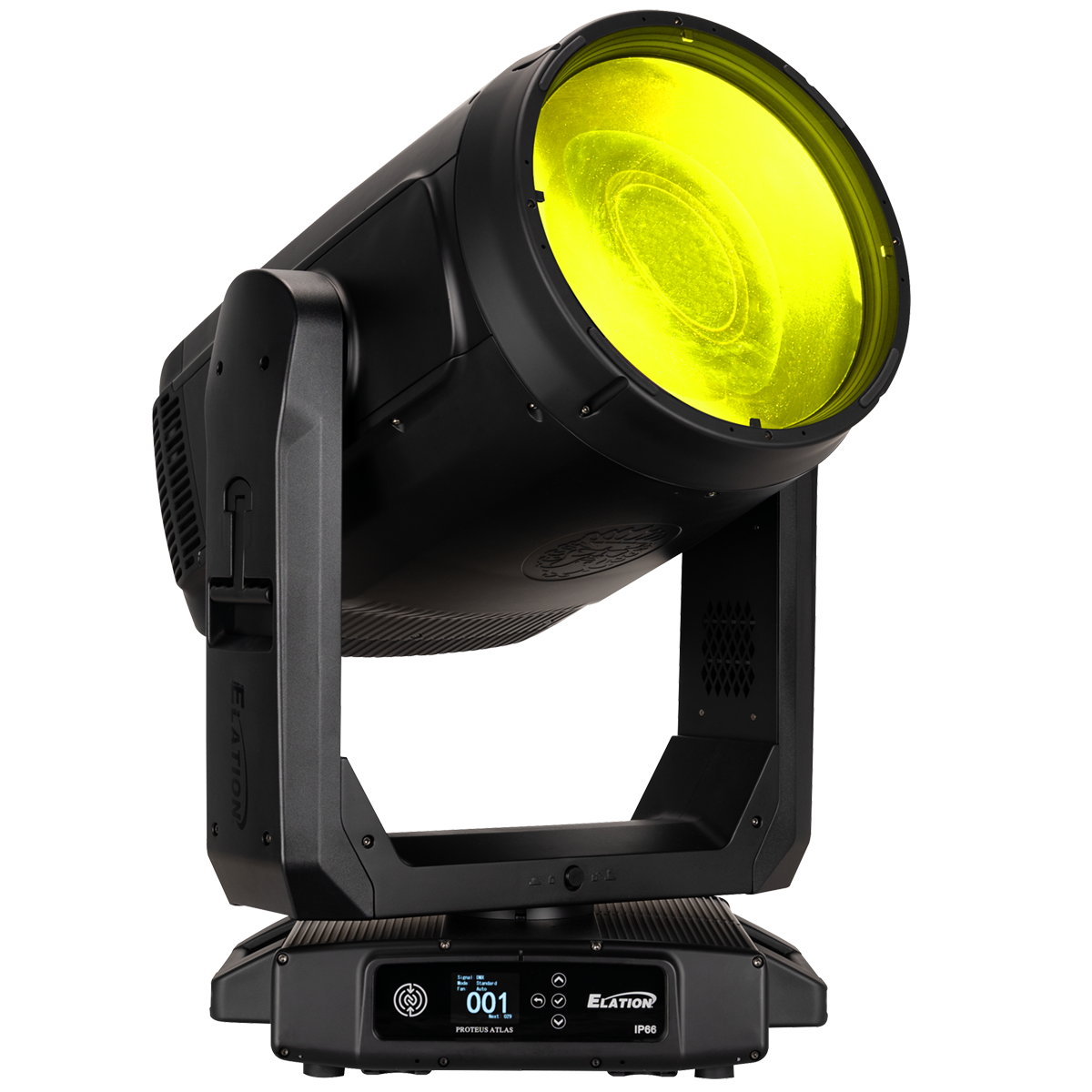

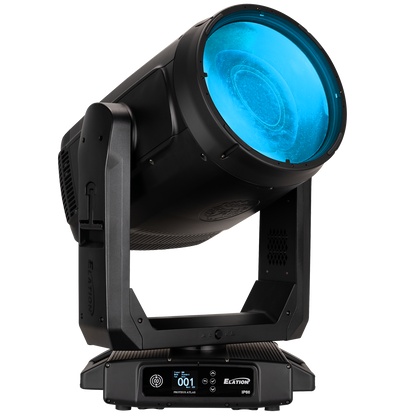

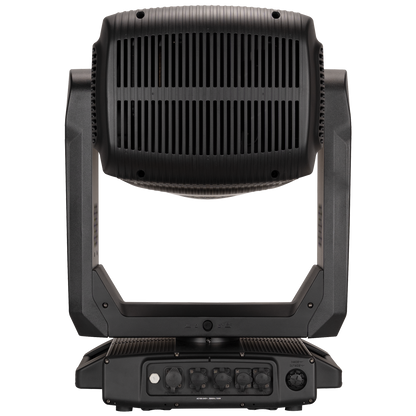

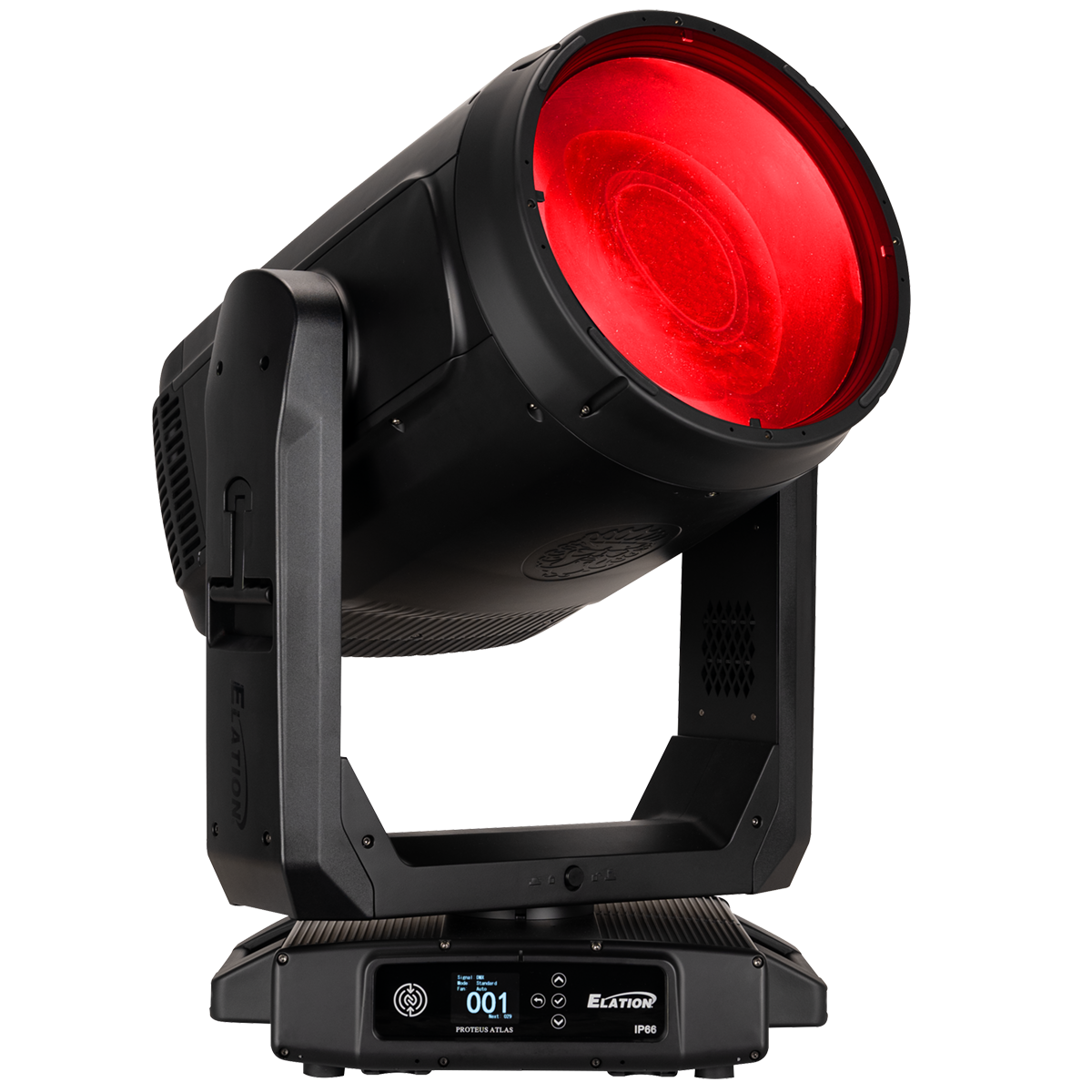

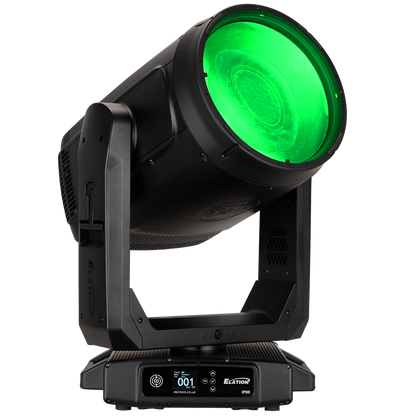

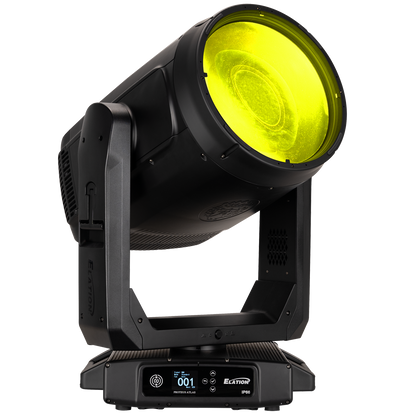

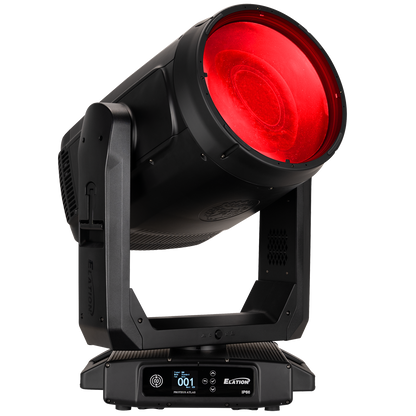

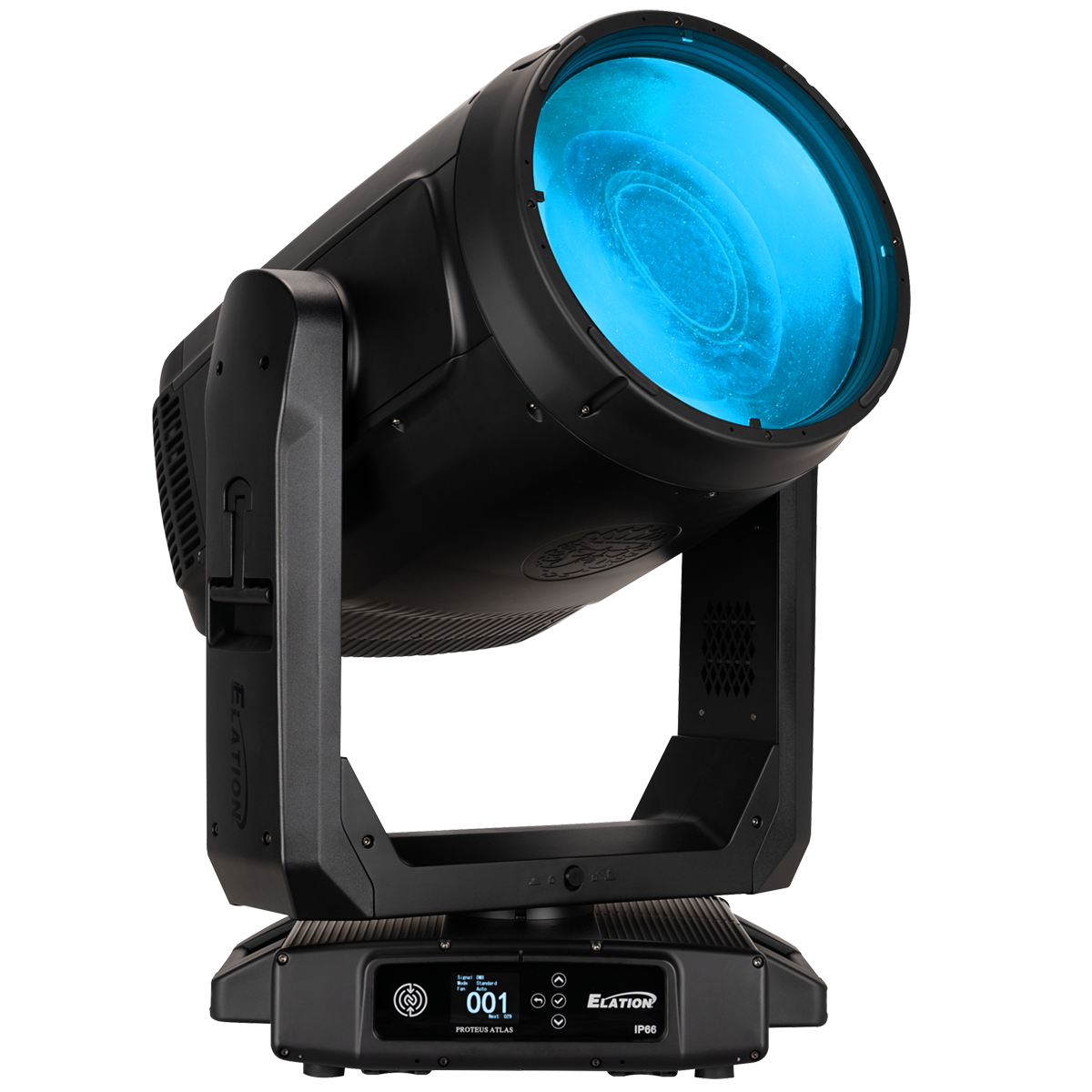

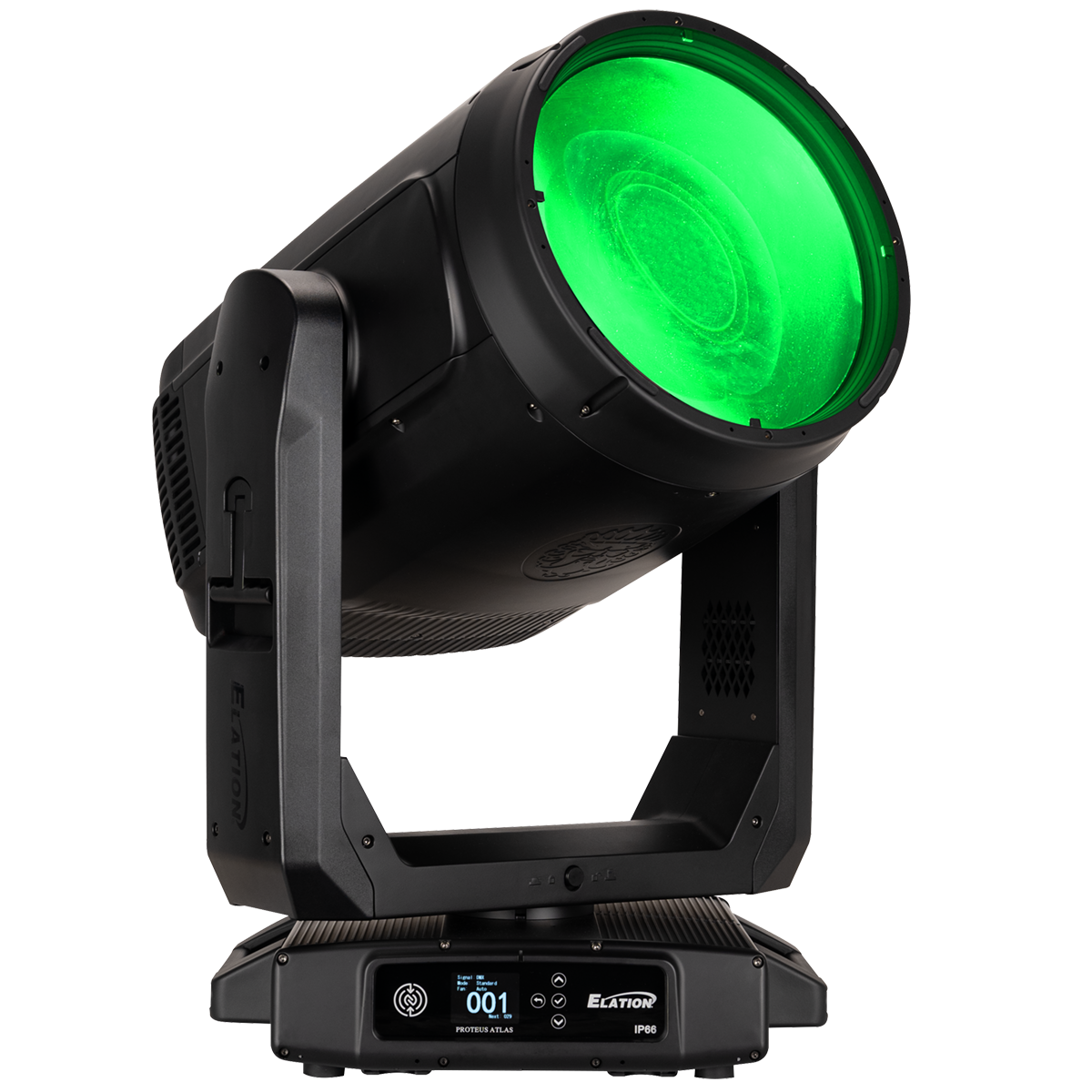

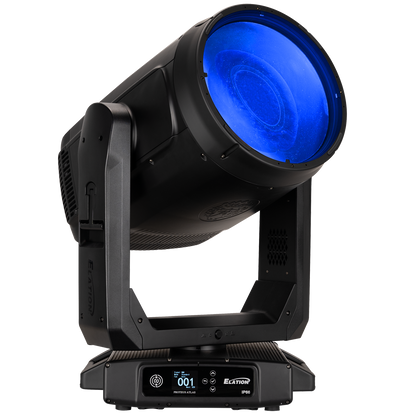

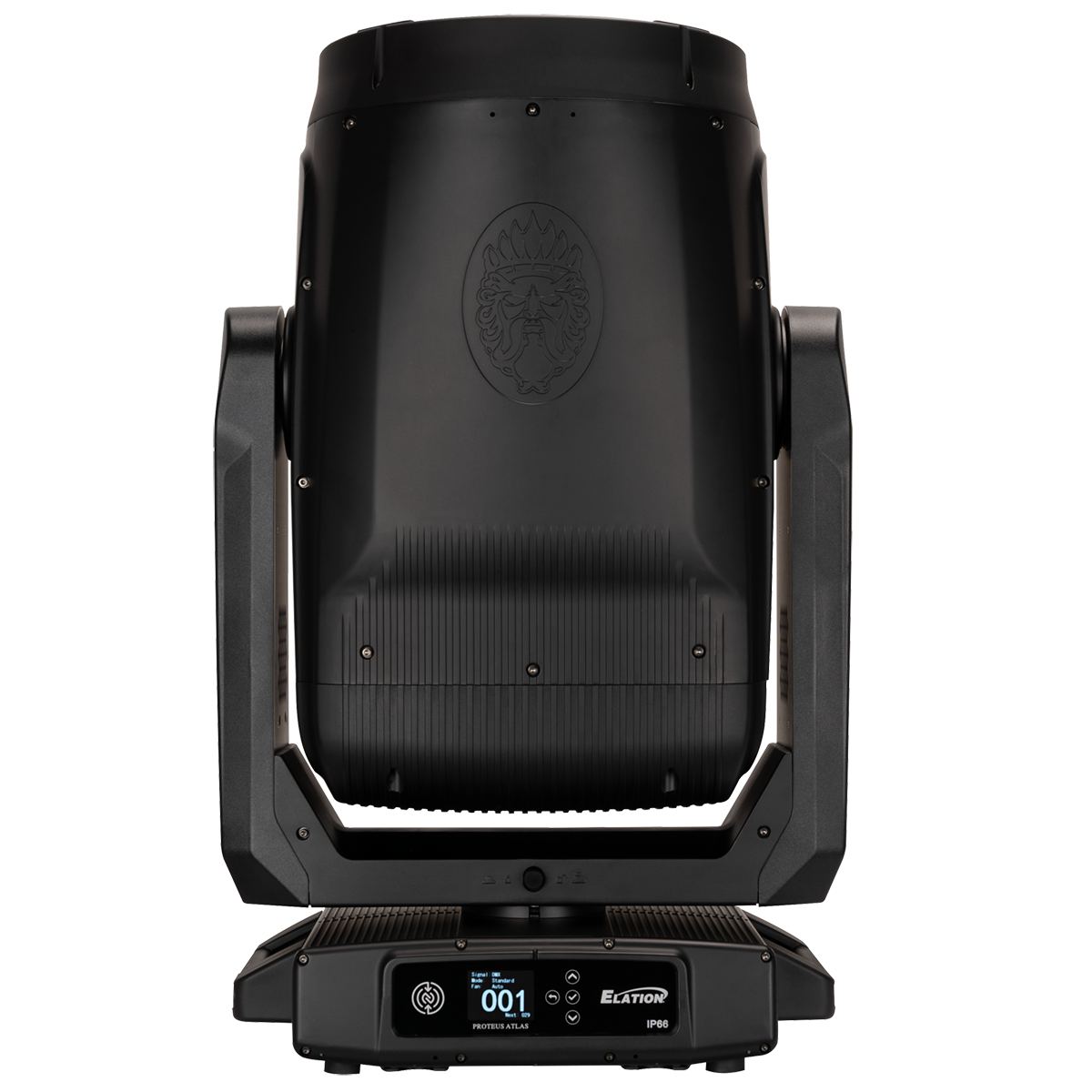

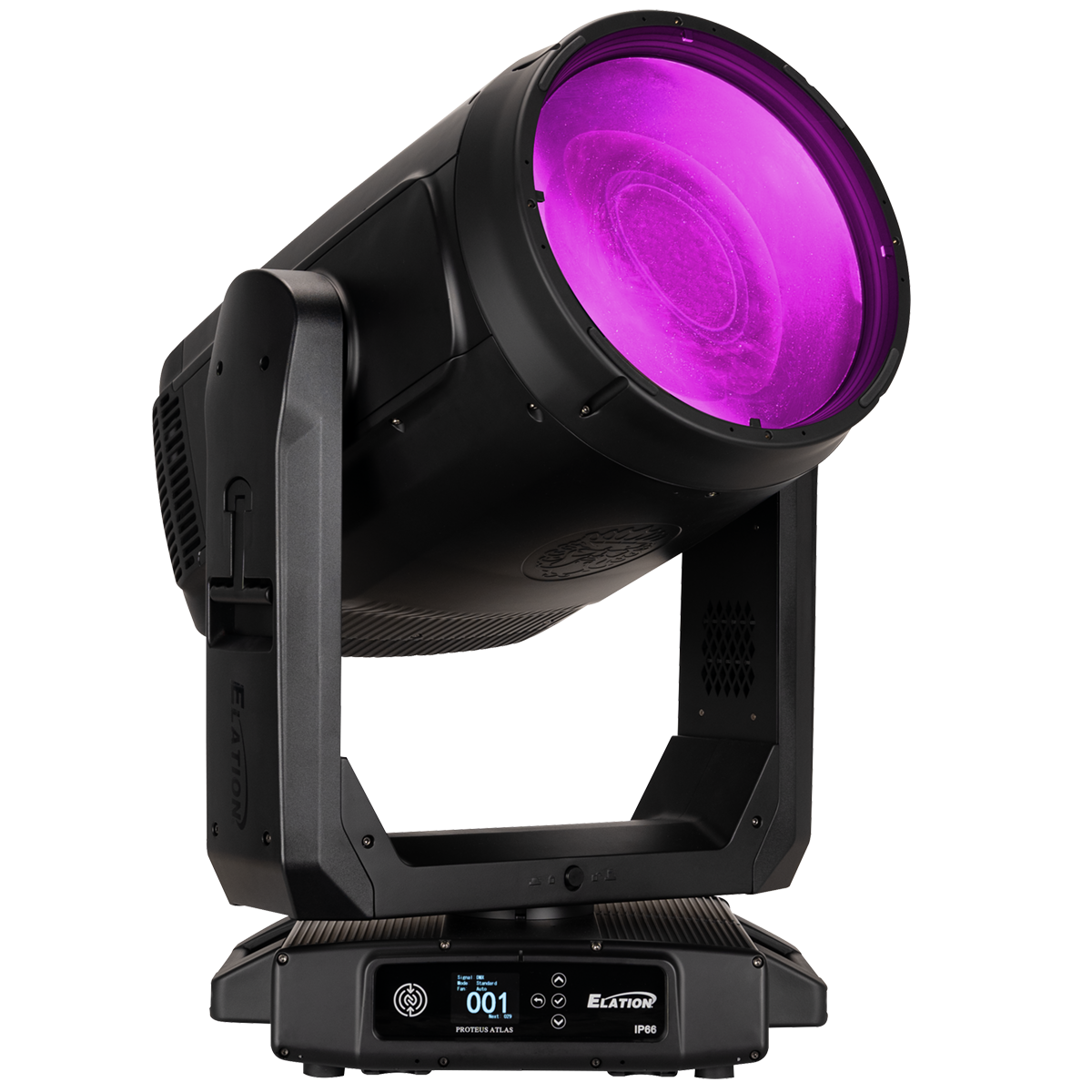

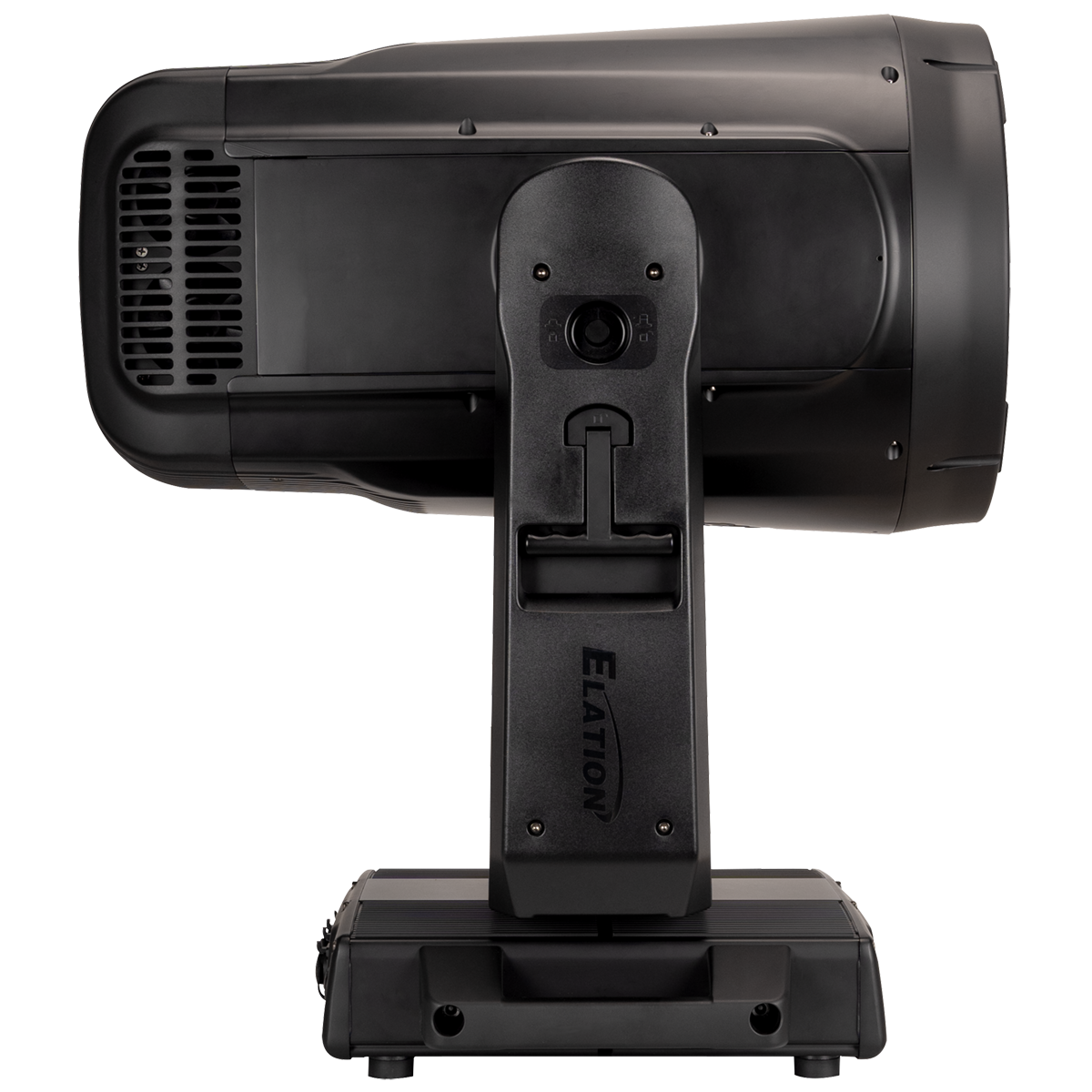

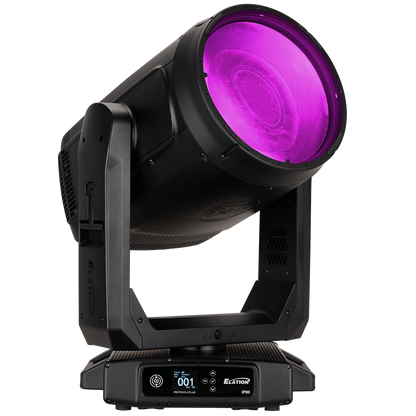

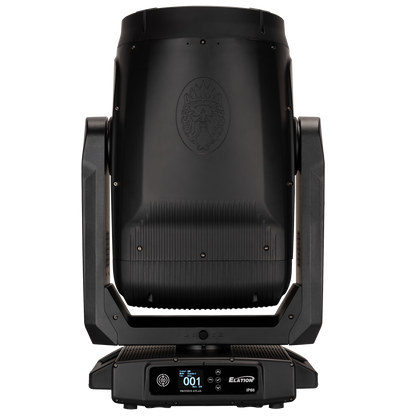

Elation PROTEUS ATLAS;500W SSPC Beam FX IP66

Command the heavens with Elation’s PROTEUS ATLAS, built to deliver otherworldly light for large-scale productions and permanent outdoor installations. With 1 million LUX at 20 meters, Laser-Pumped Phosphor Light Engine technology, and a massive 320mm lens, Atlas cuts through the sky with bold, focused beams that evoke the power of traditional Xenon fixtures.

Its onboard effects system sculpts light with gobos, frosts, and prisms—shifting seamlessly from piercing beams to layered textures and soft washes. With CMY color mixing and a 25-position color wheel, Atlas offers a rich palette for bold bursts, atmospheric moods, and everything in between.

The Atlas’ precision motors provide smooth pan, tilt, and continuous rotation, while Elation’s SkyMotion system enables synchronized patterns across fixtures without a console. Built and certified with an IP-66 rating, Atlas stands strong in any weather, making it ideal for concerts, cruise ships, and permanent outdoor installs.

Designed for those who think on a larger scale, PROTEUS ATLAS delivers power, precision, and creative freedom, letting audiences look up and experience the extraordinary.
  • 500W Laser-Pumped Phosphor Light Engine
  • IP66 housing
  • Ultra Long Throw Beam FX
  • Continuous 360 Pan Movement
  • CMY Color Mixing
  • FX Package with rotating, fixed gobos, prisms and dual frost
  • Sky Motion Standalone System
  • Protective Foam In Lay for transport

Specifications

  • SOURCE

    • 500W Laser-Pumped Phosphor Light Engine

    • 9000K, CRI 70

    • 12,000 Hour Lamp Life

  • PHOTOMETRIC DATA

    • 1.000.000 Lux @ 20m

    • 100.000 Lux @ 100m

    • Beam Angle 0.6° - 8.5°

  • EFFECTS

    • Dual Frost (Hot- Spot Beam, Wash FX)

    • Ultra- Fast Zoom

    • Focus

    • 2x3 Prisms on Dual Planes

    • Digital Shutter and Strobe

    • Pan Angle 360° / 540°

    • Tilt Angle 250°

  • COLOR

    • Full CMY Color Mixing System

    • 25 Position Color Wheel

  • GOBOS

    • 2 Gobo Wheels

    • 13 Interchangeable-Rotating / Indexing Metal Gobos

    • 24 Static-Stamped Metal Gobos

  • CONTROL / CONNECTIONS

    • 2 DMX Channel Modes (30/41 Ch)

    • (4) Button Touch Panel

    • Full Color 180° Reversible LCD Menu Display

    • DMX, RDM, Art-Net and sACN Protocol Support

    • NFC Support

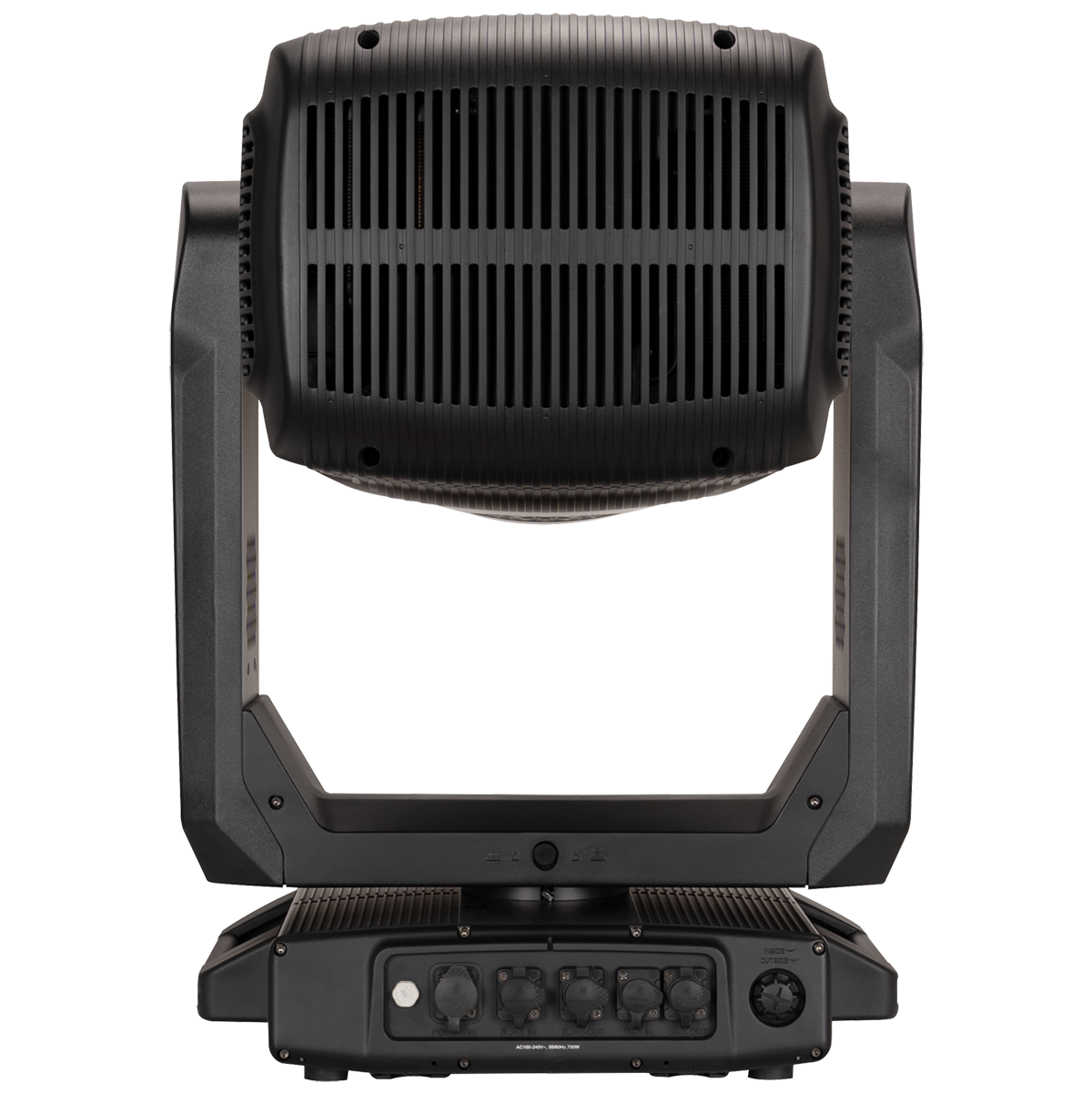

    • Ip65 5pin DMX In/Out

    • IP65 RJ45 Ethernet In/Out

    • IP65 Locking Power In

  • SIZE / WEIGHT (approx.)

    • Length: 14.6” (370mm)

    • Width: 20” (508mm)

    • Height: 31.5” (800mm)

    • Weight: 124.1 lbs. (56.3kg)

  • ELECTRICAL / THERMAL

    • AC 100-240V 50/60Hz

    • 700W Max Power Consumption

    • -4°F to 113°F (-20°C to 45°C)
