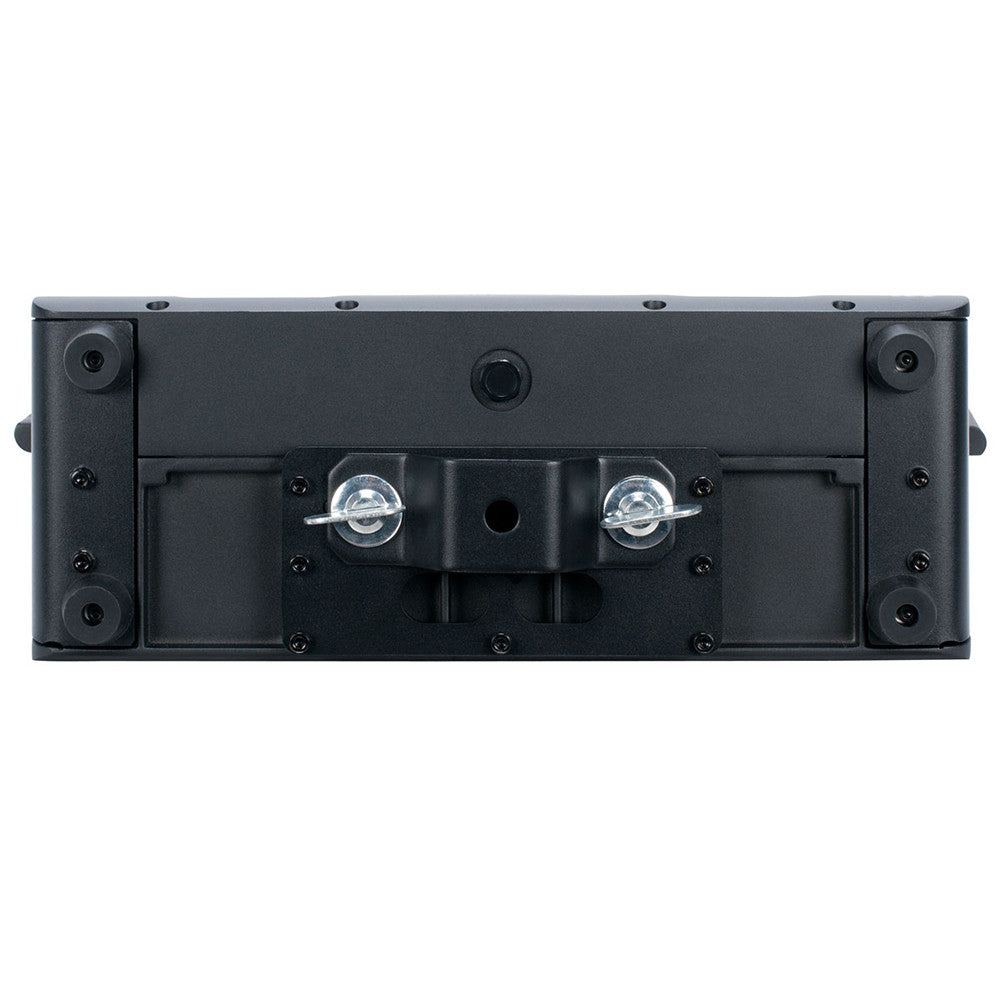

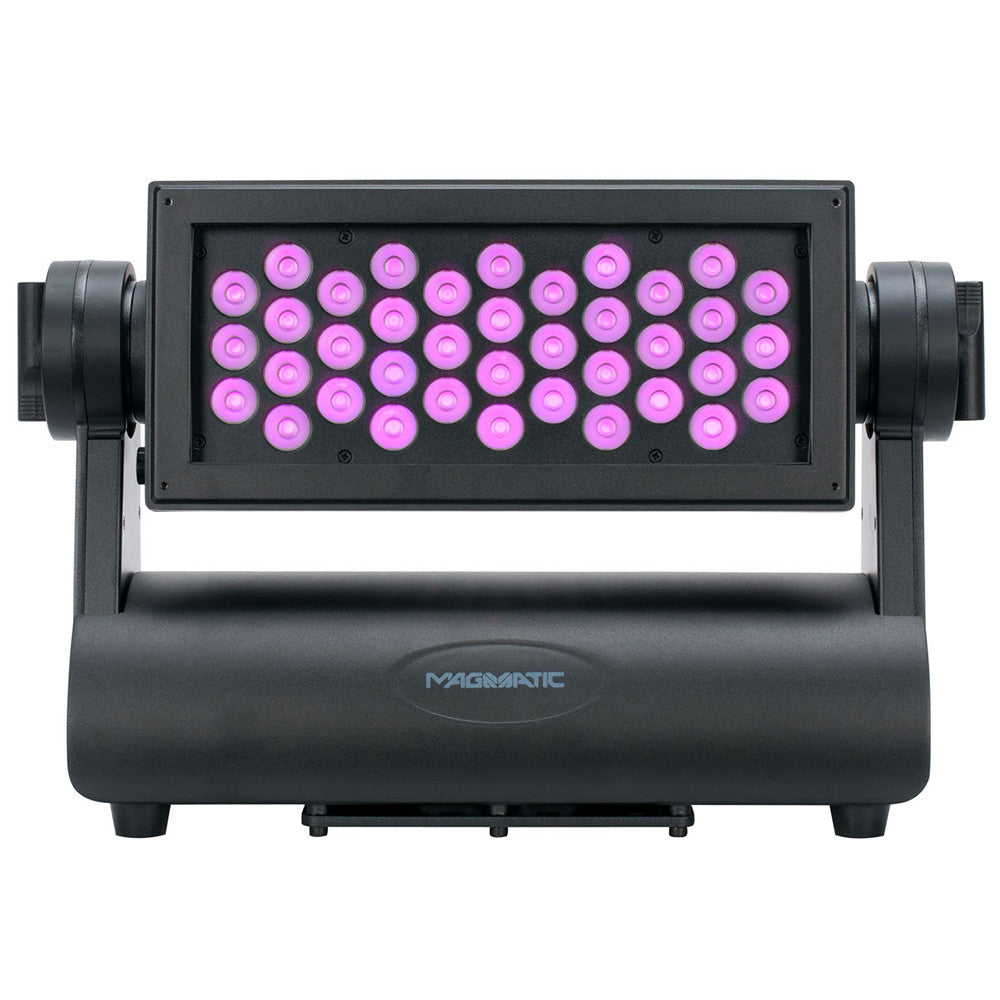

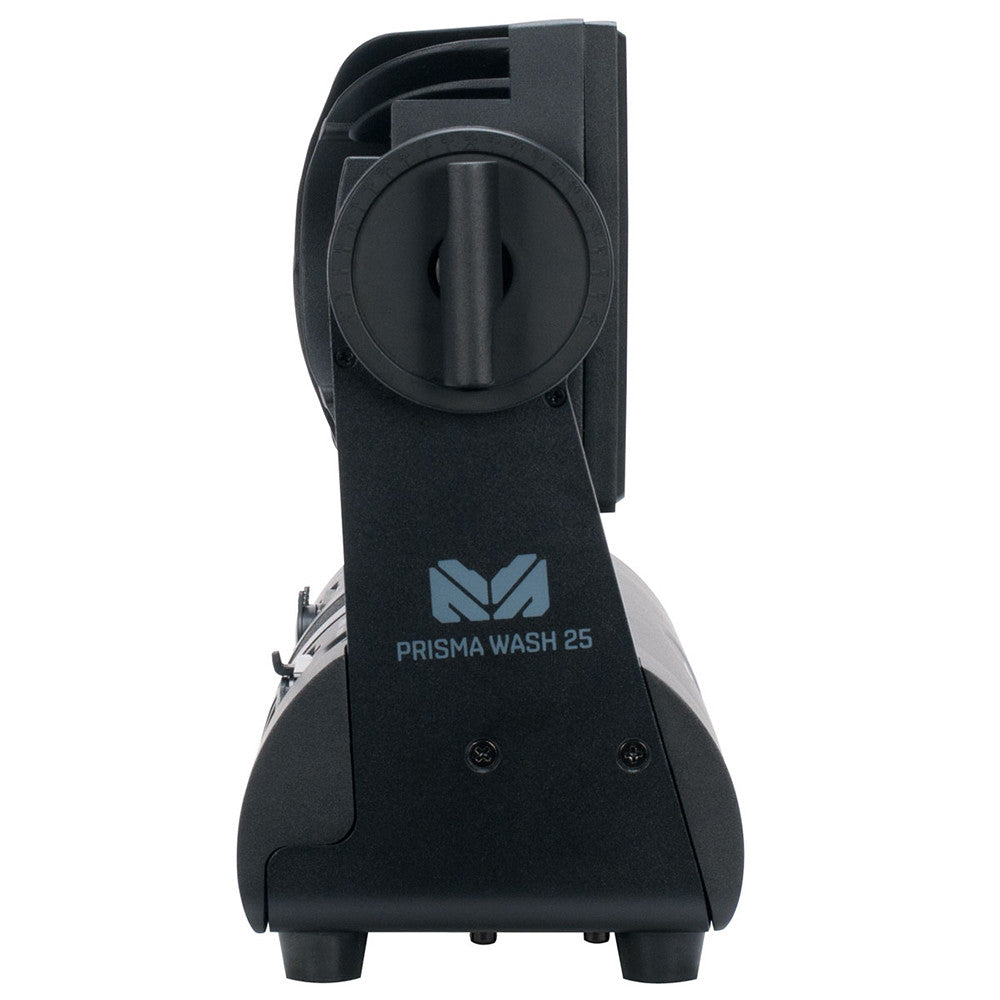

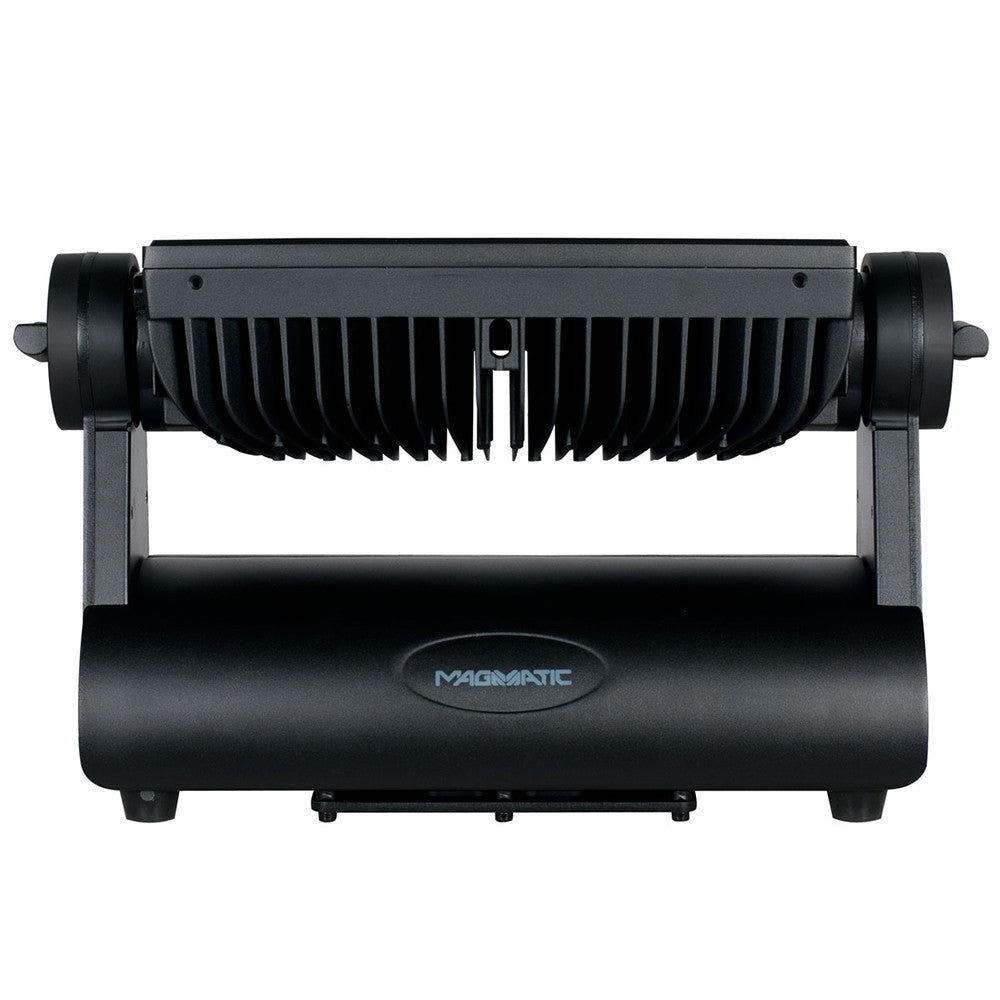

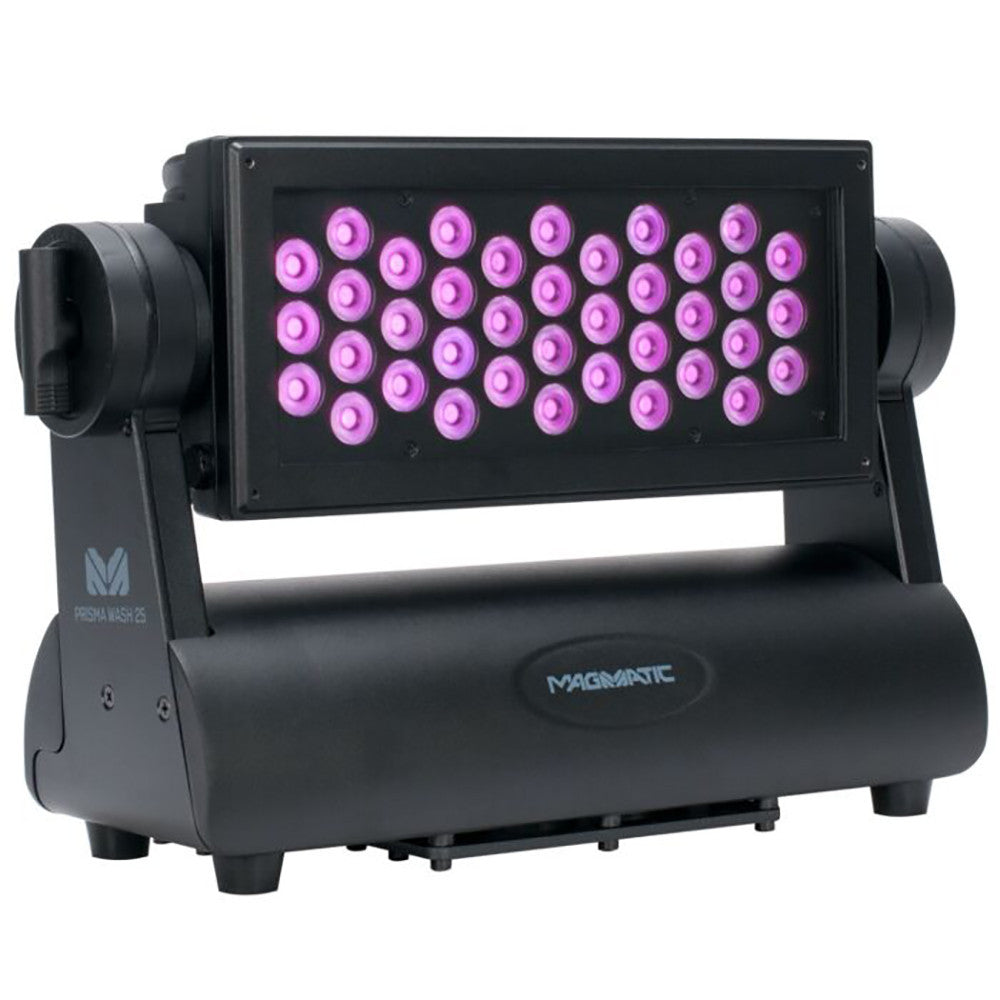

Elation Prisma Wash 25 Prisma Wash 25;38X2W 25° lens UV LED IP6

Elation Prisma Wash 25 Prisma Wash 25;38X2W 25° lens UV LED IP6

Features

• IP65 Rated Exterior High-Power UV Wash Luminaire
• 20 Degree Narrow Beam Angle

• 365nm Peak True UV Wavelength
• Zero Visible Light Output

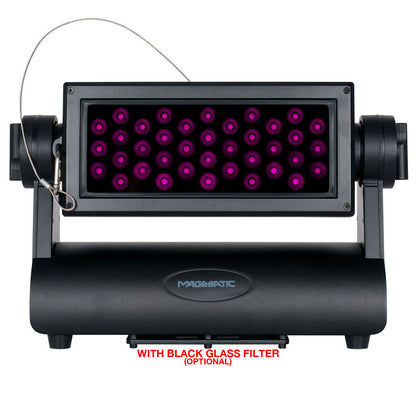

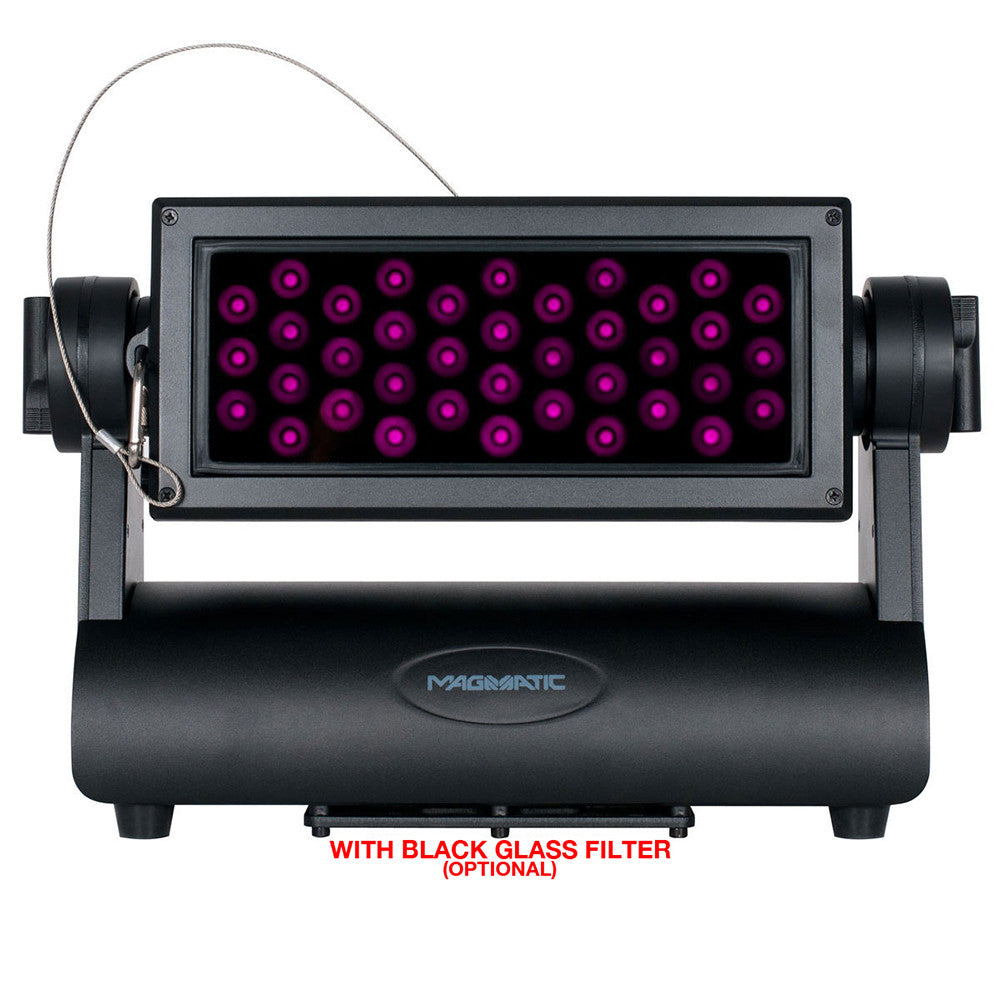

• Optional Black Glass Diffusion Filter

Specifications

• SOURCE
  • (38) 2W High Power UV Diode LEDs
  • 20,000 Hour Average LED Life*

• _{*Test lab conditions. May vary depending on several factors including but not limited to:}

  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



• PHOTOMETRIC DATA
  • 20 Degree Narrow Beam Angle
  • 365nm True UV Peak Wavelength
• EFFECTS
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes
• CONSTRUCTION
  • Rugged IP65 Rated Aluminum Housing
  • Manual Adjustable Tilt Position
• CONTROL
  • Multiple DMX Channel Modes
  • Onboard 4 Button Touch Control Panel
  • DMX-512 and RDM Protocol Support

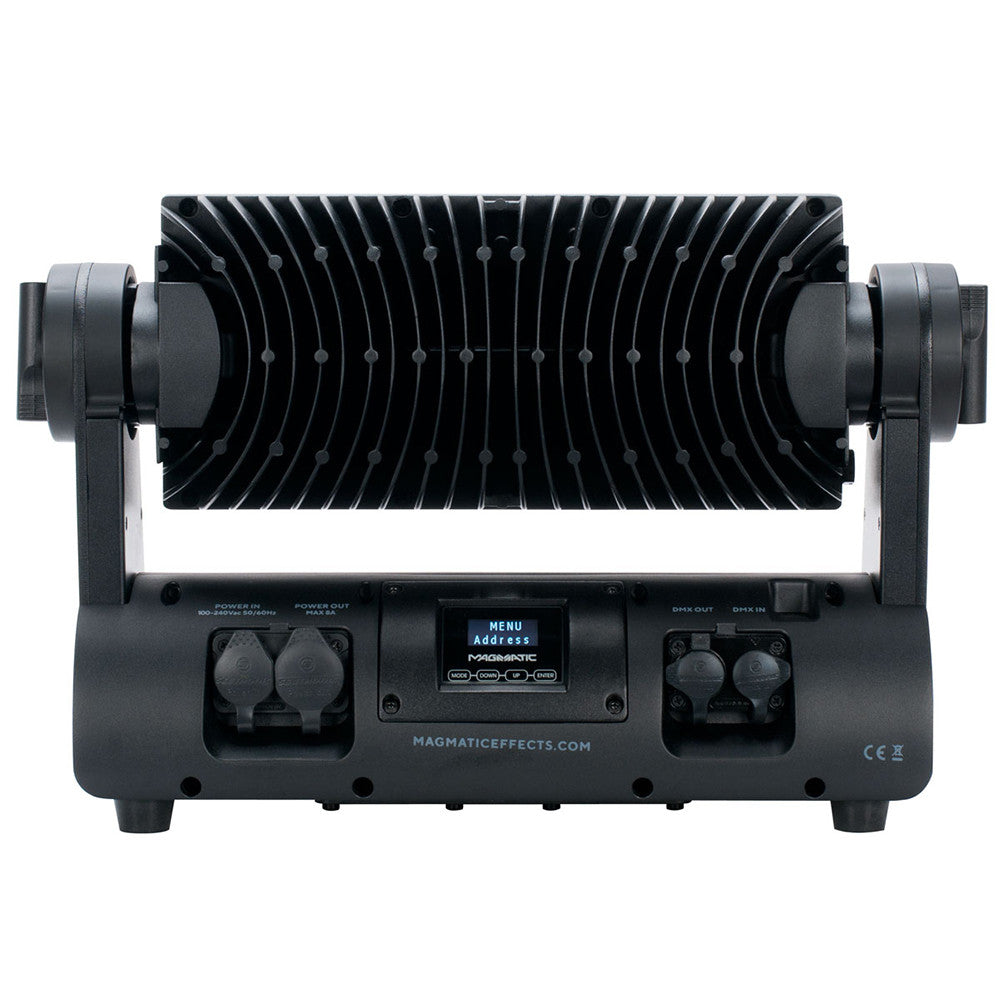

• CONNECTIONS
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 17.5” (445mm)
  • Width: 5.9” (150mm)
  • Vertical Height: 11.29” (287mm)
  • Weight: 19 lbs. (8.62 kg)
• ELECTRICAL
  • AC100-240V 50-60Hz
  • T2A/250V
  • 83W Max Power Consumption
• THERMAL
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled
• APPROVALS / RATINGS
  • CE | cETLus | FCC | IP65
• Specifications and documentation subject to change without notice.
