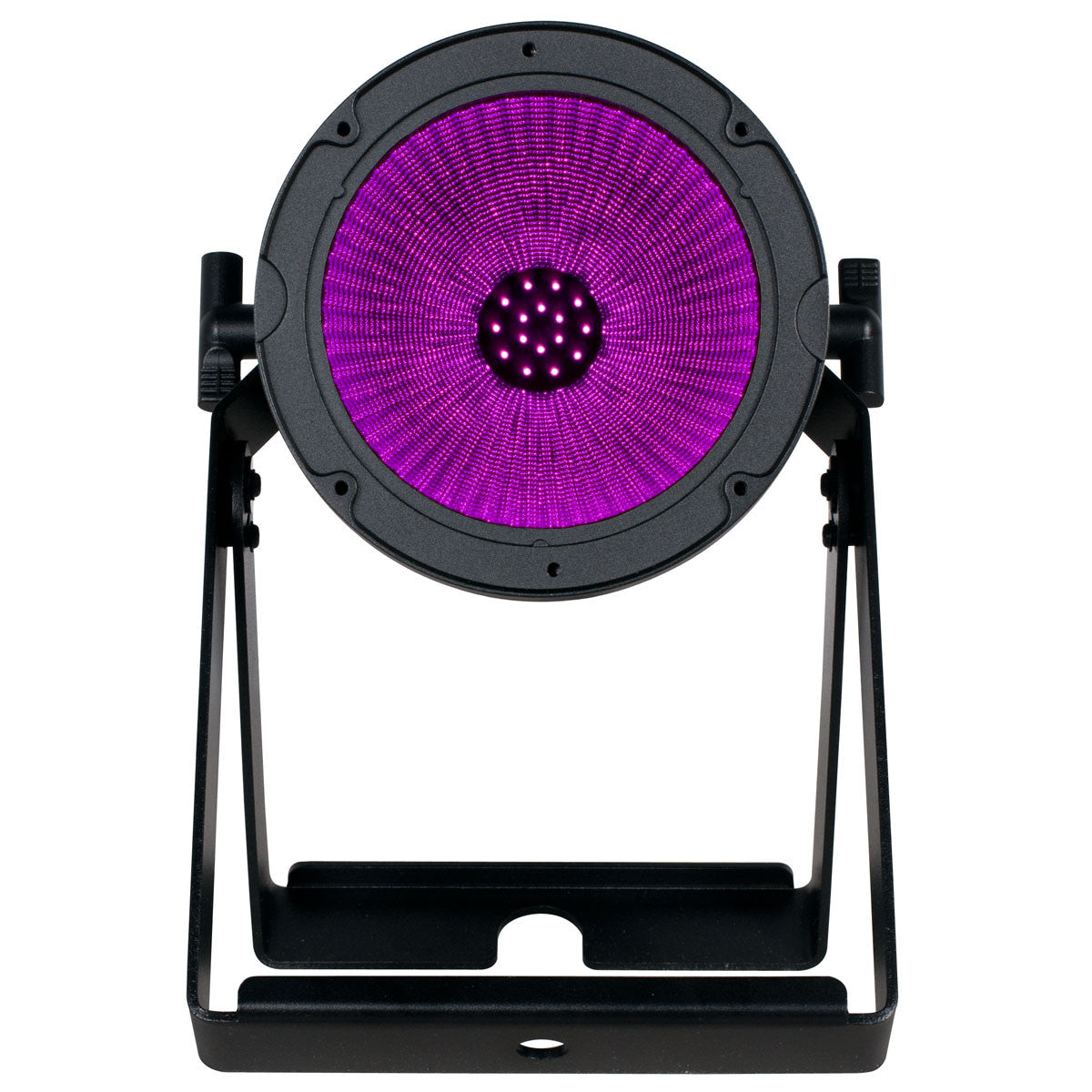

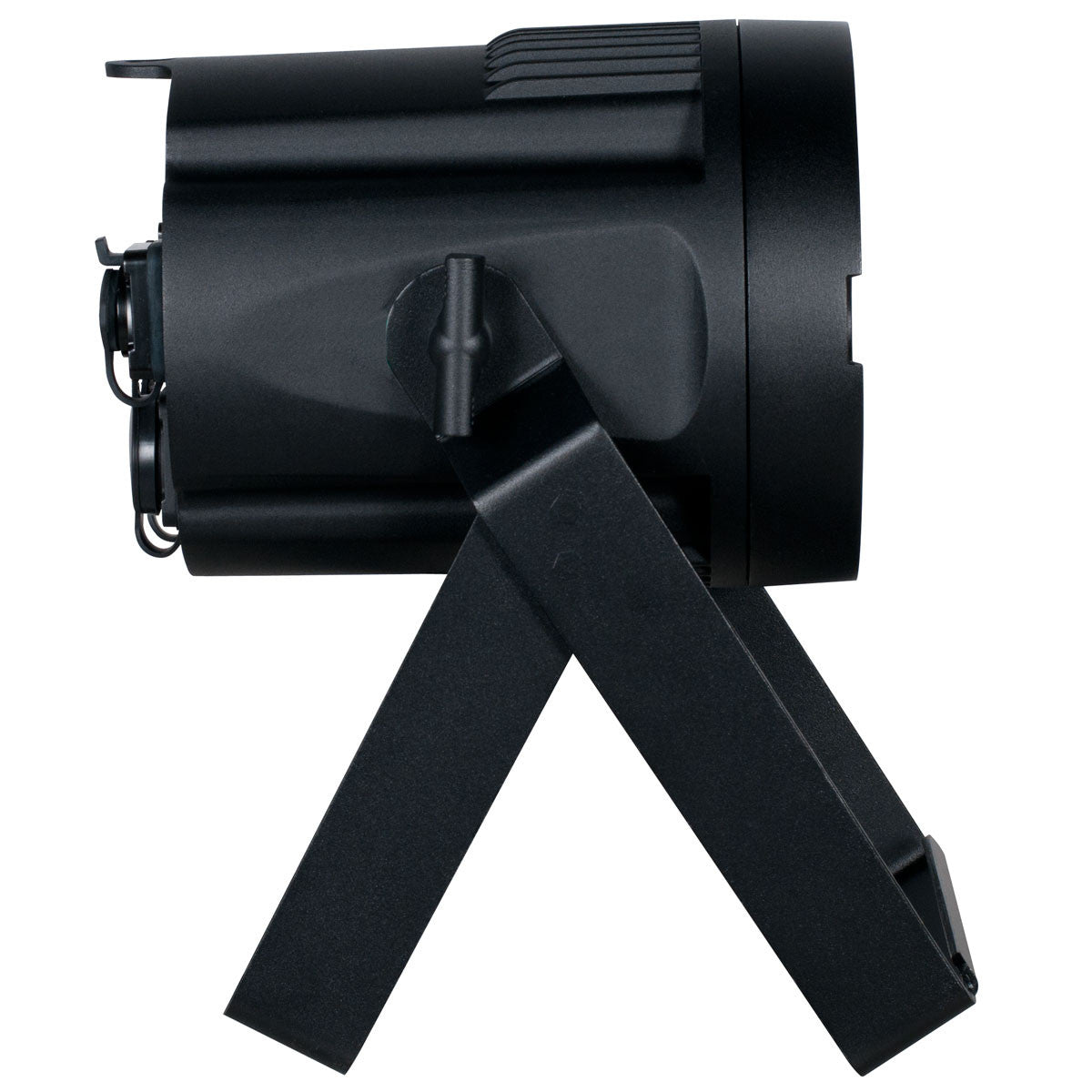

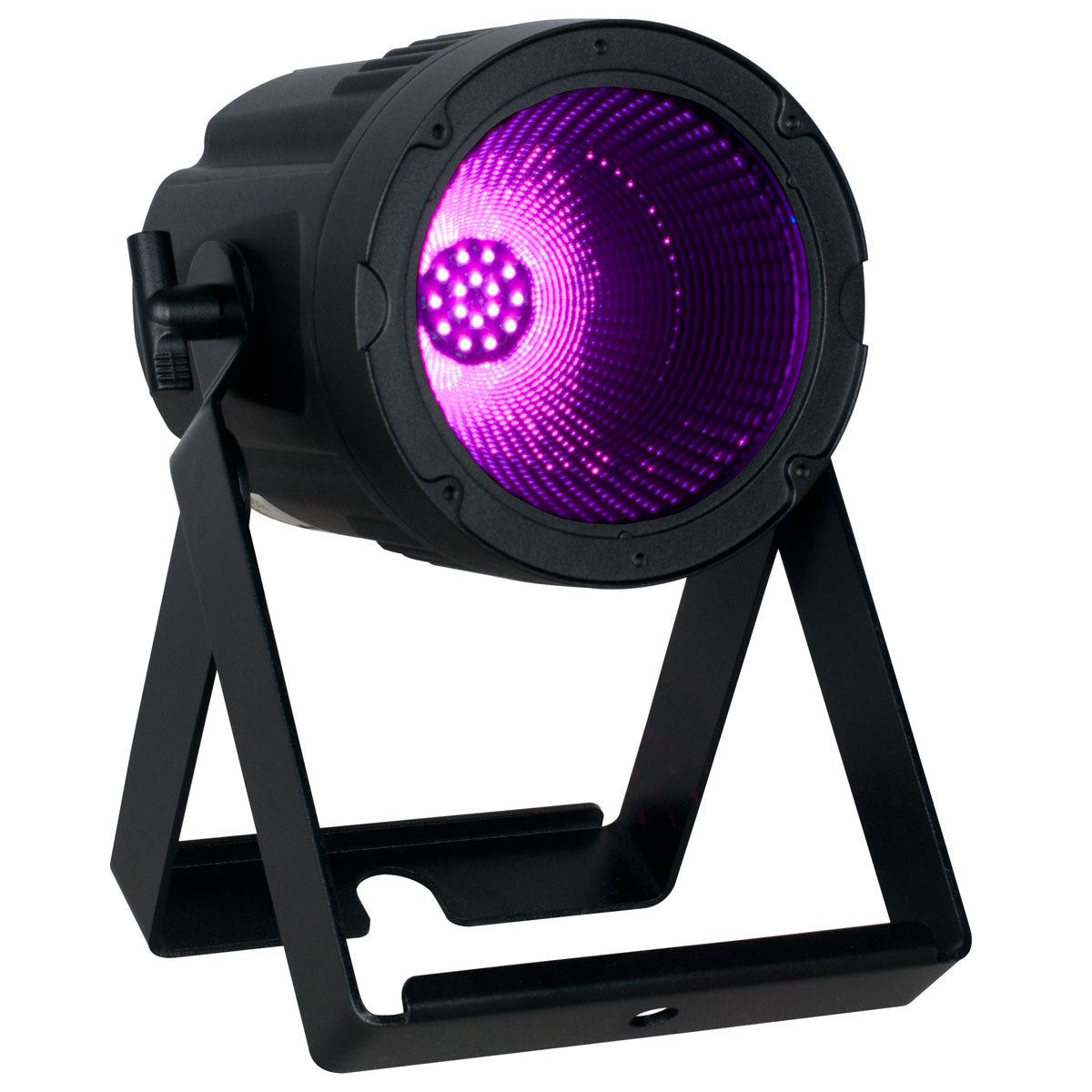

Elation Prisma Par 50 Prisma Par 50;16X2W 50° lens UV LED IP65

Elation Prisma Par 50 Prisma Par 50;16X2W 50° lens UV LED IP65

Features

• IP65 Rated Exterior High-Power UV Wash Par Luminaire
• 50 Degree Wide Beam Angle
• 365nm Peak True UV Wavelength
• Zero Visible Light Output

Specifications

• SOURCE
  • (16) 2W High Power UV Diode LEDs
  • 20,000 Hour Average LED Life*

• _{*Test lab conditions. May vary depending on several factors including but not limited to:}

  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



• PHOTOMETRIC DATA
  • 50 Degree Wide Beam Angle
  • 365nm True UV Peak Wavelength
• EFFECTS
  • High Speed Electronic Strobe
  • Variable Dimming Curve Modes
• CONSTRUCTION
  • Rugged IP65 Rated Aluminum Housing
  • Dual Adjustable Mounting Yokes
• CONTROL
  • Multiple DMX Channel Modes
  • Onboard 4 Button Touch Control Panel
  • DMX-512 and RDM Protocol Support

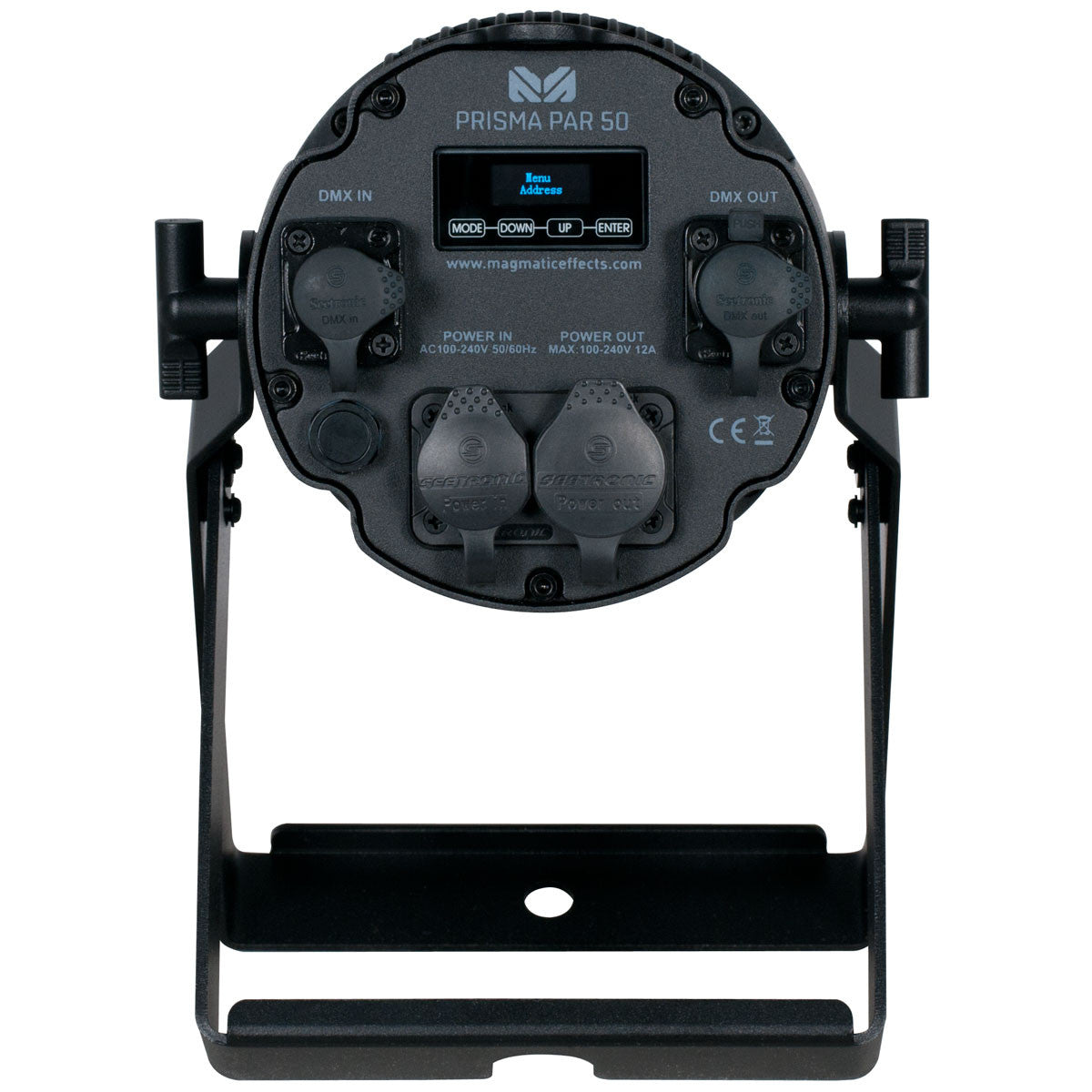

• CONNECTIONS
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network
• ELECTRICAL
  • AC100-240V 50-60Hz
  • 83W Max Power Consumption
• THERMAL
  • 14°F to 113°F (-10°C to 45°C)
  • Air Cooled
• OPTIONAL ACCESSORIES

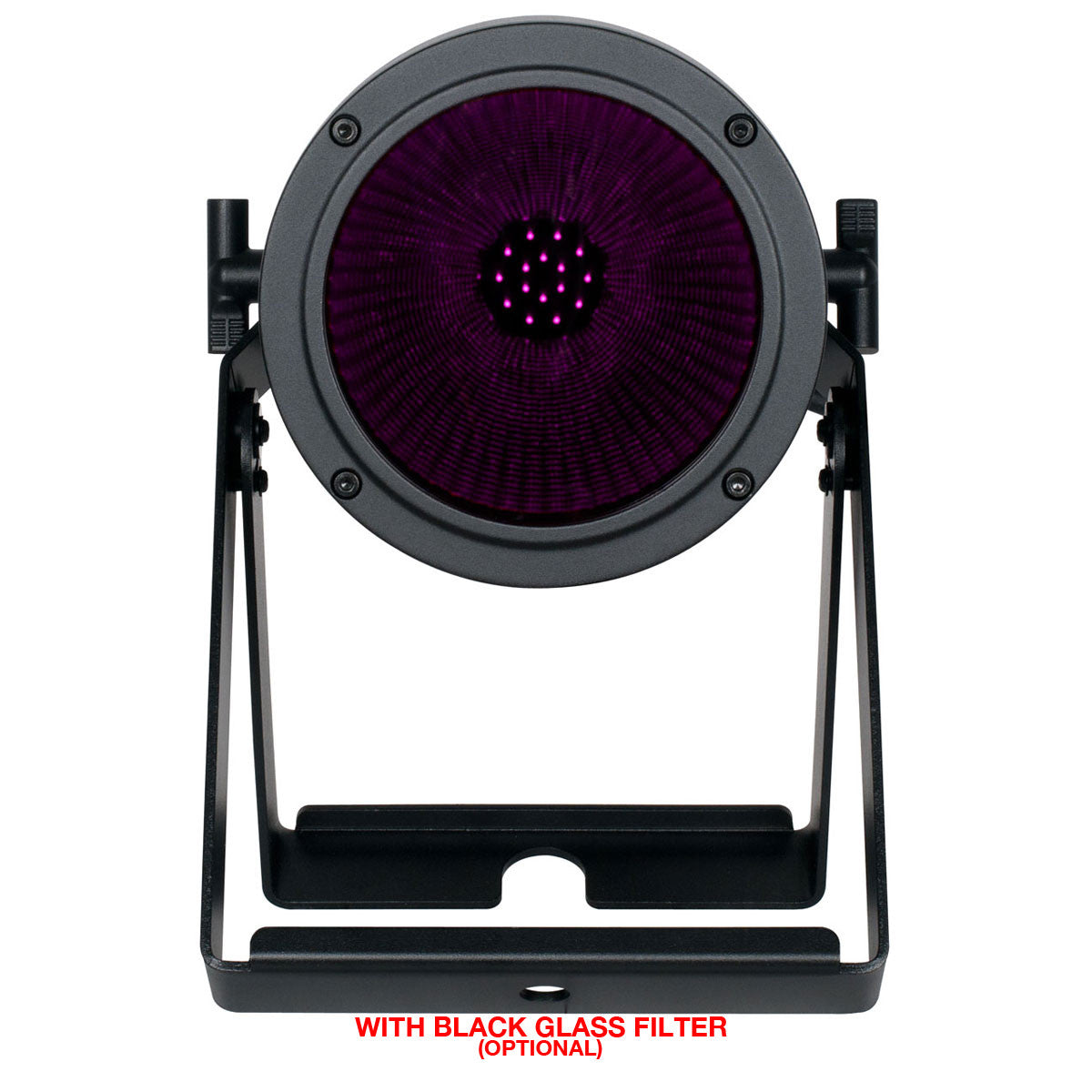

  • Prisma Par Black Glass (PSG852)
• SIZE / WEIGHT
  • Length: 7.55 in. (192mm)
  • Width: 5.90 in. (150mm)
  • Vertical Height: 12.37 in. (314.3mm)
  • Weight: 7.05 lbs. (3.2kg)
• APPROVALS / RATINGS
  • CE | cETLus | IP65
• Specifications and documentation subject to change without notice.
