Description

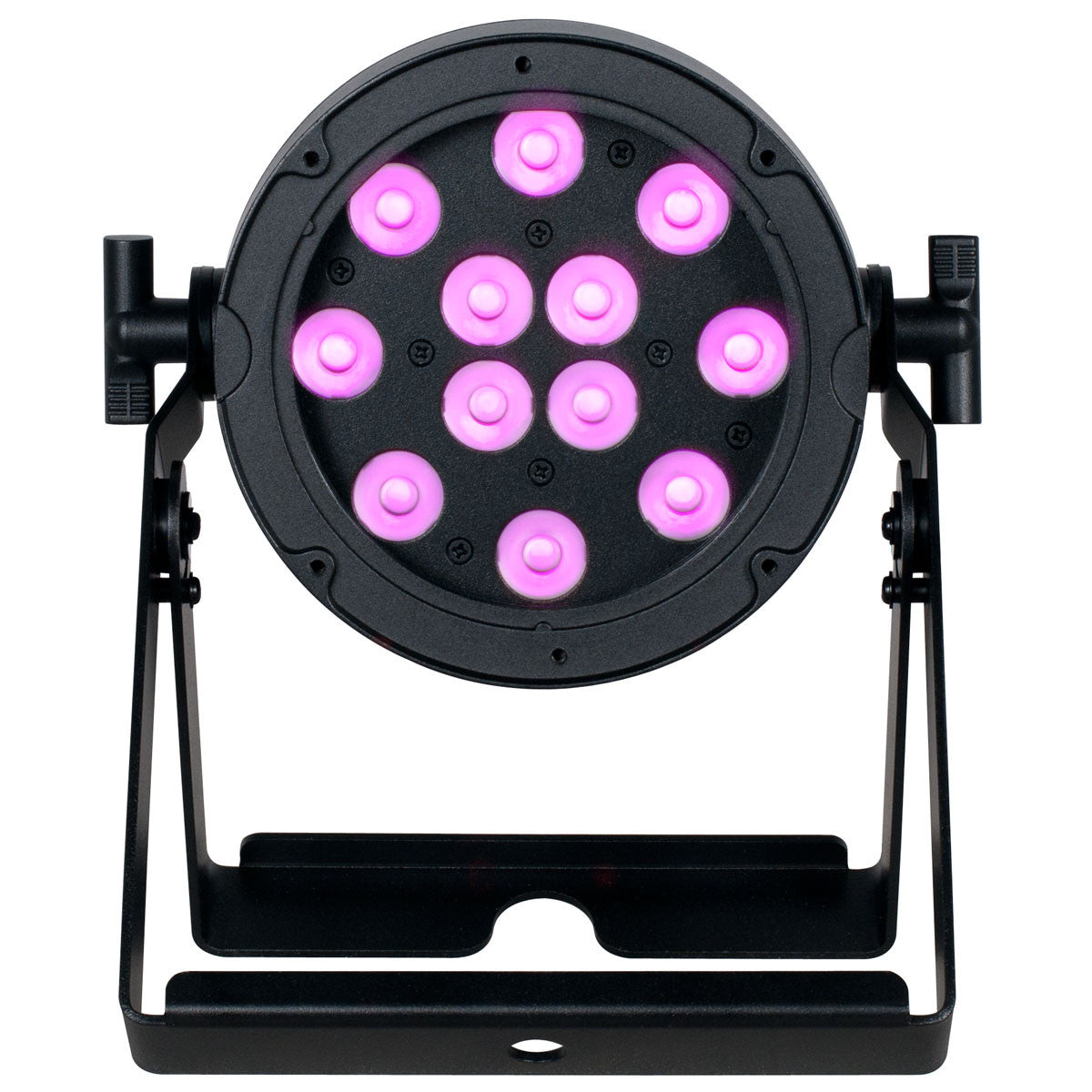

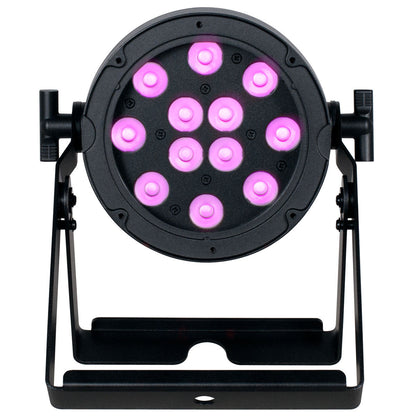

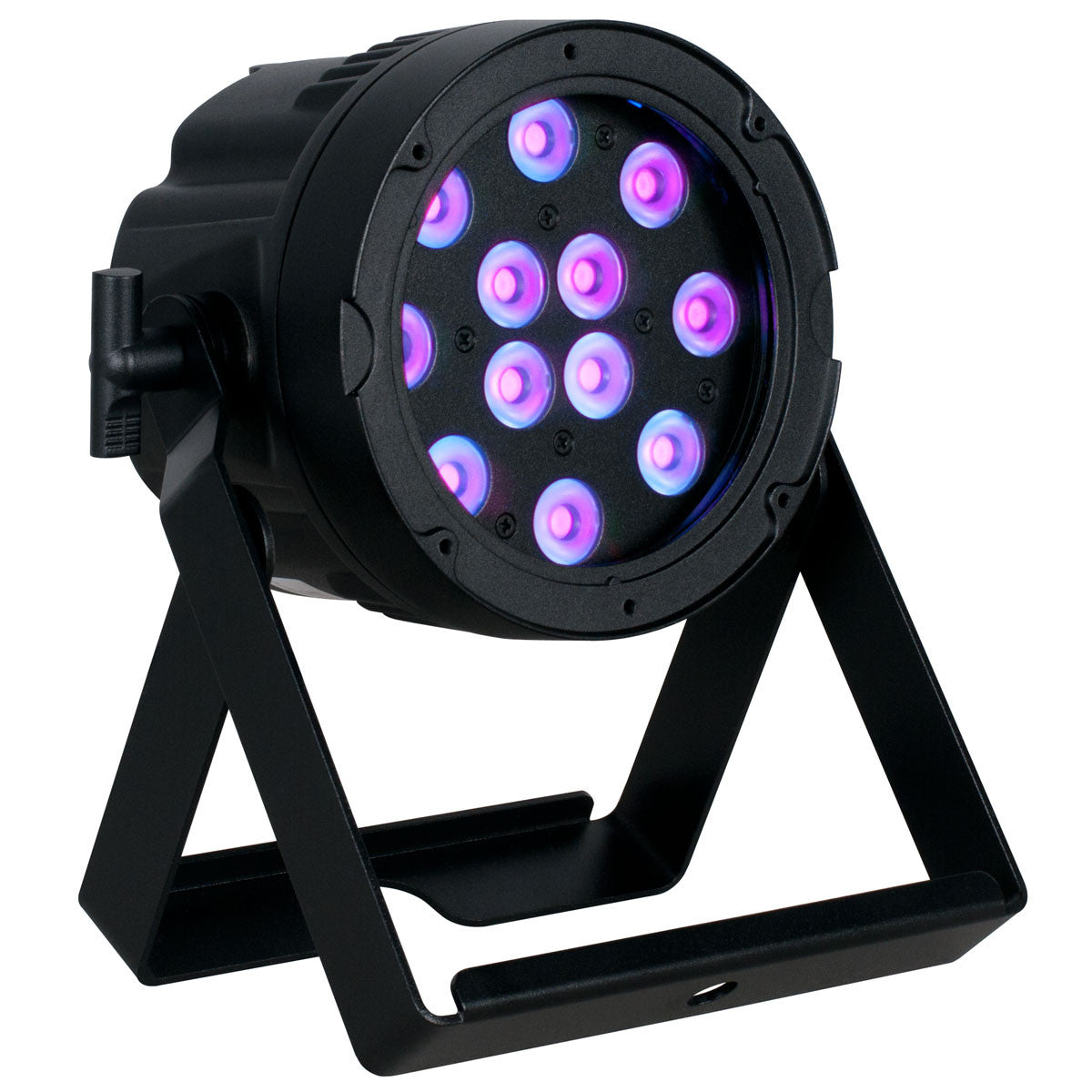

Elation Prisma Par 20 Prisma Par 20; 12X2W 20° lens UV LED IP6
PRISMA PAR 20™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light. Features include a 20 degree narrow beam angle, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, IP65 DMX 5pin XLR and locking power in/out connections.
Features
- IP65 Rated Exterior High-Power UV Wash Par Luminaire
- 20 Degree Narrow Beam Angle
- 365nm Peak True UV Wavelength
- Zero Visible Light Output
Specifications
-
SOURCE
- (12) 2W High Power UV Diode LEDs
- 20,000 Hour Average LED Life*
-
*Test lab conditions. May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
-
PHOTOMETRIC DATA
- 20 Degree Narrow Beam Angle
- 365nm True UV Peak Wavelength
-
EFFECTS
- High Speed Electronic Strobe
- Variable Dimming Curve Modes
-
CONSTRUCTION
- Rugged IP65 Rated Housing

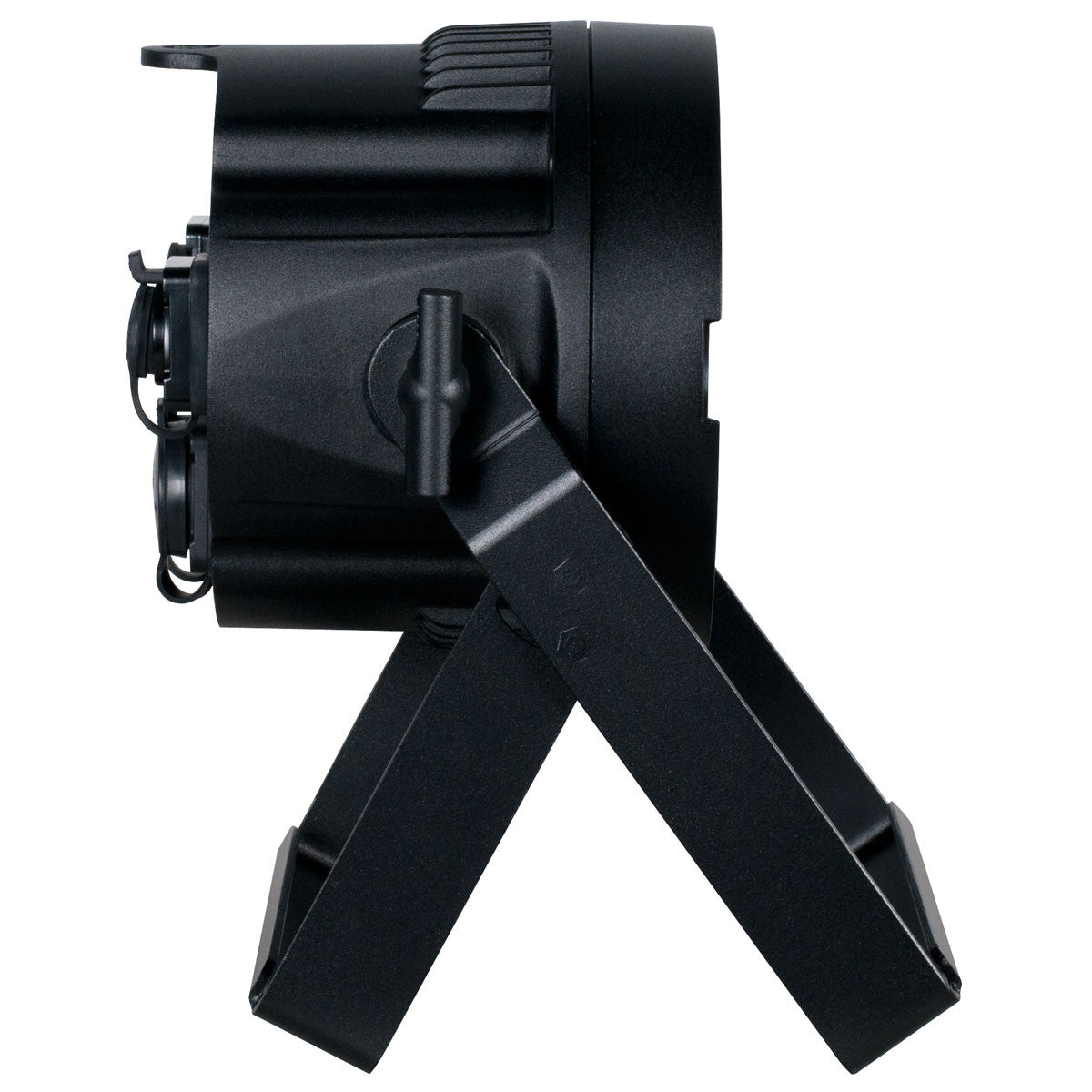

- Dual Adjustable Mounting Yokes
-
CONTROL
- Multiple DMX Channel Modes
- Onboard 4 Button Touch Control Panel
- DMX-512 and RDM Protocol Support
-

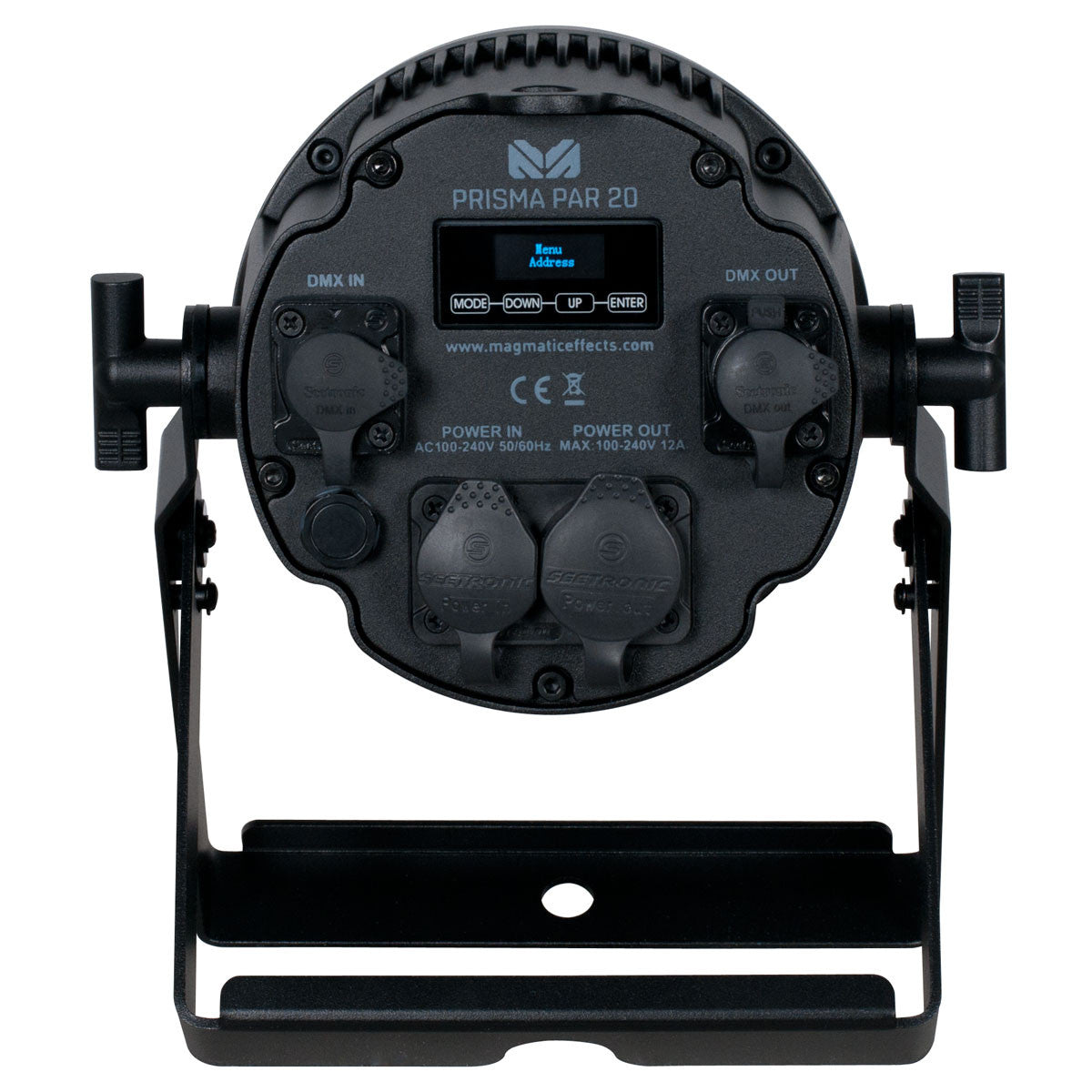

CONNECTIONS
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In
- With Wired Digital Communication Network
-
SIZE / WEIGHT
- Length: 8.58 in. (218mm)
- Width: 5.90 in. (150.6mm)
- Vertical Height: 9.72 in. (246.6mm)
- Weight: 5.29 lbs. (2.40kg)
-
ELECTRICAL
- AC100-240V 50-60Hz
- 27W Max Power Consumption
-
THERMAL
- 14°F to 113°F (-10°C to 45°C)
- Air Cooled
-
APPROVALS / RATINGS
- Specifications and documentation subject to change without notice.
